SENECA

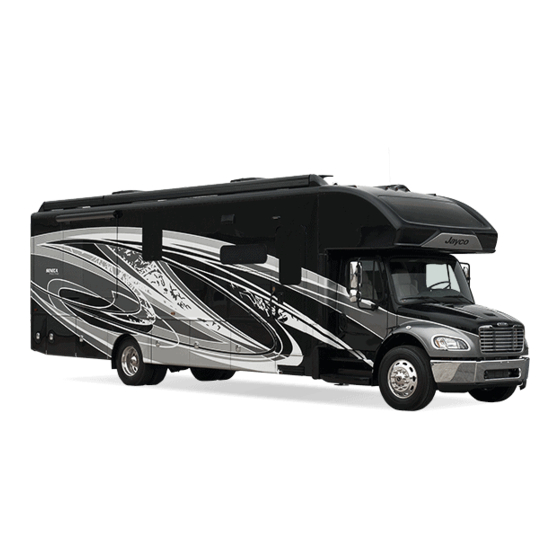

2023 OWNER'S MANUAL
A subsidiary of Thor Industries, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SENECA 2023 and is the answer not in the manual?

Questions and answers

Related Manuals for Jayco SENECA 2023

Summary of Contents for Jayco SENECA 2023

  • Page 1 SENECA 2023 OWNER’S MANUAL A subsidiary of Thor Industries, Inc.

  • Page 3: Table Of Contents

    Suggestions For Obtaining Service Obtaining Service At Our Customer Service Facility Obtaining Service For Separately Warranted Items Parts and Accessories Aftermarket Accessories 2023 Jayco Motorized Limited Warranty Section 2: Occupant Safety Secondary Means of Escape (Exit Window) Fire Safety Fire Extinguisher...
  • Page 4 Table of Contents Section 5: Slideout Systems Electric Slide Room(s) (if so equipped) Section 6: Electrical System The Electrical System Command Center Vegatouch System Testing The Campsite Power Connection Inverter 12-volt DC System Batteries Load Center Automatic Transfer Switch (ATS) 120-Volt Circuit Breakers Approximate Electrical Load Ratings 120-Volt 50 AMP AC Electric System...
  • Page 5 Table of Contents Section 11: Electronics Satellite Dish (if so equipped) Winegard Connect 2.0 Exterior Entertainment Center Section 12: Interior Cleaning The Interior Sofa and Dinette Pantry or Hutch (if so equipped) Countertops Flooring Ceiling Fabric Privacy Drape Installation Bed Storage Bunk Beds and Bunk Ladders (if so equipped) Cab-Over Bunk Bed Section 13: Exterior...
  • Page 6 WARNING: Read all instructions in this manual and component man- ufacturer supplied information before using your RV. This manual has been provided by your recreational vehicle manufacturer for the sole pur- pose of providing instructions concerning the operation and maintenance of this recreational vehicle.

  • Page 7: Section 1: Warranty & Service

    Commercial use means using the recreation vehicle as a business asset such as a mobile office or using the recreation vehicle for lease or rental purposes. Jayco reserves the right to discontinue or change specifications or design at any time without notice and without incurring any obligation whatsoever. Recreation vehicles built for sale in Canada may differ to conform to Canadian Codes.
  • Page 8 (or any effect of the alterations) to any of the parts, components, systems or assemblies installed by Jayco. Jayco is not responsible for the safety or quality of design features, materials or workmanship of any alterations by such suppliers.
  • Page 9 Section 1: Warranty & Service Failure to contact Jayco Customer Service, unauthorized or improper warranty re- pairs, or failure to return requested original parts may result in loss of reimbursements and/or loss of warranty. To Contact Us Mailing address Shipping address Jayco, Inc.

  • Page 10: About This Manual

    Section 1: Warranty & Service About This Manual This manual is a guide to operation of the features, equipment and controls in your rec- reation vehicle. If you find components vary significantly from what is described, please contact your dealer to ensure you have the correct information. Nothing in this manual creates any warranty, either expressed or implied, nor does it cover every possible detail of equipment, standard or option, installed on or in your recreation vehicle.

  • Page 11: Reporting Safety Defects

    Section 1: Warranty & Service ™ NOTE: Gives helpful information This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. Indicates a potential situation that,if not avoided, may result in property dam- age or damage to your motorhome.

  • Page 12: Customer Responsibility

    Section 1: Warranty & Service In Canada: If you believe your vehicle has an alleged safety defect, you should contact Transport Canada and our Customer Service Department immediately. To file a safety concern, you can complete an on-line form at https://tc.canada.ca/en/road- transportation/defects-recalls-vehicles-tires-child-car-seats/report-potential-safety-defect- vehicles-tires-child-car-seats, or call to speak with a defect investigator.

  • Page 13: Obtaining Service At Our Customer Service Facility

    Section 1: Warranty & Service Contact your dealer at once Do not wait until you are ready to use your RV. Your dealer may not be able to service it im- mediately and/or the repair may require parts be ordered. The dealer’s service department is busiest on Mondays, Fridays and before holidays.

  • Page 14: Obtaining Service For Separately Warranted Items

    Section 1: Warranty & Service Obtaining Service For Separately Warranted Items Your selling dealer is responsible for servicing your recreation vehicle before delivery, and has an interest in your continued satisfaction. We recommend your dealer perform all inspection, warranty and maintenance services. Some dealers may be authorized service centers for those OEMs whose products are warranted separately and excluded from the Limited Warranty.

  • Page 15: 2023 Jayco Motorized Limited Warranty

    HOME IS TITLED OR REGISTERED IN A BUSINESS NAME OR WHEN THE JAYCO IS SOLD IN CANADA. There is no warranty of any nature made by Jayco beyond that contained in this Limited Warranty. No person has authority to enlarge, amend or modify this Limited Warranty. The dealer is NOT Jayco’s agent.
  • Page 16 Jayco reserves the right to make changes in the design or material of its prod- ucts without incurring any obligation to incorporate such changes in any product previously manufactured.
  • Page 17 (1) you notify Jayco or an authorized dealer within 10 days of your discovery of a defect; AND (2) you deliver the Motor home to Jayco OR an authorized dealership at your cost and expense.
  • Page 18 The written warranty provided by the manufacturer of the component part is the direct and exclusive responsibility of that manufacturer). EVENTS DISCHARGING JAYCO FROM OBLIGATION UNDER WARRANTY: • Any rental, business or commercial use or purchase of the Motor home;...
  • Page 19 Jayco, your Warranty will be registered. The failure to submit this warranty registration to Jayco will not affect your rights under this limited warranty as long as you can present proof of purchase, however, it can cause delays in obtaining the remedies offered by this limited warranty, and it may adversely affect any servicing facility’s ability...
  • Page 20 Section 1: Warranty & Service ™ Notes: Table of Contents...

  • Page 21: Secondary Means Of Escape (Exit Window)

    Section 2: Occupant Safety Secondary Means of Escape (Exit Window) Your recreation vehicle has been equipped with a window(s) that serves as a secondary means of escape. The window(s) will allow a quick exit from the vehicle during an emer- gency if access to the main entrance door is not available.

  • Page 22: Fire Safety

    Section 2: Occupant Safety Lever style latch Remove the screen by pulling the red tab (upper right arrow). Pull the lever out from the sash clamps. Swing the lever out so it is positioned straight out from the window. Push the lever (and window) out to open and exit the vehicle.

  • Page 23: Smoke Alarm

    Section 2: Occupant Safety Do not check the pressure, test or practice using the fire extinguisher by squeezing the trigger, even briefly. The fire extinguisher is not rechargeable or refillable. Once used, it will gradually lose pressure and will not be fully charged for use in an emergency.
  • Page 24 Section 2: Occupant Safety Do not cover or obstruct the carbon monoxide/propane alarm with any- thing that could prevent gas from entering the alarm. This alarm is not designed to detect smoke, fire or gases other than car- bon monoxide and propane. The carbon monoxide detector installed is intended for use in ordinary indoor locations of recreation vehicles.

  • Page 25: Formaldehyde

    Section 2: Occupant Safety (but not limited to): acetone, alcohol, butane and gasoline. These chemicals can be found in commonly used items such as deodorants, colognes, per- fumes, adhesives, lacquer, kerosene, glues, wine, liquor, most cleaning agents and the pro- pellants of aerosol cans.

  • Page 26: Extended Or Full Time Usage

    Section 2: Occupant Safety To aid in dissipation, ventilate the recreation vehicle by opening all windows and circulate the air with a fan. This label is located inside the vehicle near the entry door. The label should be left permanently affixed to the recreation vehicle.

  • Page 27: Section 3: Pre-Travel Information

    Section 3: Pre-Travel Information Vehicle Labels Decals and data plates used throughout the motor home aid in its safe and efficient operation; others give service instructions. Read all decals, data and instruction plates before operat- ing your recreation vehicle. Any decal, data or instruction plate painted over, damaged or removed should be replaced.
  • Page 28 Section 3: Pre-Travel Information OCCC Label (Occupant and Cargo Carrying Capacity): The upper portion of this yellow label is federally required and indicates the total combined weight value of occupants and cargo that may be placed in or on your motor home as it was manufac- tured and weighed before leaving the factory.

  • Page 29: Loading Your Motor Home

    Section 3: Pre-Travel Information Loading Your Motor Home Never load the motor home in excess of the GVWR or the GAWR for either axle. Overloading your motor home may result in adverse han- dling characteristics and damage to the chassis. DO NOT EXCEED YOUR GVWR! This means you should weigh your vehicle as loaded for your normal travel to determine the actual weight.

  • Page 30: Weighing Your Motor Home

    Section 3: Pre-Travel Information White Ground Blue Electric Brakes Green Running lights Black House batteries charge line Stop & left turn Brown Stop & right turn Yellow Back up Lights The connector plug may build up corrosion with extended use. It should be cleaned peri- odically to insure good electrical contact.
  • Page 31 Section 3: Pre-Travel Information Dump the gray and black water holding tanks before traveling to avoid carry- ing unnecessary weight. Full tanks can affect your fuel consumption, and de- pending on tank location, can affect your vehicle handling characteristics. If you cannot immediately empty your holding tanks, reduce your vehicle speed until you reach a dumping station.
  • Page 32 Section 3: Pre-Travel Information ™ Notes: Table of Contents...

  • Page 33: Section 4: Vehicle Operation

    Section 4: Vehicle Operation Vehicle Operation Your motor home will travel safely and comfortably at highway speed limits. However, it will take longer than a passenger automobile to reach that speed. Allow more time to go around the vehicle you are passing. Avoid situations that might require sudden momentum changes as the length of the motor home affects your ability to quickly cut back into traf- fic.

  • Page 34: Towing Behind Your Motor Home

    Section 4: Vehicle Operation Towing Behind Your Motor Home Do not install a frame equalizing type hitch on your motor home. Towing will affect vehicle handling, durability and fuel economy. Exceeding any of the listed weight ratings will result in unacceptable overall vehicle performance. Your safety and satisfaction require proper use of correct equipment.

  • Page 35: Power Entrance Step

    Section 4: Vehicle Operation Contact your dealer for assistance in determining whether a separate braking system is rec- ommended for your towing and traveling safety. Failure to follow these instructions will create a safety hazard and may result in an accident. Maintenance Keep the hitch clean along with your general frame maintenance.

  • Page 36: Driver And Passenger Seat

    Section 4: Vehicle Operation Driver and Passenger Seat Do not adjust the seat while driving. After adjusting the seat, make sure that it is locked in position. To ensure that the seat is locked securely, try to move the seat forward or backward without using the adjusting lever or button.

  • Page 37: Child Safety Restraint Systems

    Section 4: Vehicle Operation Always use seat belts. In an accident, injury to the driver and passengers may be reduced if seat belts are properly used. If your motor home is equipped with a booth dinette, hide-a-bed sofa, or easy bed sofa they will have two-point lap-seat belts installed. Seat belts should be used in all seating positions.

  • Page 38: Vehicle Dash

    Section 4: Vehicle Operation Booth Dinette (if equipped) The dinette table should be lowered and secured with the safety strap when- ever adding a child safety seat to the dinette seat. Failure to follow these guidelines can result in serious injury or death. If your child requires a child safety restraint system (seat), it can be installed in the forward or rear facing booth dinette according to the instructions of the safety seat manufacturer.

  • Page 39: Outside Rearview Mirrors

    Section 4: Vehicle Operation Outside Rearview Mirrors Adjust the outside rearview mirrors before driving. After adjusting the front driver’s seat, adjust the outside rearview mirrors to your driving preference. Have someone help you adjust the mirrors in the desired direction for maximum rear visibility before driving.

  • Page 40: Campsite Hook-Up

    Section 4: Vehicle Operation Camera/monitor system aids in the use of, but does not replace ve- hicle side/rear-view mirrors. Objects in camera/monitor view are closer than they appear. When backing up, proceed cautiously and be prepared to stop. Campsite Hook-Up Refer to Electrical Systems section before connecting the shore line power cord (when using full hook-up) OR before starting the generator or operating the ve- hicle on 12-volt power when dry camping.
  • Page 41 Section 4: Vehicle Operation For detailed operating and safety information, refer to the manufacturer’s user guide. Leveling your motor home is important for the following reasons The water drainage systems are designed with proper slope and must be level for proper operation.
  • Page 42 Section 4: Vehicle Operation completed, the keypad will signal a successful level with a dual-level tone. The keypad may be left on once level has been achieved. The keypad will enter “sleep mode” after five minutes of inactivity. Retracting the Jacks: The Equalizer System provides the ability to retract the jacks using the ALL RETRACT button or the UP button for each individual jack.

  • Page 43: Lippert Level Up® Motor Home Leveling System (If So Equipped)

    Section 4: Vehicle Operation Helpful Hints Your leveling system is a microprocessor-controlled system. Proper and adequate battery voltage and permanent chassis ground are essential. Your system may be equipped with a manual override option. Refer to the proce- dure for proper operation of this option. It is better to review this procedure prior to its actual use.
  • Page 44 Section 4: Vehicle Operation The following is an overview of the system to be used as a quick reference. For detailed op- erating and safety instructions, refer to the manufacturer’s owner’s manual. Depend- ing on your model, the system may vary slightly from the following instructions. Familiar- ize yourself with the operating and safety instructions prior to using the leveling system.
  • Page 45 Section 4: Vehicle Operation POWER BUTTON: turns leveling system on and off Auto Level Sequence ™ NOTE: Zero Point Calibration MUST be set before starting the Auto Level sequence. Begin with a manual leveling sequence to get the vehicle to the desired level point Activate the Level Zero point configuration mode as follows: ○...
  • Page 46 Section 4: Vehicle Operation Low Voltage Signal The vehicle requires 12.7V DC to operate in the AUTO mode. If voltage is too low, screen displays LOW VOLTAGE. If voltage drops below 12.7V DC, the system will only operate in MANUAL MODE and continues to display LOW VOLTAGE. Minimum Voltage –...
  • Page 47 Section 4: Vehicle Operation Jack Retract Procedures Press the power button to energize the system. LCD screen will display JACKS DOWN. Press DOWN ARROW to display AUTO RETRACT on the screen. Press ENTER to begin automatically retracting the jacks. ™ NOTE: To stop retracting the jacks, turn the system off and back on again by pressing the power button twice.

  • Page 48: Emergency Stopping

    Section 4: Vehicle Operation For prolonged travel to a service center, be sure to stop and check the disposition of the leveling jacks every so often to make sure they are not extending. Recommended Fluid The leveling system is pre-filled and primed to operate direct from the manufacturer. Type “A”...

  • Page 49: Wheel Lug Nuts/Wheel Liners

    Section 4: Vehicle Operation We recommend you have the front suspension and steering alignment checked and adjusted after you have fully loaded the vehicle as part of the vehicle maintenance. Thereafter, it is your responsibility to have the alignment inspected periodically to maintain vehicle steering performance and prevent uneven tire wear as part of your normal maintenance.

  • Page 50: Tires

    Section 4: Vehicle Operation along with adjacent bolts that have probably also been weakened due to the additional stress placed on them. Aluminum Wheels (if so equipped) Clean the aluminum wheels with a cleaner that is designed for use on aluminum and apply an appropriate protection agent.

  • Page 51: Changing A Tire

    Section 4: Vehicle Operation Tire pressure Failure to follow proper inflation guidelines may result in tire failure, which, under certain circumstances can cause loss of vehicle control or accidents that may result in property damage, bodily injury and/or death. You must follow the manufacturer’s inflation guidelines for maximum load capacity; under-inflation is just as dangerous as over-inflation.

  • Page 52: Awnings

    Section 4: Vehicle Operation If you experience a flat tire on your motor home while driving, gradually decrease your vehicle speed (if possible), and move the motor home to a safe place on the side of the road. Contact your road service provider (if applicable) or a qualified service facility for assis- tance.
  • Page 53 Section 4: Vehicle Operation Apply silicone spray lubricant as needed to the moving parts on the fabric roller tube assembly. Lubricate all pins and sliding surfaces of the arm assemblies with silicone spray, as needed. Do not use abrasive or corrosive cleaners, mildew removers, or hard bristle brush- es on the awning fabric.
  • Page 54 Section 4: Vehicle Operation ™ Notes: Table of Contents...

  • Page 55: Electric Slide Room(S) (If So Equipped)

    Section 5: Slideout Systems Electric Slide Room(s) (if so equipped) The mechanical components of the slide out are gear driven. Electric powered slideout room systems have a manual override to allow you to extend or retract the slideout room(s) in case of a power loss.
  • Page 56 Section 5: Slideout Systems sure the slideout has extended properly and has adequate clearance from any outside obstructions. If the slideout is equipped with rubber seals, verify that the corners of the black rubber seal are set up correctly. The seal corners are cut at a 45°...
  • Page 57 Section 5: Slideout Systems Error Codes: When an error code occurs during operation, the board LEDs lights will in- dicate where the problem is. For motor specific faults the green LED will blink (1) time for motor #1 and (2) times for motor #2. The red LED will blink 2 to 9 times depending on the error code.
  • Page 58 Section 5: Slideout Systems Using either a wall or command center panel switch, press and hold the switch toward the word IN or RETRACT until the unit comes in completely. This will allow you to get the recreation vehicle to a service center to have the slideout malfunction diagnosed. Call your dealer or Customer Service if: During the override procedure the motors are not synchronized.
  • Page 59 Section 5: Slideout Systems The room must be travel locked to keep the room in place for road travel. DO NOT MOVE THE RV UNLESS THE MOTORS ARE PLUGGED IN TO THE CONTROLLER AND THERE IS BATTERY POWER TO THE RV.
  • Page 60 Section 5: Slideout Systems Locate the slideout motor (Fig. 1) mounted to one of the slideout rails. Some models may require removal of the underbelly or cover to access the motor. In a bedroom slideout, it may be located under the bed. Rotate the brake lever, on the backside of the motor, counter-clockwise (looking from the rear of the motor) about 1/8 of a turn to the released position.
  • Page 61 Section 5: Slideout Systems Remove (4) screws holding the panel to the top of the compartment. Remove the cover. Unplug the motor leads at the connector. Gray connec- tor with red and black wires. To release the motor brake you must depress the spring lock lever, which then allows you to pivot the brake le- ver, which in turn releases the brake.
  • Page 62 Section 5: Slideout Systems ™ Notes: Table of Contents...

  • Page 63: The Electrical System

    Section 6: Electrical System The Electrical System The RV electrical system is comprised of two independent electrical systems. One operates off of 12-volt DC power and the other off of 120-volt 60hz AC power. All installations have been made in compliance with industry standards applicable on the date of manufacture. Because the electrical equipment and associated circuitry are engineered into a dedicated system specific to your RV, do not make unauthorized changes or add fixed appliances to it.

  • Page 64: Vegatouch System

    Section 6: Electrical System Awning control switches (press and hold to extend / retract) Systems monitor with LED indicators for tank levels and battery charge status Auto leveling control panel (for leveling the RV) Inverter panel (power switch with display) Power bunk bed lift control switch Speaker selector switch Touch Dimmer Switch...
  • Page 65 Section 6: Electrical System Do not hook the power cord to any receptacle until you have verified proper polarity and grounding. DO NOT plug the shore power cord into a campsite receptacle(s): That has reverse polarity That has non-functioning ground circuits That shows outward signs of heat damage.

  • Page 66: Inverter

    Section 6: Electrical System When you are ready to leave, reverse the power cord connection process. Use care to prevent damaging the power cord electrical connection pins when connecting or disconnecting the shore power cord. Grasp the plug to remove the power cord from the outlet; do not unplug it by pulling on the cord.

  • Page 67: 12-Volt Dc System

    Section 6: Electrical System Flashing red. Indicates a Warning condition and is accompanied by an error code and a sounding alarm. ™ NOTE: Remote display operates exactly the same as the display mounted to the inverter Maintenance There are no customer serviceable parts inside the inverter case and the manufacturer’s war- ranty will be void if the case has been removed.

  • Page 68: Batteries

    Section 6: Electrical System Keep the protective dust cap on the 12-volt DC outlet when not in use to pre- vent ingestion of foreign material and potential short circuit conditions. Batteries Do not store anything inside the battery compartment(s) or near the batteries that could touch the battery or battery cable terminals.
  • Page 69 Section 6: Electrical System ing) all electrically operated appliances and accessories must be used sparingly. During this period these appliances and accessories are being powered by the house auxiliary batteries directly, and/or indirectly through the inverter/charger. If excessive amounts of power are drawn from the house auxiliary batteries, either as small applied loads over an extended period of time or as high applied loads for a short period of time, they will become deeply discharged.

  • Page 70: Load Center

    Section 6: Electrical System Battery Isolation Manager Your motor home is equipped with a Battery Isolation Manager (BIM) that monitors the battery voltage of both the chassis and house batteries over long periods of time. If it senses a charging voltage it connects the two batteries together. If the charge system is overbur- dened, it isolates both batteries.

  • Page 71: 120-Volt Circuit Breakers

    Section 6: Electrical System but there is no real interruption of power. The ATS will disconnect from shore power completely if the power coming in is not high enough quality (i.e. either low/high voltage, or low/high frequency). When the generator is operating, it powers the inverter/charger which in turn functions as a multi-stage battery charger to charge the house auxiliary and chassis batteries.

  • Page 72: Approximate Electrical Load Ratings

    Section 6: Electrical System Approximate Electrical Load Ratings 12 VOLT SYSTEM Exterior Entertainment Center 5-7 AMPS 1.5 AMPS Furnace 12.0 AMPS Generator Start 95.0 AMPS* Illuminated Switch .125 AMP Inverter variable Leveling System 95.0 AMPS* LP Detector .125 AMP Light; LED 1.7 AMPS Light;...

  • Page 73: 120-Volt 50 Amp Ac Electric System

    Section 6: Electrical System 120-Volt 50 AMP AC Electric System The 50 AMP 120-volt 60hz AC electrical system can be powered by an outside 120/240-volt 60hz utility service like those commonly found in campgrounds or by 120/240-volt 60hz generator power. The entire system is designed to operate on 2 legs of 120-volt power at a maximum current flow of 50 amperes per leg.

  • Page 74: Generator

    Section 6: Electrical System The shore power cord is designed to continuously carry the 50 AMP current flow required to power each leg of the electrical system. It also creates a critical ground connection between the vehicle electrical system and the campground shore power receptacle. Always test the external power source (i.e., the campsite power receptacle or electrical box) with a ground monitor before connecting your power cord to it.

  • Page 75: Starting The Generator

    Section 6: Electrical System STOP the generator immediately if there is a fuel, exhaust or coolant leak. Have all leaks repaired prior to placing the generator back in service. Excessive usage can overheat and damage the generator starter motor. Do not engage the starter motor for more than 20 seconds at a time.

  • Page 76: Solar Panel

    Section 6: Electrical System For more information on generator operation and maintenance, refer to the manufacturer’s owner’s manual. Automatic Generator Start (AGS) Your motor home models is equipped with an Automatic Generator Start system (AGS). The controls are built into the touchscreen system. When enabled, the Automatic Generator Start system will automatically start and stop the generator according to operator or factory pre-selected parameters.

  • Page 77: Fuel Safety

    Section 7: Fuel & Propane System Fuel Safety Automotive fuels can cause serious injury or death if misused or mishandled. If you have further questions, consult your dealer or Customer Service for assistance. Always shut OFF the vehicle engine while refueling. Do not bring or store fuel or other flammable liquids inside the motor home as a fire or explosion may result.

  • Page 78: Exhaust Gas Fumes

    Section 7: Fuel & Propane System Exhaust Gas Fumes Avoid inhaling exhaust gases as they contain carbon monoxide, which is a potentially toxic gas that is colorless and odorless. If you are in a parked motor home with either the engine running or a generator running there is a potential for exhaust fumes to filter back into the motor home.
  • Page 79 Section 7: Fuel & Propane System Your motor home has been carefully tested at the factory and by your selling dealer for leakage. Travel vibrations can loosen fittings. Have the vehicle propane system checked at all connections soon after the purchase of your vehicle, and after the initial filling of the propane tanks.
  • Page 80 Section 7: Fuel & Propane System Servicing or Filling Always shut OFF the engine while refueling. Do not smoke and do not operate other ignition sources while refueling. When the propane container is disconnected from the main supply hose and the P.O.L. connection, install the P.O.L. plastic cap that is at- tached to the container.

  • Page 81: Propane Use And Safety

    Section 7: Fuel & Propane System Single stage regulator Some models are equipped with a single stage regulator. Two stage regulator The two-stage regulator has the only moving components in the propane system. Its sole function is to reduce the pressure from the propane containers to a safe and consistent low operating pressure.
  • Page 82 Section 7: Fuel & Propane System Never use an open flame to test for a propane leak. Do not check for leaks using products that contain ammonia or chlorine; these products can cause cracks to form on the metal tubing and brass fittings. Using the Propane System Use the following steps for propane operation: Close ALL burner valves, controls and pilot light valves.
  • Page 83 Section 7: Fuel & Propane System Ensure a supply of fresh air (Canada units only) Cooking / Comfort Heating Label Calculating Propane Gas Usage Most RV gas appliances are operated intermittently, and each has a different BTU rating. You will need to consider this when planning your propane supply and consumption. Unless there is heavy use of hot water, the water heater consumption of propane is minimal.
  • Page 84 Section 7: Fuel & Propane System ™ Notes: Table of Contents...

  • Page 85: Plumbing System

    Section 8: Plumbing System Plumbing System There are two different water systems in your recreation vehicle: The fresh water system consists of the fresh water holding tank, faucets and con- nections, water pump, water heater, tub/shower. On some models, it may also include the water purification system or outside shower assembly (if so equipped).

  • Page 86: Fresh Water System

    Section 8: Plumbing System The LEDs on the panel indicate the following: C= Charge at 12.7 volts G = Good at 12.1 volts F = Fair at 11.6 volts L = Low at 6.0 volts Tank monitors on the touch screen have a constant readout. There are no buttons to push.
  • Page 87 Section 8: Plumbing System DO NOT drink water deemed microbiologically unsafe or of unknown quality. Avoid traveling with full fresh, black or grey water holding tanks. The weight of holding tank contents in not calculated into the RV cargo car- rying capacity.
  • Page 88 Section 8: Plumbing System 12-volt Water Pump There must be sufficient 12-volt DC power to run the water pump when your recreation ve- hicle is not hooked up to city water. Once activated, the water pump (also known as the de- mand pump) will self-prime, and provide water.

  • Page 89: Draining The Fresh Water System

    Section 8: Plumbing System Filters should be replaced at the beginning of each camping season or if they have come into contact with contaminated water. When not in use, the water filter cartridge should be stored out of freezing temperatures. RV antifreeze will damage the water filter cartridge. Filter locations will vary by model.

  • Page 90: Uni-Dock Utility Center

    Section 8: Plumbing System Low point drains are installed at the lowest point of the water lines. A label is placed on the outside of the RV to indicate where the drains are located. The type of drain may vary by model.
  • Page 91 Section 8: Plumbing System Connect to city water to supply water to RV fixtures Winterize plumbing lines and fixtures Bypass the hot water heater when winterizing to avoid damage to the water heater Rinse the black tank to help control odors and prevent waste buildup Rinse off items outside the unit with hot/cold faucet Connect up to (3) coax lines with satellite, cable and auxiliary The city water connection inlet is located in the Uni-Dock utility center.
  • Page 92 Section 8: Plumbing System When water has reached the desired level, turn the pressurized water source OFF. DO NOT OVERFILL. Tank level can be viewed on the monitor panel inside the RV. Disconnect water source from the spigot/faucet first, then disconnect from the city wa- ter fill inlet on the utility center.
  • Page 93 Section 8: Plumbing System ™ NOTE: Fresh water tank sizes vary by model. Contact your dealer or Cus- tomer Service for your specific tank size. How to Sanitize Turn water heater power OFF (both electric and LP gas on standard storage water heater).
  • Page 94 Section 8: Plumbing System 12. After the recommended amount of sanitizing solution is in the tank make sure: The water tank is full of fresh water The cartridge water filter (if so equipped) is bypassed or the filter is removed from the full system canister water filter (if so equipped) Power to water heater is turned OFF (both electric and LP gas).
  • Page 95 Section 8: Plumbing System After draining the system: Water heater power should still be OFF (both electric and LP Gas on standard storage water heater). Single switch is inside the RV for the tankless water heater. Put the vinegar solution into the fresh water tank and set the valves to the SANITIZE setting.
  • Page 96 Section 8: Plumbing System ™ Appliances must be winterized. Refer to the manufacturer’s manual for pos- sible additional information or contact Customer Service for assistance. ™ NOTE: The water heater must be drained to prevent damage from freezing. Do not drain the water heater while it is hot or under pressure! The water heater MUST BE BYPASSED DURING THE WINTERIZATION PRO- CESS when introducing RV antifreeze into the plumbing system.
  • Page 97 Section 8: Plumbing System Open the hot water line faucets (kitchen/bath sinks, shower and outside shower (if equipped) until RV antifreeze begins to flow continuously. Close the hot water line faucets and repeat with the cold water line faucets (kitchen/ bath sinks, shower and outside shower).
  • Page 98 Section 8: Plumbing System Before applying air pressure to the utility center, 4 colored valves (WHITE, RED, GREEN, BLUE) MUST be set to 45° or damage may occur to the utility center. Never apply air pressure to the water system with any valves in the closed position.

  • Page 99: Water Heater - Tankless

    Section 8: Plumbing System 12. Attach a blowout plug to the City Water Inlet on the utility center panel (Fig 2). 13. Attach the air hose to the blowout plug. Set the compressor to 30 PSI. Set the four-col- or valves to 45° angle (Fig 2). Red, Blue, Green &...

  • Page 100: Outside Shower

    Section 8: Plumbing System For normal operation: Turn on the power. The panel will light and display the current temperature at the inlet of the unit. Press a temperature selection arrow (up or down) to see the current set temperature. Adjust the set temperature to your preference.

  • Page 101: Bathroom Tub / Shower

    Section 8: Plumbing System ™ NOTE: There may be air in the water plumbing lines which needs to be bled out before a steady stream of water comes from the faucet. Bathroom Tub / Shower Keep the water heater and holding tank capacities in mind when using the fresh water sys- tem.
  • Page 102 Section 8: Plumbing System passing a mechanical cleanout tool through the piping to open the drain. Passing a cleanout tool through the waterless valve may cause damage to the internal seal that may potentially allow sewer gases to escape into the RV interior. The waterless trap can be unscrewed from the water lines.

  • Page 103: Black /Gray Tank Drains And Macerator System

    Section 8: Plumbing System Never travel with full black or grey water holding tanks. Depending on the location of the tank(s) it can affect your tow vehicle handling characteristics. Before using the recreation vehicle, or after dumping the grey and black water holding tanks, always add the proper amount of deodorant to the black water tank to prevent odors and help break down holding tank contents (unless winterizing).
  • Page 104 Section 8: Plumbing System Empty the tanks one at a time. Empty the black tank first followed by the gray tank so waste water from the gray tank will help rinse solids or debris from the dump con- nector and flex hose. Electric system: To open the black or grey tank drain valve, press the corresponding tank drain (rocker) switch.

  • Page 105: Black Tank Flush

    Section 8: Plumbing System Macerator Emergency Cutoff The macerator system includes an emergency cutoff valve that stops the flow of waste through the flexible 1-1/2-inch macerator hose. The valve is at the back of the utility center (Fig A). The handle for the cutoff should be pulled UP for NORMAL operation.

  • Page 106: Toilet

    Section 8: Plumbing System Winterize the BLACK TANK FLUSH Black tank should be empty prior to winterizing. Rinse the black tank prior to blowing it out with air. Attach the 4” sewer hose to the dump connector under the RV. Open the waste gate valve for the black tank (under the RV).
  • Page 107 Section 8: Plumbing System It is important to prevent solid waste buildup. Follow the toilet manu- facturer’s recommended instructions each time after emptying the black water holding tank. To help prevent toilet blockage, always use RV grade single-ply toilet pa- per.
  • Page 108 Section 8: Plumbing System ™ Notes: Table of Contents...

  • Page 109: Climate Control System

    Section 9: Heating & Cooling Climate Control System All controls for the heating/cooling climate control system are incorporated into the touch screen system. For specific operating instructions for heating/cooling controls, refer to the- http://www.fireflyint. touch screen user guide included in your warranty packet or online at com.

  • Page 110: Fireplace (If So Equipped)

    Section 9: Heating & Cooling Ducting and Return Air All heat discharges, registers and return air grills must be free and clear of obstructions. This includes all closeable registers that are intended to reduce airflow, do not shut it off com- pletely.

  • Page 111: Cooking Safety

    Section 10: Appliances Cooking Safety In Case Of a Grease Fire Do not attempt to use water to put out the fire. Water can spread some types of fire, and electrocution is possible with an electrical fire. Grease is flammable. Never allow grease to collect around top burners or on the cook top surface.

  • Page 112: Microwave

    Section 10: Appliances Microwave To prevent damage, remove the turntable from the microwave when trav- eling. Make sure you are connected to a 120-volt power source. Never use the microwave cavity for storage. The microwave cavity should always be empty when not in use. For details on operation, cleaning and safety information, refer to the manufacturer’s user guide.

  • Page 113: Lp Gas Grill Hookup

    Section 10: Appliances LP Gas Grill Hookup Be sure to read, understand and follow all information supplied with your recreation vehicle concerning the use of propane before operating the BBQ grill. The propane hose must be correctly connected before lighting the grill.

  • Page 114: Range Hood

    Section 10: Appliances Range Hood Whenever the stove in the RV is being used, the range hood MUST be turned on, and the inner flap MUST be unsnapped and free to move. Failure to do so can create an asphyxiation hazard by restricting airflow through this vent.

  • Page 115: Washer/Dryer

    Section 10: Appliances Cleaning the Interior Unplug refrigerator or disconnect power. Hand wash, rinse, and dry removable parts and interior surfaces thoroughly. Use a clean sponge or soft cloth and a mild detergent in warm water. Inside the refrigerator, use a warm water and baking soda solution consisting of ap- proximately 1-tablespoon (15ml) baking soda to 1 quart (1 liter) of water.
  • Page 116 Section 10: Appliances Gas dryers should NEVER be installed in your recreation vehicle. Dryer prep has been designed for electric dryer operation ONLY. Never place items in the washer that are dampened with gasoline or other flammable fluids. No washer can completely remove oil. Do not dry anything that has ever had any type of oil on it (including cooking oils).
  • Page 117 Section 11: Electronics Satellite Dish (if so equipped) Your motor home may be equipped with the automatic multi-satellite TV antenna. The following is an overview of the antenna operation. For detailed operating instructions and receiver set up, refer to the manufacturer’s user guide. When you press “POWER,”...
  • Page 118 Section 11: Electronics Winegard Connect 2.0 The Winegard Connect is an integrated system that works together for faster speeds and increased range from Wi-Fi sources. It has the following features: Expands your Wi-Fi coverage to receive signal inside your RV from farther away. Advanced Wi-Fi protected access (WPA and WPA2-PSK), guest network access, double firewall protection (SPI and NAT), and denial-of-service (DoS) attack pre- vention.
  • Page 119 Section 12: Interior Cleaning The Interior To keep the value of your recreation vehicle, perform regular maintenance using the proper materials and procedures. Using the wrong cleaner may result in damage to the surfaces in your vehicle. Check with the manufacturer’s information for the recommended cleaning agent.
  • Page 120 Section 12: Interior Fill a spray bottle with water and a tiny amount of soap. Then spray a lint-free towel with the mixture and use the towel to wipe down each slat. While cleaning, try not to bend the slats. They can also be soaked in a bathtub to loosen up any debris so the slats can be wiped down easily.
  • Page 121 Section 12: Interior at the front of the sofa seat bottom out towards you firmly and gently. To convert the hide-a- bed back into the upright sofa position, reverse the process (make sure to pull the seat belts out into their usable positions). Be sure to hold the sofa strap firmly to ensure the hide-a-bed sofa does not suddenly drop shut.
  • Page 122 Section 12: Interior Lower the table top down between the seats (B). Place the extra cushion on the table top between the 2 seats. Replace the seat cushions. To convert back to a table: Remove cushions. Lift table top back up to the bracket. Hold the table top at an angle (A).
  • Page 123 Section 12: Interior Use coasters under all glasses, bottles and cans. Do not store toiletry products directly on your countertop surface. Hair products, perfumes, colognes, nail products, creams, lotions and potions have a tendency to spill or leak and go overlooked. Even though the counter top is sealed, a substance that remains on the surface for an extended period may stain the countertop.
  • Page 124 Section 12: Interior Attach the Velcro® at the top edge of the drape to the corresponding Velcro® on the cab area roof (above the driver’s and passenger’s doors). Attach the Velcro® at the bottom corners of the drape to the corresponding Velcro® on the wall.
  • Page 125 Section 12: Interior Bunk Beds and Bunk Ladders (if so equipped) Your recreational vehicle may be equipped with bunk style beds. Bunk bed weight ratings may vary depending on your model and the style of bunk bed. Weight capacities are listed on the bunk capacity label.
  • Page 126 Section 12: Interior Cab-Over Bunk Bed Your motor home may be equipped with an over-the-cab bunk bed. This bunk bed is ac- cessed through the use of a steel ladder that hooks to the bed platform. Exercise extreme care when entering or exiting the bunk bed and using the ladder Do not allow horseplay on the bed and prohibit jumping on the bed.
  • Page 127 Section 13: Exterior Cleaning The Exterior To protect your recreation vehicle’s exterior finish, wash it often and thoroughly. You may wash and wax your new recreation vehicle 60 days after purchase. The exterior paint needs time to cure before any wax is applied to the exterior surface. Careful maintenance for the first 60 days will assure a long lasting durable finish.
  • Page 128 Section 13: Exterior During cold weather Salt and other chemicals that are spread on winter roads in some geographical areas can have a detrimental effect on the recreation vehicle’s underbody. If your recreation vehicle is exposed to these conditions, spray the underbody with a high-pressure hose every time you wash the exterior of your recreation vehicle.
  • Page 129 Section 13: Exterior Do not allow plastic to come into contact with brake fluid, engine oil, grease, paint thinner, or battery acid. These will damage plastic. Use a soft cloth and a mild detergent solution to wipe away any such contact. Chrome parts To prevent chrome parts from spotting or corroding, wash with water, dry thoroughly, and apply a non-abrasive automotive wax.
  • Page 130 Section 13: Exterior The mud flap(s) should never be tilted towards the exhaust pipe when the motor home is not in motion or when the motor home is moving in reverse. Caution should be used when parking the motor home to assure the mud flap does not become caught or hung up on stationary items on the ground.
  • Page 131 Section 13: Exterior If your recreation vehicle is equipped with a roof ladder, do not leave items attached to it while traveling. DO NOT exceed the weight rating of the ladder. The ladder weight capacity label is located under the bottom step of the ladder.
  • Page 132 Section 13: Exterior Have the sealant replaced if you notice any cracks, peeling, voids, gaps, breaks, looseness or any sign of physical deterioration. Reseal at least one time each year as preventative maintenance. Always use the same type of sealant that was removed. Your dealer service or parts manager can help you obtain the correct sealant(s).
  • Page 133 Section 14: Travel/Camping/Storage Checklists Travel Checklist Following is a preliminary list of items that need to be checked before leaving your home or campsite. This is a general list, which you may want to customize as you determine your own needs. Refer to your Chassis Guide for information on chassis pre-trip inspections and maintenance.
  • Page 134 Section 14: Travel/Camping/Storage Checklists Before leaving the campsite: Check the area under the motor home after overnight parking and look for fuel, water, oil or other fluid leaks. If leaks are detected, find the cause and correct it immediately. Turn off propane tanks (if so equipped). Empty black and gray holding tank, rinse as needed.
  • Page 135 Section 14: Travel/Camping/Storage Checklists Drain and flush all holding tanks (fresh water, gray water, black water and/or hot water tanks). Adding fuel stabilizer to the generator will aid in preventing condensation and fuel varnishing. Turn OFF the motor home 12-volt battery disconnect switch. Turn OFF the inverter mode at remote.
  • Page 136 Section 14: Travel/Camping/Storage Checklists ™ Notes: Table of Contents...
  • Page 137 Your recreation vehicle may be equipped with some of the items listed below. This is a partial listing and it is not intended to cover all components. All information is the latest available at the time of publication. Jayco reserves the right to change any of the following information without notice.
  • Page 138 Section 15: Additional Information Tank Sprayer/BLK B & B Molders www.bandbmolders.com www.airxcel.com/coleman- Thermostat Coleman-Mach mach Toilet Thetford Corp. www.thetford.com Water Heater, Tank DSI Atwood Greenbrier www.atwoodmobile.com Water Heater, Tankless Girard Systems www.greenrvproducts.com Shurflo East www.shurflo.com Water Pump, 12V Table of Contents...
  • Page 139 Section 15: Additional Information Vehicle Maintenance Record Make: Model: Model Year: Vehicle Serial#: Engine: Engine Serial#: Serv i ce P e r f o r m e d Mileage Work Performed Notes Date Table of Contents...
  • Page 140 Section 15: Additional Information ™ Notes: Table of Contents...
  • Page 141 Section 15: Additional Information Jayco Ownership Notification Email the form to unitfile@jayco.com ATTENTION! Federal record keeping laws require that we maintain a file of owners of our product. Your cooperation in filling out this from will be appreciated. □ Change of Owner □Transfer of Limited Warranty...

Table of Contents
