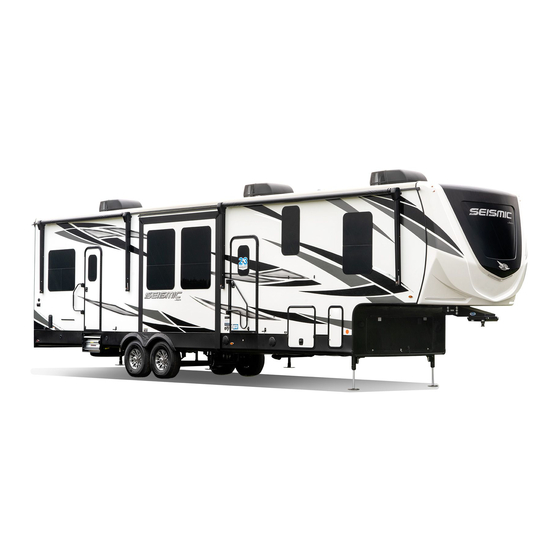

Page 1 2021 Fifth Wheel Toy Hauler Owner’s Manual A subsidiary of Thor Industries, Inc. 0223507.2021...
Page 3: Table Of Contents
Weighing Your Tow Vehicle and RV Section 4: Vehicle Operation Towing RV Brake System Electric Brakes Brake Controller (customer supplied) Travel Trailer Breakaway Switch Hydraulic Brakes (if so equipped) Disc Brakes (if so equipped) Towing Behind Your RV 2021 Jayco Seismic RevA: Revise page 15...
Page 4 Table of Contents Entrance Door Step(s) Stowable Entrance Door Step (if so equipped) Entrance Door Rear Backup Camera Prep Campsite Hook-Up LCI 3.0 Leveling System (if so equipped) Auto Leveling Control Touch Pad Auto Leveling Touch Pad OneControl Touch Panel OneControl App (for your phone or tablet) OneControl Touch Panel Linc Remote...
Page 5 Table of Contents Section 5: Slideout Systems Electric Slide Room(s) (if so equipped) Slideout Overlap-Outside General Slideout Troubleshooting Checklist Flush Floor Slideout Schwintek In-Wall Slideout System Norco Slideout System Power Gear Slideout System Fig.1 Slideout Controller Power Gear Slim Rack Slideout System Power Gear Ram Slideout System Section 6: Electrical System The Electrical System...
Page 6 Table of Contents Grounding Clip Fuel Tank(s) (if so equipped) Fuel Station (if so equipped) Master/Emergency Disconnect Switch Typical Fuel Pump Switch Locations on the Command Center To Dispense Fuel Fuel Gauge Exhaust Gas Fumes Fuel Gauge and Selector Switch Propane Gas System Propane Gas Container Servicing or Filling...
Page 7 Table of Contents Water Heater Operating Instructions Water Heater Bypass High Altitude Deration Pressure and Temperature Relief Valve Draining and Winterization TRUMA® Tankless Water Heater (if so equipped) Opening the Exterior Water Heater Panel Filling the Water Heater Turn Water Heater ON Aqua Go Comfort Plus Models Draining the Aqua Go Water Heater Draining the Aqua Go Water Heater...
Page 8 Table of Contents Section 11: Electronics Winegard Air 360 Plus System (If So Equipped) Opening the Router Box Section 12: Interior Cleaning The Interior Décor Glass (if so equipped) Furniture Upholstery Sleeper Sofa and Dinette Convertible Sofa Pantry or Hutch (if so equipped) Countertops Laminate Countertops (if so equipped) Solid Surface Countertops (if so equipped)
Page 9 Table of Contents...
Page 11 WARNING: Read all instructions in this manual and component manufac- turer supplied information before using your RV. This manual has been provided by your recreational vehicle manufacturer for the sole pur- pose of providing instructions concerning the operation and maintenance of this recreational vehicle.
Page 13: Section 1: Warranty & Service
Canada may differ to conform to Canadian Codes. Dealer Responsibility At the time of sale of the new recreation vehicle, your Jayco dealer is expected to: Deliver your recreation vehicle in the best condition possible. Your recreation ve- hicle must pass the dealer’s pre-delivery inspection (PDI), including all systems...
Page 14 (or any effect of the alterations) to any of the parts, components, systems or assemblies installed by Jayco. Jayco is not responsible for the safety or quality of design features, materials or workmanship of any alterations by such suppliers.
Page 15: To Contact Us
Canada. In addition, the club offers a variety of local and regional activities throughout the year. By belonging to the Jayco Travel Club, you will find new ways to enjoy your RV and make friends all across the country.
Page 16: Warranty Packet
Section 1: Warranty & Service Warranty Packet There are components that are excluded from the vehicle warranty, or are warranted sepa- rately by their own individual manufacturer’s limited warranty. The Warranty Packet con- tains these component manufacturer supplied manuals or information sheets, warranty cards and/or registrations.
Page 17: Reporting Safety Defects
Section 1: Warranty & Service Indicates a potentially hazardous situation that, if not avoided, may result in death or serious injury. Reporting Safety Defects In the United States: If you believe that your recreation vehicle has an alleged defect which could cause a crash or cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA), in addition to notifying our Cus- tomer Service Department.
Page 18: Customer Responsibility
Section 1: Warranty & Service Customer Responsibility It is important you read and understand all instructions and precautions before operating the recreation vehicle. Even if you are an experienced RV’er we encourage you to thoroughly read this Owner’s Manual, as well as the information contained in your Warranty Packet and Chassis Guide (motorized only).
Page 19: Obtaining Service For Separately Warranted Items
Section 1: Warranty & Service Obtaining Service For Separately Warranted Items Your selling dealer is responsible for servicing your recreation vehicle before delivery, and has an interest in your continued satisfaction. We recommend your dealer perform all inspection, warranty and maintenance services. Some dealers may be authorized service centers for those OEMs whose products are warranted separately and excluded from the Limited Warranty.
Page 20 Canada and used for the intended purpose of recreational travel and camping. If a substan- tial defect in material or workmanship, attributable to Jayco, is found to exist and is reported to Jayco or an authorized servicing dealer during the applicable warranty period, it will be repaired or replaced, at Jayco’s option, without charge to the RV owner, in accordance with...
Page 21 RV is delivered to the first retail purchaser by an independent, authorized dealer of Jayco, or, if the dealer places the vehicle in service before retail sale, on the date the RV is first placed in such service.
Page 22 Section 1: Warranty & Service If you need assistance, you may contact Jayco, at 903 S. Main Street, P.O. Box 460, Middle- bury, Indiana 46540, Attn: Customer Service, (800) 283-8267. NOTE: Jayco does not control the scheduling of service work at the independent, authorized dealerships.
Page 23 Certain things completely discharge Jayco from any obligation under this warranty and void it. By way of example, the following shall discharge Jayco from any express or implied warranty obligation to repair or replace any defect that results from: any rental or other busi-...
Page 24 In addition, this warranty is not intended to extend to future performance, and nothing in this warranty, or any action of Jayco, or any agent of Jayco, shall be interpreted as an extension of the warranty period or this limitation period.
Page 25 ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE. ALL ACTIONS OF ANY KIND RELATING TO THE RV SHALL BE DECIDED BY A JUDGE RATHER THAN A JURY. JAYCO, INC. 903 S. Main Street * P.O. Box 460 * Middlebury, IN 46540 Telephone: (800)-283-8267...
Page 26 Section 1: Warranty & Service Notes:...
Page 27: Section 2: Occupant Safety
Section 2: Occupant Safety Secondary Means of Escape (Exit Window) Your recreation vehicle has been equipped with a window(s) that serves as a secondary means of escape. The window(s) will allow a quick exit from the vehicle during an emer- gency if access to the main entrance door is not available.
Page 28: Fire Safety
Section 2: Occupant Safety Lever style latch Remove the screen by pulling the red tab (upper rightarrow). Pull the lever out from the sash clamps. Swing the lever out so it is positioned straight out from the win- dow. Push the lever (and window) out to open and exit the vehicle. Fire Safety If a fire does start, follow these basic safety rules: Call 911 and evacuate the vehicle immediately.
Page 29: Smoke Alarm
Section 2: Occupant Safety Do not check the pressure, test or practice using the fire extinguisher by squeezing the trigger, even briefly. The fire extinguisher is not rechargeable or refillable. Once used, it will gradually lose pressure and will not be fully charged for use in an emergency.
Page 30: Combination Carbon Monoxide /Propane Alarm
Section 2: Occupant Safety When the battery becomes weak, the alarm will “beep” about once a minute indicating a low battery. This warning should last for 30 days. You MUST replace the battery once the alarms low battery warning (beep) starts to assure continued protection. When the battery is removed from the alarm, the battery flag will pop up;...
Page 31 Section 2: Occupant Safety Do not cover or obstruct the carbon monoxide/propane alarm with any- thing that could prevent gas from entering the alarm. This alarm is not designed to detect smoke, fire or gases other than car- bon monoxide and propane. The carbon monoxide detector installed is intended for use in ordinary indoor locations of recreation vehicles.
Page 32 Section 2: Occupant Safety fumes, adhesives, lacquer, kerosene, glues, wine, liquor, most cleaning agents and the pro- pellants of aerosol cans. High temperatures can activate glue and adhesive vapors. If you close up a recreational vehicle on a hot day, the chemicals used in its construction may be detected for months after the vehicle was constructed (for more information, refer to Sec.
Page 33 Section 2: Occupant Safety If problems are identified during this inspection, have the alarm serviced immediately. Note any combustion equipment not inspected by the technician and consult the manufacturer’s instructions or contact the manufacturer directly for more information about carbon monox- ide safety and this alarm.
Page 34: Formaldehyde
Section 2: Occupant Safety Formaldehyde Some components in the recreation vehicle contain formaldehyde-based adhesives that may release formaldehyde fumes into the air for an unknown period of time. Individuals who are allergic to formaldehyde gas fumes may experience irritation to eyes, ears, nose and throat. Indoor air quality may also be affected by leaving your vehicle closed for a period of time.
Page 35 Section 2: Occupant Safety Proper ventilation or the use of a dehumidifier (customer supplied) will assist in controlling the condensation. Suggestions to eliminate warm moist air: Crack open windows and roof vents to allow warm moist air to escape. Open the bath roof vent (if so equipped) approximately ½” when showering. Use the range hood fan (if so equipped) when cooking or washing dishes.
Page 36 Section 2: Occupant Safety Notes:...
Page 37: Section 3: Pre-Travel Information
Section 3: Pre-Travel Information Tow Vehicle If you plan to tow your recreation vehicle with a tow vehicle you already own, or if you plan to purchase a new one, make sure the Gross Vehicle Weight Rating (GVWR) or your recreation vehicle does not exceed your tow vehicles towing rating.
Page 38: Occc Label (Yellow)
Section 3: Pre-Travel Information OCCC Label (Occupant and Cargo Carrying Capacity. The upper portion of this yellow label is feder- ally required and includes the maximum Occu- pant & Cargo Carrying Capacity that may be placed in or on the trailer as it was manufac- tured and weighed before leaving the factory.
Page 39: Loading Your Recreation Vehicle
Section 3: Pre-Travel Information Loading Your Recreation Vehicle Never load the RV in excess of the GAWR for either axle. Overload- ing your RV may result in adverse handling characteristics and dam- age to the RV. DO NOT EXCEED YOUR GVWR! This means you should weigh your RV as loaded for your normal travel to determine the actual weight.
Page 40: Rear Bumper
Section 3: Pre-Travel Information Rear Bumper The rear bumper of your RV is not designed to carry cargo. Items that extend beyond the bumper OR weigh over 100 lbs. (45kg) will place undo strain on the bumper. The 100 lb. bumper capacity includes the weight of the spare tire (if so equipped).
Page 41: Fifth Wheel Pin Box
Section 3: Pre-Travel Information Fifth Wheel Pin Box The fifth wheel factory installed pin box is not interchangeable. Maintain the proper pin box weight on the hitch. Fifth Wheel Pin Box Height There is no recommended hitch height for fifth wheels; usually the fifth wheel pin box is adjustable for variance in trucks and truck suspension systems.
Page 42: Weighing Your Tow Vehicle And Rv
Section 3: Pre-Travel Information White Ground Blue Electric Brakes Green Running Lights Black Auxiliary +12V battery charge line Stop & left turn Brown Stop & right turn Yellow Back up Lights The connector plug may build up corrosion with extended use. It should be cleaned peri- odically to insure good electrical contact.
Page 43 Section 3: Pre-Travel Information Weigh the RV including the tongue weight, while detached from the tow vehicle. This actual overall weight must be less than or equal to the GVWR for safe operation. If the overall weight is greater than the GVWR, some contents must be removed until the actual overall weight is less than or equal to GVWR.
Page 44 Section 3: Pre-Travel Information Notes:...
Page 45: Section 4: Vehicle Operation
A caution label has been placed in an area near the battery disconnect switch on your RV. The Jayco luxury fifth wheel models have the battery disconnect switch located in the same compartment with the propane tanks. Depending on the model of RV and manufacturer (Jayco or Highland Ridge) your RV will have one of these two labels shown below.
Page 46: Rv Brake System
Section 4: Vehicle Operation When descending a long hill, drop down into a lower gear or range. Avoid conditions that require excessive and prolonged use of your brakes. Apply and release brakes at short inter- vals to allow them to cool. The tow vehicle transmission and engine will help in controlling downhill speed and can lengthen brake life.
Page 47: Brake Controller (Customer Supplied)
Section 4: Vehicle Operation The tow vehicle battery is the primary source of power for your RV’s electric brake opera- tion. To ensure available power when needed, keep your tow vehicle battery and charging system working properly. Brake Controller (customer supplied) The brake controller should be installed in the tow vehicle to work in conjunction with the RV electric brakes.
Page 48: Disc Brakes (If So Equipped)
If you do not have a Jayco factory installed hitch receiver, towing items behind your Jayco RV, or overloading the rear, will void the warranty and may result in: damage to the RV or add-on items, towing difficulties, property dam- age and/or personal injury.
Page 49: Stowable Entrance Door Step (If So Equipped)
Section 4: Vehicle Operation Stowable Entrance Door Step (if so equipped) Do not try to lift the steps while the door is closed. This may cause dam- age to the steps and the door. When returning steps to the stored position: adjustable feet may have to be retracted to fit inside the door opening.
Page 50: Entrance Door
Section 4: Vehicle Operation Lift the steps and rotate up into the doorway. Steps will automatically latch into brackets on each side of the door frame as they are lifted in place. 10. Close the entrance/screen door Entrance Door Always hold onto the entrance door when opening or closing it. Damage caused because you failed to do so is not covered by the Limited Warranty.
Page 51: Campsite Hook-Up
Section 4: Vehicle Operation Campsite Hook-Up Refer to Electrical Systems section before connecting the shore line power cord (when using full hook-up) OR before starting the generator (if so equipped) or operating the vehicle on 12-volt power when dry camping. Refer to Fuel &...
Page 52: Auto Leveling Control Touch Pad
Section 4: Vehicle Operation MyRV® OneControl Leveling App - App available from Google Play or iTunes for Apple or Android devices. Linc® Remote Control - Optional (located inside the entrance door). Auto Leveling Control Touch Pad A - Red/Green LED indicates system status B - Up Arrow extends front jacks (landing gear) C - Down Arrow retracts front jacks (landing gear)
Page 53: Onecontrol Touch Panel
Section 4: Vehicle Operation Turn on the touchpad. LED will light up solid green. Select AUTO LEVEL and the auto leveling process begins. Front of the RV will seek a position near level. Rear jacks will be grounded (on 4 point system). Side to side leveling will begin.
Page 54: Onecontrol Touch Panel
Section 4: Vehicle Operation NOTE: The PIN is not needed or asked for if the tablet is attached to the docking station and connected to the USB cable inside the RV. The following functions can be operated using the OneControl App. Refer to the Ground Control 3.0 manual for complete instructions.
Page 55: Stabilizer Jacks
Section 4: Vehicle Operation Stabilizer Jacks DO NOT USE THE STABILIZER JACKS TO LEVEL THE RV. It is important to remember that the stabilizer jacks are to be used only for support while occupying and moving around the RV. They are not designed to support the weight of the RV.
Page 56: Emergency Stopping
Section 4: Vehicle Operation Emergency Stopping Always carry road flares or reflective warning signs. Pull off the roadway as far as possible for emergency stopping. Turn ON your vehicle hazard warning flashers. If traveling at night, use three red warning indicators such as flares, reflectors or lanterns as required by the Uniform Vehicle Code and Model Traffic Ordinance as follows: Place the first warning indicator on the traffic side of the recreation vehicle, directed at the nearest approaching traffic.
Page 57: Wheel Lug Nut Diagrams
Section 4: Vehicle Operation Use the correct star pattern sequence to attach the recreation vehicle wheels. Start all nuts by hand to prevent cross threading. Tighten the nuts in the sequence shown. Lug nuts should be tightened in two stages. Lugs should be started by hand, then torqued to intermediate values (Stage 1) on the chart then torqued according to the final torque values on the chart.Refer to the Wheel Lug Nut Diagram below.
Page 58: Wheel Lug Nut Torque Values
Section 4: Vehicle Operation Wheel Lug Nut Torque Values Prior to travel and after excessive braking, wheel lug nuts should be checked for torque. Torque readings must fall within the Final Torque Values in chart above. Torque specifications should be checked using a proper torque wrench. If the torque falls below the Final Torque Values, additional torque is required.
Page 59: Tires
Section 4: Vehicle Operation Torque Wrench Usage Tools should be maintained, in good condition, and stored appropriately. Avoid dropping or sliding a torque wrench. Dropping it can cause the instrument • to lose reliable calibration. • Damaged tools must not be used and must be removed from service for evaluation and either reported and re-calibrated or replaced.
Page 60 Section 4: Vehicle Operation Tire wear should be checked frequently. Once a wear pattern becomes firmly established in a tire it is difficult to stop, even if the underlying cause is cor- rected. Tire Pressure Failure to follow proper inflation guidelines may result in tire failure, which, under certain circumstances can cause loss of vehicle control or accidents that may result in property damage, bodily injury and/or death.
Page 61: Changing A Tire
Section 4: Vehicle Operation Changing A Tire Do not use the stabilizer jacks to support the recreational vehicle while under the vehicle or changing tires. The stabilizer jacks are designed as a stabilizing system only. Do not use the stabilizer jacks as a jack or in conjunction with a jack.
Page 62: Bracket Mount Travel Position
Section 4: Vehicle Operation Depending on your model, the spare tire may have (side or bottom) brackets or it will be mounted against the underside of the recreation vehicle (flush mount) to give it stability in travel. Bracket Mount Travel Position Hoist Mount Travel Position NOTE: If your spare tire is a flush mount application, it must make contact with the underside of the recreational vehicle to insure maximum road clear-...
Page 63: Setting Up Your Recreation Vehicle
Section 4: Vehicle Operation To extend the tire down Remove the cotter key from the pin holding the tire carrier in place. Remove the pin and extend the carrier away from the trailer. Always return the tire carrier to the upright position and lock it in place while traveling.
Page 64: Cargo Ramp Door
Section 4: Vehicle Operation Step on brake and apply parking brake. Disengage the locking bar and unhitch. Drive away. Adjust the fifth-wheel height for proper front to back leveling of the RV. Cargo Ramp Door Do not load or unload your RV without first blocking all wheels to pre- vent trailer movement.
Page 65: Manual Ramp Door
Section 4: Vehicle Operation NOTE: Do not move the RV until the cargo ramp door is closed and secured. Inspect all ramp door components each trip for wear or damage. Contact your RV dealer for a service appointment if repairs are needed. Automated Ramp Door (if so equipped) Your RV may be equipped with an automated ramp door.
Page 66: Automated Ramp Door (If So Equipped)
Section 4: Vehicle Operation Automated Ramp Door (if so equipped) Rear patio cables MUST be detached from the ramp door before trying to close it. Store the patio door cables, quick links and safety pins in the toolbox recessed in the floor of the garage area. Damage could occur to the ramp door or the locking mechanism if cables are not removed..
Page 67: Weight Distribution
Section 4: Vehicle Operation These guidelines must be followed when loading the cargo area: DO NOT EXCEED YOUR GVWR! This means you should weigh your RV as loaded for your normal travel to determine the actual weight. If you exceed the GVWR, you MUST remove items from the RV, or drain liquids, then re-weigh the vehicle to ensure you have achieved a safe weight.
Page 68: Air Vents
Section 4: Vehicle Operation Load the cargo bay from front to back, keeping heavier vehicles/items to the front of the cargo bay area. Load all vehicles/equipment evenly from side to side in the cargo bay. Secure all vehicles/items to prevent load shifts during transit. After loading, weigh the trailer at the hitch, each axle, and each wheel.
Page 69: Patio Deck - Rear (If So Equipped)
Section 4: Vehicle Operation Patio Deck - Rear (if so equipped) Caution should be taken not to exceed the maximum patio weight capacity and to maintain even weight distribution. Maximum capacity is 10 people 1500 lbs. (680 Kg) and an evenly distrib- uted load when in the patio position.
Page 70: Side Rail Setup For Manual And Automated Doors
Section 4: Vehicle Operation Automated Door: Make sure to remove the patio support cables, safety pins and quick links before folding up the ramp door. Failure to do so may damage the ramp door or door mechanism. Store items in the toolbox in the garage floor.
Page 71: Sliding Rear Screen Door (If So Equipped)
Section 4: Vehicle Operation To avoid injury or damage to the screen wall, make sure it is fully extended and snapped in place at the floor when in use, and fully retracted when not in use. Sliding Rear Screen Door (if so equipped) The two center doors slide back behind the outer doors to allow walk out access to the deck.
Page 72: Awnings (If So Equipped)
Section 4: Vehicle Operation When returning the patio door to the stowed position, be sure all safety pins used to secure the rails during transit are in place and secure with the safety clip in place. Failure to do so could result in damage to the rail and patio deck. Awnings (if so equipped) The effects of wind and rain on an awning are unpredictable and can cause severe damage to the awning and/or the recreation vehicle.
Page 73: Awning Care
Section 4: Vehicle Operation Awnings must be closed (and locked if applicable) while the RV in transit. Awning Care Keep your awnings clean and in good condition to prevent costly repairs. Periodically check that the fasteners are tight. Tighten if necessary. Keep the awning fabric clean.
Page 74 Section 4: Vehicle Operation Each power awning will have its own control switch; press and hold to extend or retract. Rear side awning (if so equipped) switch is typi- cally located in the cargo bay area. Front side awning (if so equipped) switch is typi- cally located on the living area wall.
Page 75: Section 5: Slideout Systems
Section 5: Slideout Systems Electric Slide Room(s) (if so equipped) The mechanical components of the slide out are gear driven. Electric powered slideout room systems have a manual override to allow you to extend or retract the slideout room(s) in case of a power loss.
Page 76: General Slideout Troubleshooting Checklist
Section 5: Slideout Systems To retract the slideout, press the in section of the slideout control switch and hold it until the slideout is fully retracted. Operating the switch after the room is fully extended or retracted may damage the switch and motor.
Page 77 Section 5: Slideout Systems NOTE: For long-term storage it is recommend the room be closed (retracted). Trouble shooting the flush floor slideout Refer to the general troubleshooting check list before proceeding. Electric Operation NOTE: Install transit bars (if so equipped) on the slideout room during storage and transportation.
Page 78: Schwintek In-Wall Slideout System
Section 5: Slideout Systems Schwintek In-Wall Slideout System The in-wall slideout system requires no maintenance or adjustments. This system has two vertical columns with a drive motor located at the top of each column. The right and left motors are synchronized by a circuit board.Schwintek slideouts are typically used on both towables and motorhomes.
Page 79 Section 5: Slideout Systems This slideout system requires very little maintenance. It contains a pre-lubed bearing that is lubricated when the room is moved in and out. Do not spray oil or grease on the rails while the room is extended. Trouble shooting the in-wall slideout system Checking Fuses: The in-wall slide requires a minimum 30-amp fuse.
Page 80 Section 5: Slideout Systems The red and green LED’s will flash indicating you are in override mode. Release the mode button. Using either a wall or command center panel switch, press and hold the switch toward the word IN or RETRACT until the unit comes in completely. This will allow you to get the recreation vehicle to a service center to have the slideout malfunction diag- nosed.
Page 81: Norco Slideout System
Section 5: Slideout Systems Pull the motor up until it disengages (about 1/2 inch). Repeat this process for both sides of the slide room. Physically push/ pull the room back into the opening; keep both sides relatively even. The room must be travel locked to keep the room in place for road travel. DO NOT MOVE THE RV UNLESS THE MOTORS ARE PLUGGED IN TO THE CONTROLLER AND THERE IS BATTERY POWER TO THE RV.
Page 82: Power Gear Slideout System
Section 5: Slideout Systems Norco Slideout Manual Operation Locate the included flexible shaft in your own- er’s packet. Attach flexible shaft to the 1/4” hex fitting on the end of the motor. Attach 1/4” socket & ratchet, or drill to the other end, and turn in the proper direction to move the room.
Page 83 Section 5: Slideout Systems If the room does not move when the switch is pressed, check the following: Make sure the slideout system is turned on. Battery is fully charged and connected. Transit bars have been removed (if so equipped). When the motor brake is disengaged the slideout room WILL NOT lock into place and will not be sealed.
Page 84: Power Gear Slim Rack Slideout System
Section 5: Slideout Systems The room is now free to move. Using either a 5/8” or 3/4” wrench or socket, crank the room either in or out completely. If the slideout system is supplied with a gearbox override (optional), use the crank handle to move the room.
Page 85 Section 5: Slideout Systems Turn ON the on/off switch or key. Press and hold the OUT button (Fig 4). To retract, press and hold the IN button. There will be a slight delay be- fore the room begins moving. The GREEN LED should be solid ON when room is in motion.
Page 86 Section 5: Slideout Systems -Check all connections at control box and motor. -Bad or loose connec- Excessive -Check the harness for bro- tion Major Battery Volt- ken wires. -Defective harness -Put 12.0 VDC direct to -Open or shorted motor the motor. If it does not run replace the motor.
Page 87 Section 5: Slideout Systems NOTE: After overriding the system, the room control will need to be re- programmed by an OEM authorized dealer. Emergency Retract Mode Use this procedure when there is NO loss of power or electrical problem with the system. Remove the touchpad (Fig 4) from the wall.
Page 88 Section 5: Slideout Systems Repeat steps 1-4 for the other side. Place a socket wrench with a 3-inch extension and a 5/8” deep well socket (Fig 12) through the motor access opening and seat the socket onto the coupler (Fig 13). One person alternating from side to side of the room can retract a 1500 lb.
Page 89: Power Gear Ram Slideout System
Section 5: Slideout Systems Power Gear Ram Slideout System Typically used for Class C motorhomes. Manual Override Procedure The system has been equipped with 3/4” hex override couplers located on the drive compo- nent of the system. Due to the size and weight of some rooms, assistance may be needed to push the room in.
Page 90 Section 5: Slideout Systems 12. Return the brake release lever back to the “engaged” position (parallel to the spring lock lever). Pressing the bent end of the spring lock lever will allow the brake le- ver to be moved. 13. Plug the motor connector back in again. 14.
Page 91: Section 6: Electrical System
Section 6: Electrical System The Electrical System The RV electrical system is comprised of two independent electrical systems. One operates off of 12-volt DC power and the other off of 120-volt 60hz AC power. All installations have been made in compliance with industry standards applicable on the date of manufacture. Because the electrical equipment and associated circuitry are engineered into a dedicated system specific to your RV, do not make unauthorized changes or add fixed appliances to it.
Page 92: Command Center
Section 6: Electrical System Command Center The command center is typically located inside the entrance door or in the living area of the RV, and contains switches and controls for various electrical functions. Command center applications, con- figurations and components will vary by model. Command Center Panel or Command Center Panel with Switch Modules Items found on these panels may include:...
Page 93: Gfci Receptacle
Command Control System (if so equipped) The Command Control System is a name given to encompass several different types of Bluetooth controlled systems now being used in Jayco and Highland Ridge towable RVs. Examples of Bluetooth controlled systems currently in use are listed below.
Page 94: Bmpro Rvmaster System (If So Equipped)
Section 6: Electrical System NOTE: Switches that are turned on with the LCI One Control App or the LCI One Control touchscreen, override switches at the command center panel on the wall. If you were to turn on a device with the app or the touch- screen and then the touchscreen or the app were to fail for some reason;...
Page 95 Section 6: Electrical System ○ Interior and Exterior Lights ○ RV Slide-out Rooms ○ Power Awnings ○ Generator ○ TV and Bed Lifts ○ HVAC thermostat ○ Gas and Electric water heaters ○ Fresh Water, Black water, Gray water tank levels ○...
Page 96 Section 6: Electrical System To replace the remote on the wall bracket: ○ Hook the top of the remote back on the top of the wall bracket. ○ Push the bottom of the remote back in place. You will again hear an audible snap as it attaches to the mount.
Page 97 Section 6: Electrical System Menu Display (between arrow buttons) use the arrow keys to scroll through the following selections: Menu Display shows A1 or A2 (awnings) Cycle between awnings with the arrows. ○ Press and hold EXT or RET to extend or retract the selected awning.
Page 98 Section 6: Electrical System Pairing a smart device to the RVMaster app Download and install the BMPro RVMaster app from Google Play Store or the Apple App Store. When you start the app it will tell you to press the Menu Display arrow keys until the small display shows PA.
Page 99 Section 6: Electrical System Rotating the tires: TPMS sensors – DO NOT MOVE WITH THE TIRES! • The TPMS sensor on the front tire (on either side of the trailer) STAYS at • the front tire position when rotating tires. The TPMS sensor on the middle tire (on either side of a 3 axle trailer) •...
Page 100 Section 6: Electrical System Installing tire sensors Tire sensors come already paired to the RVMaster system from the factory. Sensors come on a card (F) that shows where each sensor should be installed on the RV. The top of the card represents the “hitch” end of the RV. Top left sensor would install on the front driver side tire.
Page 101: Testing The Campsite Power Connection
Section 6: Electrical System ○ When a motor is in operation, motor control is disabled on any other device run- ning the RVMaster app. Climate Screen Shows the thermostat to control heating and cooling in the RV, and fan speed Lights Screen Turn lights on and off along with ability to dim certain lighting with sliders.
Page 102 Section 6: Electrical System Connecting the Power Cord Do not hook up the power cord to any receptacle until you have verified proper polarity and grounding. DO NOT plug the shore power cord into a campsite receptacle(s): That has reverse polarity With non-functioning ground circuits That shows outward signs of heat damage.
Page 103: Inverter (If So Equipped)
Section 6: Electrical System The shore power cord should be unplugged when the recreation vehicle is left unattended When you are ready to leave, reverse the power cord connection process. Use care to pre- vent damaging the power cord electrical connection pins when connecting or disconnecting the shore power cord.
Page 104: Power Converter
Section 6: Electrical System STATUS LED FLASHES AMBER, DISPLAY LED IS OFF - If the unit is in Inverter • Mode, and you plug in shore power, the STATUS LED will begin flashing AMBER and the unit will switch to Bypass Mode within 20 seconds of detecting an AC input. •...
Page 105: Converter With Charge Wizard (If So Equipped)
Section 6: Electrical System It is important that the fluid level of any connected batteries be checked on a regular basis. All batteries will “gas” and lose some fluid when continuously connected to any charging source (does not apply to “gel-cell” batteries). Before checking for converter output voltage, the battery cables must be disconnected at the battery.
Page 106: 12-Volt Dc System
Section 6: Electrical System BOOST MODE: Green LED is on solid. Output voltage is 14.4VDC to rapidly charge the battery up to 90% of full charge. STORAGE MODE: Green LED flashes every 6-8 sec- onds. Output voltage has been reduced to 13.2VDC; the RV battery is fully charged and converter is maintaining the charge.
Page 107: 12-Volt Dc Outlet
Section 6: Electrical System The fuse panel label should be kept permanently affixed to your recreation vehicle. Fuses will not offer complete protection of the electrical system in the event of a power surge or spike. 12-Volt DC Outlet There may be one or more 12-volt DC power outlets in your recreation vehicle. When the 12-volt DC outlet is used as a power source for an electric appliance, make sure the appli- ance operates on 12-volt DC power and that it consumes less than 60 watts (5 amps) of power.
Page 108: Replacement And Maintenance
Section 6: Electrical System If you run the furnace and refrigerator simultaneously, you will be using approximately (12.0 + 3.0) 15.0 amps per hour. This does not include any 12-volt lights, or any other 12- volt component. If the furnace and refrigerator in this example operated constantly, a 75 amp-hour battery would become fully discharged in 5 hours.
Page 109: Load Center
Section 6: Electrical System Load Center The Load Center contains 12VDC fuses and 120VAC circuit breakers for almost all of the electrical appliances and circuits in the RV. The 120V main breaker may be located in this panel and will turn off all 120-volt power to the RV. Locations will vary by model. Refer to the diagram inside the load center for specific fuse assignments.
Page 110: Approximate Electrical Load Ratings
Section 6: Electrical System Replacement circuit breakers must be of the same voltage, amperage rating and type. Never use a higher rated replacement circuit breaker; doing so may cause a fire by overheating the RV wiring. Maintenance At the beginning of the camping season, inspect the circuit breakers and replace as needed. Test by turning each circuit breaker “off”...
Page 111: 120-Volt 50 Amp Ac Electric System (If So Equipped)
Section 6: Electrical System 120 VOLT SYSTEM Air Conditioner 18 AMPS Coffee Maker 6-12 AMPS Converter (each) 8 AMPS DVD System 3 AMPS Fireplace 15 AMPS Hair Dryer or Curling Iron 10-14 AMPS Microwave 15 AMPS Refrigerator 6 AMPS Satellite Receiver 2 AMPS 2-4 AMPS Vacuum Cleaner...
Page 112: Generator
Section 6: Electrical System 50 amp Power Cord Do not hook up the power cord to any receptacle until you have verified proper polarity and grounding. Polarity indicators can be purchased in most electrical and hardware stores. Do not use any cheater plug, adapter or extension cord to reconfigure incoming AC power or break the continuity of the circuit connected to the grounding pin.
Page 113 Section 6: Electrical System CARBON MONOXIDE IS DEADLY! Do not run the generator when your RV is indoors or in a confined space. Asphyxiation or carbon mon- oxide poisoning hazards exist whenever generator exhaust gasses can accu- mulate. MOVING PARTS AND ELECTRICITY can cause severe personal injury or death.
Page 114: Solar Prep (If So Equipped)
Section 6: Electrical System Maintenance With the exception of simple items such as normal maintenance (i.e., oil changes, etc.), all service work should be done by a repair facility authorized by the generator OEM. Improper adjustments can damage the generator and electrical appliances, and can result in a safety hazard.
Page 115: Exterior Lights
Section 6: Electrical System Exterior Lights The front utility light is found under the front cap next to the fifth wheel hitch. LED strip lights may be installed under each side awning and on the front cap. The switch for the rear side awning LED light is typically located in the cargo bay area, and the front side awning and cap LED lights are operated with the porch light...
Page 116 Section 6: Electrical System Notes:...
Page 117: Section 7: Fuel & Propane System
Section 7: Fuel & Propane System Using the Fuel Station (if so equipped) Automotive Fuel Safety Your recreational vehicle may be equipped with a single factory-installed fuel tank that sup- plies fuel to the optional fuel station and/or optional generator. It is critical to understand the danger associated with fuel.
Page 118: Fuel Filler Cap
Section 7: Fuel & Propane System Fuel Filler Cap Remove the fuel filler cap by slowly turning it counterclockwise and waiting for any “hiss” noise to stop. Then unscrew the cap all the way. To close the fuel filler cap, securely turn the cap clockwise until you hear clicking sounds. If you need to replace the fuel tank filler cap, use only a cap specified for your fuel station.
Page 119: Fuel Station (If So Equipped)
Section 7: Fuel & Propane System Fuel selection The factory-installed fuel tank must be filled with the fuel type recommended by the genera- tor manufacturer (if so equipped) or with the fuel type recommended by your aftermarket vehicle and/or equipment manufacturer (if no generator is installed). The fuel tanks are specifically made for unleaded gasoline.
Page 120: To Dispense Fuel
Section 7: Fuel & Propane System NOTE: Both the inside fuel pump switch and the master/ emergency disconnect switch must be turned on to dispense fuel. NOTE: When the fueling station is not in use, the fuel pump switch and the master/emergency disconnect switch should both be turned “OFF”.
Page 121: Fuel Gauge
Section 7: Fuel & Propane System Fueling should begin in 15 to 20 seconds. When fueling is complete, release the nozzle handle to stop the flow of fuel. Replace the nozzle back into the fueling station storage box. Turn off the master/emergency disconnect switch by pushing the knob in. Inside the vehicle, press the fuel pump switch next to the fuel gauge two times to cancel the timer and turn off the pump.
Page 122: Propane Gas System
Section 7: Fuel & Propane System The best protection against carbon monoxide entry into the RV is a properly maintained ventilation system and an active carbon monoxide detector. To allow for proper operation of the RV ventilation system, keep the ventilation inlet grill(s) clear of snow, leaves or other obstructions at all times.
Page 123: Propane Gas Container
Section 7: Fuel & Propane System Propane Gas Container DOT propane cylinders must be transported and stored in an up- right position so the pressure relief device will function properly. Laying a DOT propane cylinder on its side may potentially create a very dangerous situation.
Page 124: Servicing Or Filling
Section 7: Fuel & Propane System NOTE:Tanks are to be installed, fueled and maintained in accordance to State and Local codes, rules, regulations or laws. Propane is a true gas compressed into a liquid form. As the fuel is released from the con- tainer, it changes to vapor which is then used for the opera- tion of the appliances.
Page 125: Maintenance
Section 7: Fuel & Propane System This label should be kept permanently affixed to your RV. Refer to your Warranty Packet for more information on the LP gas system components. Maintenance Propane gas is normally non-corrosive - you need not worry about the inside of your container.
Page 126: Propane Regulator
Section 7: Fuel & Propane System Propane Regulator Propane regulators must always be installed with the regulator vent facing downward. Regulators that are not located in baggage compartments have been equipped with a protective cover. Make sure the regulator vent faces downward and (if applicable) the cover is in place to minimize vent blockage that could result in excessive gas pressure causing fire or explosion.
Page 127: Using The Propane System
Section 7: Fuel & Propane System Propane Leak Test Leaks may be found easily with a soapy water solution. Do not use a solution containing ammonia or chlorine when locating leaks. These products are corrosive to copper gas lines and brass fittings, which could result in deterioration of the copper and brass components. Apply the soapy solution to the outside of the gas piping fittings.
Page 128: Calculating Propane Gas Usage
Section 7: Fuel & Propane System It is especially important that cooking appli- ances not be used for comfort heating, as the danger of asphyxiation is greater when the appliance is used for long periods of time. FAILURE TO COMPLY MAY RESULT IN DEATH OR SERIOUS INJURY.
Page 129: Traveling With Propane
Section 7: Fuel & Propane System Traveling With Propane NOTE: Some states prohibit propane appliances to be operated during travel, especially in underground tunnels. Know the laws for the areas where you travel. Use care when fueling your motor fuel tanks and/or propane containers.
Page 130: Main Supply Hose
Section 7: Fuel & Propane System Place the second cylinder on the A-frame bracket so the cylinder valve is pointed to the roadside of the recreation vehicle. Secure the second cylinder to the A-frame using the bolts, nuts and washers provided. Attach the second 24”...
Page 131: Section 8: Plumbing System
Section 8: Plumbing System Plumbing System There are two different water systems in your recreation vehicle: The fresh water system consists of the fresh water holding tank, faucets and con- nections, water pump, outside shower assembly (if so equipped), water heater, tub/ shower, and water purification system (if so equipped).
Page 132: Command Center
Section 8: Plumbing System Operation Press only one tact switch at a time. As you push either the FRESH, BLK GREY1 or GREY2 switch, one or more LED lights will illuminate (from left to right) indicating the content level for that tank. When pushing the “BATT” switch, the LED lights illuminate from left (lowest) to right (highest) to indicate the estimated auxiliary battery condi- tion.
Page 133: Fresh Water System
Section 8: Plumbing System NOTE: This light will not appear on touchscreens, RV remote controls or on a WiFi app, it will only appear on the Command Center switch panel. Fresh Water System All water contains contaminant and mineral particles that can cause fresh water system odors.
Page 134: Water Purification System (If So Equipped)
Section 8: Plumbing System 12-volt Water Pump and Switch There must be sufficient 12-volt DC power to run the water pump when your recreation vehicle is not hooked up to city water. Once activated, the water pump (also known as the demand pump) will self-prime, and provide water.
Page 135: Draining The Fresh Water System
Section 8: Plumbing System Remove the O-ring from the groove in the housing and wipe clean. Coat with petro- leum jelly. Replace the O-ring in the groove, making sure it is properly seated. Install the new filter cartridge. Replace the canister housing (hand tighten is normally sufficient). 10.
Page 136: Uni-Dock Utility Center (If So Equipped)
Section 8: Plumbing System Open the “low point drains” by turning, then pulling the handles up. They are installed at the lowest point of the water lines. A la- bel is placed on the outside of the RV to indicate where the drains are located.
Page 137: Potable Water Only Label
Section 8: Plumbing System Rinse the black tank to help control odors and prevent waste buildup Rinse off items outside the unit with hot/cold faucet There are 3 TV connections provided at the utility center: SAT input is wired only to the wall plate for the satellite receiver at the main TV loca- tion.
Page 138 Section 8: Plumbing System Using the Uni-Doc utility center: A check valve is located inside the city water connection inlet on the utility center. NEVER depress the check valve on “CITY WATER CONNEC- TION” inlet with pressure in the line. It will cause irreparable damage to the valve function and the inlet will leak water.
Page 139 Section 8: Plumbing System Place the other end of the hose in a container holding sanitizing solution. Turn the pump switch ON. Fresh water tank should begin drawing solution out of the container. To aid siphoning place the container on a surface approximately (2) feet off the ground. Pump until solution is drawn out of the container, or tank is at the desired level.
Page 140: Sanitizing The Plumbing System
Section 8: Plumbing System “WINTERIZE” (plumbing lines and fixtures via pump) NOTE: For complete winterizing instructions, refer to the Winterizing the Plumbing System section. Connect a garden hose to the city water inlet (do not use your fresh water hose to win- terize the water lines).
Page 141 Section 8: Plumbing System Close the low point drain valves and the fresh water tank drain valve. Full System Canister water filter (if so equipped). Remove the canister, take the filter out of the canister, and then reattach the empty canister. Bypass the cartridge water filter (if so equipped) : Use the clear plastic tube (sup- plied with RV) to bypass the water filter.
Page 142 Section 8: Plumbing System NOTE: To thoroughly sanitize the fresh water tank, the unit should be driven around for a period of time allowing the solution to splash the sides and top of the tank. 14. After the required period, drain the chlorine solution from the fresh water system (see Draining the Fresh Water System).
Page 143 Section 8: Plumbing System Follow the steps outlined in Draining the Fresh Water System with one exception, do not drain the water heater. Do not remove the water heater drain plug. For the full system canister water filter, remove the canister, take out the filter, and then re-attach the empty canister.
Page 144: Winterizing The Plumbing System (With Utility Center)
Section 8: Plumbing System 13. After filling the water tank, set the valves to either DRY CAMPING or CITY WATER in order for water to flow through the water heater again. Winterizing the Plumbing System (With Utility Center): Preparing your recreation vehicle for colder weather or storage is very important for most states and Canada.
Page 145 Section 8: Plumbing System Air Pressure Method This method uses compressed air to blow out any remaining water in the system after ini- tially draining water using drain valves. Tools required would be an air compressor and a blowout plug. Before applying air pressure to the utility center, 4 colored valves (WHITE, RED, GREEN, BLUE) MUST be set to 45°...
Page 146: Winterizing The Black Tank Flush
Section 8: Plumbing System NOTE: Filters should be replaced at the beginning of the camping season or if they have come into contact with contaminated water or antifreeze. Turn the (color) valve handles to the POWERFILL position. Open the low point drain on the RV to remove water in the plumbing lines. Open all faucets in the RV.
Page 147: Winterize With Antifreeze Method
Section 8: Plumbing System Release the nozzle and disconnect the hose from the port. Rinse out the hose before storing it. Winterize with Antifreeze Method Requires non-toxic RV antifreeze in the water lines and does not require any special tools. Use ONLY RV ANTIFREEZE in your fresh water system for freeze protection.
Page 148: Winterizing The Macerator System (If So Equipped)
Section 8: Plumbing System When you are finished adding RV antifreeze: 12. Turn only the BLUE, GREEN, and WHITE valve handles so they are at a 45° angle for 10 seconds (Fig 3). The pump should still be ON. 13. Turn the water pump OFF with the switch on the utility center panel. 14.
Page 149: Water Heater
Section 8: Plumbing System Water Heater The water heater manufacturer has preset the sensing limit to maintain the water temperature when the water heater is activated. Hydrogen gas may result if you have not used the water heater for two weeks or more.
Page 150: Pressure And Temperature Relief Valve
Section 8: Plumbing System indicating the possibility of carbon monoxide. You may also notice a lack of efficiency in heating the water because of incomplete combustion of the burner at these higher altitudes. Consult with the local propane company, your dealer or the water heater manufacturer for proper derating of the water heater.
Page 151: Truma® Tankless Water Heater (If So Equipped)
Section 8: Plumbing System TRUMA® Tankless Water Heater (if so equipped) Your recreation vehicle may be equipped a Truma® tankless water heater. The tankless water heater has no pilot light and supplies an unlimited supply of hot water on demand. It does not require an anode rod to prevent corrosion, and is not affected by high altitudes.
Page 152: Filling The Water Heater
Section 8: Plumbing System Turn the locking knob, and open the exterior water heater panel to the first open position (photo A). To open the panel to the second (or service) position, the door must first be open as shown in (A). Then lift the door so it comes out of the slots along the bottom of the door (photo B).
Page 153: Aqua Go Comfort Plus Models
Section 8: Plumbing System Pressure – Temperature Relief Valve SCALDING INJURY – EXPLOSION Valve is not serviceable; if defective it must be replaced. Tampering with the valve will result in scalding injury. Do not place a plug or reducing coupling on the outlet part of the valve. If you use a discharge line allow complete drainage for both valve and line.
Page 154: Draining The Aqua Go Water Heater
Section 8: Plumbing System Draining the Aqua Go Water Heater The Aqua Go water heater does not have a conventional drain plug. Instead it includes a “drain chute”. Water heater power should be OFF, water pump OFF, and fixtures open to relieve pressure on the plumbing system.
Page 155: Winterization
Section 8: Plumbing System □ When the drain chute is folded out, it protrudes past the sidewall of the RV. □ When walking past or stooping down, make sure you and others have sufficient clearance to prevent injuries. □ Never actuate the Easy Drain Lever as long as the appliance is under water pressure or is still hot.
Page 156 Section 8: Plumbing System Decalcification Procedure for Comfort and Comfort Plus Models Set the rotary dial inside the RV to OFF. Turn water pump OFF or turn the water supply OFF. NOTE: If you are using the electric antifreeze kit, it must be removed and unplugged from the power supply before decalcification.
Page 157 Section 8: Plumbing System IRRITATION TO SKIN AND EYES! The decalcification agent may cause irritation to skin and eyes. In case of contact with skin immediately rinse with plenty of water. In case of eye contact, hold eyelid open and rinse with running water for 10-15 minutes. Consult an eye specialist.
Page 158: Outside Shower (If So Equipped)
Section 8: Plumbing System Before using the water system and the water heater, check the color of the water coming out of the faucets. If water is slightly red, rinse again. If water is clear, decalcification is finished. Turn OFF the water supply or turn OFF the water pump. Remove the warning signs placed earlier.
Page 159: Black/Grey Water System And Tanks
Section 8: Plumbing System Unlike your home, the recreational vehicle does not contain a water pressure balance valve. If someone is using the shower, it is recommended that the fresh water system NOT BE USED until they are finished. The shower faucet includes a vacuum breaker for the shower. There are two purposes for this breaker: To prevent siphoning water through the hose from another fixture.
Page 160 Section 8: Plumbing System Vents Vent pipes and vents release air from the grey and black water holding tanks. On most models the exterior vent cap is attached to the roof and must be kept clear of obstructions to perform as intended. On some models, the vent pipe may be part of the drainage system referred to as a “wet vent”...
Page 161: Black And Grey Tank Drains
Section 8: Plumbing System Black and Grey Tank Drains There are labels on the exterior of the recreation vehicle indicating the location of the grey and black tank drains (also called dump valves). Always drain the black water holding tank first so the grey tank wastewater can help rinse any solids or debris from the dump outlet and sewer hose.
Page 162: Macerator Pump System (If So Equipped)
Section 8: Plumbing System Macerator Pump System (if so equipped) Your RV may be equipped with a macerator pump system used to discharge waste from the gray and black waste tank. The system has a 1-1/2 inch diameter flexible hose that runs from the pump (under the RV) and is stored in an exterior storage compartment.
Page 163: Black Tank Flush (If So Equipped)
Section 8: Plumbing System The Macerator Bypass Valve is located underneath the external hose storage box. This bypass will allow you to gravity dump the waste from the tanks straight down to a 3-inch sewer hose connection under the trail- er, in the event there is a problem with the macerator motor.
Page 164: Tank Heaters (If So Equipped)
Section 8: Plumbing System Dump the black water tank (see Black and Gray Tank Drains) and leave the black tank drain valve open. Connect a garden hose from the water supply source to the black tank flush. With the water source turned ON, flush the black water holding tank until the water running out of the black tank drain valve is clear (not discolored or cloudy).
Page 165: Toilet (If So Equipped)
Section 8: Plumbing System In order for the 120VAC tank heaters to be in operation, the recreation • vehicle MUST be hooked up to shore power or under generator power. If the recreation vehicle is not operating on shore power or generator •...
Page 166 Section 8: Plumbing System The toilet system will perform better when water is run for ten to fifteen seconds after flush- ing to ensure that the waste will proceed to the bottom of the tank. If there is not a sufficient amount of water used during flushing, the waste materials may not evacuate properly from the drain line to the tank.
Page 167: Section 9: Heating & Cooling
Section 9: Heating & Cooling Air Conditioner The air conditioning system is controlled by a thermostat. Cooled air enters the RV through the grill. Make sure you have sufficient power available before operating the air conditioner. Do not operate the air conditioner without the return air filter. Operating the system without the filter allows the lint and dirt that is normally stopped by the filter to accumulate on the cooling coil of the air conditioner.
Page 168: Furnace
Section 9: Heating & Cooling NOTE: For RV models with touch screens, the powered roof vent(s) may be controlled on one of the selectable screens on the touch screen. Furnace The furnace installed in your recreation vehicle is controlled by a 12-volt DC thermostat. Depending on your model, there may be up to two thermostats enabling you to control the temperature to your comfort level.
Page 169: Section 10: Appliances
Section 10: Appliances Microwave To prevent damage, remove the turntable from the microwave when trav- eling. Make sure you are connected to a 120-volt power source. Never use the microwave cavity for storage. The microwave cavity should always be empty when not in use. For details on operation, cleaning and safety information, refer to the manufacturer’s user guide.
Page 170: Cooktops, Range And Oven (If So Equipped)
Section 10: Appliances Cooking With Propane (if so equipped) See the Propane System Section for important safety instructions. Refer to the manufactur- er’s owner’s manual for detailed operating and safety instructions for all propane appliances. Cooktops, Range and Oven (if so equipped) For detailed operating and safety information, refer to the manufacturer’s user guide.
Page 171 Section 10: Appliances Do not use aluminum foil on the electric range cooktop, as this material will damage the cooktop surface if it melts. Do not use aluminum foil under any circumstances on the electric range cooktop. Gas Drop-In Cooktops (if so equipped) Depending on your model, it may be equipped with either a 2 burner or 3 burner cooktop.
Page 172: Gas Bbq Grill (If So Equipped)
Section 10: Appliances Gas BBQ Grill (if so equipped) Be sure to read, understand and follow all information supplied with your recreation vehicle concerning the use of propane before operating the BBQ grill. The propane hose must be correctly connected before lighting the grill.
Page 173: Attaching The "Quick Coupler" Connection
Section 10: Appliances Rail Mount (if so equipped) Hang the grill bracket on the aluminum mount- ing strip located on the side of the recreation vehicle. Open the (2) folding arms on the bracket mak- ing sure they lock in position. Slide the grill onto the (2) arms against the stops.
Page 174: Range Hood (If So Equipped)
Section 10: Appliances Range Hood (if so equipped) If your recreational vehicle is equipped with a range hood, it will be connected to an exterior vent. The vent has an inner flap with two snaps. This flap can be snapped shut when the vehicle is in motion, or during storage to keep insects, debris, snow, rain, etc.
Page 175 Section 10: Appliances The ice maker (if so equipped) should be turned off and the ice tray emptied when power to your recreation vehicle has been shut off. With no power, the ice will melt and water may “pool” in the refrigerator door. When power is restored, the vibration may cause this water to run out of the door and on to the vehicle floor.
Page 176: Dishwasher (If So Equipped)
Section 10: Appliances If you need to clean the condenser: Remove the base grille. Use a vacuum cleaner with a soft brush to clean the grille, the open areas behind the grille and the front surface area of the condenser. Replace the base grille when finished.
Page 177: Vacuum Systems (If So Equipped)
Section 10: Appliances Vacuum Systems (if so equipped) Depending on your model, one or both of the following vacuum systems may be in your recreation vehicle. Central Vacuum System The following is an overview of the central vacuum system operation. For detailed operat- ing and safety instructions, refer to the manufacturer’s user guide.
Page 178 Section 10: Appliances Latching the outside kitchen: Push outside kitchen back in place against the rear brackets. The enclosure will latch on each side at the lower rear corners. You should hear it click into place. Replace the pin and the keeper cable at the top right rear corner of the enclosure (B).
Page 179: Quick Connect Coupler
Section 10: Appliances Attaching the “quick coupler” connection. The “quick coupler” is directly connected to the RV propane system. The “quick-coupler” connection has a positive shut-off valve. Place the “quick coupler handle in the OFF position and push back the sleeve. The valve handle must be OFF to make the connection.
Page 180 Section 10: Appliances Notes:...
Page 181: Section 11: Electronics
Section 11: Electronics Winegard Air 360 Plus System (If So Equipped) The Winegard Air 360 Plus system is a fixed omnidi- rectional TV/FM antenna, plus Wi-Fi, and 4G extender. The antenna enclosure is 8 inches high and 17 inches in diameter.
Page 182: Opening The Router Box
Section 11: Electronics (through the use of a SIM card supplied by your cellular provider or through Winegard). The Winegard SIM card comes pre-installed in the ceiling router box. A second antenna in the rooftop enclosure will also pick up any wireless Wi-Fi signals in the immediate area and distribute those signals through the ceiling mounted Winegard Gateway router box.
Page 183 Section 11: Electronics Replace the box back in the ceiling mounting plate and slide it towards the plastic lever and it should lock in place without pressing the tab. Bluetooth control: NOTE: You MUST turn the power switch (Fig 3) ON or there will be no cellular or Wi-Fi signals from the 4GLTE/Wi-Fi router box.
Page 184 Section 11: Electronics Winegard has two free apps that can be downloaded for Android or IPhone to help locate TV and Satellite signals: TV Signal Finder and HD Tower Finder. These apps will help you determine HDTV tower lo- cations and satellite dish pointing coordinates. It uses the device camera to help set the angle on your satel- lite dish or show you a graphic representation of the TV towers located in your area.
Page 185: Section 12: Interior
Section 12: Interior Cleaning The Interior To keep the value of your recreation vehicle, perform regular maintenance using the proper materials and procedures. Using the wrong cleaner may result in damage to the surfaces in your vehicle. Check with the manufacturer’s information for the recommended cleaning agent.
Page 186 Section 12: Interior Fill a spray bottle with water and a tiny amount of soap. Then spray a lint-free towel with the mixture and use the towel to wipe down each slat. While cleaning, try not to bend the slats. They can also be soaked in a bathtub to loosen up any debris so the slats can be wiped down easily.
Page 187: Sleeper Sofa And Dinette
Section 12: Interior NOTE: Oil based soaps and cleaners are not recommended. No abrasive cleaners or alcohol cleansers should be used. If other cleaner solutions are used, first try on a spot in an inconspicuous area. Sleeper Sofa and Dinette The sofa(s) in your recreation vehicle are designed to offer both ample seating and additional sleeping capacity.
Page 188: Pantry Or Hutch (If So Equipped)
Section 12: Interior Foldaway Sofa Your recreational vehicle may be equipped with one of the following sofa styles which are designed to offer both ample seating and additional sleeping capacity. To convert the sofa (D) to the sleeper position (E). Grasp the front corner of the sofa seat (D–arrow) and pull up and out away from the wall until the seat and the back cushion lay flat (E).
Page 189: Countertops
Section 12: Interior Countertops To prevent permanent damage Always use hot pads or trivets under hot pans, dishes, or heat producing appli- ances. Use a cutting board to prevent unnecessary damage to the countertops. Do not cut directly on the solid surface countertop. Avoid harsh chemicals such as drain cleaners, oven cleaners, etc.
Page 190: Bed Storage
Section 12: Interior To care for the vinyl floor covering, use a damp mop with water and a mild cleaner on the entire floor. DO NOT SOAK THE FLOORING. Use care to avoid wetting the carpet edges. To avoid problems of “yellowing” linoleum, the flooring manufacturer recommends avoid- ing cleaners that contain oil based solvents (i.e.
Page 191: Gas Struts (If So Equipped)
Section 12: Interior Gas Struts (if so equipped) On certain models, the bed platform may be equipped with gas struts to assist with easy ac- cess to storage area. Grasp the end ledge at the foot of the bed and lift carefully. Two gas struts will hold the bed platform open allowing access to the storage area.
Page 192: Bed Operation
Section 12: Interior Hang from, or hang more than 20 pounds from the cross-connecting shaft. Allow anyone to ride or occupy the bed(s) while the RV is in motion. ALWAYS: Exercise care when loading cargo/vehicles in the cargo area to avoid damage to the bed mechanism.
Page 193: Loft Sleeping Area (If So Equipped)
Section 12: Interior in the cargo bay area. The red master switch must be turned on first allowing the bed to be lowered or raised using the bed lift control. Remember to turn the master switch OFF after moving the beds. When operating the beds, both beds will lower together until the upper bed reaches an ad- justable stop.
Page 194 Section 12: Interior Exercise extreme care when climbing up or down the ladder (either steel or wood) used for entering or exiting the loft bed. Closet door MUST be securely closed and latched before using the lad- der. Make sure the ladder is securely in place prior to climbing to or from the loft.
Page 195: Section 13: Exterior
Section 13: Exterior Cleaning The Exterior To protect your recreation vehicle’s exterior finish, wash it often and thoroughly. For recreation vehicles with painted exterior graphics, if desired you may wash and wax your vehicle 60 days after purchase. The exterior paint needs time to cure before any wax is applied to the exterior surface.
Page 196 Section 13: Exterior Drying the recreation vehicle is just as important as washing your vehicle. Tap and well water contain many chemicals that could water stain your vehicle’s finish. We suggest using a damp natural or synthetic chamois. Other drying products such as lint-free micro-fiber towels work as well.
Page 197: Frame
Section 13: Exterior Damaged paint To prevent corrosion, touch up small cracks and scratches in the paint coat as soon as pos- sible with touch-up film or paint. Carefully check the body areas facing the road and the tires for damage to the paint coat caused by flying stones, etc. Use the closest automotive paint (available locally) match possible when touch-up paint is needed.
Page 198: Windows
Section 13: Exterior Windows Any ventilating window may permit water inside, especially during heavy rainstorms. Con- densation will also cause water to accumulate on windows and in the tracks. The window “glass” can normally be cleaned with a sponge and water. Use glass cleaner to remove wax, oil, grease, dead insects, etc.
Page 199: Sealants
Section 13: Exterior LADDER CAPACITY MAXIMUM 300 lbs. (136 kg) DO NOT exceed the ladder maximum weight rating. The maximum rating includes the person's weight PLUS weight of items carried. When climbing: • Always face the ladder. • Climb slowly with weight centered between side rails. •...
Page 200: Toy Hauler - Sealant Diagram
Section 13: Exterior If you notice water inside the recreation vehicle, immediately have the dealer check for the source of the leak. Failure to correct the leak may result in serious damage to your recreation vehicle, and this damage may not be warrantable. If you have questions and/or need assistance with sealing your recreation vehicle, consult with your recreation vehicle dealer.
Page 201: Section 14: Travel/Camping/Storage Checklists
Section 14: Travel/Camping/Storage Checklists Travel Checklist Following is a preliminary list of items that need to be checked before leaving your home or campsite. This is a general list, which you may want to customize as you determine your own needs. Safety Make sure you follow all safety precautions noted in this owner’s manual and in any manufacturer’s operators manual when preparing to travel.
Page 202: Rv Storage
Section 14: Travel/Camping/Storage Checklists Before leaving the campsite Check the area under the RV after overnight parking and look for water or other fluid leaks. If leaks are detected, find the cause and correct it immediately. Turn off propane tanks. Empty black and gray holding tanks, rinse as needed (if so equipped).
Page 203 Section 14: Travel/Camping/Storage Checklists Close the propane cylinder valve(s). We recommend using a propane cylinder cover, and to make sure the propane regulator is covered. If is equipped with a gas/ electric DSI range, light a range gas burner to consume any gas remaining in the lines.
Page 204 Section 14: Travel/Camping/Storage Checklists Notes:...
Page 205: Section 15: Additional Information
Your recreation vehicle may be equipped with some of the items listed below. This is a partial listing and it is not intended to cover all components. All information is the latest available at the time of publication. Jayco reserves the right to change any of the following information without notice.
Page 206 Section 15: Additional Information Thermostat Coleman Mach www.airxcel.com/coleman-mach Toilet Thetford Corp. www.thetford.com See manufacturers’ user guide Winegard Company www.winegard.com TV Antenna King Jack www.kingconnect.com Water Heater, Tank DSI Atwood Greenbrier www.atwoodmobile.com Girard Systems www.greenrvproducts.com Water Heater, Tankless Truma AquaGo www.truma.com Water Pump, 12V Shurflo East www.shurflo.com...
Page 207: Vehicle Maintenance Record
Section 15: Additional Information Vehicle Maintenance Record Make: Model: Model Year: Vehicle Serial#: Service Performed Mileage Work Performed Notes Date...
Page 208: Ownership Notification
Section 15: Additional Information Jayco Ownership Notification Fax Form To: (800) 825-7876 ATTENTION! Federal record keeping laws require that we maintain a file of owners of our product. Your cooperation in filling out this from will be appreciated. □ □...
Page 209 Section 15: Additional Information Notes:...

Jayco SEISMIC 2021 Owner's Manual

Quick Links

Troubleshooting

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jayco SEISMIC 2021

Summary of Contents for Jayco SEISMIC 2021

Table of Contents
