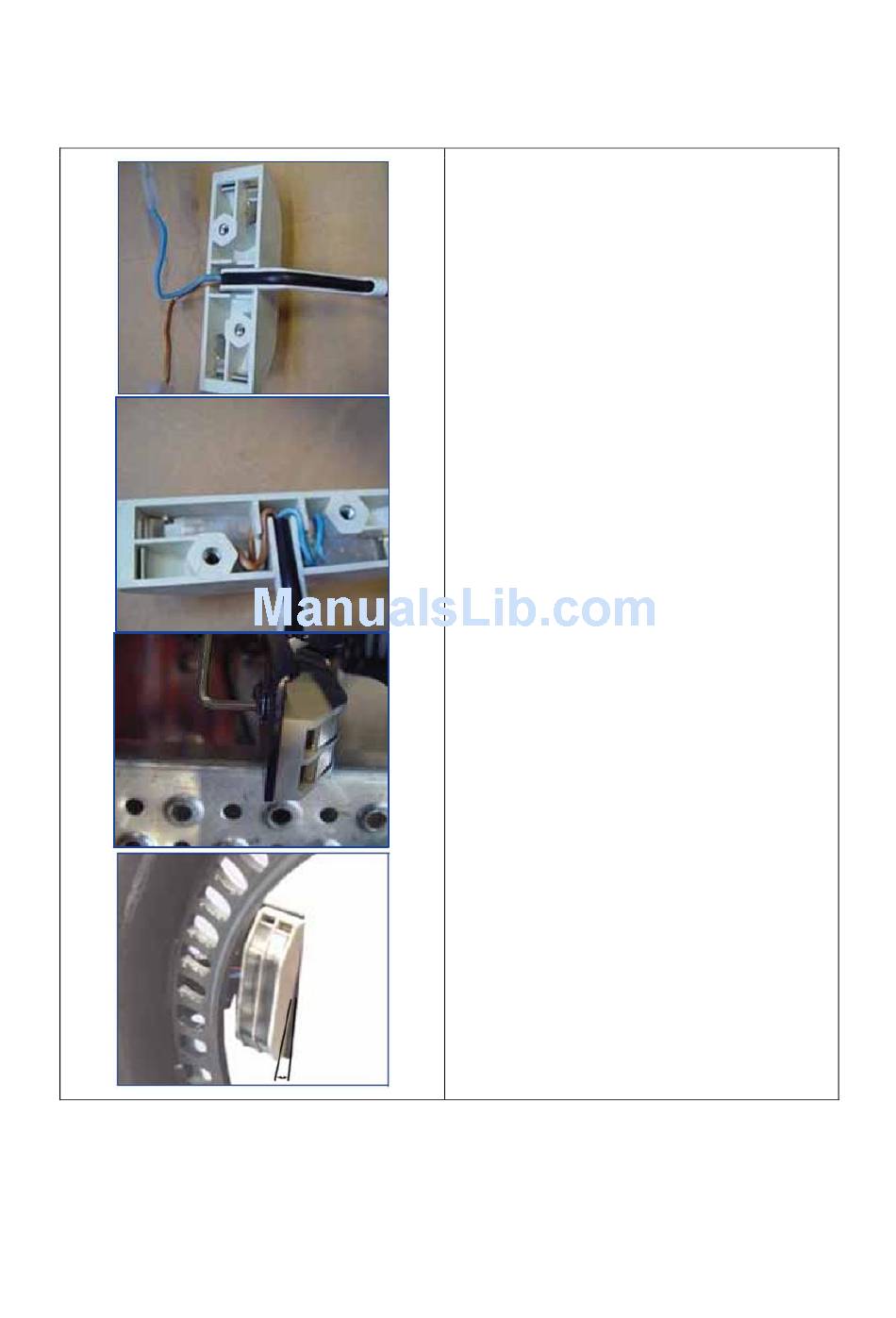

2.4 Fitting and installing the charging contacts

2.4.1 Fixed charging contacts

The positions of the fixed charging contacts are
prepared on the rail at the factory. The charging
contact is installed as follows:
1. Strip approximately 9 cm of the feeder cable.
2. Attach a Faston connector to the cable ends.
3. Feed the cables through the charging
contact.
4. Secure the Faston connector on the lips in
the charging contact.
5. Fit the charging contact to the rail with (2x)
M6x16.
6. Adjust the position of the charging contact so
that it is in line with the drive unit spring
contact. Adjustment is always necessary for
a vertical start.
7. For the polarity of the contacts, please see
section 2.4.3
