ThyssenKrupp Flow2A Installation Manual page 6

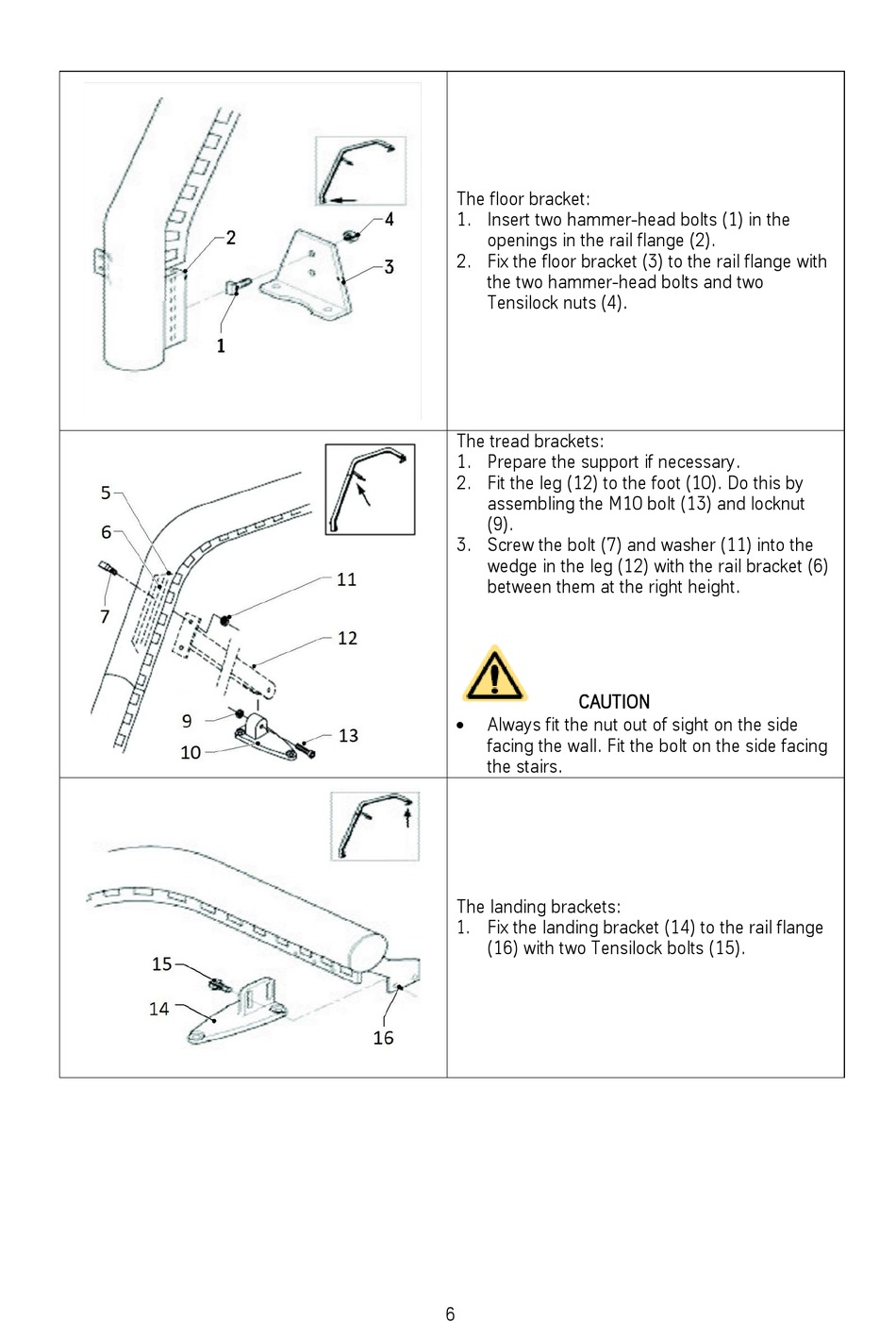

The floor bracket:
1. Insert two hammer-head bolts (1) in the
openings in the rail flange (2).
2. Fix the floor bracket (3) to the rail flange with
the two hammer-head bolts and two
Tensilock nuts (4).
The tread brackets:
1. Prepare the support if necessary.
2. Fit the leg (12) to the foot (10). Do this by
assembling the M10 bolt (13) and locknut
(9).
3. Screw the bolt (7) and washer (11) into the
wedge in the leg (12) with the rail bracket (6)
between them at the right height.
CAUTION

Always fit the nut out of sight on the side
facing the wall. Fit the bolt on the side facing
the stairs.
The landing brackets:
1. Fix the landing bracket (14) to the rail flange
(16) with two Tensilock bolts (15).
6
