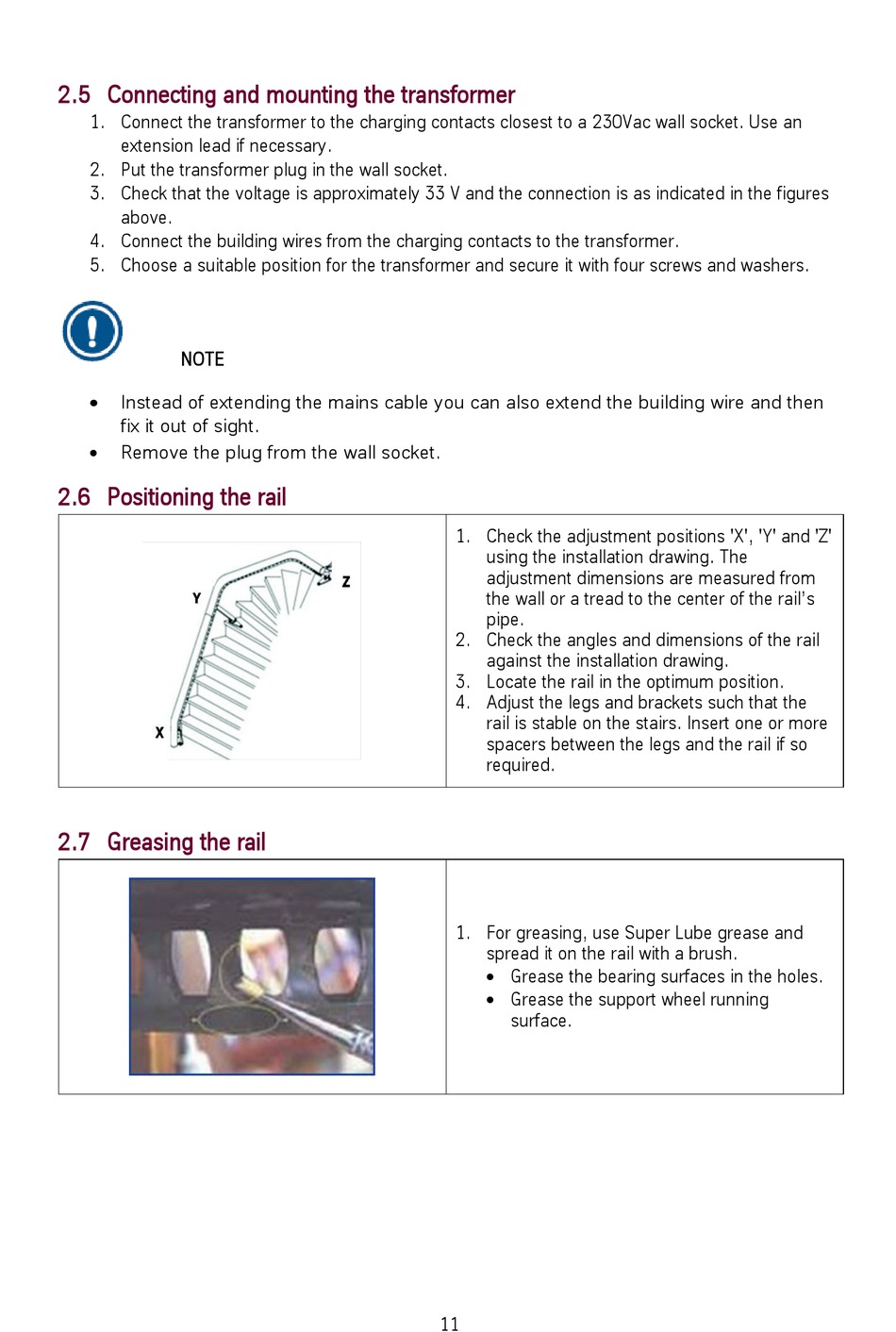

2.5 Connecting and mounting the transformer

1. Connect the transformer to the charging contacts closest to a 230Vac wall socket. Use an
extension lead if necessary.
2. Put the transformer plug in the wall socket.
3. Check that the voltage is approximately 33 V and the connection is as indicated in the figures
above.
4. Connect the building wires from the charging contacts to the transformer.
5. Choose a suitable position for the transformer and secure it with four screws and washers.
NOTE

Instead of extending the mains cable you can also extend the building wire and then
fix it out of sight.

Remove the plug from the wall socket.

2.6 Positioning the rail

2.7 Greasing the rail

1. Check the adjustment positions 'X', 'Y' and 'Z'
using the installation drawing. The
adjustment dimensions are measured from
the wall or a tread to the center of the rail's
pipe.
2. Check the angles and dimensions of the rail
against the installation drawing.
3. Locate the rail in the optimum position.
4. Adjust the legs and brackets such that the
rail is stable on the stairs. Insert one or more
spacers between the legs and the rail if so
required.
1. For greasing, use Super Lube grease and
spread it on the rail with a brush.
 Grease the bearing surfaces in the holes.
 Grease the support wheel running
surface.
