Summary of Contents for ThyssenKrupp HomeGlide

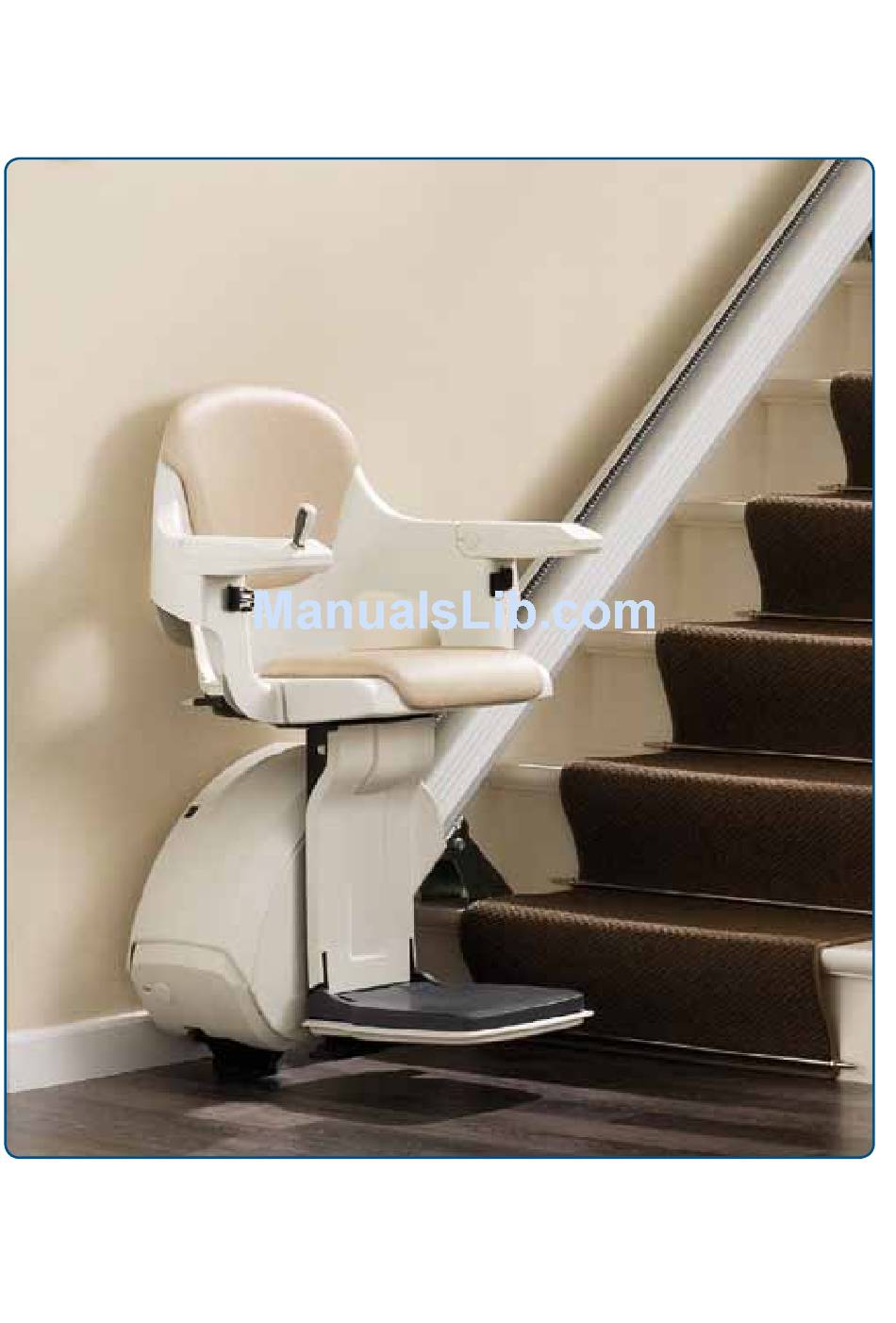

- Page 1 HomeGlide stairlift User Manual...
- Page 2 KEEP THIS MANUAL IN THE VICINITY OF THE STAIRLIFT SO THAT YOU WILL ALWAYS HAVE THE INFORMATION YOU NEED AVAILABLE © 2009 ThyssenKrupp Accessibility B.V. 1000537 V1.1 All rights reserved. Nothing in this document may be reproduced and/or published by means of printing, photocopy, microfilm or any other means whatsoever without the prior written permission of ThyssenKrupp Accessibility B.V.
-
Page 3: Table Of Contents
HomeGlide stairlift Table of Contents Preface Safety instructions 1. Introduction 2. Operation 2.1 Operating parts 2.1.1 Call and send stations 2.1.2 Control unit 2.1.3 Main switch 2.2 Use of the stairlift 2.2.1 Calling the stairlift 2.2.2 Unfolding the chair 2.2.3 Sitting down on the chair 2.2.4 Driving the stairlift... - Page 4 HomeGlide stairlift 3. Warning signals 3.1 Warning and alarm signals 3.2 Examples 3.2.1 Stopping during the ride 3.2.2 Obstacle on the staircase 3.2.3 Batteries not sufficiently charged 4. Maintenance and service 4.1 Cleaning 4.2 Changing the batteries of the call and send station 4.3 Preventive maintenance...
-
Page 5: Preface
HomeGlide stairlift Preface Congratulations! You have chosen a stairlift produced by ThyssenKrupp Accessibility. A modern, user-friendly and safe product that will give you years of service. We will do everything possible to justify the confidence you have placed in us. To make the best possible use of the stairlift, it is important to read these instructions carefully before first using the HomeGlide. These instructions These instructions are meant for you as the user of the HomeGlide stairlift. The instructions contain all necessary information for the correct and safe use of the stairlift. In the instructions the words “left”, “right”, “front” and “back” are used to indicate a certain part of the stairlift. Here the basic premise is always the... - Page 6 HomeGlide stairlift Symbols In this user manual the following symbols will be used: Tips for and advice about the correct performance of a procedure. WARNING Risk of severe physical injury in the event of failure to comply with the instructions in full. CAUTION Risk of damage to (parts of) the stair lift and/or minor physical injury in the event of failure to comply with the instructions in full.
- Page 7 HomeGlide stairlift Stairlifts and the environment Batteries The stairlift contains two batteries for the supply of the electrical motor, 12 V (7 Ah). These batteries may only be replaced by authorised engineers. The user may replace the batteries in the call and send stations. Do not deposit old batteries with household wastes but turn them in when you buy the new batteries. If this is not possible, consult your Local Authority to determine the recommended disposal. Disposing of the stairlift Stairlifts that are no longer in use are often taken back by your dealer after consultation. If this is not possible, consult your Local Authority to determine the possibility of recycling them or other environmentally friendly ways of processing the materials.
-
Page 8: Safety Instructions
ThyssenKrupp Accessibility is therefore not responsible for damage or injury caused by failure to correctly observe the safety requirements and directives as described in the user manual, or improper use during the use or maintenance of the stairlift. Warning stickers on the stairlift The warning stickers on the HomeGlide stairlift are an important part of our safety measures. The stickers may therefore not be covered or removed and must always be visible and legible. If the warning stickers are unreadable or damaged, they must be replaced immediately. You can contact your supplier for this. - Page 9 HomeGlide stairlift - Keep children away from the stairlift. Do not let them play with the stairlift. - Before use, inspect both the stairs and the stairlift. Use the stairlift only when the stairs are free from obstruction. Be sure there are no obstacles in or on the rail. - In case of an automatic hinge rail make sure that the moveable part will not be obstructed by any objects.
- Page 10 HomeGlide stairlift Technical specifications The major parts that can be found in chapter 1.2 should not be altered. Maintenance - Never do repairs on the stairlift yourself. Changes or replacements of parts of the stairlift are only permitted by ThyssenKrupp Accessibility authorised/trained personnel. - Only carry out maintenance that is described in these instructions. WARNING Never remove the main power supply cable from the wall outlet, or switch off the power since the charging of the batteries will then not occur. Do not remove any labels that belong to the stairlift. - For N.America it is required to carry out regular inspections and tests to Standard A18.1.10. - To comply with these requirements please contact your supplier/ installation engineer (see 4.5 for details).
-
Page 11: Introduction
HomeGlide stairlift 1. Introduction 1.1 General description The HomeGlide is a custom made stairlift with which you can safely and comfortably use a staircase without any physical exertion. The stairlift can transport one person per ride. The HomeGlide is driven via an electrical motor that is supplied by means of rechargeable batteries. The charging of the batteries takes place at the stop places (top and bottom of the stairs). The HomeGlide can be operated in two ways: - Seated on the stairlift you operate the lift by means of the control unit, situated in one of the armrests. - Page 12 HomeGlide stairlift 1.2 Major parts In figure 1.1 you see a schematic overview of the HomeGlide stairlift. The major parts are indicated with lines. Figure 1.1 shows the standard arrangement for a right-handed user with the control unit on the right hand armrest. Description figure 1.1: a. folding seat b. rail c. control unit d. backrest e. folding armrest f. safety belt...
-
Page 13: Operation
HomeGlide stairlift 2. Operation This chapter first gives a description of the controls for operation. Then the operation of the lift is described, with all the procedures that occur in daily use. 2.1 Operating parts The most important controls are: - The wireless call and send stations. - The wired control unit in the armrest. All buttons on the call and send station and the joystick on the control unit are hold to run. This means that only by holding a button or switch activated will the stairlift move. The lift will make an audible signal prior to any movement (also see chapter 2.3) -
Page 14: Control Unit
HomeGlide stairlift Fig. 2.1: Call and send station Fig. 2.2: Control unit Call and send buttons Holder The stairlift will not move if the joystick is not placed in the control unit. 2.1.2 Control unit As soon as you insert the joystick in the control unit, you can, while sitting on the seat, control the stairlift with a single hand movement. The control unit is mounted on the right armrest in the factory. 2.1.3 Main switch... -
Page 15: Use Of The Stairlift
HomeGlide stairlift 2.2 Use of the stairlift CAUTION Before use read the safety instructions carefully. 2.2.1 Calling the stairlift Keep in mind that the buttons on the Call and Send stations are hold to run. As soon as you release the buttons, the stairlift stops. Before you push the call button, check if the staircase is free from obstacles. Then push the call button of the call and send station (see figure 2.1) and keep it pushed until the stairlift has arrived at the stop place. -
Page 16: Unfolding The Chair
Fold down the seat (b). Fold down the two armrests (c). Fig. 2.3: Folded stairlift CAUTION The swivel seat of the HomeGlide can only be swivelled upstairs. The chair can only be turned to one side. When the chair has been turned, the stairlift is electrically disabled. This means that you cannot drive the lift up or down untill the chair is not swivelled back in its initial position by pushing the turning handle downwards shortly. The swivel of the HomeGlide can make the chair turn for 70 degrees. When you pull the handle upwards you can turn the chair towards the desired position. -
Page 17: Sitting Down On The Chair
HomeGlide stairlift 2.2.3 Sitting down on the chair To easily and safely be seated, you can turn the chair in the correct direction. 1. Unlock the chair by pulling the swivel handle upwards (only upstairs). 2. The chair can now be turned in the correct direction for taking a seat. 3. Sit down on the chair, with your back against the backrest. 4. If you have swivelled the chair, put the chair back into the correct position with the aid of the swivel handle. Otherwise the chair will not move. - Page 18 HomeGlide stairlift Fig. 2.4: HomeGlide with automatic hinge The joystick on the control unit is hold to run. The stairlift continues driving until you release the joystick or until you have arrived at the end of the ride. A built-in safety feature makes sure that you cannot switch over from one direction of driving to another direction too quickly. Also after a stop, for example halfway up the stairs, the lift starts after a short delay. CAUTION Always park your stairlift on a charging contact. If you do not park the stairlift on a charging contact, the batteries will...
-
Page 19: Rising From The Chair
HomeGlide stairlift 2.2.5 Rising from the chair To easily and safely rise from the chair, you can turn the chair in the desired rising direction. Unlock the chair by pulling the swivel handle upwards. 1. Open the safety belt. 2. Rise out of the chair. 2.2.6 Folding up the chair If you have swivelled the chair, put the chair back to its initial position with the aid of the swivel handle (only upstairs). 1. Fold up the two armrests. 2. Fold up the seat. 3. Fold up the footrest. -
Page 20: Warning Signals
HomeGlide stairlift 3. Warning signals Failures may occur. If the stairlift does not work (properly), and you can not solve the problem with this user manual, then call in the help of your supplier. (see chapter 4.5). CAUTION Never try to repair the stairlift yourself. 3.1 Warning and alarm signals Signal Meaning Solution Fast beeps that The stairlift is not on Drive the stairlift to a charging repeat every ten a charging contact, contact. -
Page 21: Examples
HomeGlide stairlift 3.2 Examples 3.2.1 Stopping during the ride If you wish to stop the stairlift during the trip, for example because you wish to return or because you see an obstacle on the staircase, do the following: 1. Release the joystick on the control unit. The stairlift will stop immediately. 2. Remove the obstacle 3. Push the joystick in the desired direction to continue the ride. If you wish to return, push the joystick in the opposite direction 3.2.2 Obstacle on the staircase If an obstacle on the staircase, or a body part, becomes caught between a step and the footrest, the stairlift stops automatically and immediately. You will hear fast short alarm beeps. 1. Push the joystick on the control unit in the opposite direction. This way you can drive away from the obstacle. 2. Remove the obstacle. -
Page 22: Maintenance And Service
HomeGlide stairlift 4. Maintenance and service 4.1 Cleaning - Clean the chair of the HomeGlide regularly with a soft, damp cloth and possibly a mild detergent. - Dust particles can be removed using the vacuum cleaner. - The rails should regularly be wiped lightly. Be careful not to touch the roller rack. CAUTION Do not use caustic detergents and do not use too much water. 4.2 Changing the batteries of the call and send station In the call and send stations there are two penlight (AA) batteries. -
Page 23: Preventive Maintenance
For N.America the HomeGlide sections of the standard A18.1-10 must be used for regular inspections and test. Change the batteries annually. CAUTION Do not throw the old batteries in the household waste, but treat them as Small Chemical Waste. -
Page 24: Technical Specifications
HomeGlide stairlift 4.4 Technical specifications General Europe Capacity (max.) 138 kg max 45° 127 kg max 53° Driving speed (max.) 0.12 meters per second Sound < 65 dB (A) North America Capacity (max.) 300 lb max 45° Driving speed 20 Ft/min Electrical system... -
Page 25: Contact
HomeGlide stairlift 4.5 Contact For information about settings, maintenance or other matters that are not addressed in these instructions, you can contact your local contact. Local contact: Name ................. Address ..............................
