After a controlled stopping of the measurement and a data storage, it's possible to see on the screen measurement dataset results.

6.1 Access to files

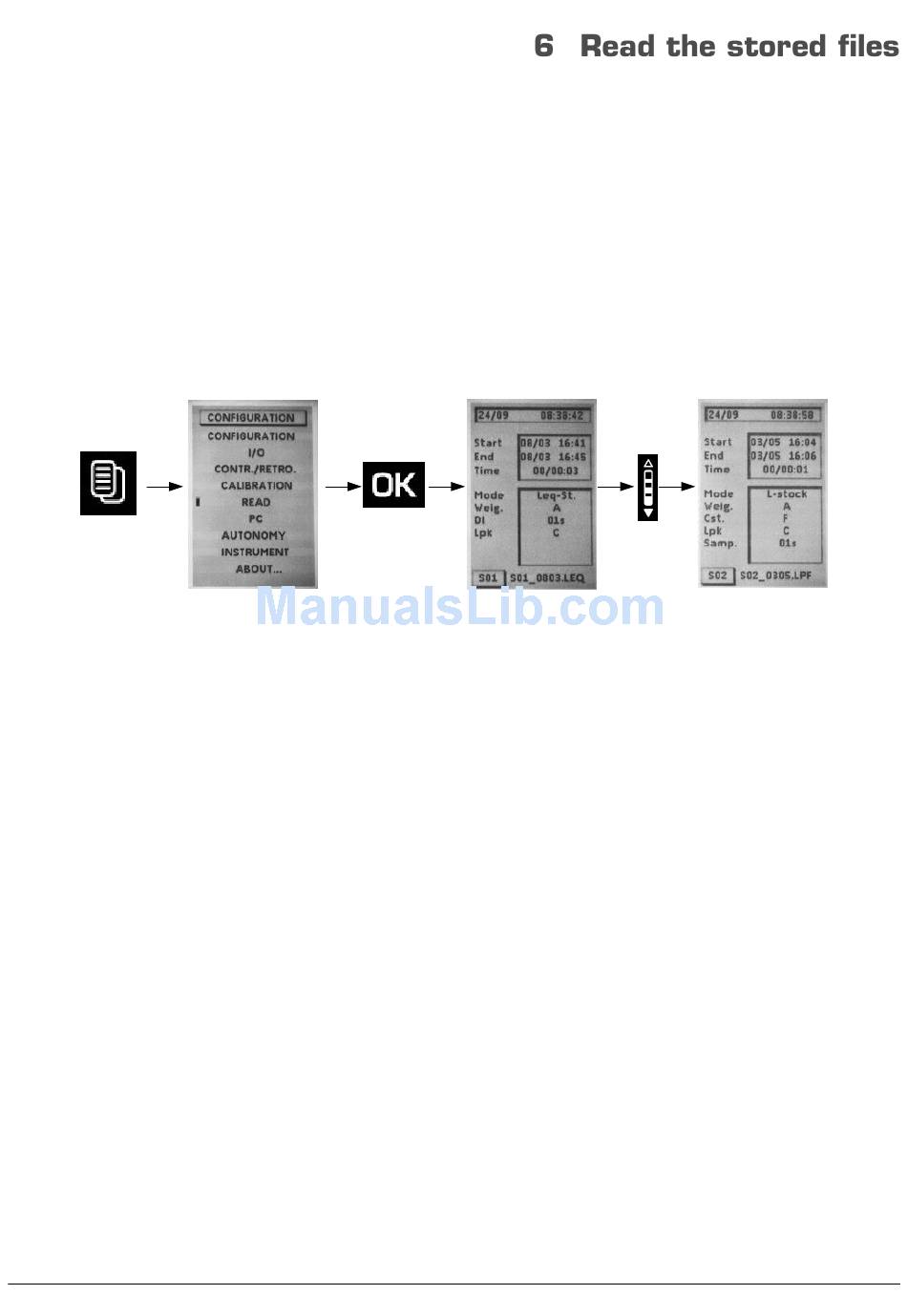

➢ Press Menu key then select Read then OK.
The first stored file is displayed.
➢ Scroll stored files with the scrolling knob key.
Each file is identified by a serial number (type C01) and a filename (format : S01_1811LPF). This file name will appear when uploading
to a computer.
For easy identification, the shown screen includes all measurement configuration :
Mode : L-St, L-Leq, Leq-St, S1 + S2.
•
According to the mode : different frequency and time weightings, logging time, sampling rate, date and time...
•

6.2 Read all data file

6.2.1 L-St mode file

When the file has been identified by its identification number:
➢ Press OK key to access to E1 main screen results.
LUpk : level of maximum peak of sound pressure
•
LXYmax : maximum value of sound pressure level weighted temporally met since the beginning of the measurement.
•
LXYmin : minimum value of sound pressure level weighted temporally met since the beginning of the measurement.
•
D : Measurement time expressed in DD / HH: MM: SS.
•
% : percentage of saturation of the input stage.
•
Statistics indices : L01 -L10 – L50- L90- L95
•
With scrolling knob key, go to E2 screen which reminds measurement configuration.
➢
Date of measurement start
•
Date of measurement end
•
Measurement time expressed in DD / HH: MM: SS.
•
Measurement mode : L-St
•
Frequency weighting : Weig.
•
Time weighting : Cst
•
Frequency weighting of the level of peak pressure : LpK
•
Sampling rate : Samp.
•
21
Menu
st
1 stored file
2 nd stored file

Read the stored files
