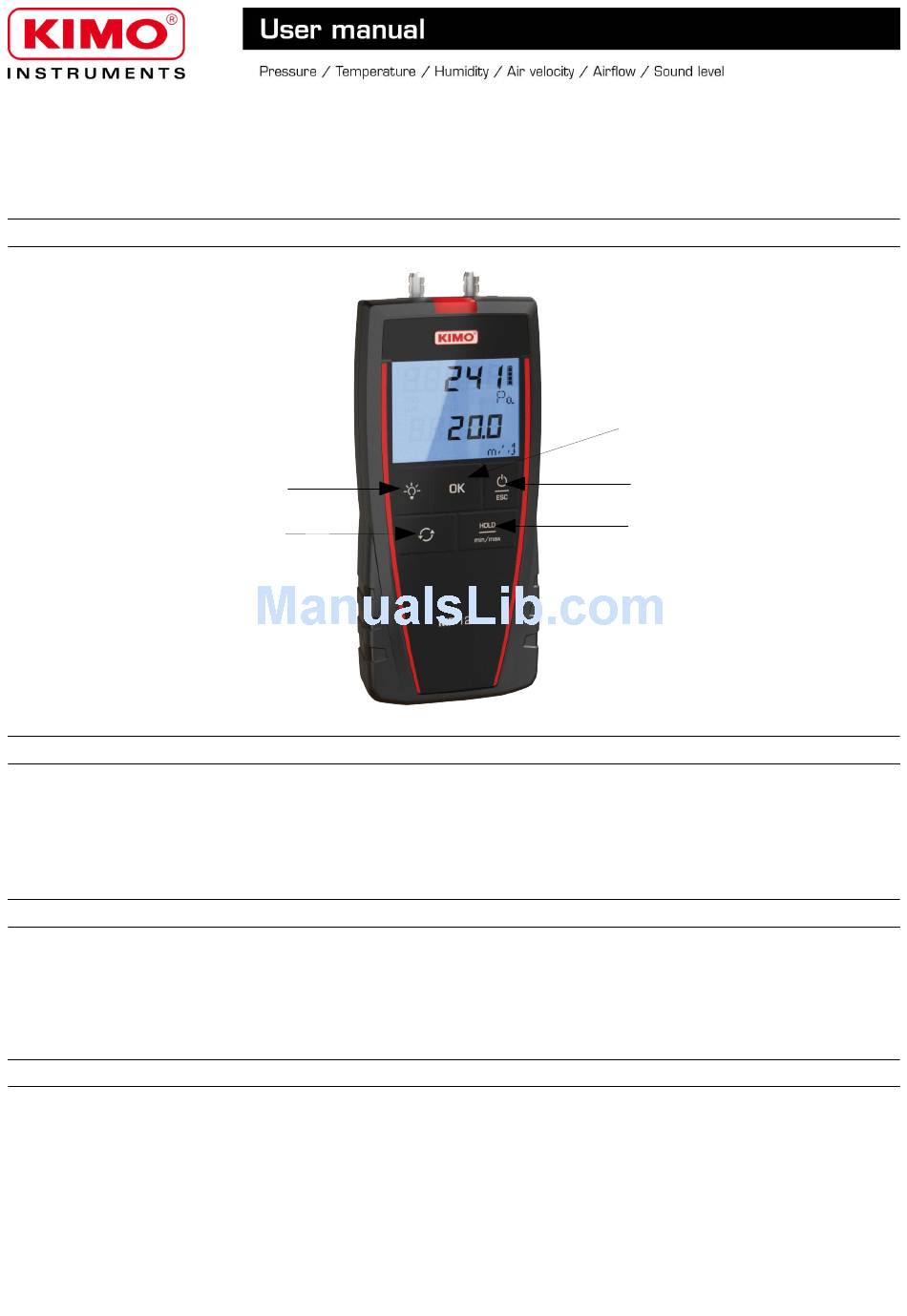

DESCRIPTION OF THE DEVICE

PERFORM A MEASUREMENT

Turn on the device by pressing on « On/Off/Esc ».
The device displays its name « MP120 », then performs an autozero.
Connect the pressure tubes or a differential pressure element to the device (Pitot tube, Debimo blades,..).
The device displays the pressure or/and the measured velocity.

PERFORM AN AUTOZERO

The device is on and displays the pressure and velocity measurements.
Disconnect the pressure tubes.
Press on « OK ».
« Autozero » displays on the screen, the device performs an autozero, then returns to the measurement display

FREEZE THE MEASUREMENT

During a measurement :
Press on « Hold/min/max ».
« Hold » appears on the screen and the measurements are frozen.
Press on « On/Off/Esc » to exit the hold function
The device returns to the measurement display.
Backlight key
Select key
Manometer
MP 120
OK key
On/Off/Esc key
Hold/min/max key
.
