Charging

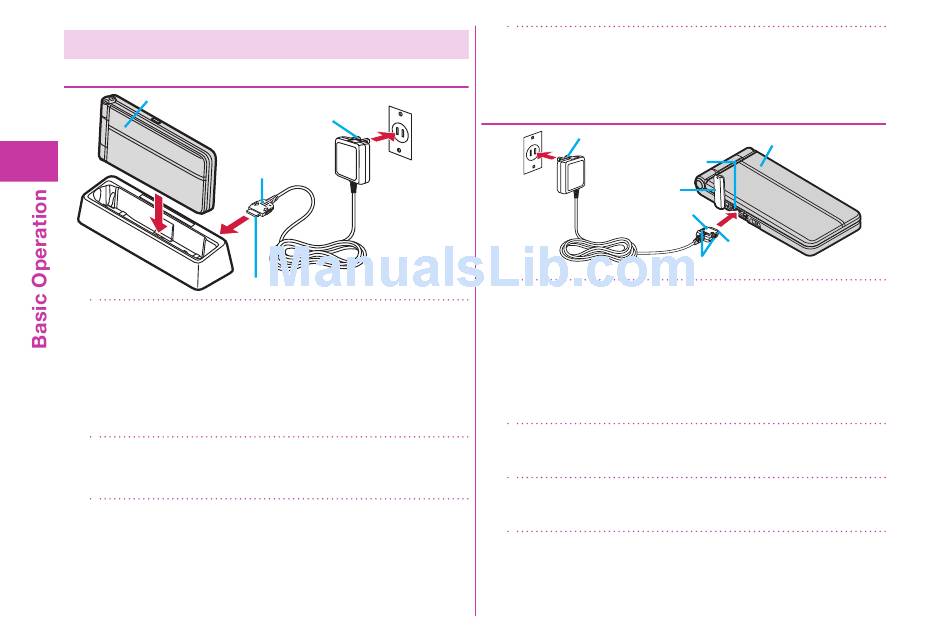

Charging Using Desktop Holder
Call/Charging indicator
Desktop Holder
1
With the engraved surface of the connector
of the AC Adapter (option) face up, plug
the connector straight into the connector
terminal of the desktop holder provided
until it clicks.
2
Pull out the AC Adapter's plug, and plug it
into a household power socket of 100 V AC.
3
Set the FOMA terminal for charging terminal
side down onto the desktop holder securely.
⿠Be careful that a commercial strap is not caught
between the FOMA terminal and desktop holder.
22
AC Adapter's plug
Power socket
Engraved surface
AC Adapter
Connector
4
When charging is completed, hold the desktop
holder and lift up the FOMA terminal to remove.
Charging Using AC Adapter
AC Adapter's plug
Power
socket Connector terminal
Cover
Engraved surface
AC Adapter
Release buttons
1
Open the cover of the connector
terminal. (See page 18)
⿠To charge the battery, place the cover of the connector
terminal as illustrated. When you close or open the FOMA
terminal with the cover of the connector terminal opened,
be careful not to catch the cover of the connector
terminal between the parts of the FOMA terminal.
2
Insert the connector horizontally with the
engraved surface facing up until it clicks.
3
Pull out the AC Adapter's plug, and plug it
into a household power socket of 100 V AC.
4
When charging is completed, pull out the
connector from the connector terminal
while pressing the release buttons.
Call/Charging indicator
Connector
