Opening/Closing the
Connector Terminal Cover

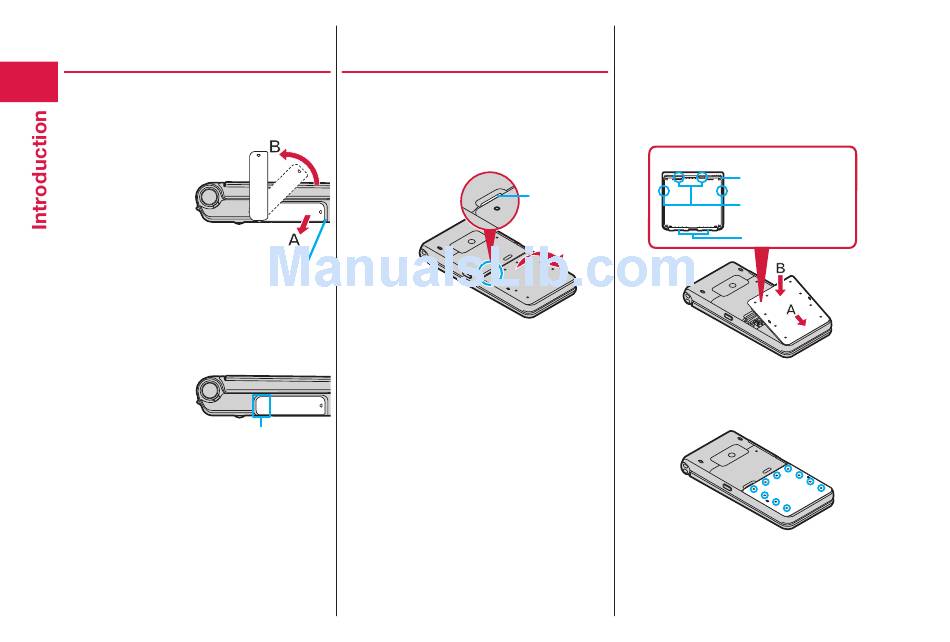

■Opening the connector terminal cover
① Hook your fingertip over the groove, pull
out the cover to direction A, and rotate it
as direction B.
■Closing the connector terminal cover
① Align the connector terminal cover in
parallel with the FOMA terminal, and while
holding its base part firmly, push it into
place.
② Ensure that no float is found with the
connector terminal cover as a whole.
18
Removing/Attaching the

Back Cover

■Removing the back cover
① Hook your fingertip over the concave part
of the FOMA terminal, lift up in the
direction of the arrow to remove the back
cover.
Groove
⿠Removing the back cover might produce
a sound.
⿠The back cover should be firmly
closed for maintaining waterproofness/
dust-proofness. Opening the cover
forcibly may injure your nails or fingers.
Base part
■Attaching the back cover
① Fit the claws at the bottom side of the
back cover to the FOMA terminal securely
(A), and fit the claws at the left, right and
upper sides of the back cover into the
corresponding indentations, and push the
cover into place (B).
Rear surface of back cover
Concave part
② Push the 10 ○ marks printed on the
sticker of the back cover, and ensure that
no float is found anywhere on the cover.
③ Confirm there is no gap between the back
cover and the FOMA terminal.
Packing
Claw (left, right,
and upper)
Claw (bottom)
