User Manual
Quick Installation Guide
Package Contents
WSB-9452 package includes the following items:

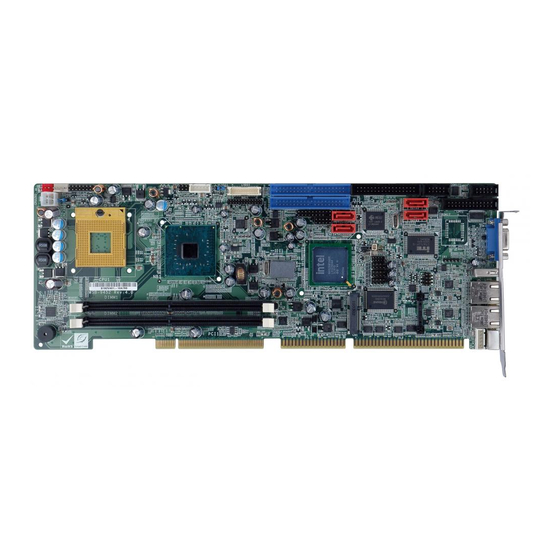

1 x WSB-9452 Single Board Computer
1 x Mini Jumper Pack
1 x ATA 66/100 flat cable
1 x Dual RS-232 cable
1 x SATA Power cable ( WSB-9452/9452DVI Only)
2 x SATA Power cable ( WSB-9452S/9452SDVI Only)
1 x IO-KIT-001-R20 (DVI Model Only)
2 x SATA cable ( WSB-9452/9452DVI Only)
4 x SATA cable ( WSB-9452S/9452SDVI Only)
1 x KB/MS Y cable
1 x USB cable
1 x Utility CD
1 x QIG (Quick Installation Guide)
Specifications
™
"
WSB-9452
Version 2.0
Sep. 12, 2008
©2006 Copyright by IEI Technology corp.
All rights reserved.
™
"
™
!
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for IEI Technology WSB-9452
Summary of Contents for IEI Technology WSB-9452
-
Page 1: Specifications
1 x Mini Jumper Pack 1 x ATA 66/100 flat cable 1 x Dual RS-232 cable 1 x SATA Power cable ( WSB-9452/9452DVI Only) 2 x SATA Power cable ( WSB-9452S/9452SDVI Only) 1 x IO-KIT-001-R20 (DVI Model Only) 2 x SATA cable ( WSB-9452/9452DVI Only) - Page 2 ASF2.0 I/O Interface 2 x RS-232 7 x USB 2.0 (1 on bracket, 6 by pin header) 1 x IDE ( WSB-9452/WSB-9452DVI Only) 2 x IDE ( WSB-9452S/WSB-9452SDVI Only) 1 x FDD 1 x LPT 2 x SATA (WSB-9452/9452DVI Only)
- Page 3 +5V@4.15A,+12V@1.29A (Intel® Core™ Duo T2700 2.33GHZ,DDR2 533MHz 1GB*2) Operating Temperature: 0 ~ 60°C( 32 ~ 140°F) Ordering Information WSB-9452-R20 PICMG1.0 Intel Core™ 2 Duo 533/ 667MHz processor, CRT/LCD, Dual PCIE GbE, and 2xSATA WSB-9452DVI-R20 PICMG1.0 Intel Core™ 2 Duo 533/ 667MHz processor, CRT/LCD/DVI, Dual...
- Page 4 Jumpers setting and Connectors LABEL FUNCTION J_CMOS1 CMOS state setting JAUTO1 AT power setting J_VLVDS1 LCD Voltage Selector JLAN_PWR1 LAN1,LAN2 POWER SELECT VGA1 VGA 15-pin Female Connector USB_C6 USB Port Connector LAN1 LAN2 RJ45 LAN Connector KB_MS1 PS/2 MOUSE & KEYBOARD Connector COM1 Internal Serial Port Connectors COM2...
- Page 5 J_CMOS1 : Clear CMOS Setup ATXCTL1 : Backplane J_CMOS1 DESCRIPTION Power Connector Keep CMOS Setup DESCRIPTION (Default) (Normal Operation) Ground Short 2-3 Clear CMOS Setup PS_ON 5VSB JLAN_PWR1 : Select LAN JAUTO1 : AT power setting controller power source JAUTO1 DESCRIPTION 3.3V_Dual 3.3V...
- Page 6 FDD1: FDC Connector PIN DESCRIPTION DESCRIPTION REDUCE WRITE INDEX# MOTOR ENABLE A# DRIVE SELECT B# DRIVE SELECT A# MOTOR ENABLE B# DIRECTION# STEP# WRITE DATA# WRITE GATE# TRACK 0# WRITE PROTECT# READ DATA# SIDE 1 SELECT# DISK CHANGE# USB01, USB23, USB45: Internal USB Connector DESCRIPTION DESCRIPTION +5V VCC...
-
Page 7: Pin Description
CN1: PCI-E Mini Card Connector DESCRIPTION DESCRIPTION PCIE_WAKE# VCC3 1.5V CLKREQ# LFRAME# LAD3 CLK- LAD2 CLK+ LAD1 LAD0 PCIRST# VCC3 PCIRST# PERN2 3VDual PERP2 1.5V SMBCLK PETN2 SMBDATA PETP2 USBD- USBD+ RF_LINK# BLUELED# 1.5V VCC3 CPU12V1 : CPU POWER Connector ATX-12V1 (CPU) DESCRIPTION DESCRIPTION... - Page 8 DVI1 : DVI Connector PIN DESCRIPTION PIN DESCRIPTION Data 2- +5V Power Data 2+ Hot Plug Detect. Data 0- Data 0+ DDC Clock DDC Data Data 1- Data 1+ Clock + Clock - LPT1 : Parallel Port Connector DESCRIPTION DESCRIPTION STROBE# AUTO FORM FEED # DATA0...
- Page 9 IDE1, IDE2: IDE Interface Connector DESCRIPTION DESCRIPTION RESET# DATA 7 DATA 8 DATA 6 DATA 9 DATA 5 DATA 10 DATA 4 DATA 11 DATA 3 DATA 12 DATA 2 DATA 13 DATA 1 DATA 14 DATA 0 DATA 15 IDE DRQ IOW# IOR#...
- Page 10 COM1,COM2: External Serial Port Connector DESCRIPTION DESCRIPTION DCD# DSR# RTS# CTS# DTR# TV1: Video output for television PIN NO. DESCRIPTION PIN NO. DESCRIPTION AGREEN_Y ARED_C RCA Connector (only video signal) ABLUE_CVBS TPM1: Trusted Platform Module connector DESCRIPTION DESCRIPTION FWHPCLK LFRAME# PCIRST# LAD3 LAD2...
- Page 11 Board Layout: Jumper and Connector Locations...
