Page 1: User Manual

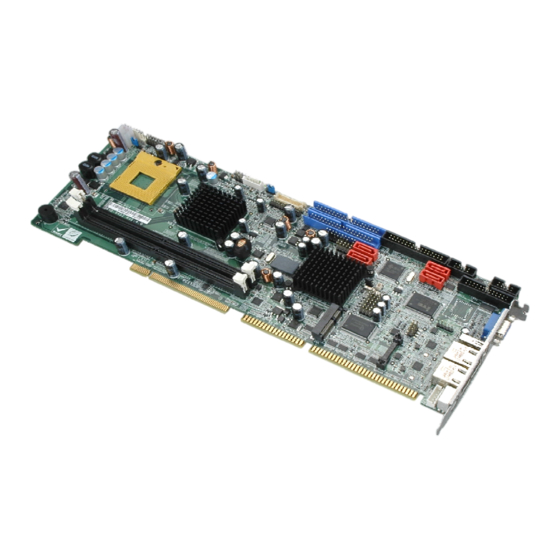

WSB-9452 PICMG 1.0 CPU Card IEI Technology Corp. MODEL: WSB-9452 Full-Size PICMG 1.0 CPU Card with Intel® Core™2 Duo/Solo, VGA/DVI, Dual PCIe GbE, SATA 3Gb/s and Audio User Manual Page I Rev. 4.00 – 22 December, 2010...
Page 2 WSB-9452 PICMG 1.0 CPU Card Revision Date Version Changes 2010-12-22 4.00 Updated for R40 version - Added JSPI1 connector -Deleted JLAN_PWR1 jumper 2010-10-12 2.01 Minor changes 2008-10-28 2.00 Changed northbridge chipset from Intel® 945GM to Intel® 945GME Added JAUTO1 and JLAN_PWR1 jumpers information 2007-09-04 1.01...
Page 3 Cautionary messages should also be heeded to help reduce the chance of losing data or damaging the WSB-9452. Cautions are easy to recognize. The word “caution” is written as “CAUTION,” both capitalized and bold and is followed. The italicized text is the cautionary message.
Page 4 WSB-9452 PICMG 1.0 CPU Card CAUTION: This is an example of a caution message. Failure to adhere to cautions messages may result in permanent damage to the WSB-9452. Please take caution messages seriously. NOTE: These messages inform the reader of essential but non-critical information. These messages should be read carefully as any directions or instructions contained therein can help avoid making mistakes.
Page 5 WSB-9452 PICMG 1.0 CPU Card Copyright The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
Page 6: Table Of Contents
INTRODUCTION..................... 1 1.1 WSB-9452 CPU C ................2 VERVIEW 1.1.1 WSB-9452 Model Variations ................2 1.1.2 WSB-9452 CPU Card Applications ..............2 1.1.3 WSB-9452 CPU Card Benefits................2 1.1.4 WSB-9452 CPU Card Features ................. 3 1.2 WSB-9452 CPU C ................4 VERVIEW 1.2.1 WSB-9452 CPU Card Connectors ..............
Page 7 CONNECTORS AND JUMPERS ................. 30 4.1 P ..............31 ERIPHERAL NTERFACE ONNECTORS 4.1.1 WSB-9452 CPU card Layout ................31 4.1.2 Peripheral Interface Connectors ..............32 4.1.3 External Peripheral Interface Connectors............33 4.1.4 On-board Jumpers ................... 34 4.2 I ..............34...
Page 8 WSB-9452 PICMG 1.0 CPU Card 4.2.4 Battery Connector.................... 39 4.2.5 CPU Fan Connector ..................40 4.2.6 Digital Input/Output (DIO) Connector............42 4.2.7 DVI (Digital Visual Interface) Connector............43 4.2.8 FDD Connector ....................45 4.2.9 Front Panel Connector ..................47 4.2.10 IDE Connectors ..................... 49 4.2.11 Inverter Connector ..................
Page 9 WSB-9452 PICMG 1.0 CPU Card 5.4.3 DIMM Module Installation ................85 5.4.3.1 Purchasing the Memory Module............... 85 5.4.3.2 DIMM Module Installation............... 86 5.4.4 Peripheral Device Connection................. 88 5.4.4.1 IDE Disk Drive Connectors (IDE1, IDE2) ..........89 5.4.4.2 Floppy Drive Connector (FDD1).............. 91 5.4.5 SATA Drive Connection ...................
Page 10 WSB-9452 PICMG 1.0 CPU Card 6.3.6 ACPI Configuration ..................125 6.3.6.1 General ACPI Configuration..............126 6.3.7 APM Configuration..................128 6.3.8 MPS Configuration ..................131 6.3.9 Remote Access Configuration ................ 132 6.3.10 Trusted Computing ..................137 6.3.11 USB Configuration ..................138 6.4 PCI/P...
Page 11 WSB-9452 PICMG 1.0 CPU Card EXTERNAL AC’97 AUDIO CODEC ..............211 C.1 I ...................... 212 NTRODUCTION C.2 P ..................214 HYSICAL ONNECTION C.3 D ..................214 RIVER NSTALLATION C.4 S ................216 OUND FFECT ONFIGURATION C.5 S ...................... 217 OUND FFECT C.6 E...
Page 12 WSB-9452 PICMG 1.0 CPU Card HAZARDOUS MATERIALS DISCLOSURE ........... 245 E.1 H IPB P AZARDOUS ATERIAL ISCLOSURE ABLE FOR RODUCTS ERTIFIED AS HS C 2002/95/EC W ........246 OMPLIANT NDER ITHOUT ERCURY Page XII...
Page 13 WSB-9452 PICMG 1.0 CPU Card List of Figures Figure 1-1: Data Flow Block Diagram................4 Figure 2-1: Data Flow Block Diagram................16 Figure 4-1: ATX–12V Connector Location ..............35 Figure 4-2: Audio Connector Location..............36 Figure 4-3: Backplane to Mainboard Power Connector Location ......38 Figure 4-4: Battery Connector Location ..............39...
Page 14 WSB-9452 PICMG 1.0 CPU Card Figure 5-1: Make sure the CPU socket retention screw is unlocked .....81 Figure 5-2: Lock the CPU Socket Retention Screw ..........82 Figure 5-3: IEI CF-479B-RS Cooling Kit ..............82 Figure 5-4: Install Support Bracket ................83 Figure 5-5: Align the Cooling Kit ................84 Figure 5-6: Secure the Cooling Kit ................85...
Page 15 WSB-9452 PICMG 1.0 CPU Card Figure 7-17: Locate Driver Files................188 Figure 7-18: Location Browsing Window............... 189 Figure 7-19: 4-AUDIO\AC-KIT888HD\Windows Folder.......... 191 Figure 7-20: HD Audio Driver Setup Extracting Files ........... 192 Figure 7-21: HD Audio Driver Setup Welcome Screen ......... 193 Figure 7-22: HD Audio Driver Installation Complete ..........
Page 16 WSB-9452 PICMG 1.0 CPU Card List of Tables Table 1-1: WSB-9452 Model Variations ...............2 Table 1-2: Technical Specifications ................8 Table 2-1: Supported CPUs ..................10 Table 2-2: Power Consumption..................22 Table 3-1: Package List Contents................28 Table 3-2: Package List Contents................29 Table 4-1: Connector and Jumper Locations ............31 Table 4-2: Peripheral Interface Connectors..............33...
Page 17 WSB-9452 PICMG 1.0 CPU Card Table 4-23: SPI Flash Connector Pinouts ..............64 Table 4-24: TPM Connector Pinouts................66 Table 4-25: TV Out Connector Pinouts ..............67 Table 4-26: USB Port Connector Pinouts ..............69 Table 4-27: LAN Pinouts .....................70 Table 4-28: Ethernet Connector Pinouts..............70 Table 4-29: Mini-DIN 6 PS/2 Connector ..............72...
Page 18 WSB-9452 PICMG 1.0 CPU Card List of BIOS Menus BIOS Menu 1: Main....................106 BIOS Menu 2: Advanced..................108 BIOS Menu 3: CPU Configuration................109 BIOS Menu 4: IDE Configuration ................111 BIOS Menu 5: IDE Master and IDE Slave Configuration........113 BIOS Menu 6: Floppy Configuration ..............
Page 19: Introduction
WSB-9452 PICMG 1.0 CPU Card Chapter Introduction Page 1...
Page 20: Wsb-9452 Cpu Card Overview
WSB-9452SDVI-R40 Two Table 1-1: WSB-9452 Model Variations 1.1.2 WSB-9452 CPU Card Applications The WSB-9452 CPU card has been designed for use in industrial applications where board expansion is critical and operational reliability is essential. 1.1.3 WSB-9452 CPU Card Benefits Some of the WSB-9452 CPU card benefits include: ®...
Page 21: Wsb-9452 Cpu Card Features
60°C rebooting automatically if the BIOS watchdog timer detects that the system is no longer operating 1.1.4 WSB-9452 CPU Card Features Some of the WSB-9452 CPU card features are listed below: PICMG 1.0 compliant RoHS compliant ®...
Page 22: Wsb-9452 Cpu Card Overview
WSB-9452 PICMG 1.0 CPU Card 1.2 WSB-9452 CPU Card Overview * See Table 1-1 for supported models. Figure 1-1: Data Flow Block Diagram Page 4...
Page 23: Wsb-9452 Cpu Card Connectors
WSB-9452 PICMG 1.0 CPU Card 1.2.1 WSB-9452 CPU Card Connectors The WSB-9452 CPU card has the following connectors on-board: 1 x ATX-12V connector 1 x Audio module connector 1 x Backplane to mainboard power connector 1 x Battery connector 1 x CPU fan connector...
Page 24: Technical Specifications
WSB-9452 PICMG 1.0 CPU Card 1.2.2 Technical Specifications WSB-9452 CPU card technical specifications are listed in Table 1-2. Detailed descriptions of each specification can be found in Chapter 2. SPECIFICATION DESCRIPTION ® ™ Intel Core 2 Duo Supported CPUs ®...
Page 25 WSB-9452 PICMG 1.0 CPU Card SPECIFICATION DESCRIPTION HDD Interface One IDE channel supports two Ultra ATA 100/66/33 devices (see Table 1-1) Two IDE channels support four Ultra ATA 100/66/33 devices (see Table 1-1) Floppy Disk Drive (FDD) Supports FDD Six internal USB 2.0 connectors and one external USB...
Page 26: Table 1-2: Technical Specifications
WSB-9452 PICMG 1.0 CPU Card SPECIFICATION DESCRIPTION Operating Humidity Minimum: 5% Maximum: 95% Optional Audio Interface Realtek ALC655/888 with AC `97 / HD Audio Table 1-2: Technical Specifications Page 8...
Page 27: Detailed Specifications
WSB-9452 PICMG 1.0 CPU Card Chapter Detailed Specifications Page 9...
Page 28: Compatible Iei Backplanes
WSB-9452 PICMG 1.0 CPU Card 2.1 Compatible IEI Backplanes The WSB-9452 CPU card is compatible with the all IEI PICMG1.0 backplanes. For more information on these backplanes, visit the IEI website or contact your CPU card reseller or vendor. 2.2 CPU Support...
Page 29: Intel ® Core™ Duo
WSB-9452 PICMG 1.0 CPU Card ® 2.2.2 Intel Core™ Duo ® The Intel Core™ Duo processor comes with the following features: Two complete execution cores in one processor package provide advancements in simultaneous computing Dual-core processing efficiently delivers performance while balancing power...
Page 30: Intel ® Celeron ® M
WSB-9452 PICMG 1.0 CPU Card Execute Disable Bit support for enhanced security ® Intel Virtualization Technology enhances virtualization robustness and performance ® ® 2.2.4 Intel Celeron ® ® The Intel Celeron M CPU comes with the following features: Processor low-power states C1, C2 and C3 (Deep Sleep) lowers CPU power...
Page 31: Intel Ich7-M Southbridge Chipset
WSB-9452 PICMG 1.0 CPU Card System Memory Support Supports single/dual-channel DDR2 SDRAM 64-bit wide per channel 256MB, 512MB, 1GB and 2GB memory technologies supported Support for DDR2 On-Die Termination (ODT) Support for 2N timings only Internal Graphics ® Intel Gen 3.5 Integrated Graphics Engine 250 MHz core render clock and 200 MHz core display clock at 1.05 V...
Page 32: Graphics Support
WSB-9452 PICMG 1.0 CPU Card ® Supports Intel Matrix Storage Technology ® Supports Intel Active Management Technology Low Pint Count (LPC) interface Serial Peripheral Interface (SPI) support 2.4 Graphics Support ® 2.4.1 Intel GMA 950 ® ® The Intel GMA 950 integrated on the Intel 945GME chipset has the following features.
Page 33: Analog Vga
WSB-9452 PICMG 1.0 CPU Card Support for Intel Media Expansion Cards, providing TV out and PVR capability Interlaced Display output support High Quality Media Support High Definition Hardware Motion Compensation to support HD hi-bitrate MPEG2 media playback Up and Down Scaling of Video Content HD Content Decode –...
Page 34: Data Flow
WSB-9452 PICMG 1.0 CPU Card 2.5 Data Flow Figure 2-1 shows the data flow between the user-installed socket 478 CPU, the two on-board chipsets and other components installed on the CPU card are described in the following sections of this chapter.
Page 35: Memory Support
A DDR memory module may cause permanent damage to the system and severe injury to the user. The WSB-9452 CPU has two 240-pin dual inline memory module (DIMM) sockets that support up to two unbuffered DDR2 DIMMs with the following specifications:...
Page 36: Gbe Ethernet Connection
WSB-9452 PICMG 1.0 CPU Card 2.8 GbE Ethernet Connection The two GbE controllers (Realtek RTL8111E) on the WSB-9452 CPU card connect to two 10/100/1000Mb/s Ethernet RJ-45 LAN ports on the rear panel. The Realtek RTL8111E is a 10/100/1000BASE-T Ethernet LAN controller. The RTL8111E combines a triple-speed IEEE 802.3 compliant Media Access Controller (MAC) with a triple-speed Ethernet...
Page 37: Ide Hdd Interfaces
Ultra ATA/66, with data transfer rates up to 66MB/s Ultra ATA/100, with data transfer rates up to 100MB/s 2.9.3 Floppy Disk Drive (FDD) The WSB-9452 CPU card supports a single FDD. The following FDD formats are compatible with the board. 5.25”: 360KB and 1.2MB 3.5”: 720KB, 1.44MB and 2.88MB...
Page 38: Serial Ports
Up to four storage device connection RAID 0, 1, 0+1, JBOD configuration 2.11 Serial Ports The WSB-9452 CPU card has two high-speed UART serial ports, configured as COM1 and COM2. The serial ports have the following specifications. 16C550 UART with 16-byte FIFO buffer 115.2Kbps transmission rate...
Page 39: System Monitoring
If you want to use the IrDA port, you have to configure SIR or ASKIR mode in the BIOS under Super IO devices. The normal RS-232 COM2 will be disabled. 2.15 USB Interfaces The WSB-9452 CPU card has seven USB interfaces, six internal and one external. The USB interfaces support USB 2.0. Page 21...
Page 40: Operating Temperature And Temperature Control
2.17 Optional Audio Interface ® The WSB-9452 CPU card does not come with an on-board Codec but the Intel ICH7-M chipset has an Audio Codec (AC’97 / HDA) controller. A connector on the CPU card can be used to connect the ICH7-M audio controllers to an external Codec.
Page 41: Packaged Contents And Optional Accessory Items
WSB-9452 PICMG 1.0 CPU Card 2.19 Packaged Contents and Optional Accessory Items 2.19.1 Package Contents When you unpack the WSB-9452 CPU card you should find the following components. 1 x WSB-9452 single board computer 1 x Mini jumper pack 1 x ATA 66/100 flat cable...
Page 42: Optional Accessory Items
WSB-9452 PICMG 1.0 CPU Card 2.19.3 Optional Accessory Items The items shown in the list below are separately purchased optional accessory items. DVI cable Audio Kit CPU Cooler FDD cable LPT cable Page 24...
Page 43: Unpacking
WSB-9452 PICMG 1.0 CPU Card Chapter Unpacking Page 25...
Page 44: Anti-Static Precautions
When the WSB-9452 is unpacked, please do the following: Follow the anti-static precautions outlined in Section 3.1. Make sure the packing box is facing upwards so the WSB-9452 does not fall out of the box. Make sure all the components shown in Section 3.3 are present.
Page 45: Unpacking Checklist
If some of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the WSB-9452 from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@iei.com.tw.
Page 46: Table 3-1: Package List Contents
WSB-9452 PICMG 1.0 CPU Card IO-KIT (DVI model only) (P/N:IO-KIT-001) KB/MS PS/2 Y-cable (P/N: 32000-000138-RS) SATA cables (P/N: 32000-062800-RS) SATA power cables (P/N: 32100-088600-RS) Mini jumper Pack Quick Installation Guide Utility CD USB cable (P/N: CB-USB02-RS) Table 3-1: Package List Contents...
Page 47: Optional Items
WSB-9452 PICMG 1.0 CPU Card 3.4 Optional Items CPU cooler (P/N: CF-479B-RS) Audio kit (P/N: AC-KIT-888HD-R10) Audio kit_ 5.1 Channel (P/N: AC-KIT08R-R10) ATX 12V Cable (P/N: 32100-087100-RS) FDD cable (P/N:32200-000017-RS) LPT cable (P/N:19800-000049-RS) Table 3-2: Package List Contents Page 29...
Page 48: Connectors And Jumpers
WSB-9452 PICMG 1.0 CPU Card Chapter Connectors and Jumpers Page 30...
Page 49: Peripheral Interface Connectors
WSB-9452 PICMG 1.0 CPU Card 4.1 Peripheral Interface Connectors The locations of the peripheral interface connectors are shown in Section 4.1.1. A complete list of all the peripheral interface connectors can be seen in Section 4.2. 4.1.1 WSB-9452 CPU card Layout Table 4-1 shows the on-board peripheral connectors, backplane peripheral connectors and on-board jumpers.
Page 50: Peripheral Interface Connectors
WSB-9452 PICMG 1.0 CPU Card 4.1.2 Peripheral Interface Connectors Table 4-2 lists the peripheral interface connectors on the WSB-9452 CPU card. Detailed descriptions of these connectors can be found in Section 4.2. Label Connector Type CPU12V1 ATX-12V CPU Power Source...
Page 51: External Peripheral Interface Connectors
USB45 USB Connectors 8-pin header Table 4-2: Peripheral Interface Connectors 4.1.3 External Peripheral Interface Connectors Table 4-3 lists the external peripheral interface connectors on the WSB-9452. Detailed descriptions of these connectors can be found in Section 4.3. Connector Type Label...
Page 52: On-Board Jumpers
Internal peripheral connectors are found on the CPU card and are only accessible when the CPU card is outside of the chassis. This section has complete descriptions of all the internal peripheral connectors on the WSB-9452 CPU card. 4.2.1 ATX-12V Power Source Connector...
Page 53: Figure 4-1: Atx-12V Connector Location
WSB-9452 PICMG 1.0 CPU Card Figure 4-1: ATX–12V Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION +12V +12V Table 4-5: ATX–12V Connector Pinouts Page 35...
Page 54: Audio Module Connector
See Figure 4-2 CN Pinouts: See Table 4-6 The WSB-9452 CPU card does not have a built-in AC’97 audio codec. If your system needs audio then this connector must be connected to an external audio module (AC-KIT-888HD-R10 or AC-KIT08R-R10). Figure 4-2: Audio Connector Location...
Page 55: Backplane To Mainboard Power Connector
WSB-9452 PICMG 1.0 CPU Card PIN NO. DESCRIPTION PIN NO. DESCRIPTION AC97_SYNC AC97_BITCLK AC97_SDOUT AC97_PCBEEP AC97_SDIN AC97_RST# AC97_VCC AC97_GND AC97_12V AC97_GND Table 4-6: Audio Connector Pinouts 4.2.3 Backplane to Mainboard Power Connector CN Label: ATXCTL1 3-pin wafer connector CN Type:...
Page 56: Figure 4-3: Backplane To Mainboard Power Connector Location
WSB-9452 PICMG 1.0 CPU Card Figure 4-3: Backplane to Mainboard Power Connector Location PIN NO. DESCRIPTION Ground PS_ON 5V Dual Table 4-7: Backplane to Mainboard Power Pin Outs Page 38...
Page 57: Battery Connector
WSB-9452 PICMG 1.0 CPU Card 4.2.4 Battery Connector CN Label: BAT1 2-pin wafer connector CN Type: CN Location: See Figure 4-4 CN Pinouts: See Table 4-8 Figure 4-4: Battery Connector Location Page 39...
Page 58: Cpu Fan Connector
WSB-9452 PICMG 1.0 CPU Card PIN NO. DESCRIPTION Table 4-8: Battery Connector Pinouts 4.2.5 CPU Fan Connector CN Label: CPU_FAN1 4-pin wafer connector CN Type: CN Location: See Figure 4-5 CN Pinouts: See Table 4-9 The cooling fan connector provides a 12V, 500mA current to a CPU cooling fan. The connector has a "rotation"...
Page 59: Figure 4-5: Cpu Fan Connector Location
WSB-9452 PICMG 1.0 CPU Card Figure 4-5: CPU Fan Connector Location DESCRIPTION Ground +12V Rotation Signal Control Table 4-9: CPU Fan Connector Pinouts Page 41...
Page 60: Digital Input/Output (Dio) Connector
WSB-9452 PICMG 1.0 CPU Card 4.2.6 Digital Input/Output (DIO) Connector CN Label: DIO1 10-pin header CN Type: CN Location: See Figure 4-6 CN Pinouts: See Table 4-10 The DIO connector is managed through a Super I/O chip. The DIO connector pins are user programmable.
Page 61: Dvi (Digital Visual Interface) Connector
WSB-9452 PICMG 1.0 CPU Card PIN NO. DESCRIPTION PIN NO. DESCRIPTION Ground Output 3 Output 2 Output 1 Output 0 Input 3 Input 2 Input 1 Input 0 Table 4-10: DIOConnector Pinouts 4.2.7 DVI (Digital Visual Interface) Connector CN Label:...
Page 62: Figure 4-7: Dvi Connector Location
WSB-9452 PICMG 1.0 CPU Card Figure 4-7: DVI Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION Data 2- +5V Power Data 2+ Hot Plug Detect Data 0- Data 0+ DDC Clock DDC Data Page 44...
Page 63: Fdd Connector
4.2.8 FDD Connector CN Label: FDD1 34-pin header CN Type: CN Location: See Figure 4-8 CN Pinouts: See Table 4-12 The WSB-9452 is shipped with a 34-pin daisy-chain drive connector cable. This cable can be connected to the FDD connector. Page 45...
Page 64: Figure 4-8: Fdd Connector Location
WSB-9452 PICMG 1.0 CPU Card Figure 4-8: FDD Connector Location DESCRIPTION DESCRIPTION REDUCE WRITE INDEX# MOTOR ENABLE A# DRIVE SELECT B# DRIVE SELECT A# Page 46...
Page 65: Front Panel Connector
WSB-9452 PICMG 1.0 CPU Card MOTOR ENABLE B# DIRECTION# STEP# WRITE DATA# WRITE GATE# TRACK 0# WRITE PROTECT# READ DATA# SIDE 1 SELECT# DISK CHANGE# Table 4-12: FDD Connector Pinouts 4.2.9 Front Panel Connector CN Label: F_PANEL1 CN Type: 14-pin header...
Page 66: Figure 4-9: Front Panel Connector Location
WSB-9452 PICMG 1.0 CPU Card Figure 4-9: Front Panel Connector Location FUNCTION DESCRIPTION FUNCTION DESCRIPTION Power LED Speaker GROUND PWRBTN+ Speaker PWRBTN PWRBTN- RESET Reset- HDDLED HDLED- Table 4-13: Front Panel Connector Location Page 48...
Page 67: Ide Connectors
CN Location: See Figure 4-10 CN Pinouts: See Table 4-14 One IDE connector provides connectivity for two IDE devices. WSB-9452 and WSB-9452DVI models have one IDE connector. WSB-9452S and WSB-9452SDVI models have two IDE connectors. Figure 4-10: IDE Connectors Location...
Page 68: Inverter Connector
WSB-9452 PICMG 1.0 CPU Card DESCRIPTION DESCRIPTION RESET# DATA 7 DATA 8 DATA 6 DATA 9 DATA 5 DATA 10 DATA 4 DATA 11 DATA 3 DATA 12 DATA 2 DATA 13 DATA 1 DATA 14 DATA 0 DATA 15...
Page 69: Figure 4-11: Inverter Connector Location
WSB-9452 PICMG 1.0 CPU Card The inverter control connector enables power on/off backlight during the power saving mode. Figure 4-11: Inverter Connector Location DESCRIPTION BRIGHTNESS GND1 GND2 BL_EN Table 4-15: Inverter Connector Pinouts Page 51...
Page 70: Irda Interface Connector
WSB-9452 PICMG 1.0 CPU Card 4.2.12 IrDA Interface Connector CN Label: 5-pin header CN Type: CN Location: See Figure 4-12 CN Pinouts: See Table 4-16 The integrated IrDA interface connector supports both the SIR and ASKIR infrared protocols. Figure 4-12: IrDA Interface Connector Location...
Page 71: Keyboard Connector
WSB-9452 PICMG 1.0 CPU Card DESCRIPTION IR-RX IR-TX Table 4-16: IrDA Interface Connector Pinouts 4.2.13 Keyboard Connector CN Label: CN Type: 4-pin wafer CN Location: See Figure 4-13 CN Pinouts: See Table 4-17 For alternative application, a keyboard pin header connector is also available on board.
Page 72: Figure 4-13: Keyboard Connector Location
WSB-9452 PICMG 1.0 CPU Card Figure 4-13: Keyboard Connector Location DESCRIPTION Keyboard Clock Keyboard Data Table 4-17: KB1 Connector Pinouts Page 54...
Page 73: Lvds Connector
WSB-9452 PICMG 1.0 CPU Card 4.2.14 LVDS Connector CN Label: LVDS1 30-pin crimp connector CN Type: CN Location: See Figure 4-14 CN Pinouts: See Table 4-18 The LVDS connector allows for a 24-bit, dual-channel, low noise, low power, and low amplitude high-speed data connection between the CPU card and LCD panel.
Page 74: Parallel Port Connector
WSB-9452 PICMG 1.0 CPU Card DESCRIPTION DESCRIPTION A_Y0 A_Y0# A_Y1 A_Y1# A_Y2 A_Y2# A_CK A_CK# A_Y3 A_Y3# B_Y0 B_Y0# B_Y1 B_Y1# B_Y2 B_Y2# B_CK B_CK# B_Y3 B_Y3# VCC_LCD VCC_LCD VCC_LCD VCC_LCD Table 4-18: LVDS Connector Pinouts 4.2.15 Parallel Port Connector...
Page 75: Figure 4-15: Parallel Port Connector Location
WSB-9452 PICMG 1.0 CPU Card Figure 4-15: Parallel Port Connector Location DESCRIPTION DESCRIPTION STROBE# AUTO FORM FEED # DATA0 ERROR# DATA1 INITIALIZE# DATA2 PRINTER SELECT LN# DATA3 DATA4 DATA5 DATA6 DATA7 ACKNOWLEDGE# Page 57...
Page 76: Pci Express Mini Card Connector
WSB-9452 PICMG 1.0 CPU Card BUSY PAPER EMPTY PRINTER SELECT Table 4-19: Parallel Port Connector Pinouts 4.2.16 PCI Express Mini Card Connector CN Label: CN Type: 52-pin PCI-E Mini Card slot CN Location: See Figure 4-16 CN Pinouts: See Table 4-20 The CPU card is equipped with a PCI-E Mini Card connector to support the latest PCI-E extension cards such as wireless LAN card or other compatible devices.
Page 77: Figure 4-16: Pci Express Mini Card Connector Location
WSB-9452 PICMG 1.0 CPU Card Figure 4-16: PCI Express Mini Card Connector Location DESCRIPTION DESCRIPTION PCIE_WAKE# VCC3 1.5V CLKREQ# LFRAME# LAD3 CLK- LAD2 CLK+ LAD1 LAD0 PCIRST# Page 59...
Page 78: Serial Port Connectors
4.2.17 RS-232 Serial Port Connectors CN Label: COM1, COM2 CN Type: 10-pin box header CN Location: See Figure 4-17 CN Pinouts: See Table 4-21 The WSB-9452 CPU card has two internal high-speed UART connectors accessed through a 10-pin cable connector. Page 60...
Page 79: Figure 4-17: Rs-232 Serial Port Connector Location
WSB-9452 PICMG 1.0 CPU Card Figure 4-17: RS-232 Serial Port Connector Location DESCRIPTION DESCRIPTION DATA CARRIER DETECT (DCD1) DATA SET READY (DSR1) RECEIVE DATA (RXD1) REQUEST TO SEND (RTS1) TRANSMIT DATA (TXD1) CLEAR TO SEND (CTS1) DATA TERMINAL READY (DTR1)
Page 80: Sata Drive Connectors
WSB-9452 PICMG 1.0 CPU Card 4.2.18 SATA Drive Connectors CN Label: SATA1, SATA2, SATA3, SATA4 CN Type: 7-pin SATA drive connector CN Location: See Figure 4-18 CN Pinouts: See Table 4-22 The SATA drive ports are connect to SATA HDDs with SATA signal cables. The SATA 3Gb/s connectors provide connectivity with a maximum data transfer rate of 300 MB/s.
Page 81: Spi Flash Connector
WSB-9452 PICMG 1.0 CPU Card DESCRIPTION DESCRIPTION Table 4-22: SATA Connectors Pinouts CAUTION: Your SATA hard drives may come with both a 4P power connector and a SATA power interface. Attach either the 4P connector or the included DO NOT SATA power cable to your SATA hard drives.
Page 82: Figure 4-19: Spi Flash Connector Location
WSB-9452 PICMG 1.0 CPU Card CN Pinouts: See Table 4-23 The 8-pin SPI Flash connector is used to flash the BIOS. Figure 4-19: SPI Flash Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION SPI_VCC SPI_CS SPI_CLK SPI_SO SPI_SI Table 4-23: SPI Flash Connector Pinouts...
Page 83: Trusted Platform Module Connector
WSB-9452 PICMG 1.0 CPU Card 4.2.20 Trusted Platform Module Connector CN Label: TPM1 CN Type: 20-pin header CN Location: See Figure 4-20 CN Pinouts: See Table 4-24 The TPM connector is a trusted platform module connector used to secure the system on bootup.
Page 84: Tv Out Connector
WSB-9452 PICMG 1.0 CPU Card PIN NO. DESCRIPTION PIN NO. DESCRIPTION FWHPCLK LFRAME# PCIRST# LAD3 LAD2 VCC3 LAD1 LAD0 SMBCLK SMBDATA 3VDUAL SERIRQ CLKRUN# LPCPD# LDRQ# Table 4-24: TPM Connector Pinouts 4.2.21 TV Out Connector CN Label: 6-pin header CN Type:...
Page 85: Figure 4-21: Tv Out Connector Location
WSB-9452 PICMG 1.0 CPU Card Figure 4-21: TV Out Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION AGREEN_Y ARED_C RCA Connector (only video signal) ABLUE_CVBS Table 4-25: TV Out Connector Pinouts Page 67...
Page 86: Usb Connectors
WSB-9452 PICMG 1.0 CPU Card 4.2.22 USB Connectors CN Label: USB01, USB23, USB45 8-pin header CN Type: CN Location: See Figure 4-22 CN Pinouts: See Table 4-26 Three 2x4 pin connectors provide connectivity to six USB 2.0 ports. An additional USB port is found on the rear panel.
Page 87: External Peripheral Interfaceconnectors
Table 4-26: USB Port Connector Pinouts 4.3 External Peripheral InterfaceConnectors Figure 4-23 shows the WSB-9452 CPU card rear panel. The peripheral connectors on the back panel can be connected to devices externally when the CPU card is installed in a chassis.
Page 88: Lan Connectors
CN Pinouts: See Table 4-27 The WSB-9452 is equipped with two built-in GbE Ethernet controllers. The controllers can connect to the LAN through two RJ-45 LAN connectors. There are two LEDs on the connector indicating the status of LAN. The pin assignments are listed in the following table: PIN NO.
Page 89: Mini-Din 6 Ps/2 Connector
WSB-9452 PICMG 1.0 CPU Card Figure 4-24: RJ-45 Ethernet Connector The RJ-45 Ethernet connector has two status LEDs, one green / orange and one yellow. The green / orange LED indicates the speed and the yellow LED indicates activity or is linked on the port.
Page 90: Usb Connector
WSB-9452 PICMG 1.0 CPU Card Figure 4-25: Mini-DIN 6 PS/2 Connector PIN NO. DESCRIPTION Keyboard Data Mouse Data Keyboard Clock Mouse Clock Table 4-29: Mini-DIN 6 PS/2 Connector 4.3.3 USB Connector CN Label: USB_C6 CN Type: USB port CN Location:...
Page 91: Vga Connector
WSB-9452 PICMG 1.0 CPU Card PIN NO. DESCRIPTION DATA- DATA+ GROUND Table 4-30: USB Port Pinouts 4.3.4 VGA connector CN Label: VGA1 CN Type: HD-D-sub 15 female connector CN Location: See Figure 4-23 (labeled number 4) CN Pinouts: See Table 4-31 A 15-pin VGA connector connects to standard displays.
Page 92: Table 4-31: Vga Connector Pinouts
WSB-9452 PICMG 1.0 CPU Card HSYNC VSYNC DDCCLK Table 4-31: VGA Connector Pinouts Page 74...
Page 93: Installation And Configuration
WSB-9452 PICMG 1.0 CPU Card Chapter Installation and Configuration Page 75...
Page 94: Anti-Static Precautions
CPU card and injury to the person installing the CPU card. 5.2.1 Installation Notices Before and during the installation of the WSB-9452 CPU card, please do the following: Read the user manual The user manual provides a complete description of the WSB-9452 CPU card, installation instructions and configuration options.
Page 95: Unpacking
Before you install the WSB-9452 CPU card, you must unpack the CPU card. Some components on WSB-9452 are very sensitive to static electricity and can be damaged by a sudden rush of power. To protect it from being damage, follow these precautions:...
Page 96: Checklist
You can do so by wearing a grounded wrist strap at all times or by frequently touching any conducting materials that is connected to the ground. Handle your WSB-9452 by its edges. Do not touch the IC chips, leads or circuitry if not necessary.
Page 97: Wsb-9452 Cpu Card Installation
5.4 WSB-9452 CPU Card Installation WARNING: Never run the CPU card without an appropriate heatsink and cooler that can be ordered from IEI Technology or purchased separately. Be sure to use the CPU 12V power connector (CPU12V1) for the CPU power.
Page 98: Socket 478 Cpu Installation
If a heat sink and cooling fan are not properly installed both the CPU and the board may be damaged. To install Socket 478-pin CPU onto the WSB-9452 board, follow the steps below: WARNING: When handling the CPU, only hold it on the sides. DO NOT touch the pins at the bottom of the CPU.
Page 99: Figure 5-1: Make Sure The Cpu Socket Retention Screw Is Unlocked
WSB-9452 PICMG 1.0 CPU Card Figure 5-1: Make sure the CPU socket retention screw is unlocked Step 2: Inspect the CPU socket. Make sure there are no bent pins and make sure the socket contacts are free of foreign material. If any debris is found, remove it with compressed air.
Page 100: Cooling Kit (Cf-479B-Rs ) Installation
WSB-9452 PICMG 1.0 CPU Card Figure 5-2: Lock the CPU Socket Retention Screw 5.4.2 Cooling Kit (CF-479B-RS ) Installation Figure 5-3: IEI CF-479B-RS Cooling Kit IEI provides a cooling kit designed for socket 478 CPUs. (See Figure 5-3) The cooling kit is comprised of a CPU heat sink and a cooling fan.
Page 101: Figure 5-4: Install Support Bracket
WSB-9452 PICMG 1.0 CPU Card NOTE: The CF-479B-RS heat sink comes with a sprayed layer of thermal paste. Make sure the paste is not accidentally wiped during the unpacking or installation of the heat sink. Thermal paste between the CPU and the heat sink is important for optimum heat dissipation.
Page 102: Figure 5-5: Align The Cooling Kit
WSB-9452 PICMG 1.0 CPU Card Figure 5-5: Align the Cooling Kit Step 4: Place the cooling kit onto the CPU. Push down the fan with some pressure to secure the cooling kit with the support bracket. See Figure 5-6. Step 5: Tighten the screws.
Page 103: Dimm Module Installation
WSB-9452 PICMG 1.0 CPU Card Figure 5-6: Secure the Cooling Kit 5.4.3 DIMM Module Installation 5.4.3.1 Purchasing the Memory Module WARNING: When purchasing the DIMM modules, make sure the modules are compatible with the DIMM slot specified in Section 2.6 Memory Support.
Page 104: Dimm Module Installation
Both DIMMs must use the same DRAM bus width Both DIMMs must be either single-sided or dual-sided 5.4.3.2 DIMM Module Installation The WSB-9452 CPU card has two 240-pin DDR2 SDRAM DIMM sockets. To install the DIMM modules, follow the instructions below. Step 1: Make sure the two handles of the DIMM socket are in the "open"...
Page 105: Figure 5-7: Installing The Dimm Module
WSB-9452 PICMG 1.0 CPU Card Figure 5-7: Installing the DIMM Module Page 87...
Page 106: Peripheral Device Connection
WSB-9452 PICMG 1.0 CPU Card Step 2: Slowly slide the DIMM module along the plastic guides on both ends of the socket. Press the DIMM module down into the socket until it clicks into position and the two handles have automatically locked the memory module into place.
Page 107: Ide Disk Drive Connectors (Ide1, Ide2)
WSB-9452 PICMG 1.0 CPU Card 5.4.4.1 IDE Disk Drive Connectors (IDE1, IDE2) The cable used to connect the motherboard to the IDE device is a standard 40-pin ATA/100 flat cable. To connect an IDE device to the motherboard, follow the instructions below.
Page 108: Figure 5-8: Connection Of Ide Connector
WSB-9452 PICMG 1.0 CPU Card Figure 5-8: Connection of IDE Connector NOTE: When two IDE disk drives are connected together, back-end jumpers on the drives must be used to configure one drive as a master and the other as a slave.
Page 109: Floppy Drive Connector (Fdd1)
WSB-9452 PICMG 1.0 CPU Card 5.4.4.2 Floppy Drive Connector (FDD1) This connector provides access to an externally mounted 3.5” floppy drive. To connect the CPU Card to a FDD, follow the instructions below. Step 1: Insert one side of the cable into the FDC making sure that the red wire on the cable corresponds to pin 1 on the connector.
Page 110: Figure 5-9: Sata Drive Cable Connection
WSB-9452 PICMG 1.0 CPU Card Figure 5-9: SATA Drive Cable Connection Step 3: Connect the connector on the other end of the cable to the connector at the back of the SATA drive (Figure 5-10). Step 4: Connect the SATA power connector to the back of the SATA drive (Figure 5-10).
Page 111: Installing The Rs-232 Cable
WSB-9452 PICMG 1.0 CPU Card Figure 5-10: SATA Drive Connection 5.4.6 Installing the RS-232 Cable A dual RS-232 cable consisting of two cables attached to two D-sub 9 male connectors that are mounted onto a bracket can be connected to the COM1 and COM2 RS-232 connectors.
Page 112: Usb 2.0 Cable Connection
WSB-9452 PICMG 1.0 CPU Card Figure 5-11: Dual RS-232 Cable Installation Step 3: Secure the bracket supporting the two D-sub 9 male connectors to the chassis. To do this, refer to the chassis manual. Step 0: 5.4.7 USB 2.0 Cable Connection The CPU card is shipped with a dual USB cable.
Page 113: Figure 5-12: Usb Cable Installation
WSB-9452 PICMG 1.0 CPU Card Step 2: Insert the two 4-pin connectors from the module into the USB pin headers on the CPU card. (Figure 5-12) Figure 5-12: USB Cable Installation Page 95...
Page 114: On-Board Jumpers
WSB-9452 PICMG 1.0 CPU Card 5.5 On-board Jumpers NOTE: A jumper is a metal bridge that is used to close an electrical circuit. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them.
Page 115: Figure 5-14: At Power Select Jumper Location
WSB-9452 PICMG 1.0 CPU Card The AT Power Select jumper specifies the systems power mode as AT or ATX. AT Power Select jumper settings are shown in Table 5-3. AT Power Select Description Short Use AT power Open Use ATX power...
Page 116: Clear Cmos Jumper
WSB-9452 PICMG 1.0 CPU Card 5.5.2 Clear CMOS Jumper Jumper Label: J_CMOS1 Jumper Type: 3-pin header Jumper Settings: See Table 5-4 Jumper Location: See Figure 5-15 If the CPU card fails to boot due to improper BIOS settings, use this jumper to clear the CMOS data and reset the system BIOS information.
Page 117: Lvds Lcd Voltage Selection
WSB-9452 PICMG 1.0 CPU Card Figure 5-15: Clear CMOS Jumper 5.5.3 LVDS LCD Voltage Selection WARNING: Making the wrong setting on this jumper may cause irreparable damage to both the motherboard and the LCD screen connected to the on-board connector.
Page 118: Table 5-5: Lvds Lcd Voltage Selection Jumper Settings
WSB-9452 PICMG 1.0 CPU Card Jumper Label: J_LVDS1 Jumper Type: 3-pin header Jumper Settings: See Table 5-5 Jumper Location: See Figure 5-16 This jumper allows the user to set the voltage for the LCD panel. Before setting this jumper please refer to the LCD panel user guide to determine the required voltage. After the required voltage is known, make the necessary jumper setting in accordance with the settings shown in Table 5-5.
Page 119: Chassis Installation
WSB-9452 PICMG 1.0 CPU Card Figure 5-16: LVDS Voltage Selection Jumper Pinout Locations 5.6 Chassis Installation After the CPU, the cooling kit, and the DIMM modules have been installed and after the internal peripheral connectors have been connected to the peripheral devices and the jumpers have been configure, the CPU Card can be mounted into a chassis.
Page 120: Rear Panel Connectors
WSB-9452 PICMG 1.0 CPU Card 5.7 Rear Panel Connectors 5.7.1 Keyboard and Mouse Connection A PS/2 keyboard and a PS/2 mouse can be connected to the appropriate PS/2 connector on the rear panel. 5.7.2 VGA Port Installation The conventional CRT monitor connector is a 15-pin, female D-SUB connector. Pin assignments can be seen in that can be connected to external monitors.
Page 121: Ami Bios Setup
WSB-9452 PICMG 1.0 CPU Card Chapter AMI BIOS Setup Page 103...
Page 122: Introduction
WSB-9452 PICMG 1.0 CPU Card 6.1 Introduction A licensed copy of AMI BIOS is preprogrammed into the ROM BIOS. The BIOS setup program allows users to modify the basic system configuration. This chapter describes how to access the BIOS setup program and the configuration options that may be changed.
Page 123: Getting Help
WSB-9452 PICMG 1.0 CPU Card F2 /F3 key Change color from total three colors. F2 to select color forward. F10 key Save all the CMOS changes, only for Main Menu Table 6-1: BIOS Navigation Keys 6.1.3 Getting Help When F1 is pressed a small help window describing the appropriate keys to use and the possible selections for the highlighted item appears.
Page 124: Main
WSB-9452 PICMG 1.0 CPU Card 6.2 Main When the BIOS Setup program is entered, the Main menu (BIOS Menu 1) appears. The Main menu gives an overview of the basic system information. BIOS Menu 1: Main System Overview The System Overview lists a brief summary of different system components. The fields in System Overview cannot be changed.
Page 125: Advanced
WSB-9452 PICMG 1.0 CPU Card Processor: Displays auto-detected CPU specifications Type: Names the currently installed processor Speed: Lists the processor speed Count: The number of CPUs on the motherboard System Memory: Displays the auto-detected system memory. Size: Lists memory size The System Overview field also has two user configurable fields: System Time [xx:xx:xx]: The system time is set here.
Page 126: Bios Menu 2: Advanced
WSB-9452 PICMG 1.0 CPU Card BIOS Menu 2: Advanced Page 108...
Page 127: Cpu Configuration
WSB-9452 PICMG 1.0 CPU Card 6.3.1 CPU Configuration The CPU Configuration menu (BIOS Menu 3) shows detailed CPU specifications and CPU configuration options. BIOS Menu 3: CPU Configuration The CPU Configuration menu (BIOS Menu 3) lists the following CPU details:...
Page 128: Ide Configuration
WSB-9452 PICMG 1.0 CPU Card The following CPU Configuration menu item can be configured. Intel(R) SpeedStep(tm) tech. [Automatic] ® Use the Intel(R) SpeedStep(tm) tech. option to enable or disable the Enhanced Intel ® SpeedStep Technology (EIST) feature, which allows power settings adjustment in the operating system.
Page 129: Bios Menu 4: Ide Configuration
WSB-9452 PICMG 1.0 CPU Card BIOS Menu 4: IDE Configuration ATA/IDE Configuration [Compatible] The ATA/IDE Configuration BIOS option allows the user to configure the ATA/IDE device mode. Page 111...
Page 130 WSB-9452 PICMG 1.0 CPU Card Disable all ATA/IDE ports. No Primary/Secondary IDE Disabled mode is presented for configuration Compatible Up to 4 HDDs can be used, two for SATA and the other EFAULT for PATA IDE. If this option is selected, “Legacy IDE Channels”...
Page 131: Ide Master, Ide Slave
WSB-9452 PICMG 1.0 CPU Card Secondary IDE Master Secondary IDE Slave The IDE Configuration menu (BIOS Menu 4) allows changes to the configurations for the IDE devices installed in the system. If an IDE device is detected, and one of the above listed four BIOS configuration options are selected, the IDE configuration options shown in Section 6.3.2.1 appear.
Page 132 WSB-9452 PICMG 1.0 CPU Card Not Installed Selecting this value prevents the BIOS from searching for an IDE disk drive on the specified channel. This selection enables the BIOS to auto detect the Auto EFAULT IDE disk drive type attached to the specified channel.
Page 133 WSB-9452 PICMG 1.0 CPU Card Block (Multi Sector Transfer) [Auto] Disabled Selecting this option prevents the BIOS from using Multi-Sector Transfer on the specified channel. The data to and from the device occurs one sector at a time. Auto Selecting this value to allows the BIOS to auto detect the...
Page 134 WSB-9452 PICMG 1.0 CPU Card DMA Mode [Auto] The DMA Mode BIOS selection adjusts the DMA mode options. Auto The BIOS auto detects the DMA mode. Use this value if the EFAULT IDE disk drive support cannot be determined. S.M.A.R.T [Auto] The Self-Monitoring Analysis and Reporting Technology (SMART) feature can help predict impending drive failures.
Page 135: Floppy Configuration
WSB-9452 PICMG 1.0 CPU Card 6.3.3 Floppy Configuration Use the Floppy Configuration menu (BIOS Menu 6) to set or change the configurations for floppy disk drives. BIOS Menu 6: Floppy Configuration Floppy A/B [1.44 MB 3½”] The Floppy A/B configuration option determines the types of the floppy drive installed in the system.
Page 136: Super Io Configuration
WSB-9452 PICMG 1.0 CPU Card Disabled 360 KB 5¼” 1.2 MB 5¼” 720 KB 3 ½” 1.44 MB 3½” 2.88 MB 3½” 6.3.4 Super IO Configuration The Super IO Configuration menu (BIOS Menu 7) sets or changes the configurations for the FDD controllers, parallel ports and serial ports.
Page 137 WSB-9452 PICMG 1.0 CPU Card On-board Floppy Controller [Enabled] Use the On-board Floppy Controller to enable or disable the floppy controller. If a floppy disk is not being used in the system, disabling this option frees up system resources that can be redirected elsewhere in the system.
Page 138 WSB-9452 PICMG 1.0 CPU Card Serial Port1 Mode [Normal] Allows BIOS to select the mode for Serial Port 1. Normal Serial Port 1 mode is normal EFAULT ASK IR Serial Port 1 mode is ASK IR Serial Port2 Address [2F8/IRQ3] The Serial Port2 Address option allows BIOS to select the Serial Port 2 base address.
Page 139 WSB-9452 PICMG 1.0 CPU Card Parallel Port Address [Disabled] Use the Parallel Port Address option to select the parallel port base address. Disabled No base address is assigned to the Parallel Port EFAULT Parallel Port I/O port address is 378...
Page 140: Hardware Health Configuration
WSB-9452 PICMG 1.0 CPU Card Parallel Port IRQ [IRQ7] Use the Parallel Port IRQ selection to set the parallel port interrupt address. IRQ5 IRQ5 is assigned as the parallel port interrupt address IRQ7 IRQ7 is assigned as the parallel port interrupt address EFAULT 6.3.5 Hardware Health Configuration...
Page 141 WSB-9452 PICMG 1.0 CPU Card CPU FAN Mode Setting: [Full On mode] The CPU FAN Mode Setting has the following options: Full On mode If selected, there are no additional configurable EFAULT options. Automatic If selected, the following options will appear with...
Page 142 WSB-9452 PICMG 1.0 CPU Card CPU Core +1.8V +3.30V +5.00V +12.0V 0.9V 1.5V 5VSB VBAT Page 124...
Page 143: Acpi Configuration
WSB-9452 PICMG 1.0 CPU Card 6.3.6 ACPI Configuration The ACPI Configuration menu (BIOS Menu 9) configures the Advanced Configuration and Power Interface (ACPI) and Power Management (APM) options. BIOS Menu 9: ACPI Configuration ACPI Aware O/S [Yes] Use the ACPI Aware O/S option to enable the system to configure ACPI power saving options.
Page 144: General Acpi Configuration
WSB-9452 PICMG 1.0 CPU Card Disables the ACPI support for the OS. This selection should be disabled if the OS does not support ACPI Enables the ACPI support for the operating system. This EFAULT selection should be enabled if the OS does support ACPI 6.3.6.1 General ACPI Configuration...
Page 145 WSB-9452 PICMG 1.0 CPU Card Suspend mode [Auto] Use the Suspend Mode option to specify the sleep state the system enters when it is not being used. Auto The OS selects the sleep state when then system is not being used.
Page 146: Apm Configuration
WSB-9452 PICMG 1.0 CPU Card 6.3.7 APM Configuration Use the APM Configuration menu (BIOS Menu 11) to select the advanced power management. BIOS Menu 11: APM Configuration Power Management/APM [Enabled] The Power Management/APM BIOS option accesses the advanced power management features.
Page 147 WSB-9452 PICMG 1.0 CPU Card Disables the Advanced Power Management (APM) Disabled feature Enabled Enables the APM feature EFAULT Restore on AC Power Loss by IO [Last State] The Restore on AC Power Loss by IO BIOS option specifies what state the system returns to if there is a sudden loss of power to the system.
Page 148 WSB-9452 PICMG 1.0 CPU Card Wake event not generated by an incoming call Disabled EFAULT Enabled Wake event generated by an incoming call Resume on PME# [Disabled] The Resume on PME# BIOS option specifies if the system will be roused from a suspended or standby state when there is activity on the PCI PME (power management event) controller.
Page 149: Mps Configuration
WSB-9452 PICMG 1.0 CPU Card 6.3.8 MPS Configuration Use the MPS Configuration menu (BIOS Menu 12) to select the multi-processor table. BIOS Menu 12: MPS Configuration MPS Revision [1.4] Use the Multiprocessor Specification (MPS) Revision option to specify the MPS version to be used.
Page 150: Remote Access Configuration
WSB-9452 PICMG 1.0 CPU Card 6.3.9 Remote Access Configuration Use the Remote Access Configuration menu (BIOS Menu 13) to configure remote access parameters. The Remote Access Configuration is an AMIBIOS feature and allows a remote host running a terminal program to display and configure the BIOS settings.
Page 151 WSB-9452 PICMG 1.0 CPU Card Remote access is disabled. Disabled EFAULT Enabled Remote access configuration options shown below appear: Serial Port Number Serial Port Mode Flow Control Redirection after BIOS POST Terminal Type VT-UTF8 Combo Key Support Sredir Memory Display Delay These configuration options are discussed below.
Page 152 WSB-9452 PICMG 1.0 CPU Card NOTE: Make sure the selected COM port is enabled through the Super I/O configuration menu. Base Address, IRQ [2F8h,3] The Base Address, IRQ option cannot be configured and only shows the interrupt address of the serial port listed above.
Page 153 WSB-9452 PICMG 1.0 CPU Card None No control flow, EFAULT Hardware Hardware is set as the console redirection Software Software is set as the console redirection Redirection After BIOS POST [Always] Use the Redirection After BIOS POST option to specify when console redirection should occur.
Page 154 WSB-9452 PICMG 1.0 CPU Card Disabled Disables the VT-UTF8 terminal keys EFAULT Enabled Enables the VT-UTF8 combination key. Support for ANSI/VT100 terminals Sredir Memory Display Delay [Disabled] Use the Sredir Memory Display Delay option to select the delay before memory information is displayed.
Page 155: Trusted Computing
WSB-9452 PICMG 1.0 CPU Card 6.3.10 Trusted Computing Use the Trusted Computing menu (BIOS Menu 15) to configure the trusted computing platform settings. BIOS Menu 14: Trusted Computing Configuration TCG/TPM Support [No] Use the TCG/TPM Support option to enable support for the Trusted Computing Group/Trusted Platform Module (TCG/TPM 1.1/1.2) specification.
Page 156: Usb Configuration
WSB-9452 PICMG 1.0 CPU Card 6.3.11 USB Configuration Use the USB Configuration menu (BIOS Menu 15) to read USB configuration information and configure the USB settings. BIOS Menu 15: USB Configuration USB Configuration The USB Configuration field shows the system USB configuration. The items listed are: Module Version: x.xxxxx.xxxxx...
Page 157 WSB-9452 PICMG 1.0 CPU Card USB Function [8 USB Ports] Use the USB Function BIOS option to disable USB function support or to set the number of USB ports to activate. Disabled USB function support disabled Two USB ports are activated.
Page 158 WSB-9452 PICMG 1.0 CPU Card Legacy USB support disabled Disabled Enabled Legacy USB support enabled EFAULT Auto Legacy USB support disabled if no USB devices are connected USB2.0 Controller Mode [HiSpeed] Use the USB2.0 Controller Mode option to set the speed of the USB2.0 controller.
Page 159: Pci/Pnp
WSB-9452 PICMG 1.0 CPU Card 6.4 PCI/PnP Use the PCI/PnP menu (BIOS Menu 16) to configure advanced PCI and PnP settings. WARNING: Setting wrong values for the BIOS selections in the PCIPnP BIOS menu may cause the system to malfunction.
Page 160 WSB-9452 PICMG 1.0 CPU Card Page 142...
Page 161: Bios Menu 16: Pci/Pnp Configuration
WSB-9452 PICMG 1.0 CPU Card BIOS Menu 16: PCI/PnP Configuration Clear NVRAM [No] Use the Clear NVRAM option to specify if the NVRAM (Non-Volatile RAM) is cleared when the power is turned off. System does not clear NVRAM during system boot...
Page 162 WSB-9452 PICMG 1.0 CPU Card Plug & Play O/S [No] Use the Plug & Play O/S BIOS option to specify whether system plug and play devices are configured by the operating system or the BIOS. If the operating system does not meet the Plug and Play...
Page 163 WSB-9452 PICMG 1.0 CPU Card Allocate IRQ to PCI VGA [Yes] Use the Allocate IRQ to PCI VGA option to restrict the system from giving the VGA adapter card an interrupt address. Assigns an IRQ to a PCI VGA card if card requests IRQ...
Page 164 WSB-9452 PICMG 1.0 CPU Card PCI IDE BusMaster [Enabled] Use the PCI IDE BusMaster BIOS option to enable or prevent PCI IDE busmastering. Disabled Busmastering is prevented Enabled IDE controller on the PCI local bus has mastering EFAULT capabilities OffBoard PCI/ISA IDE Card [Auto] Use the OffBoard PCI/ISA IDE Card BIOS option to select the OffBoard PCI/ISA IDE Card.
Page 165 WSB-9452 PICMG 1.0 CPU Card PCI Slot 5 PCI Slot 5 is selected as the location of the OffBoard PCI IDE adapter card. Only select this slot if the adapter card is installed in PCI Slot 5. PCI Slot 6 PCI Slot 6 is selected as the location of the OffBoard PCI IDE adapter card.
Page 166 WSB-9452 PICMG 1.0 CPU Card DMA Channel# [Available] Use the DMA Channel# option to assign a specific DMA channel to a particular PCI/PnP device. Available The specified DMA is available to be used by EFAULT PCI/PnP devices Reserved The specified DMA is reserved for use by Legacy...
Page 167: Boot
WSB-9452 PICMG 1.0 CPU Card 6.5 Boot Use the Boot menu (BIOS Menu 17) to configure system boot options. BIOS Menu 17: Boot 6.5.1 Boot Settings Configuration Use the Boot Settings Configuration menu (BIOS Menu 18) to configure advanced system boot options.
Page 168: Bios Menu 18: Boot Settings Configuration
WSB-9452 PICMG 1.0 CPU Card BIOS Menu 18: Boot Settings Configuration Quick Boot [Enabled] Use the Quick Boot BIOS option to make the computer speed up the boot process. Disabled No POST procedures are skipped Enabled Some POST procedures are skipped to decrease...
Page 169 WSB-9452 PICMG 1.0 CPU Card Quiet Boot [Disabled] Use the Quiet Boot BIOS option to select the screen display when the system boots. Disabled Normal POST messages displayed EFAULT Enabled OEM Logo displayed instead of POST messages AddOn ROM Display Mode [Force BIOS] Use the AddOn ROM Display Mode option to allow add-on ROM (read-only memory) messages to be displayed.
Page 170 WSB-9452 PICMG 1.0 CPU Card Allows the Number Lock on the keyboard to be enabled EFAULT automatically when the computer system boots up. This allows the immediate use of the 10-key numeric keypad located on the right side of the keyboard. To confirm this, the Number Lock LED light on the keyboard is lit.
Page 171: Boot Device Priority
WSB-9452 PICMG 1.0 CPU Card 6.5.2 Boot Device Priority Use the Boot Device Priority menu (BIOS Menu 19) to specify the boot sequence from the available devices. Possible boot devices may include: FLOPPY DRIVE CD/DVD BIOS Menu 19: Boot Device Priority Settings...
Page 172: Hard Disk Drives
WSB-9452 PICMG 1.0 CPU Card 6.5.3 Hard Disk Drives The Hard Disk Drives menu (BIOS Menu 20) specifies the boot sequence of the available HDDs. When the menu is opened, the HDDs connected to the system are listed as shown below:...
Page 173: Removable Drives
WSB-9452 PICMG 1.0 CPU Card NOTE: Only the drives connected to the system are shown. For example, if only two HDDs are connected only “1st Drive” and “2nd Drive” are listed. The boot sequence from the available devices is selected. If the “1st Drive” option is selected a list of available HDDs is shown.
Page 174: Bios Menu 21: Removable Drives
WSB-9452 PICMG 1.0 CPU Card BIOS Menu 21: Removable Drives Page 156...
Page 175: Security
WSB-9452 PICMG 1.0 CPU Card 6.6 Security Use the Security menu (BIOS Menu 22) to set system and user passwords. BIOS Menu 22: Security Change Supervisor Password Use the Change Supervisor Password to set or change a supervisor password. The default for this option is Not Installed.
Page 176 WSB-9452 PICMG 1.0 CPU Card Change User Password Use the Change User Password to set or change a user password. The default for this option is Not Installed. If a user password must be installed, select this field and enter the password.
Page 177: Chipset
WSB-9452 PICMG 1.0 CPU Card 6.7 Chipset Use the Chipset menu (BIOS Menu 23) to access the Northbridge and Southbridge configuration menus. WARNING: Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction.
Page 178: Northbridge Configuration
WSB-9452 PICMG 1.0 CPU Card 6.7.1 Northbridge Configuration Use the Northbridge Configuration menu (BIOS Menu 24) to configure the Northbridge chipset. BIOS Menu 24: Northbridge Chipset Configuration DRAM Frequency [Auto] Use the DRAM Frequency option to specify the DRAM frequency or allow the system to automatically detect the DRAM frequency.
Page 179 WSB-9452 PICMG 1.0 CPU Card 533MHz Sets the DRAM frequency to 533MHz 667MHz Sets the DRAM frequency to 667MHz Configure DRAM Timing by SPD [Enabled] Use the Configure DRAM Timing by SPD option to determine if the system uses the SPD (Serial Presence Detect) EEPROM to configure the DRAM timing.
Page 180 WSB-9452 PICMG 1.0 CPU Card Memory is not reserved for ISA expansion cards Disabled EFAULT 15MB – 16MB Between 15MB and 16MB of memory is reserved for ISA expansion cards Boots Graphics Adapter Priority [IGD] Use the Boots Graphics Adapter Priority option to select the graphics controller used as the primary boot device.
Page 181: Video Function Configuration
WSB-9452 PICMG 1.0 CPU Card 6.7.1.1 Video Function Configuration Use the Video Function Configuration menu (BIOS Menu 25) to configure the video device connected to the system. BIOS Menu 25: Video Function Configuration DVMT Mode Select [DVMT Mode] Use the DVMT Mode Select option to select the Intel Dynamic Video Memory Technology (DVMT) operating mode.
Page 182 WSB-9452 PICMG 1.0 CPU Card A fixed portion of graphics memory is reserved as Fixed Mode graphics memory. DVMT Mode Graphics memory dynamically allocated EFAULT according to the system and graphics needs. Combo Mode A fixed portion of graphics memory is reserved as graphics memory.
Page 183 WSB-9452 PICMG 1.0 CPU Card Flat Panel Type [640*480] Use the Flat Panel Type option to select the type of flat panel connected to the system. Configuration options are listed below. 640*480 800*600 1024*768 (18 bits) EFAULT 1280*1024 (36bits) 1400*1050 (36bits)
Page 184 WSB-9452 PICMG 1.0 CPU Card Auto EFAULT Composite Component Composite & RGB S-Video SCART Composite SCART Compos. & RGB SCART Compos. & S-Vdo SMPTE253 Compon. RGB HDTV Output [Auto] Use the HDTV Output option to select the number of vertical lines in each frame, the method the HDTV connected to the system scans and the frequency of the frames.
Page 185 WSB-9452 PICMG 1.0 CPU Card 1080p24 Progressive 1080 per frame 24 frames per second 1080p25 Progressive 1080 per frame 25 frames per second 1080p30 Progressive 1080 per frame 30 frames per second 1080p50 Progressive 1080 per frame 50 frames per second...
Page 186: Southbridge Configuration
WSB-9452 PICMG 1.0 CPU Card 6.7.2 Southbridge Configuration The Southbridge Configuration menu (BIOS Menu 26) the Southbridge chipset to be configured. BIOS Menu 26:Southbridge Chipset Configuration Page 168...
Page 187 WSB-9452 PICMG 1.0 CPU Card Audio Controller [AC`97 Audio] The Audio Controller option allows selection of the audio controller to use. ® Azalia The Intel High Definition Audio controller is enabled EFAULT AC`97 Audio The on-board AC’97 controller is enabled...
Page 188 WSB-9452 PICMG 1.0 CPU Card Auto The PCI Express Mini Card is automatically detected EFAULT and enabled Enabled The PCI Express Mini Card is manually enabled Disabled The PCI Express Mini Card is manually disabled SATA Controller Use the SATA Controller option to enable or disable the onboard SATA controller.
Page 189: Exit
WSB-9452 PICMG 1.0 CPU Card 6.8 Exit Use the Exit menu (BIOS Menu 27) to load default BIOS values, optimal failsafe values and to save configuration changes. BIOS Menu 27:Exit Save Changes and Exit Use the Save Changes and Exit option to save the changes made to the BIOS options and to exit the BIOS configuration setup program.
Page 190 WSB-9452 PICMG 1.0 CPU Card Discard Changes Use the Discard Changes option to discard the changes and remain in the BIOS configuration setup program. Load Optimal Defaults Use the Load Optimal Defaults option to load the optimal default values for each of the parameters on the Setup menus.
Page 191: Software Drivers
WSB-9452 PICMG 1.0 CPU Card Chapter Software drivers Page 173...
Page 192: Available Software Drivers
To install the chipset driver, please follow the steps below: Step 1: Insert the CD into the system that contains the WSB-9452 board. Open the 1-INF directory and locate the icon for the infinst_autol.exe installation file. Once located, use the mouse to double click the icon.
Page 193: Figure 7-1: Installshield Wizard Preparation Screen
WSB-9452 PICMG 1.0 CPU Card Step 2: The “InstallShield Wizard Preparation Screen” in Figure 7-1 appears. Figure 7-1: InstallShield Wizard Preparation Screen Step 3: The “Welcome” window in Figure 7-2 appears next. Figure 7-2: Welcome Screen Page 175...
Page 194: Figure 7-3: License Agreement
WSB-9452 PICMG 1.0 CPU Card Step 4: Click “N ” and the license agreement shown in Figure 7-3 appears. Figure 7-3: License Agreement Page 176...
Page 195: Figure 7-4: Readme Information
WSB-9452 PICMG 1.0 CPU Card Step 5: Agree to the license terms by clicking “Y ”. The “Readme” in Figure 7-4 appears. Figure 7-4: Readme Information Page 177...
Page 196: Figure 7-5: Restart The Computer
WSB-9452 PICMG 1.0 CPU Card Step 6: Click “Y ”. The driver is installed on the computer. After the installation is complete, the installation complete screen shown in Figure 7-5 appears. Select the preferred option and click “F ” to complete the installation process.
Page 197: Vga Driver
WSB-9452 PICMG 1.0 CPU Card 7.3 VGA Driver To install the VGA driver, please follow the steps below: Step 1: Insert the Utility CD that came with the motherboard into the system CD drive. Step 2: Open the X:\2-VGA\WIN2K_XP directory (where X:\ is the system CD drive) and double-click the win2k_xp1420.exe installation file.
Page 198: Figure 7-7: Preparing Setup Screen
WSB-9452 PICMG 1.0 CPU Card Step 4: The Preparing Setup window appears next (Figure 7-7). Figure 7-7: Preparing Setup Screen Page 180...
Page 199: Figure 7-8: Vga Driver Installation Welcome Screen
WSB-9452 PICMG 1.0 CPU Card Step 5: A Welcome screen shown in Figure 7-8 appears. Click N to continue the installation. Figure 7-8: VGA Driver Installation Welcome Screen Page 181...
Page 200: Figure 7-9: Vga Driver License Agreement
WSB-9452 PICMG 1.0 CPU Card Step 6: A license agreement shown in Figure 7-9 appears. Read through the license agreement. Figure 7-9: VGA Driver License Agreement Step 7: Accept the terms and conditions stipulated in the license agreement by clicking the “Y...
Page 201: Figure 7-11: Vga Driver Installation Complete
WSB-9452 PICMG 1.0 CPU Card Step 8: After the driver installation process is complete, a confirmation screen shown in Figure 7-11 appears. Figure 7-11: VGA Driver Installation Complete Step 9: The confirmation screen shown in Figure 7-11 allows user to restart the computer immediately after the installation is complete or to restart the computer later.
Page 202: Realtek Lan Driver (For Gbe Lan) Installation
WSB-9452 PICMG 1.0 CPU Card 7.4 Realtek LAN Driver (for GbE LAN) Installation To install the Realtek LAN driver, please follow the steps below. Step 1: Open Windows Control Panel (Figure 7-12). Figure 7-12: Access Windows Control Panel Page 184...
Page 203: Figure 7-13: Double Click The System Icon
WSB-9452 PICMG 1.0 CPU Card Step 2: Double click the System icon (Figure 7-13). Figure 7-13: Double Click the System Icon Page 185...
Page 204: Figure 7-14: Double Click The Device Manager Tab
WSB-9452 PICMG 1.0 CPU Card Step 3: Click the Hardware Tab, then double click Device Manager (Figure 7-14). Figure 7-14: Double Click the Device Manager Tab Step 4: A list of system hardware devices appears (Figure 7-15). Figure 7-15: Device Manager List Step 5: Double click the listed device that has question marks next to it.
Page 205: Figure 7-16: Search For Suitable Driver
WSB-9452 PICMG 1.0 CPU Card Step 6: The Device Driver Wizard appears (Figure 7-16). Click N to continue. Figure 7-16: Search for Suitable Driver Page 187...
Page 206: Figure 7-17: Locate Driver Files
WSB-9452 PICMG 1.0 CPU Card Step 7: Select “Specify a Location” in the Locate Driver Files window (Figure 7-17). Click N to continue. Figure 7-17: Locate Driver Files Page 188...
Page 207: Figure 7-18: Location Browsing Window
WSB-9452 PICMG 1.0 CPU Card Step 8: Select the proper OS folder under the “X:\3-LAN\E:\3-LAN\Realtek RTL8111E” directory (Figure 7-18) in the location browsing window, where “X:\” is the system CD drive. Figure 7-18: Location Browsing Window Step 9: Click OK to continue. A driver files location menu window appears. Click N continue.
Page 208: Realtek Hd Audio Driver (Alc888) Installation
WSB-9452 PICMG 1.0 CPU Card 7.5 Realtek HD Audio Driver (ALC888) Installation To install the Realtek High Definition (HD) Audio driver, please follow the steps below. 7.5.1 BIOS Setup Step 1: Enter the BIOS setup. To do this, reboot the system and press D during POST.
Page 209: Figure 7-19: 4-Audio\Ac-Kit888Hd\Windows Folder
WSB-9452 PICMG 1.0 CPU Card Figure 7-19: 4-AUDIO\AC-KIT888HD\Windows Folder Step 3: Double-click the WDM_R140 icon to begin the driver installation process. Page 191...
Page 210: Figure 7-20: Hd Audio Driver Setup Extracting Files
WSB-9452 PICMG 1.0 CPU Card Step 4: Once the WDM_R140 icon is double clicked, the contents of the installation package are extracted. See Figure 7-20. Figure 7-20: HD Audio Driver Setup Extracting Files Page 192...
Page 211: Figure 7-21: Hd Audio Driver Setup Welcome Screen
WSB-9452 PICMG 1.0 CPU Card Step 5: The Welcome screen appears. Click N . See Figure 7-21. Figure 7-21: HD Audio Driver Setup Welcome Screen Page 193...
Page 212: Figure 7-22: Hd Audio Driver Installation Complete
WSB-9452 PICMG 1.0 CPU Card Step 6: The driver is automatically installed. Step 7: After the driver installation process is complete, a confirmation screen shown in Figure 7-22 appears. Figure 7-22: HD Audio Driver Installation Complete Step 8: The confirmation screen shown in Figure 7-22 allows you to restart the computer immediately after the installation is complete or to restart the computer later.
Page 213: Realtek Ac`97 Audio Driver (Alc665) Installation
WSB-9452 PICMG 1.0 CPU Card 7.6 Realtek AC`97 Audio Driver (ALC665) Installation To install the Realtek AC `97 audio driver, please follow the steps below. 7.6.1 BIOS Setup Step 1: Enter the BIOS setup. To do this, reboot the system and press D during POST.
Page 214: Figure 7-23: Cd 4-Audio\Ac-Kit08R\Windows Folder
WSB-9452 PICMG 1.0 CPU Card Figure 7-23: CD 4-AUDIO\AC-KIT08R\Windows Folder Step 3: Double-click the Setup.exe file to begin the driver installation process. Step 4: Once you double click the Setup icon, the install shield wizard for the audio driver starts. See Figure 7-24.
Page 215: Figure 7-25: Ac`97 Audio Driver Setup Preparation
WSB-9452 PICMG 1.0 CPU Card Figure 7-25: AC`97 Audio Driver Setup Preparation Page 197...
Page 216: Figure 7-26: Ac`97 Audio Driver Welcome Screen
WSB-9452 PICMG 1.0 CPU Card Step 6: After the install shield is prepared, the welcome screen shown in Figure 7-26 appears. To continue the installation process, click the “N ” button. The install shield starts to configure the new software as shown in Figure 7-27.
Page 217: Figure 7-27: Ac`97 Audio Driver Software Configuration
WSB-9452 PICMG 1.0 CPU Card Figure 7-27: AC`97 Audio Driver Software Configuration Page 199...
Page 218: Figure 7-28: Ac`97 Audio Driver Digital Signal
WSB-9452 PICMG 1.0 CPU Card Step 7: At this stage the “Digital Signal Not Found” screen appears (Figure 7-28). To continue the installation process, click the “Y ” button. Figure 7-28: AC`97 Audio Driver Digital Signal Page 200...
Page 219: Figure 7-29: Ac`97 Audio Driver Installation Begins
WSB-9452 PICMG 1.0 CPU Card Step 8: After clicking the “Y ” button in Figure 7-28, the installation of the driver begins (Figure 7-29). Figure 7-29: AC`97 Audio Driver Installation Begins Page 201...
Page 220: Figure 7-30: Ac`97 Audio Driver Installation Complete
WSB-9452 PICMG 1.0 CPU Card Step 9: After the driver installation process is complete, a confirmation screen shown in Figure 7-30 appears. Figure 7-30: AC`97 Audio Driver Installation Complete Step 10: The confirmation screen shown in Figure 7-30 allows you to restart the computer immediately after the installation is complete or to restart the computer later.
Page 221: Abios Configuration Options
WSB-9452 PICMG 1.0 CPU Card Appendix BIOS Configuration Options Page 203...
Page 222: A.1 Bios C Onfiguration O Ptions
WSB-9452 PICMG 1.0 CPU Card A.1 BIOS Configuration Options Below is a list of BIOS configuration options described in Chapter 0. 　 System Overview ....................106 　 Intel(R) SpeedStep(tm) tech. [Automatic] ............110 　 ATA/IDE Configuration [Compatible]..............111 　 Legacy IDE Channels [SATA Pri, PATA Sec]........... 112 　...
Page 223 WSB-9452 PICMG 1.0 CPU Card 　 CPU Fan Start PWM .................... 123 　 Slope PWM 1: 0 PWM, 1 PWM (Default), 2 PWM, 4 PWM, 8 PWM, 16 PWM, 32 PWM or 64 PWM ...................... 123 　 CPU Fan PWM Control ..................123 　...
Page 224 WSB-9452 PICMG 1.0 CPU Card 　 Sredir Memory Display Delay [Disabled]............136 　 TCG/TPM Support [No]..................137 　 USB Configuration....................138 　 USB Devices Enabled..................138 　 USB Function [8 USB Ports]................139 　 USB 2.0 Controller [Enabled]................139 　 Legacy USB Support [Enabled]................. 139 　...
Page 225 WSB-9452 PICMG 1.0 CPU Card 　 Internal Graphics Mode Select [Enabled, 8MB] ..........162 　 DVMT Mode Select [DVMT Mode]..............163 　 DVMT/FIXED Memory [128MB] ................164 　 Boot Display Device [CRT on Port 0]..............164 　 Flat Panel Type [640*480]................... 165 　...
Page 226: Bwatchdog Timer
WSB-9452 PICMG 1.0 CPU Card Appendix Watchdog Timer Page 208...
Page 227 WSB-9452 PICMG 1.0 CPU Card NOTE: The following discussion applies to DOS environment. It is recommended you contact IEI support or visit our website for specific drivers for more sophisticated operating systems, e.g., Windows and Linux. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.
Page 228 WSB-9452 PICMG 1.0 CPU Card NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system will reset. Example program: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BL, 30 ;time-out value is 48 seconds ;...
Page 229: Cexternal Ac'97 Audio Codec
WSB-9452 PICMG 1.0 CPU Card Appendix External AC’97 Audio CODEC Page 211...
Page 230: Introduction
WSB-9452 PICMG 1.0 CPU Card C.1 Introduction The audio functionalities of the WSB-9452 CPU card can be implemented using a separately purchased audio module, the AC-KIT08R-R10. The audio kit is powered by Realtek ALC655/888, a 16-bit, full duplex AC’97 2.3 compatible audio CODEC with 48KHz sampling rate.
Page 231 WSB-9452 PICMG 1.0 CPU Card Figure C-1: Audio Functionalities via the Audio Kit Page 213...
Page 232: Physical Connection
WSB-9452 PICMG 1.0 CPU Card C.2 Physical Connection Figure C-2: Audio Kit Connectors The audio kit comes with a PCI slot bracket for the installation into a PC case or rackmount chassis. Connect the 10-pin header to the J_AUDIO1 header as shown above, and if necessary, connect the CDIN1 and AUXIN1 to optical drives or other audio sources, e.g., an MPEG card, using a 4-pin cable.
Page 233 WSB-9452 PICMG 1.0 CPU Card Figure C-3: Sound Effect Manager Icon Page 215...
Page 234: Sound Effect Configuration
WSB-9452 PICMG 1.0 CPU Card C.4 Sound Effect Configuration After installing the audio CODEC driver, you should be able to use the multi-channel audio features now. Click the audio icon from the Notification Area from system task bar (see Figure C-5). The shortcut to the configuration utility is also available through the Sound Effect Manager icon in the Control Panel (Figure C-4).
Page 235: Sound Effect
WSB-9452 PICMG 1.0 CPU Card C.5 Sound Effect You may select a pre-configured sound environment setting with the preset equalizer settings. You may also load an equalizer setting or make a new equalizer setting using the “Load EQ Setting” and “Save Preset” button. (See Figure C-7) Figure C-6: Setting Sound Effects C.6 Environment Simulation...
Page 236 WSB-9452 PICMG 1.0 CPU Card Figure C-7: Sound Effects Properties Editor Page 218...
Page 237: Karaoke Mode
WSB-9452 PICMG 1.0 CPU Card C.7 Karaoke Mode Figure C-8: Karaoke Mode The Karaoke mode shown in Figure C-8 allows you to eliminate the vocal of the music you play or adjust the key to accommodate your range. The configuration options that come with the Karaoke function include: 1.
Page 238: Equalizer Selection
WSB-9452 PICMG 1.0 CPU Card NOTE: The Equalizer button on the default display brings you to the same configuration window as the Equalizer function tab on top of the window. C.8 Equalizer Selection Figure C-9: Equalizer Settings The equalizer in Figure C-9 allows users to change sound effect parameters. The default screen shows equalized values.
Page 239: Speaker Configuration
WSB-9452 PICMG 1.0 CPU Card C.9 Speaker Configuration Figure C-10: Speaker Configuration In this functional window, you can configure your multi-channel speaker settings. Select the audio configuration from the No. of Speakers section on the left by clicking on one of the check circles.
Page 240: Speaker Test
WSB-9452 PICMG 1.0 CPU Card Select a speaker configuration by selecting its check circle, and then click OK to apply the configuration change. Connect your speakers to the corresponding phonejacks. It is recommended you write down your configuration, power off the system, and then complete the physical connections.
Page 241: S/Pdif-In & S/Pdif-Out
WSB-9452 PICMG 1.0 CPU Card Select each specific speaker to test its functionality. The speaker you select will be highlighted and sound should be generated. NOTE: 1. The test scenario that appears in the Speaker Test window corresponds to the number of speakers you selected in the Sound Effect window.
Page 242: Connector Sensing
WSB-9452 PICMG 1.0 CPU Card C.12 Connector Sensing Figure C-12: Connector Sensing Realtek ALC655/888 supports Jack Sensing functionality. If an audio device is plugged into the wrong connector, a warning message will display informing users to correct the physical connections.
Page 243 WSB-9452 PICMG 1.0 CPU Card Figure C-13: EX Connection The “Audio Connector” column shows the settings used in the “Speaker Configuration” window. The “Current Connection” column shows the types of devices detected during test. If the result does not match the physical connection, an exclamation mark will appear. (See...
Page 244 WSB-9452 PICMG 1.0 CPU Card Figure C-14: Connector Sensing Test Result After closing the EZ-Connector screen, the following window should appear showing the latest connection status. Page 226...
Page 245: Hrtf Demo
WSB-9452 PICMG 1.0 CPU Card C.13 HRTF Demo Figure C-15: HRTF Demo The HRTF window in Figure C-15 allows you to adjust your HRTF (Head Related Transfer Functions) 3D positional audio before playing 3D applications. Select a preferred Environment mode and/or different Sound and Moving Path settings.
Page 246: General
WSB-9452 PICMG 1.0 CPU Card C.15 General The general window in Figure C-16 provides information about this AC’97 audio configuration utility including Audio Driver version, DirectX version, Audio Controller, and AC’97 Codec. You may also change the language of this utility through the Language pull-down menu.
Page 247: Djmicron Raid Setup
WSB-9452 PICMG 1.0 CPU Card Appendix Jmicron RAID Setup Page 229...
Page 248: Introduction
WSB-9452 PICMG 1.0 CPU Card D.1 Introduction D.1.1 RAID Support The Jmicron JMB363 chipset integrated controller in WSB-9452S and WSB-9452SDVI models supports the following RAID configurations on the SATA3 and SATA4 connectors. JBOD RAID0 RAID1 D.1.2 What is RAID RAID, or redundant array of inexpensive disks, is a method of saving data on multiple disks so that if one of the disks is damaged or destroyed, the data on the disks is not lost.
Page 249: Raid Setup
WSB-9452 PICMG 1.0 CPU Card D.2 RAID Setup D.2.1 Introduction To setup the RAID, the following procedures must be completed. Step 1: Two SATA drives, preferably with the same model and capacity, must be installed onto the system. Refer to Section 5.4.5.
Page 250: Configure The Raid Bios
WSB-9452 PICMG 1.0 CPU Card D.2.4 Configure the RAID BIOS The next step is to configure the RAID BIOS. To do this, follow the steps below. Step 1: Restart the system. Step 2: During POST, the system prompts the user to press <C >...
Page 251: Create A Raid Volume
WSB-9452 PICMG 1.0 CPU Card Figure D-2: Enter the RAID Setup Utility D.2.4.1 Create a RAID volume Step 1: In the RAID Setup Utility main menu, highlight Create RAID Disk Drive (Figure D-3). Press E NTER Figure D-3: Create RAID Disk Drive...
Page 252 WSB-9452 PICMG 1.0 CPU Card Step 2: The Create New RAID window opens. The Name item is highlighted (Figure D-4). Enter a name made up of one to 16 characters for the RAID volume to be created, then press E...
Page 253 WSB-9452 PICMG 1.0 CPU Card Step 4: The utility automatically selects the SATA drives installed. The selected disks are marked with a (Figure D-6). Figure D-6: Select disks Step 5: Set the stripe block size for the RAID 0 set (Figure D-7). This parameter defines the size of the stripe written to each disk.
Page 254 WSB-9452 PICMG 1.0 CPU Card Step 6: The Size item is then highlighted (Figure D-8). Enter the RAID volume size. The default value is the maximum volume size allowed. Figure D-8: Set the RAID volume size Step 7: After the E...
Page 255: Delete A Raid Volume
WSB-9452 PICMG 1.0 CPU Card WARNING: Pressing Y to confirm creation of the RAID volume destroys all the data in the SATA drives. Step 8: Information about the created RAID volume appears in the RAID Disk Drive List window (Figure D-10).
Page 256 WSB-9452 PICMG 1.0 CPU Card Step 2: The RAID volume in the RAID Disk Drive List is highlighted (Figure D-12). Figure D-12: RAID volume Step 3: Press the space bar to select the RAID volume. The selected RAID volume is marked with a .
Page 257: Revert An Hdd To Non-Raid
WSB-9452 PICMG 1.0 CPU Card D.2.4.3 Revert an HDD to Non-RAID An HDD that had been part of another RAID volume may still be used as a member of the RAID volume to be created. The HDD must first be reverted to non-RAID. Follow these steps to revert an HDD to non-RAID.
Page 258 WSB-9452 PICMG 1.0 CPU Card Step 1: Press the key to select the HDD to be reverted to non-RAID, then press the spacebar to mark the HDD. The selected HDD is marked with a Step 2: A confirmation message appears (Figure D-15). Press Y to confirm the action.
Page 259: Solve Mirror Conflict
WSB-9452 PICMG 1.0 CPU Card D.2.4.4 Solve Mirror Conflict A mirror conflict occurs when an HDD in a RAID 1 volume is unplugged from the system, then plugged in again. The system is unable to identify the source disk from which data will be mirrored.
Page 260: Rebuild Mirror Drive
WSB-9452 PICMG 1.0 CPU Card D.2.4.5 Rebuild Mirror Drive A RAID 1 volume is broken when a member HDD fails. Use the Rebuild Mirror option to rebuild a RAID 1 volume after the faulty HDD is replaced. Step 1: In the RAID Setup Utility main menu, highlight Rebuild Mirror Drive (Figure D-18).
Page 261: Save And Exit Setup
WSB-9452 PICMG 1.0 CPU Card D.2.4.6 Save and Exit Setup After the RAID configuration is complete, save the changes and exit the RAID configuration utility. Step 1: In the RAID Setup Utility main menu, highlight Save and Exit Setup to effect all...
Page 262: Install The Os
WSB-9452 PICMG 1.0 CPU Card D.2.5 Install the OS Install the OS onto the SATA drives. To do this, follow the steps below. Step 1: Insert the OS installation CD into the CD drive attached to the IDE device. Step 2: Restart the system.
Page 263 WSB-9452 PICMG 1.0 CPU Card Appendix Hazardous Materials Disclosure Page 245...
Page 264 WSB-9452 PICMG 1.0 CPU Card E.1 Hazardous Material Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
Page 265 WSB-9452 PICMG 1.0 CPU Card Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated (Hg) (Cd) Chromium (Pb) Biphenyls Diphenyl Ethers (CR(VI)) (PBB) (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly...
Page 266 WSB-9452 PICMG 1.0 CPU Card 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符合中国 RoHS 标准规定的限量要求。本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元件将会单独标示出来。部件名称有毒有害物质或元素铅汞镉六价铬多溴联苯多溴二苯醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体显示印刷电路板金属螺帽电缆组装风扇组装电力供应组装电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。...
