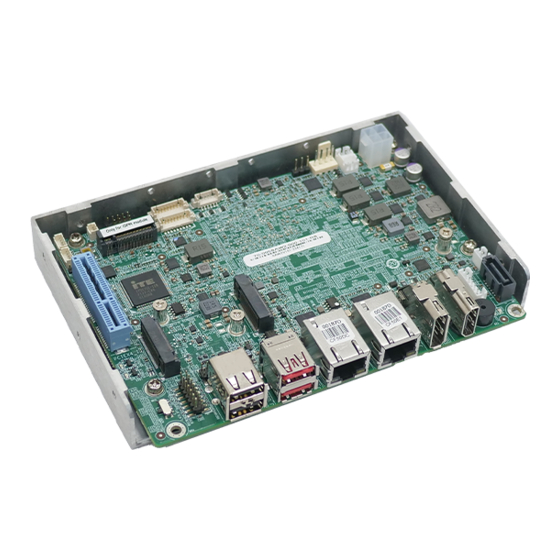

IEI Technology WAFER-ADL-N Quick Installation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
3.5" SBC Supports Intel® Alder Lake-N Processor, LPDDR5, HDMI,
DP, iDPM, Dual 2.5GbE, M.2 A Key + M Key, USB 3.2 Gen 2,
SATA 6Gb/s, COM, PCIe x4 for Riser Card and RoHS
Quick Installation Guide
Package List
WAFER-ADL-N package includes the following items:
1 x WAFER-ADL-N single board computer with heat spreader
1 x SATA with power cable
1 x Power cable
1 x QIG
WAFER-ADL-N
Version 1.0
June 15, 2023
©2023 Copyright by IEI Integration Corp.
All rights reserved.

Advertisement

loading

Related Manuals for IEI Technology WAFER-ADL-N

Summary of Contents for IEI Technology WAFER-ADL-N

  • Page 1 Quick Installation Guide Version 1.0 June 15, 2023 Package List WAFER-ADL-N package includes the following items:  1 x WAFER-ADL-N single board computer with heat spreader  1 x SATA with power cable  1 x Power cable  1 x QIG ©2023 Copyright by IEI Integration Corp.

  • Page 2: Specifications

    Specifications  CPU: Intel® Alder Lake-N onboard SoC Intel® Processor N200 (quad-core, up to 3.7GHz, 6W TDP) Intel® Processor N97 (quad-core, up to 3.6GHz, 12W TDP)  Memory: On-board 8GB dual-channel LPDDR5 memory  BIOS: AMI UEFI BIOS Graphics Engine: ...
  • Page 3 1 x M.2 2230 A key for Wi-Fi & BT (PCIe Gen3 x1 & USB 2.0) 1 x PCIe x4 slot (PCIe x2 signal, x2 & x1+x1)  Digital I/O: 1 x 12-bit digital I/O (2x7 pin, p=2.0)  C/SMBus: 1 x I C (1x4 pin, p=1.25) 1 x SMBus (1x4 pin, p=1.25)

  • Page 4: Ordering Information

    Ordering Information  WAFER-ADL-N200C-R10: 3.5" SBC with Intel® Processor N200, LPDDR5, HDMI, DP, iDPM, dual 2.5GbE, M.2 A key + M key, USB 3.2 Gen 2, SATA 6Gb/s, COM, PCIe x4 for riser card and RoHS  WAFER-ADL-N97C-R10: 3.5" SBC with Intel® Processor N97, LPDDR5, HDMI, DP, iDPM, dual 2.5GbE, M.2 A key + M key, USB 3.2 Gen 2, SATA 6Gb/s, COM, PCIe x4 for riser card and RoHS ...

  • Page 5: Jumpers Setting And Connectors

    Jumpers Setting and Connectors LABEL FUNCTION J_ATX_AT1 AT/ATX power mode setting J_CMOS1 Clear CMOS button ME_FLASH1 Flash descriptor security override jumper J_AUDIO1 Audio connector for IEI AC-KIT-888S kit PWR1 12V power input connector BAT1 RTC battery connector DIO1 Digital I/O connector CPU_FAN1 Fan connector F_PANEL1...
  • Page 6 J_ATX_AT1: AT/ATX Power Mode Setting PIN NO. DESCRIPTION Short A - B ATX Power Mode (default) Short B - C AT Power Mode J_CMOS1: Clear CMOS Button Status DESCRIPTION Keep CMOS Setup (Normal Operation) Press Clear CMOS Setup ME_FLASH1: Flash Descriptor Security Override Jumper PIN NO.
  • Page 7 BAT1: RTC Battery Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION VBATT DIO1 : Digital Input/Output Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION Output 5 Output 4 Output 3 Output 2 Output 1 Output 0 Input 5 Input 4 Input 3 Input 2 Input 1 Input 0...
  • Page 8 JLAN_LED1: LAN1 LED Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION +3.3V I225_LINK_ACT_N_1 JLAN_LED2: LAN2 LED Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION +3.3V I225_LINK_ACT_N_2 PWR_BTN1: Power Button Connector DESCRIPTION DESCRIPTION PWR_BTN+ PWR_BTN- RST_BTN1: Reset Button Connector DESCRIPTION DESCRIPTION RESET+ RESET- COM1, COM2: RS-232/422/485 Serial Port Connectors PIN NO.
  • Page 9 S_ATA1: SATA 6Gb/s Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION SATA_RX‐ SATA_TX+ SATA RX+ SATA_TX‐ SATA_PWR1:SATA Power Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION VCC5V J_SMB1: SMBus Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION SMB_CLK SMB_DATA JBIOS1: Flash SPI ROM Connector PIN NO.
  • Page 10 J1: MP2940CGRT FW Flash Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION PM_SCL PM_SDA J_HDMI1: HDMI Firmware Flash Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION HDMI_SDA HDMI_SCL M2_A1: M.2 2230 A Key Slot PIN NO. DESCRIPTION PIN NO. DESCRIPTION +3.3V USB2_DP +3.3V USB2_DN Module Key...
  • Page 11 PCIE_RX_DP PCIE_RX_DN PCIE_CLK+ PCIE_CLK- BT_RF_KILL_N M.2_A_WAKE WIFI_RF_KILL_N WIGIG_PE_WAKE_N +3.3V +3.3V M2_SSD1: M.2 2280 M Key Slot PIN NO. DESCRIPTION PIN NO. DESCRIPTION +V3.3 +V3.3 NGFF1_ACT_N +V3.3 +V3.3 +V3.3 +V3.3...
  • Page 12 M_2_SSD_SLP PCIE_RX_DP PCIE_RX_DN PCIE_TX_DN PCIE_TX_DP PCIE_CLK_DN PCIE_CLK_DP Module Key Module Key Module Key Module Key Module Key Module Key Module Key Module Key M2_SUS_CLK M2_SSD_PEDET +V3.3 +V3.3 +V3.3 USB_CN1: USB 2.0 Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION USB_N USB_N USB_P USB_P...
  • Page 13 J_DP1: External DisplayPort Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION LANE0P LANE3N LANE0N CONFIG_A_1 LANE1P CONFIG_A_2 AUXP LANE1N LANE2P AUXN LANE2N LANE3P J_HDMI2: External HDMI Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION HDMI_DATA2P HDMI_CLKN HDMI_DATA2N HDMI_DATA1P HDMI_CLK HDMI_DATA1N HDMI_SDA HDMI_DATA0P HDMI_DATA0N HDMI_HPD HDMI_CLKP...
  • Page 14 LAN1_MD1- LAN1_MD3- IEI Resource Download Center All the drivers and utility for the https://download.ieiworld.com WAFER-ADL-N are available on IEI Resource Download Center. Type WAFER-ADL-N and press Enter to find all the relevant software, utilities, and documentation. To install software from the downloaded ISO file, mount the file as a virtual drive to view its content.
  • Page 15 Board Layout: Jumper and Connector Locations (Unit: mm)
