6-4 MA24105A Inline Power Sensor

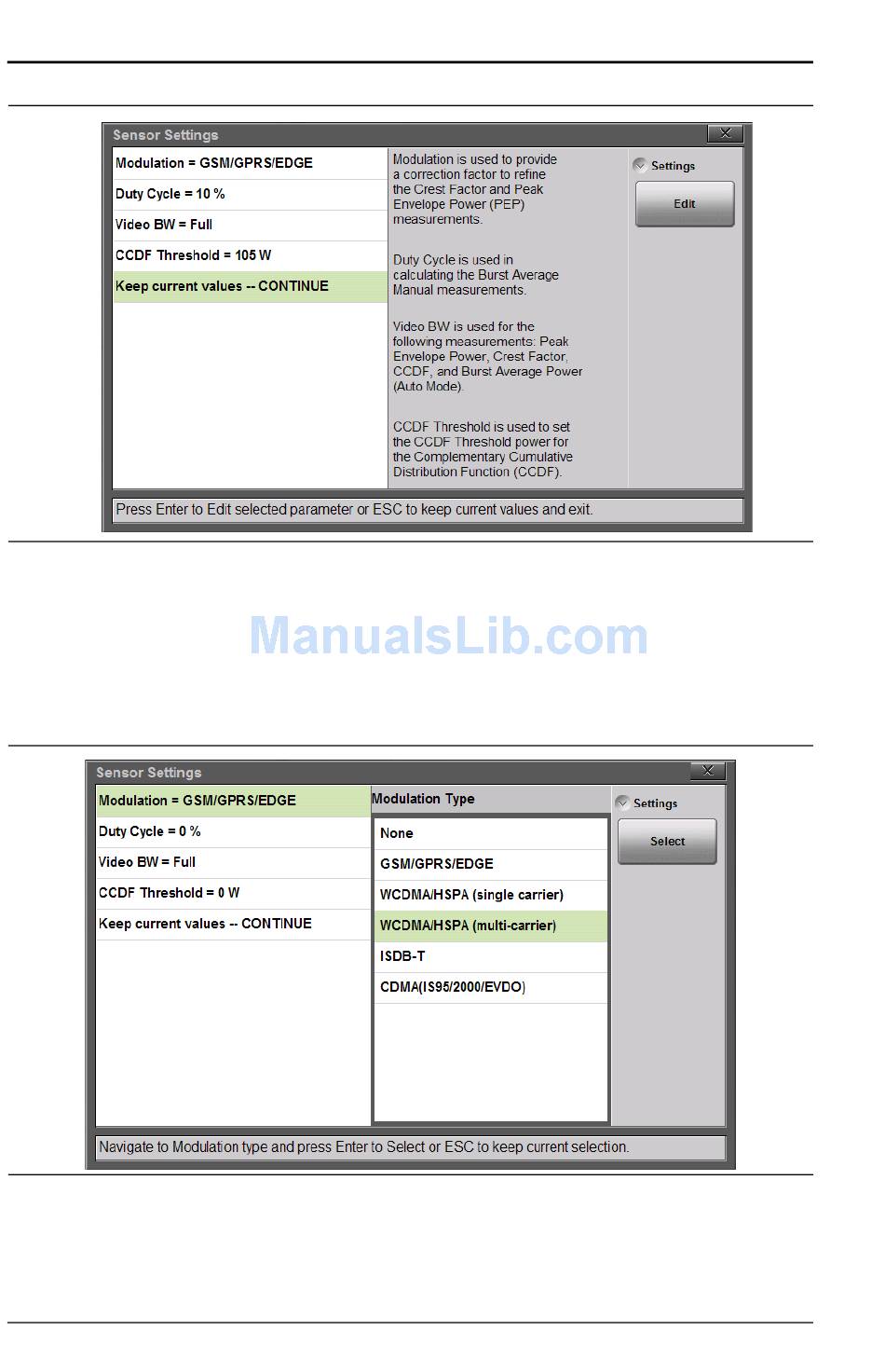

Figure 6-8.
Sensor Settings
Modulation
In the Sensor Settings dialog, highlight the Modulation = ... row and
press Edit. Use the Up/Down keys, rotary knob or touchscreen to
highlight the desired modulation type, and then press Select.
Figure 6-9.
Sensor Settings
The selection of a specific modulation type provides a correction factor
to refine the PEP calculation.
6-14
PN: 10580-00321 Rev. M
High Accuracy Power Meter
S331L UG
