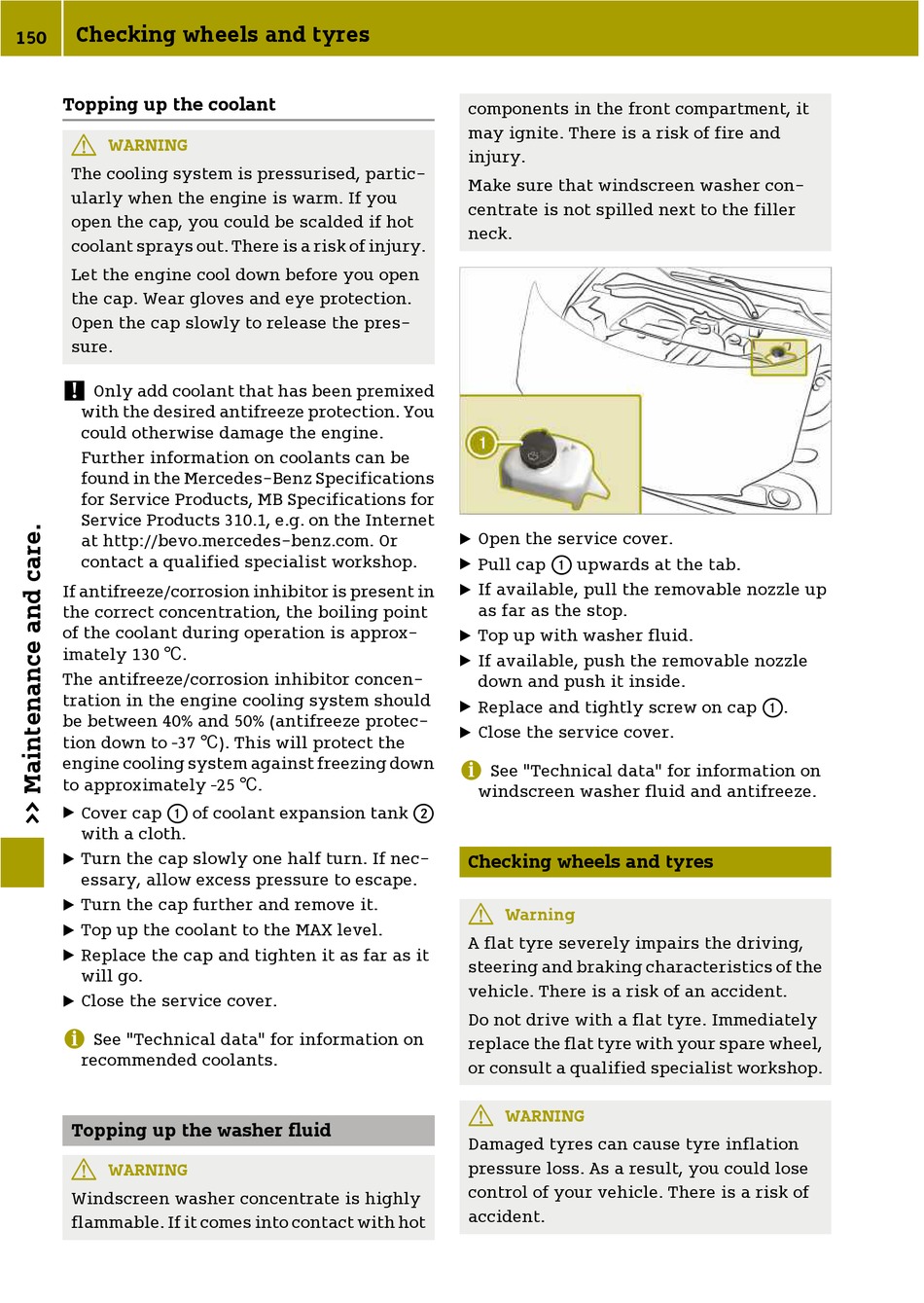

Topping Up The Coolant; Topping Up The Washer Fluid; Checking Wheels And Tyres - SMART forfour Owner's Manual

Checking wheels and tyres

150

Topping up the coolant

G
WARNING
The cooling system is pressurised, partic-
ularly when the engine is warm. If you
open the cap, you could be scalded if hot
coolant sprays out. There is a risk of injury.
Let the engine cool down before you open
the cap. Wear gloves and eye protection.
Open the cap slowly to release the pres-
sure.
!
Only add coolant that has been premixed
with the desired antifreeze protection. You
could otherwise damage the engine.
Further information on coolants can be
found in the Mercedes-Benz Specifications
for Service Products, MB Specifications for
Service Products 310.1, e.g. on the Internet
at http://bevo.mercedes-benz.com. Or
contact a qualified specialist workshop.
If antifreeze/corrosion inhibitor is present in
the correct concentration, the boiling point
of the coolant during operation is approx-
imately 130 †.
The antifreeze/corrosion inhibitor concen-
tration in the engine cooling system should
be between 40% and 50% (antifreeze protec-
tion down to -37 †). This will protect the
engine cooling system against freezing down
to approximately -25 †.
X
Cover cap : of coolant expansion tank ;
with a cloth.
X
Turn the cap slowly one half turn. If nec-
essary, allow excess pressure to escape.
X
Turn the cap further and remove it.
X
Top up the coolant to the MAX level.
X
Replace the cap and tighten it as far as it
will go.
X
Close the service cover.
i
See "Technical data" for information on
recommended coolants.

Topping up the washer fluid

G
WARNING
Windscreen washer concentrate is highly
flammable. If it comes into contact with hot
components in the front compartment, it
may ignite. There is a risk of fire and
injury.
Make sure that windscreen washer con-
centrate is not spilled next to the filler
neck.
X
Open the service cover.
X
Pull cap : upwards at the tab.
X
If available, pull the removable nozzle up
as far as the stop.
X
Top up with washer fluid.
X
If available, push the removable nozzle
down and push it inside.
X
Replace and tightly screw on cap :.
X
Close the service cover.
i
See "Technical data" for information on
windscreen washer fluid and antifreeze.
Checking wheels and tyres
G
Warning
A flat tyre severely impairs the driving,
steering and braking characteristics of the
vehicle. There is a risk of an accident.
Do not drive with a flat tyre. Immediately
replace the flat tyre with your spare wheel,
or consult a qualified specialist workshop.
G
WARNING
Damaged tyres can cause tyre inflation
pressure loss. As a result, you could lose
control of your vehicle. There is a risk of
accident.
