www.raisecom.com
User Manual

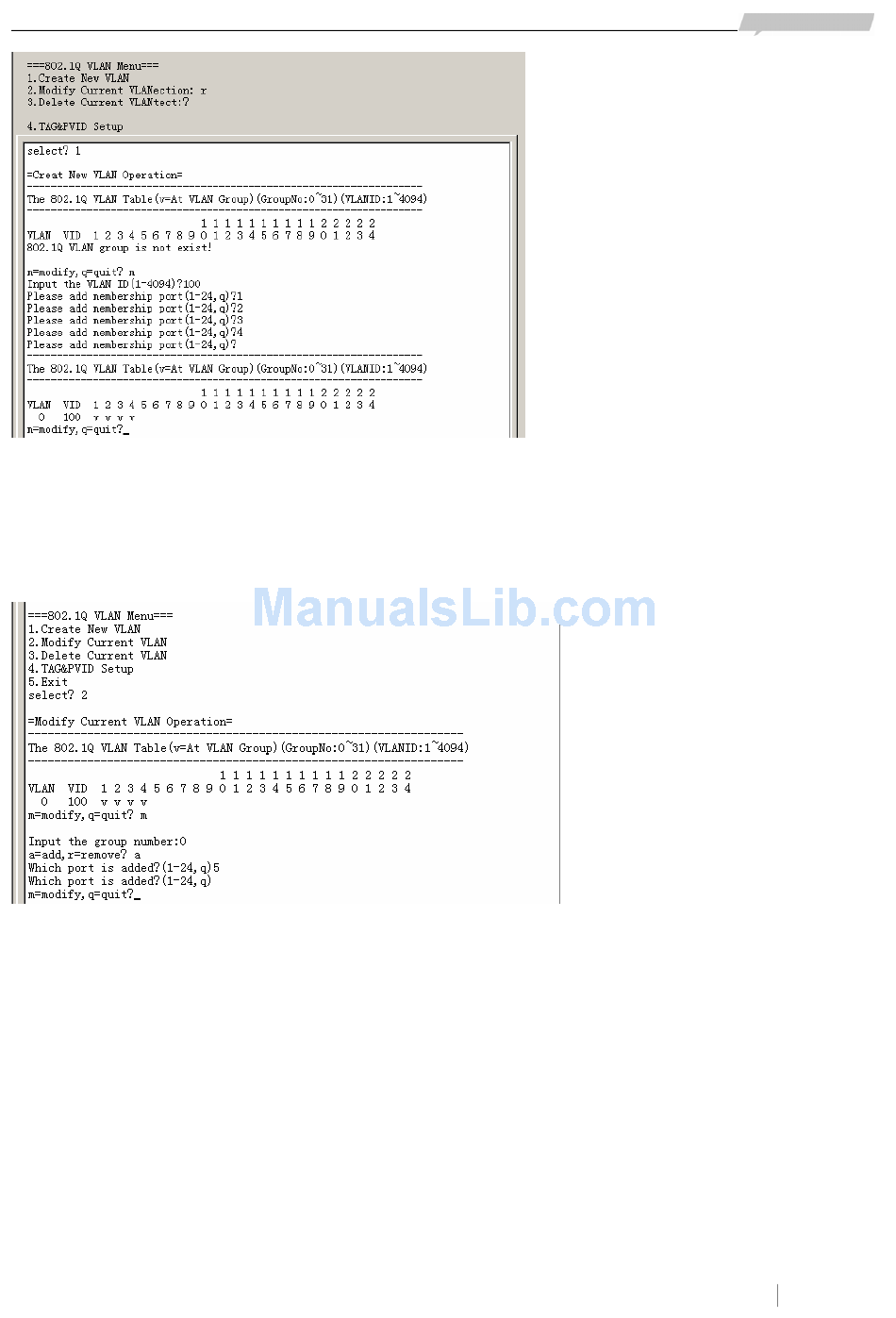

Select '2' to modify VLAN area, input 'm' to modify the menu of VLAN area,
Select GroupNO: '0' (ISCOM 1024E can only support 0~31 VLAN groups. Such as for the first VLAN, ID is 0).
Select add or remove port, then select port ID, enter 'q' to save.
For example: add port 5 to VLAN 100
Select '3' to delete VLAN
All the VLANs will be displayed, there are 2 VLANs in this picture, '0' and '1'
Enter 'm' to enter delete VLAN menu, then select GroupNO, we delete VLAN '0' then press 'enter'.
VLAN 100 will not be displayed in the menu.
Enter 'q' to quit or select 'y' to save.
9
