- Page 1 ISCOM2826 USER MANUAL Raisecom Technology Co., Ltd (2005/05)
-
Page 2: Table Of Contents
Raisecom Technology Co., Ltd Contents Preface ........................2 General Safety Instructions................. 3 1.1. Safety Symbols.................... 3 1.2. Handling Energized Products ..............4 1.2.1 General Safety Practices ................4 1.2.2 Connection of AC Mains ................4 1.2.3 Connection of DC Mains................4 1.3. -
Page 3: Preface
Raisecom Technology Co., Ltd Preface Contents This manual describes how to install ISCOM2826 Series Switch, the features and constitution modules of the device and function of every module. It provides a standard method of installation and cable specifications. This manual is for hardware installation and for additional configuration operations, refers to configuration guide. -
Page 4: General Safety Instructions
Raisecom Technology Co., Ltd 1. General Safety Instructions The following instructions serve as a general guide for the safe installation and operation of telecommunications products. Additional instructions, if applicable, are included inside the manual. 1.1. Safety Symbols This symbol may appear on the equipment or in the text. It indicates potential safety hazards regarding product operation or maintenance to operator or service personnel. -
Page 5: Handling Energized Products
Raisecom Technology Co., Ltd out adjustment, maintenance or repairs to this product. No installation, adjustment, maintenance or repairs should be performed by either the operator or the user. All extension slots are not hot-swappable Before operating modules in the electricity conditions, please be noticed that optical modules shall be connected with optical fiber wires or shield with optical module cover for fear that laser light harms to operator’s eyes. -
Page 6: Preventing Electrostatic Discharge Damage
Raisecom Technology Co., Ltd connecting the DC supply to avoid short-circuits and fire hazards. DC units should be installed in a restricted access area, i.e. an area where access is authorized only to qualified service and maintenance personnel. Make sure that the DC supply is electrically isolated from any AC source and that the installation complies with the local codes. -
Page 7: Overview

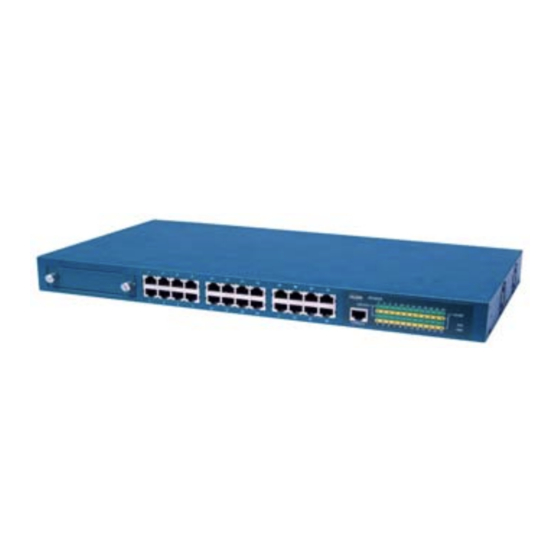

Raisecom Technology Co., Ltd 2. Overview ISCOM2826 Serial Switch is an access Ethernet switch used in layer 2 of operation networks. It provides 24 10/100M-Tx Ethernet ports and 2 extension slots. -
Page 8: Parameters
Raisecom Technology Co., Ltd 3. Parameters System power consumption < 30W. Dimension of ISCOM2826 is: 1U (H)* 442mm (W)* 266mm (D), and its weight is 5kg. It can be installed in 19 inches cabinet or on the table. Working requirements: Environment temperature: 0°... -
Page 9: Structure And Indicator Lights
4. Structure and indicator lights 4.1. Front view and explanation On the front panel of ISCOM2826, there are 24 10/100M Ethernet ports, 1 CONSOLE port, 2 extension slots and status indicator lights. See in the following figure: Explanation: (1) Switch logo and type: ISCOM 2826... -
Page 10: Rear View And Explanation
Raisecom Technology Co., Ltd 4.2. Rear view and explanation There is AC connector or DC connector on the rear panel of ISCOM2826 as the following figure: Explanation: (1) AC connector or DC connector (2) Power supply switch 4.3. Fans Observe ISCOM2826 from front, there are 2 fans on the left side panel and aeration apertures on the right side panel. -
Page 11: Installation & Application
Raisecom Technology Co., Ltd 5. Installation & Application 5.1. Check whether you need to install sub card Type of sub card Present sub card types: Types Function SC200-GE-T 10M/100M/1000M Ethernet electrical interface SC200-FE-S1 100M Ethernet optical interface, transmission distance: 20km... - Page 12 Raisecom Technology Co., Ltd Sub card: SC200-GE-T SC200-GE-T provides a 1000M electrical interface, and the port number can be 25 or 26. It supports 10/100/1000M auto sensing, it also supports MDI/MDIX switch in auto negotiation status. View and explanation of SC200-GE-T: (1) 10/100/1000M Ethernet electrical interface.
-
Page 13: Methods Of Installation
Methods of installation Environmental requirements There are heat exhausting inlets on both sides of ISCOM2826, the inside fans provide cooling air for internal circuits. To maintain ambient airflow there must be some space around the two sides or airflow path. The heat exhausting inlets should not be blocked in... -
Page 14: Connect To Control Platform
CONSOLE port to PC serial port by cable, then configure, control the device through the PC control platform. Signal definition of CONSOLE port. ISCOM2826 provides RS-232 port in form of RJ45 as CONSOLE port, the pin serial number of RJ45 plug and connector are showing as follows: Signaling and Pinouts of ISCOM2826 CONSOLE port:... -
Page 15: Connect To Ethernet
MDI-X signal MDI signal number 4 ,5 ,7 ,8 When disable auto-negotiation of ISCOM2826 Ethernet ports, they are MDI-X ports and can be connected to PC which has MDI port though straight-through cable. 5.5. Making cable Pin serial number of RJ45 plug and connector is available in signal definition of... - Page 16 Raisecom Technology Co., Ltd CONSOLE port Straight through cable(100M and 1000M are same) 100M crossover cable 1000M crossover cable...
-
Page 17: Power Supply
Raisecom Technology Co., Ltd 5.6. Power Supply After install the device correctly following above steps, the device can be powered on. ON status of PWR indicator light means the system has been powered on. All the indicator lights on front panel of ON status means the system is self-checking and initializing. -
Page 18: Notes
Follow the guide strictly when installing. Do not install the device when your hands are wet or with a lot of sweat. Do not rebuild the device mechanically and electrically. When install ISCOM2826 on the table, please do not put other thing onto it. - Page 19 Raisecom Technology Co., Ltd @2005 Raisecom Technology Co., Ltd. All trademarks are the property of their respective owners. Technical information may be subject to change without prior notification.
