2. WIRING DIAGRAMS

NOTE: If a PA button is NOT connected to the system, you MUST link out the PA terminals on the
PCB.

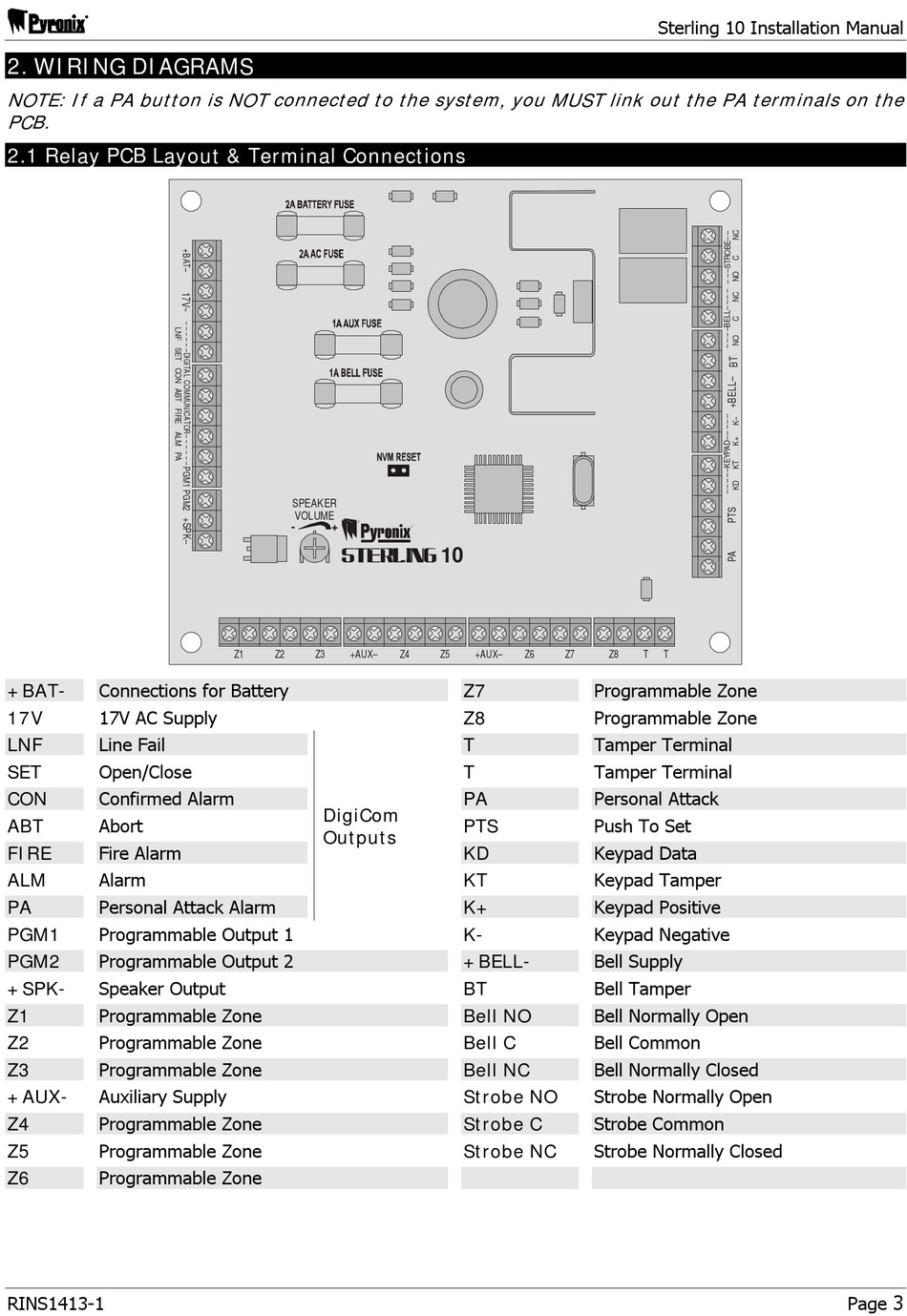

2.1 Relay PCB Layout & Terminal Connections
+BAT- Connections for Battery
17V 17V AC Supply
LNF Line Fail
SET Open/Close
CON Confirmed Alarm
ABT Abort
FIRE Fire Alarm
ALM Alarm
PA Personal Attack Alarm
PGM1 Programmable Output 1
PGM2 Programmable Output 2
+SPK- Speaker Output
Z1 Programmable Zone
Z2 Programmable Zone
Z3 Programmable Zone
+AUX- Auxiliary Supply
Z4 Programmable Zone
Z5 Programmable Zone
Z6 Programmable Zone
RINS1413-1
SPEAKER
VOLUME
R
- +
TUFSMJOH
Z1 Z2 Z3 +AUX– Z4
DigiCom
Outputs
R
10
Z5 +AUX– Z6 Z7
Z7
Z8
T
T
PA
PTS
KD
KT
K+
K-
+BELL-
BT
Bell NO
Bell C
Bell NC
Strobe NO
Strobe C
Strobe NC
Sterling 10 Installation Manual
Z8 T T
Programmable Zone
Programmable Zone
Tamper Terminal
Tamper Terminal
Personal Attack
Push To Set
Keypad Data
Keypad Tamper
Keypad Positive
Keypad Negative
Bell Supply
Bell Tamper
Bell Normally Open
Bell Common
Bell Normally Closed
Strobe Normally Open
Strobe Common
Strobe Normally Closed
