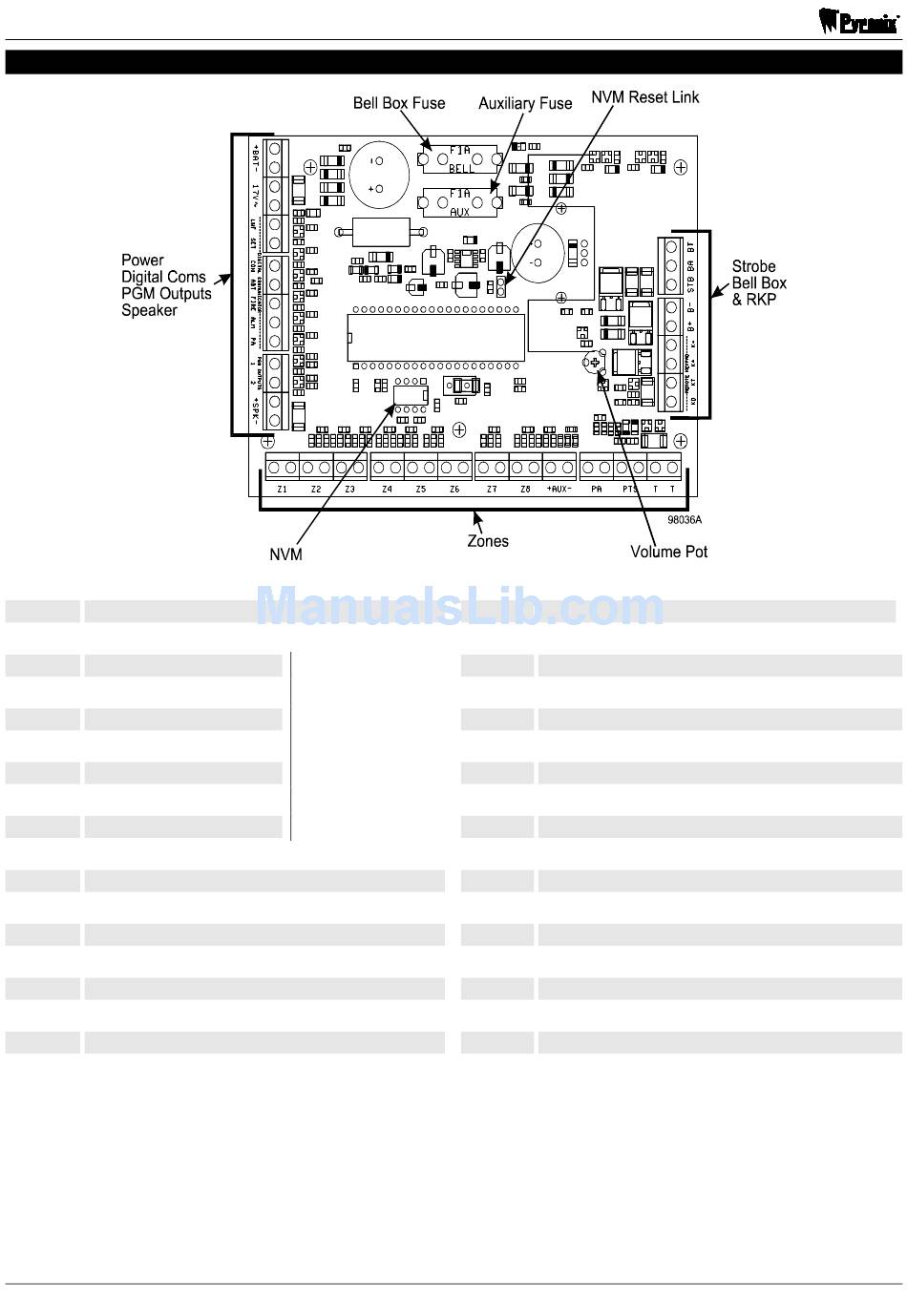

2.2 Transistor PCB Layout & Terminal Connections
+BAT- Connections for Battery
17V 17V AC Supply
LNF Line Fail
SET Open/Close
CON Confirmed Alarm
ABT Abort
FIRE Fire Alarm
ALM Alarm
PA Personal Attack Alarm
PGM1 Programmable Output 1
PGM2 Programmable Output 2
+SPK- Speaker Output
Z1 Programmable Zone
Z2 Programmable Zone
Z3 Programmable Zone
Z4 Programmable Zone
Z5 Programmable Zone
Page 4
Z6
Z7
Z8
+AUX- Auxiliary Supply
T
DigiCom
T
Outputs
PA
PTS
KD
KT
K+
K-
B+
B-
STB
BA
BT
Programmable Zone
Programmable Zone
Programmable Zone
Tamper Terminal
Tamper Terminal
Personal Attack
Push To Set
Keypad Data
Keypad Tamper
Keypad Positive
Keypad Negative
Bell Positive
Bell Negative
Strobe Trigger
Bell Trigger
Bell Tamper
