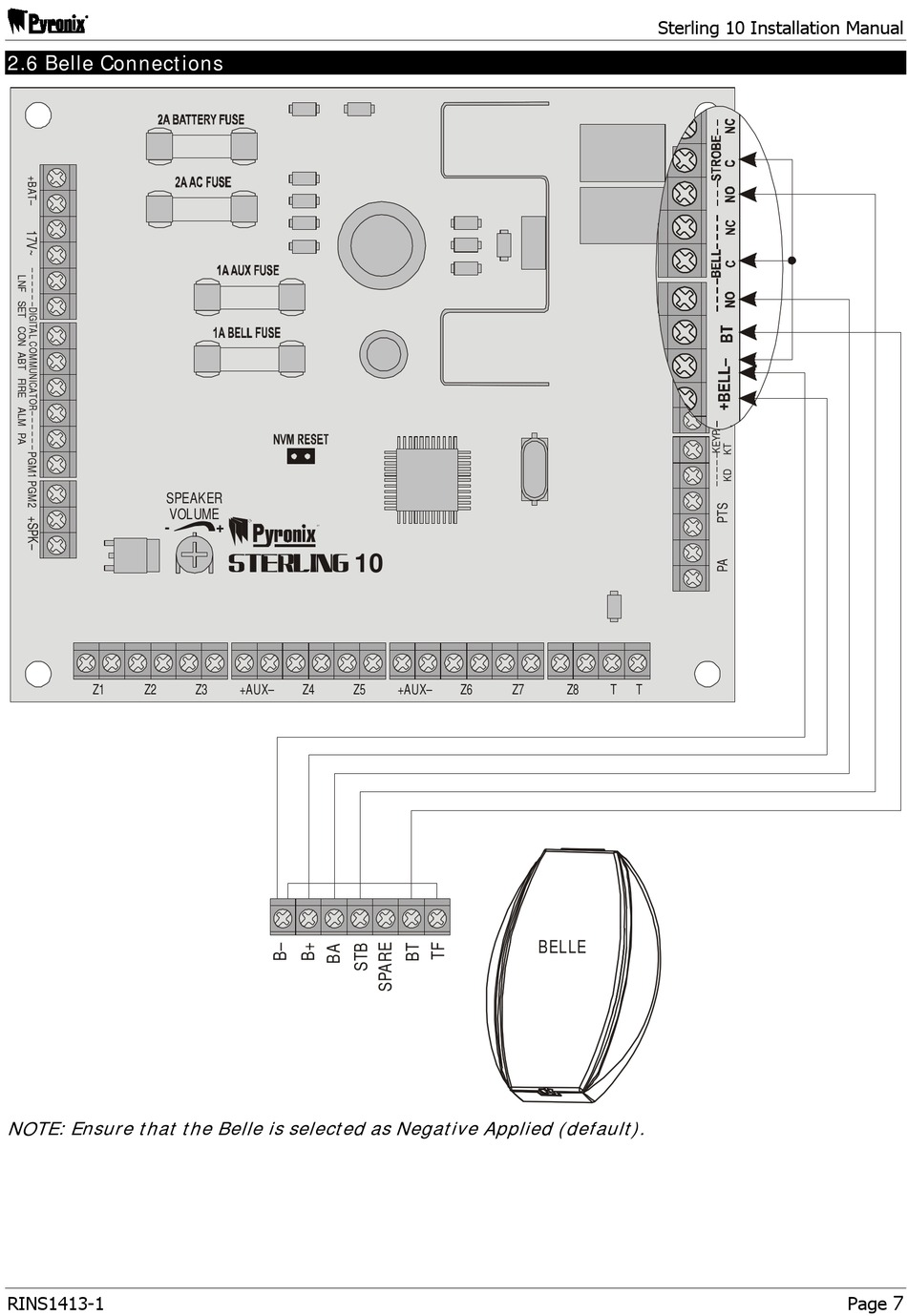

2.6 Belle Connections

SPEAKER
VOLUME
R
-
+
R
TUFSMJOH
10
Z1
Z2
Z3
+AUX–
Z4
Z5
+AUX–
Z6
Z7
Z8
T
T
BELLE
NOTE: Ensure that the Belle is selected as Negative Applied (default).
