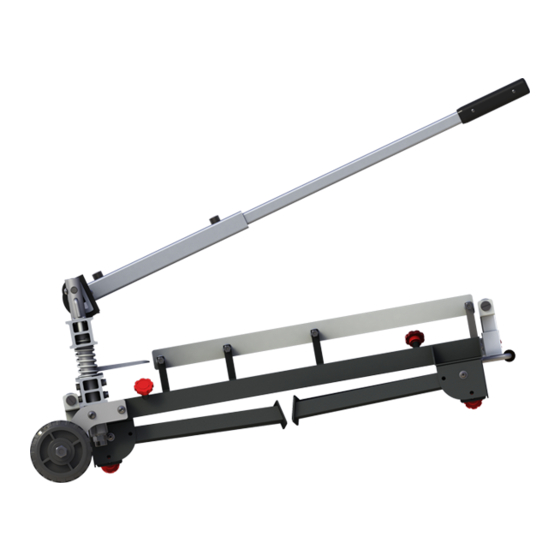

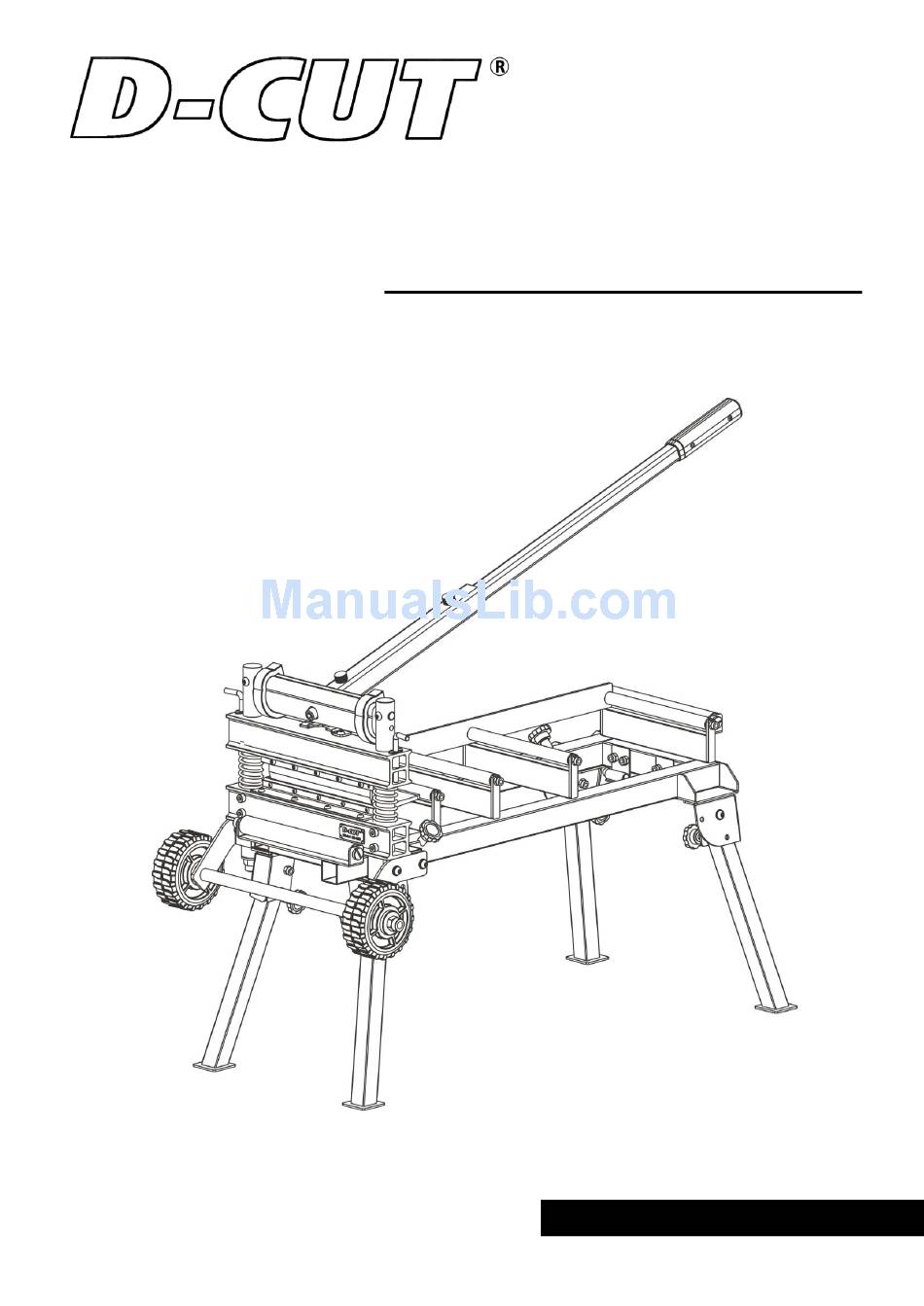

- Page 1 OPERATION MANUAL D-CUT Cement Siding Cutter SC-230 www.dcutproducts.com...
- Page 2 OPERATING THE D-Cut MULTI-FLOORING CUTTERS. Cement Siding 2. If you are not thoroughly familiar with the operation of D-Cut Cutter, obtain advice from a qualified instructor or call 630-916-9100 USA 3. Stay alert. Do not operate while under the influence of drugs, alcohol, or medication.
- Page 3 Installation of the Cutter(1) Pull 4 legs down to make the cutter base stand up as shown. Installation of the Cutter(2) Install the wheels assembly to the base as shown. Installation of the Cutter(3) Install the cutter head to the base as shown.
- Page 4 Straight Cut Insert the siding between the cutting blade and the base , pull out the extension bracket, then flush the siding with the guide bar on one side of the rollers, hold the siding and pull handle down to complete a cut. Note: the flat side of the blade should face the working table.
-
Page 5: Explosive View
Explosive View... - Page 6 Explosive View Parts Q’ty Parts Q’ty Supporting Leg Handle A Washer Handle B Wheel Shaft Nut M4 Extension Wheel Shaft Right ABS Handle Front Extension Bracket Screw M4× 30 Locker Nut M12 Left ABS Handle Roller A Lock Pin Lock Nut M14 Screw M4×...
