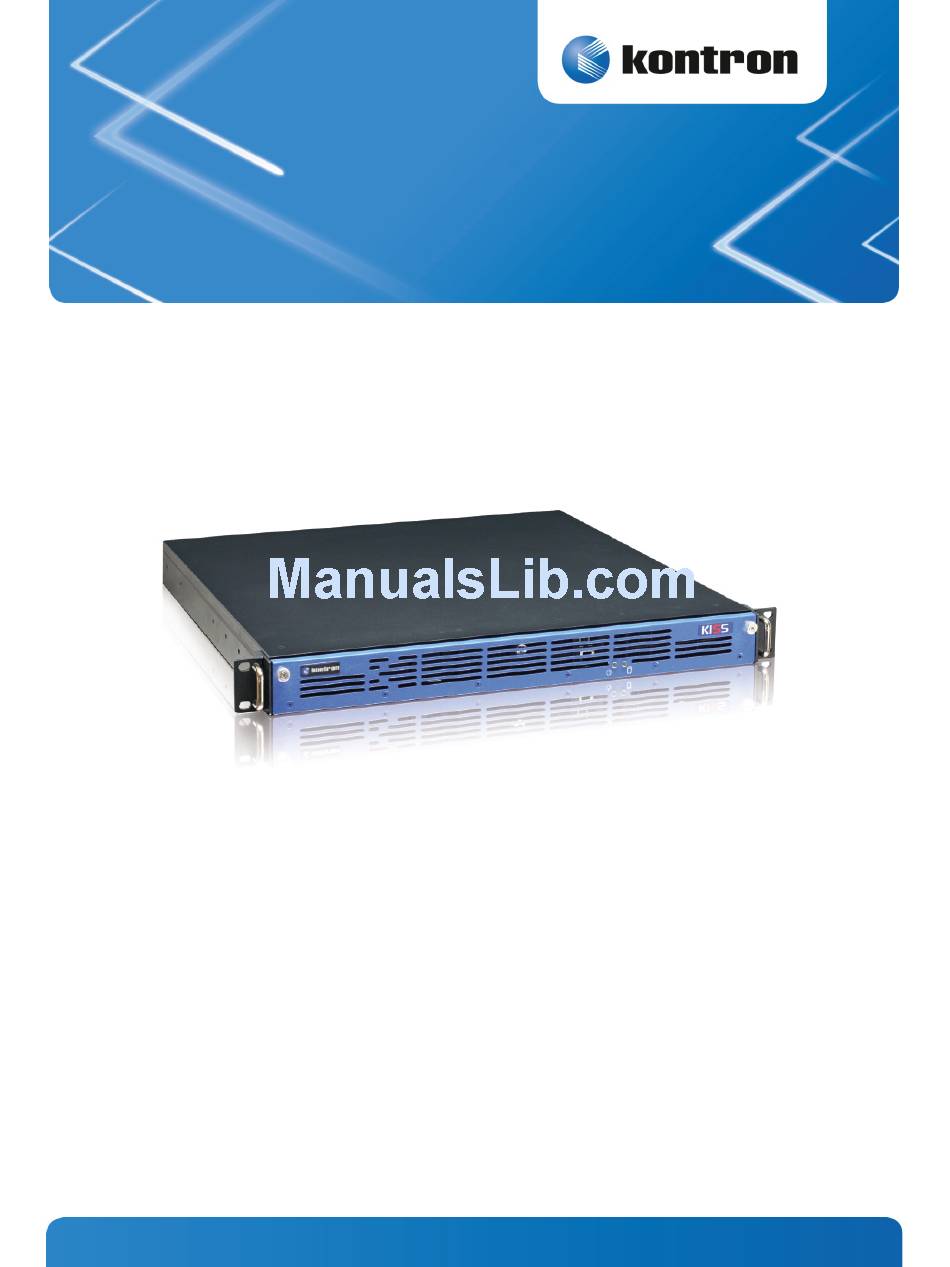

- Page 1 » User’s Guide « KISS 1U KISS 1U PCI762-A User's Guide (Version 1.1) 1056-7706 www.kontron.com...
-
Page 2: Table Of Contents
8.2. Accessing Internal Components ......................27 8.2.1. Installing /Removing Expansion Cards ....................27 8.3. Installation in a 19" Industrial Cabinet ....................28 9. Starting Up ............................29 9.1. AC Power Connection ........................... 29 9.2. Operating System and Hardware Components Drivers .................. 30 www.kontron.com... -
Page 3: Table Of Figures
Fig. 18: Grounding stud ..........................21 Fig. 19: Side view ............................. 21 Fig. 20: Example of KISS 1U Configuration with SBC PCI 762(Single Board Computer) ..........22 Fig. 21: Grounding stud ..........................23 Fig. 22: Grounding stud ..........................23 www.kontron.com... - Page 4 Fig. 31: Filter mat holder ..........................32 Fig. 32: Attaching the inner section of the slide rails ..................35 Fig. 33: KISS 1U platform with slide rails in pulled-out position ................35 Fig. 34: KISS 1U platform with slide rails in pushed-in position ................35 www.kontron.com...
-
Page 5: Disclaimer
Kontron would like to point out that the information contained in this user guide may be subject to alteration, particularly as a result of the constant upgrading of Kontron products. This document does not entail any guarantee on the part of Kontron with respect to technical processes described in the user guide or any product characteristics set out in the user guide. - Page 6 DEATH, PERSONAL INJURY, OR SEVERE PHYSICAL OR ENVIRONMENTAL DAMAGE (COLLECTIVELY, "HIGH RISK APPLICATIONS"). You understand and agree that your use of Kontron devices as a component in High Risk Applications is entirely at your risk. To minimize the risks associated with your products and applications, you should provide adequate design and operating safeguards.
-
Page 7: Revision History
Kontron warrants products in accordance with defined regional warranty periods. For more information about warranty compliance and conformity, and the warranty period in your region, visit http://www.kontron.com/terms-and-conditions. Kontron sells products worldwide and declares regional General Terms & Conditions of Sale, and Purchase Order Terms & Conditions. Visit http://www.kontron.com/terms-and-conditions. -
Page 8: Symbols Used In This Manual
This symbol indicates that the product or parts thereof may be damaged if the corresponding warning notices are not observed. This symbol indicates general information about the product and the user manual. This symbol precedes various product configuration details. This symbol precedes helpful hints and tips for daily use. www.kontron.com... -
Page 9: Important Instructions
In the event of damage to the device caused by failure to observe the included document “General Safety Instructions for IT Equipment”, the hints in this manual or eventually the warning signs label on the device, Kontron Europe shall not be required to honor the warranty even during the warranty period and shall be exempted from the statutory accident liability obligation. -
Page 10: General Safety Instruction For It Equipment
If the following general safety instructions are not observed, it could lead to injuries to the operator and/or damage of the product; in cases of nonobservance of the instructions Kontron is exempt from accident liability, this also applies during the warranty period. -
Page 11: Operation Of Laser Source Devices
If the enclosure of such a drive is opened, invisible laser radiation is emitted. Do not allow yourself to be exposed to this radiation. The laser system meets the code of Federal Regulations 21 CFR, 1040 for the USA and the Canadian Radiation Emitting Devices Act, REDR C 1370. www.kontron.com... -
Page 12: Electrostatic Discharge (Esd)
The lithium battery type must be UL recognized. Do not dispose of lithium batteries in general trash collection. Dispose of the battery according to the local regulations dealing with the disposal of these special materials, (e.g. to the collecting points for dispose of batteries). www.kontron.com... -
Page 13: Electromagnetic Compatibility (Class A Device)
5.3. EMC Compliance (Canada) The method of compliance is self-declaration to Canadian standard ICES-003: (English): This Class A digital apparatus complies with the Canadian ICES-003. (French): Cet appareil numérique de la class A est conforme à la norme NMB-003 du Canada. www.kontron.com... -
Page 14: Scope Of Delivery
CPU board The “y” is replaced by a single letter (A through Z) representing the power supply installed into the system. Note: A: corresponds to the systems with a wide range AC power supply www.kontron.com... -
Page 15: Product Description

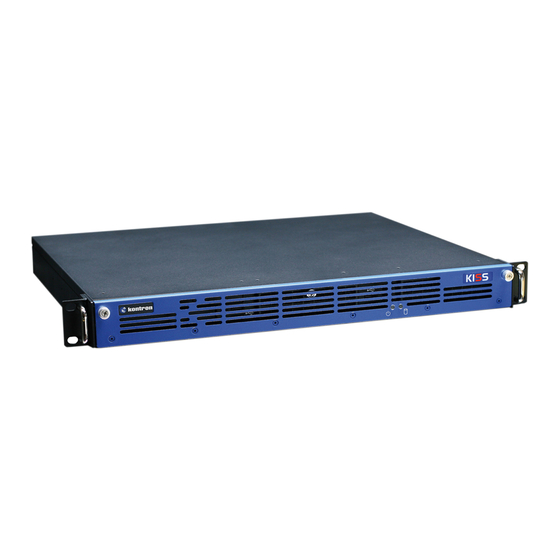

7. Product Description The KISS 1U platform expands the Kontron KISS computer line. KISS 1U is a scalable 2U (19") platform, equipped with a SBC (PCI-762) (Single Board Computer) board, supporting various system configurations (refer to “KISS 1U Systems - Configuration Guides”... - Page 16 Fig. 6: KISS 1U platform - front side The KISS 1U platforms are designed to be operated in horizontal position only. When powering on the KISS 1U platform, make sure that the air intake and exhaust openings are not obstructed by objects. www.kontron.com...
-
Page 17: Front Side
3 D2: front-accessible 3.5" drive bay (with blanking each filter mat holder and filter mat, is located the cover) fan slide-in module) 4 2x USB 2.0 (from the SBC) 10 Chassis front panel 5 2x USB 2.0 (from the backplane) www.kontron.com... -
Page 18: Controls And Indicators
(Fig. 17) does not disconnect the KISS 1U from the AC power source. Even you turn off the system using the power button Fig. 8, pos. 7), and the ON/OFF switch of the PSU, there is still a standby-voltage of 5 VSb on the SBC (refer also to the hint in the subsection 7.2.2). www.kontron.com... -
Page 19: Ports On The Front Side
The four system fans are integrated in user-friendly, replaceable fan slide-in modules (refer to the subsection7.5 “Fan Slide-in Modules”). The fan slide-in module (Fig. 8, pos. 9) can be replaced as described in the subsection 10.1 “Replacing the System Fans”. www.kontron.com... -
Page 20: Rear Side
7.2.1.1. A detailed ports description can be found in the manual for the PCI-762 SBC board. You can download the corresponding manual from our web site www.kontron.com by selecting the product. Fig. 16: External ports of PCI-762 SBC card 1 PCI-762 slot bracket 3 2x USB (3.0) ports... -
Page 21: Power Supply And On/Off Switch Of The Psu
Information and technical data can be found in the corresponding board manual of the installed SBC card. You can download the relevant board manual for your system configuration from our web site at www.kontron.com by selecting the product name. Refer also to the “KISS 1U Systems - Configuration Guides” on our web site. -
Page 22: Grounding Stud
4 Cover with captive knurled screws (for platform fixing the device cover) 5 Screws for fixing the card holder 2 5x tapped M4 metric holes (on position (adjustable) (Fig. 20, pos. 7) both sides) 3 Mounting screws of the add-on card slots www.kontron.com... -
Page 23: Installed Sbc Card
Your KISS 1U system is equipped with an SBC card (Single Board Computer). For KISS 1U versions and system configurations, please refer to the corresponding “KISS 1U Systems - Configuration Guides” on our website www.kontron.com. More information and technical data can be found in the corresponding CPU board manual (SBC). -
Page 24: Backplane, Riser Cards And Drive Bays
Drive Bays KISS 1U L1 to L3 Applicable Drives 1x 5.25" Slim front-accessible 1x Slim-DVD/CD/etc. 1x KISS Stor 1 Slim [(Raid 1), with 2x 2.5" SATA HDD] 1x 3.5" front-accessible CF Reader 1x 3.5" internal 2x 2.5" SATA HDD/SSD www.kontron.com... -
Page 25: Fan Slide-In Modules
KISS 1U must only be operated with functioning system fans (fan slide-in modules)! Refer to the subsection 10.1 “Replacing the System Fans”. Faulty components should only be replaced with original Kontron spare parts. Fan slide-in module assembled, Part No.: 1017-2548... -
Page 26: Cover
(Fig. 20, pos. 5 and pos. 11). Fig. 24: Inside of the cover with fixing brackets 1 Inside of the cover 3 Captive knurled screws 2 1x rear fixing bracket 4 3x front fixing brackets www.kontron.com... -
Page 27: Installation And Removal
Ensure that all components are securely installed and that the device cover has been screwed on tightly. 1. Turn the device upside down on a table or desk. 2. Remove the protective film from the rubber feet. 3. Stick the four rubber feet to the underside of the device. www.kontron.com... -
Page 28: Accessing Internal Components
6. Close the device and secure the cover with the knurled head screws. When closing the cover, pay attention that the cover fixing brackets (Fig. 24, pos. 2 and pos. 4) slide into the corresponding retaining brackets (Fig. 20, pos. 5 and pos. 11) of the chassis. www.kontron.com... -
Page 29: Installation In A 19" Industrial Cabinet
For KISS 1U versions and system configurations, please refer to the corresponding “KISS 1U Systems - Configuration Guides” on our website www.kontron.com. More information and technical data can be found in the corresponding SBC card manual.. You can download the manual from our web site at www.kontron.com... -
Page 30: Starting Up
Use a power cord suitable for the mains power supply in your country. Make sure that the mains power supply (power outlet) is properly grounded and that the power cord is in perfect condition without any visible damage. An ungrounded power supply is not permissible. www.kontron.com... -
Page 31: Operating System And Hardware Components Drivers
The terms and condition for using the pre-installed operating systems are defined in the document „MICROSOFT SOFTWARE LICENSE TERMS“. This document can be downloaded from our web site www.kontron.com by selecting the product name/tab Downloads/Windows. If you have ordered your system without a pre- installed operating system, you have to install the operating system and the corresponding drivers for the ordered computer configuration (optional hardware components). -
Page 32: Maintenance And Prevention
KISS 1U_SBC_762 – User's Guide (Version 1.1) 10. Maintenance and Prevention Kontron Europe systems only require minimal maintenance and care to keep them operating correctly. Occasionally wipe the system with a soft dry cloth. Remove persistent dirt by use of a soft, slightly damp cloth (only use a mild detergent). -
Page 33: Cleaning The Filter Mat
It is also possible to beat the filter mat, to vacuum it or blow it with compressed air. For dirt that contains grease/oil, the filter mat should be rinsed with warm water with the addition of a degreaser. Filter pads should not be cleaned with powerful water jets or wrung out. www.kontron.com... - Page 34 6. After cleaning and drying the filter mat, place it in the filter mat holder. Re-attach the filter mat holder to the front of the chassis. 7. Screw on the filter mat holder to the chassis using the fixing screw. Faulty components must only be replaced with original spare parts from Kontron. Filter mat: part number: 1017-2544. www.kontron.com...
-
Page 35: Replacing The Lithium Battery
5. Pay attention to the polarity of the battery. 6. The lithium battery must only be replaced with the same type of battery or with a type of battery recommended by Kontron Europe. 7. Reinstall the removed expansion cards and re-attach the connecting cables. -
Page 36: Slide Rails (Option)
KISS 1U_SBC_762 – User's Guide (Version 1.1) 11. Slide Rails (Option) Kontron provides slide rails for installing the KISS 1U in a 19" industrial cabinet. These slide rails can be ordered separately. The KISS 1U systems should be installed into a 19" industrial cabinet with slide rails (PN: 1016-5807). -
Page 37: Technical Data
The “y” is replaced by a single letter (A through Z) representing the power supply installed into the system. The corresponding “KISS 1U System - Configuration Guides” and the manual of the installed CPU card can be downloaded from our web site at www.kontron.com by selecting the product name. www.kontron.com... -
Page 38: Electrical Specifications
30 G., 11 ms, half sine Operating Vibration 10 – 500 Hz, 1.0 G Storage / Transit Vibration 10 – 500 Hz, 2.0 G Acoustic Noise < 35 dB(A) (at 1 m in front of the system, full load) www.kontron.com... -
Page 39: Directives And Standards
UL60950-1:2007 / CSA C22.2- No. 60950-1-7:2007 CB Report IEC 60950-1:2005 (ed.2);Am1:2009 Harmonized Standards Generic emission standard for industrial environments (Emission): EN 61000-6-4:2007 Generic standards - Immunity for industrial environments (Immunity): EN 61000-6-2:2005 U.S.A. FCC 47 CFR Part 15, Class A CANADA ICES-003, Class A www.kontron.com... -
Page 40: Standard Interfaces - Pin Assignments
(Request to Send) (Clear to Send) (Ring Indicator) 13.1.2. VGA Port Signal Name 15-pin D-SUB Connector (female) Analog red output Analog green output Analog blue output N.C. +5 V (DDC) N.C. SDA (DDC) TTL HSync TTL VSync SCL (DDC) www.kontron.com... -
Page 41: Usb Port (2.0)
Type A Version 2.0 Data- Data+ 13.1.4. USB3.0 Port Pin Signal Name 9-pin USB Connector Type A Version 3.0/2.0 USB 2.0 contact pins USB 3.0 contact pins VCC, fused (900 mA max.) StdA_SSRX- Data- StdA_SSRX+ Data+ GND_DRAIN StdA_SSTX- StdA_SSTX+ www.kontron.com... - Page 42 The result is an accelerated time-to-market, reduced total-cost-of-ownership, product longevity and the best possible overall application with leading-edge, highest reliability embedded technology. Kontron is a listed company. Its shares are traded in the Prime Standard segment of the Frankfurt Stock Exchange and on other exchanges under the symbol “KBC”. For more information, please visit: http://www.kontron.com/...
