TLP 710CV and TLE 710 • Setup Guide (Continued)
Mounting the TLP 710CV and TLE 710
Step 1 — Obtain Cut-out Dimensions
ATTENTION:
•
The table should be cut only by licensed and bonded craftspeople.
•
Make certain the correct cut-out dimensions are being used before proceeding to the next step. Extron is not
responsible for mounting holes that are incorrectly cut.
•
The surfaces of the Cable Cubby enclosure have screws and other protruding hardware that could damage fine
furniture. Do not rest the enclosure on unprotected furniture.
•
Ensure the table surface is at least 0.375 inches (0.95 cm) thick.
If using a hand router, you should purchase the Extron TLP 710CV routing template (part number 70-980-01).
z
If using a CNC wood router, use the exact cut-out dimensions (see below).
z
If using a reciprocating saw or jigsaw use the paper cut-out template (part number 68-2179-01 available under the
z
tab on the TLP 710CV page at www.extron.com.).
Step 2 — Cut the Surface
CAUTION: Risk of personal injury: To avoid eye injury, wear safety glasses when operating power equipment.
Be certain the cut is laid out in exactly the desired location and the edge that opens on the lid is correctly oriented. After verifying
and checking dimensions, cut a hole in the surface of the furniture where the enclosure will be installed (see "Preparing the Table"
in the TLP 710CV User Guide). There are three methods for cutting the hole in the table:

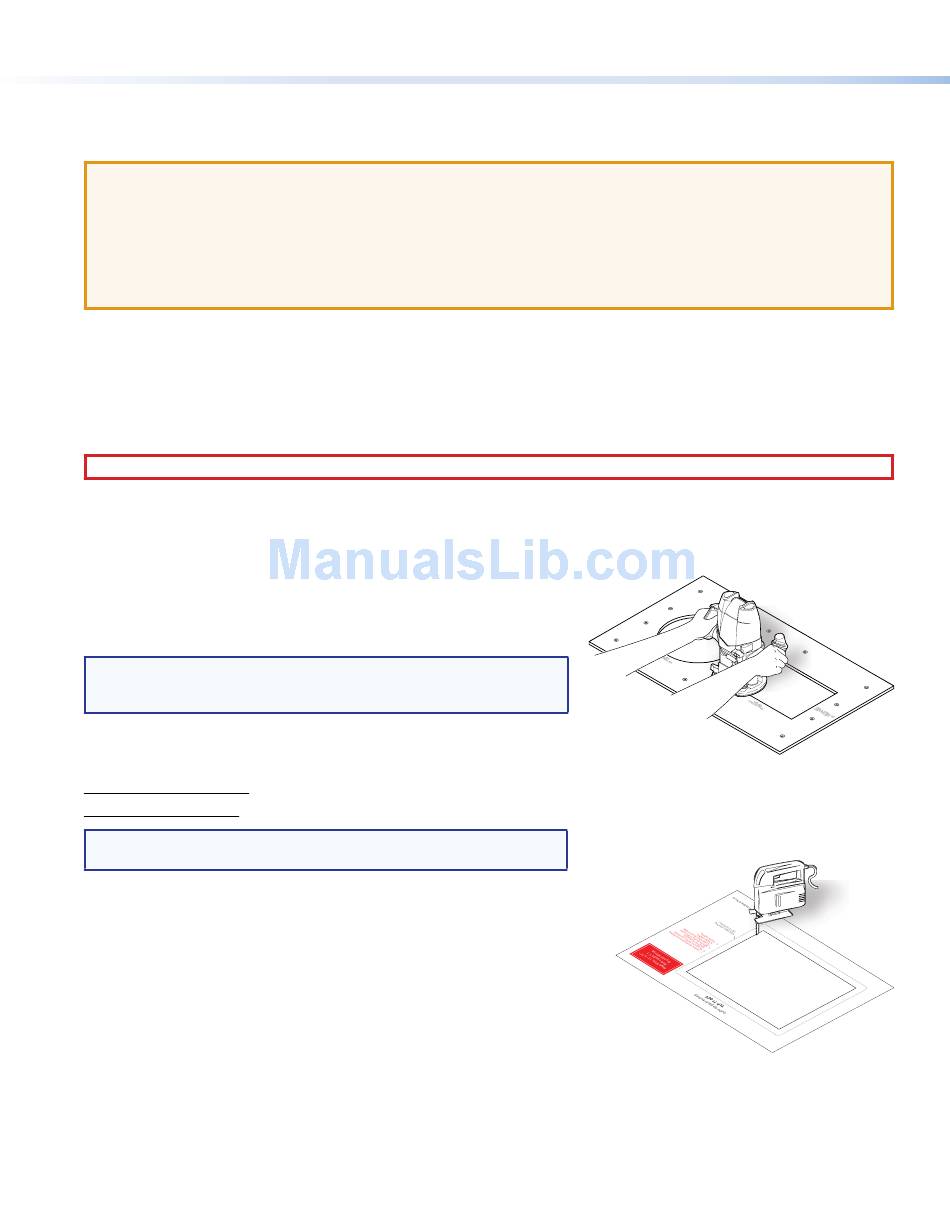

Using a hand router
Recommended method — Use the Extron TLP 710CV routing template, part
number 70-980-01. Refer to the Routing Template User Guide, available at
www.extron.com, to prepare the template and use the template to cut the
hole.
NOTE: The metal router guide must be purchased separately. It
is reusable and should not be discarded when the installation is
complete.
Using a CNC wood cutter
Recommended method — Use the exact cut-out dimensions:
8.90 +0.00/-0.02 inches W x 7.10 +0.00/-0.02 inches D
(22.61 +0.00/-0.05 cm W x 18.03 +0.00/-0.05 cm D)
NOTE: The underlined dimension is the connector or AAP access side
for the unit.
Using a reciprocating saw or jigsaw
Acceptable method — Use the paper cut-out template (part number 68-2179-01
available under the
Downloads
2 2
tab on the TLP 710CV page at www.extron.com.)
Downloads
