(1)

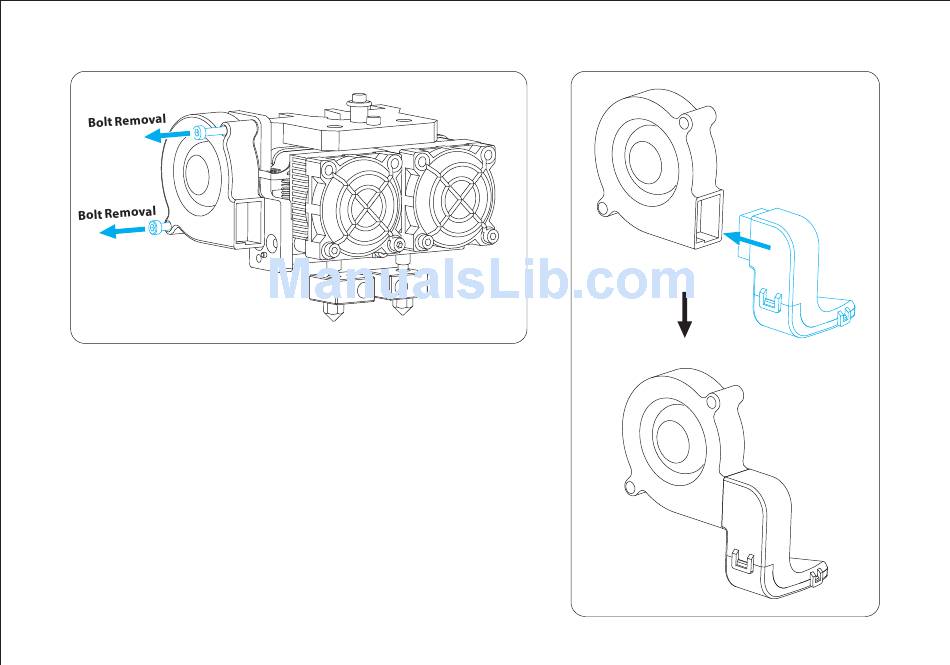

Turbofan Baffle Assembly
(1) Use the M2.5 Allen Wrench to remove two turbofan bolts.
(As shown in the picture above)
(2) Take the turbofan baffle from the extruder's accessory kit.
(3) Install the turbofan baffle to the turbofan.
(As shown in the top-right picture)
Caution: During installation, please take care of the
turbofan cable.
(2)
Turbofan Baffle
Assembly
Complete
Turbofan Baffle
