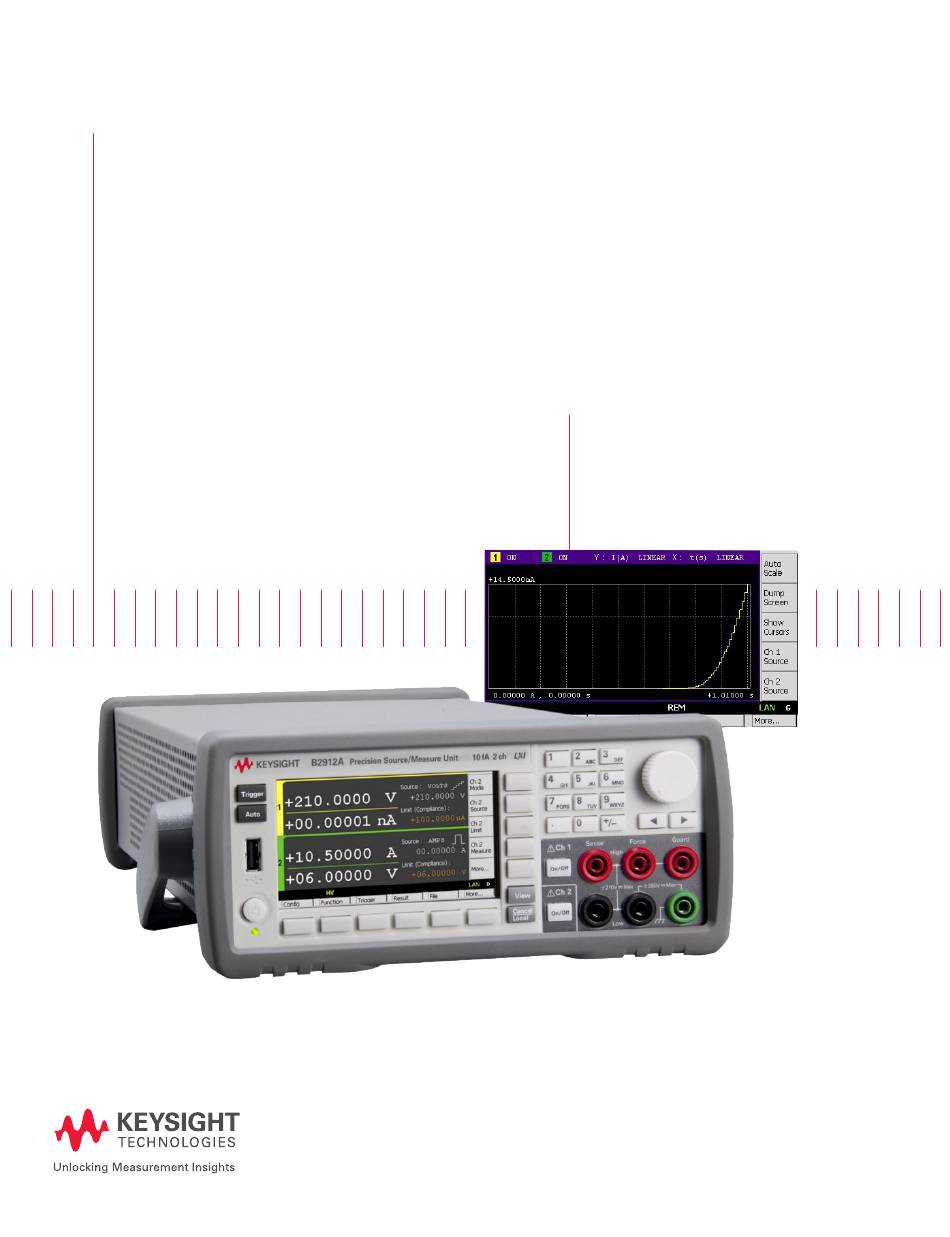

- Page 1 Keysight Technologies Making Time Domain Measurement with Staircase Source Using SMU B2900A Precision Source/Measure Unit Demo Guide...
- Page 2 The Keysight B2900A Series Precision Source/Measure Unit (SMU) is a compact and cost-effective bench-top SMU with the capability to output and measure both voltage and current. The B2900A Series SMU enables you to make a wide range of current versus voltage (IV) measurements more accurately and quickly than ever before. In...
- Page 3 . Then, when you press , the instrument will make a time domain measurement with staircase source. Because the B2900A series SMU has an independent trigger system for each of the source and measurement function, the multiple measurements can be made during each step of staircase source. If it is necessary, you can specify any measurement trigger delay time which is the wait time before making a measurement.
- Page 4 04 | Keysight | Making Time Domain Measurement with Pulsed Source Using SMU – Demo Guide LAB: Make Time Domain Measurement with Staircase Source Using SMU Demonstration Objective 1. Change View mode to Channel 1 Single View This demo illustrates the function to make a time domain measurement of 1) Press repeatedly until the Channel 1...
- Page 5 05 | Keysight | Making Time Domain Measurement with Pulsed Source Using SMU – Demo Guide 5) Press to change the keys shown in Assist keys, and then press to show Sweep Sub-Panel. 6) Press , then press to turn on Single Linear Sweep Mode. After turning on Single Linear Sweep Mode, you can see Source Shape which shows the single linear sweep mode.
- Page 6 06 | Keysight | Making Time Domain Measurement with Pulsed Source Using SMU – Demo Guide 10) Rotate to select Channel 1 Trigger Parameters and set them up as below. Source Trigger Count should be the same number as Sweep Points. Measurement Trigger Count defines the number of sampling and Measurement Trigger Period defines the interval of sampling.
- Page 7 5. View the measurement result graph 1) Press to adjust the scale of the graph after finishing the measurement. Now you can see the measurement result on the GUI of the B2900A series SMU as below. 2) Rotate and press...
- Page 8 08 | Keysight | Making Time Domain Measurement with Pulsed Source Using SMU – Demo Guide 6. View the list of measurement results The measurement results including the measurement time stamp can be referred by the following steps. 1) If you aren’t on the top of the Function menu, press repeatedly to return to the top level.
- Page 9 In the default setting, the instrument selects the appropriate measurement speed and range automatically to get the fine accuracy. However, you can also specify these parameters on the GUI of the B2900A series SMU to meet a variety of the requirement to the measurement conditions.
- Page 10 10 | Keysight | Making Time Domain Measurement with Pulsed Source Using SMU – Demo Guide Controlling the B2900A Series SMU using SCPI commands If you prefer to control the B2900A Series SMU remotely using SCPI remote commands, then the following material explains how to do this.
- Page 11 SMU with the capability to output and measure both voltage and current. Configuring the B2900A series SMU properly enables you not only to make a simple current versus voltage (IV) measurement, but also to make a time domain measurement with sourcing staircase sweep current or voltage as if it were an oscilloscope.
- Page 12 (BP-9-7-17) www.keysight.com/find/b2900a DEKRA Certified ISO9001 Quality Management System www.keysight.com/go/quality Keysight Technologies, Inc. DEKRA Certified ISO 9001:2015 Quality Management System This information is subject to change without notice. © Keysight Technologies, 2017 Published in USA, December 1, 2017 5992-1774EN www.keysight.com...
