When handset 1 is using AP C it receives packets from SVP 2
o
When handset 1 is using AP D it receives packets from SVP 1

Handset 2 registers with SVP Server 1
o
Handset 2 always sends its voice packets to SVP 1

SVP 1 forwards handset 2 audio packets to the call server or PBX

The call server or PBX sends packets from the telephone this handset is in call with
to SVP 1

SVP 1 sends packets to the SVP managing handset 2‟s AP
o
When handset 2 is using AP A it receives packets from SVP 1
o
When handset 2 is using AP B it receives packets from SVP 2
o
When handset 2 is using AP C it receives packets from SVP 2
o
When handset 2 is using AP D it receives packets from SVP 1

Handset 3 registers with SVP Server 2
o
Handset 3 always sends its packets to SVP 2

SVP 2 forwards handset 3 audio packets to the call server or PBX

The call server or PBX sends audio packets from the telephone this handset is in call
with to SVP 2

SVP 2 sends packets to the SVP managing handset 3‟s AP
o
When handset 3 is using AP A it receives packets from SVP 1
o
When handset 3 is using AP B it receives packets from SVP 2
o
When handset 3 is using AP C is receives packets from SVP 2
o
When handset 3 is using AP D it receives packets from SVP 1
4.1.3.1

Scenario One

Scenario One assumes that the handset has registered to SVP Server 1, associated to Access Point A,
and managed by SVP Server 1 (Figure 8)

Handset communicates only to SVP Server 1 in this case
©2009 Polycom, Inc. All rights reserved.
Polycom and the Polycom logo are registered trademarks of Polycom, Inc. All other trademarks are the property of Polycom, Inc. or their respective companies.
SVP Server 1
call server
or PBX

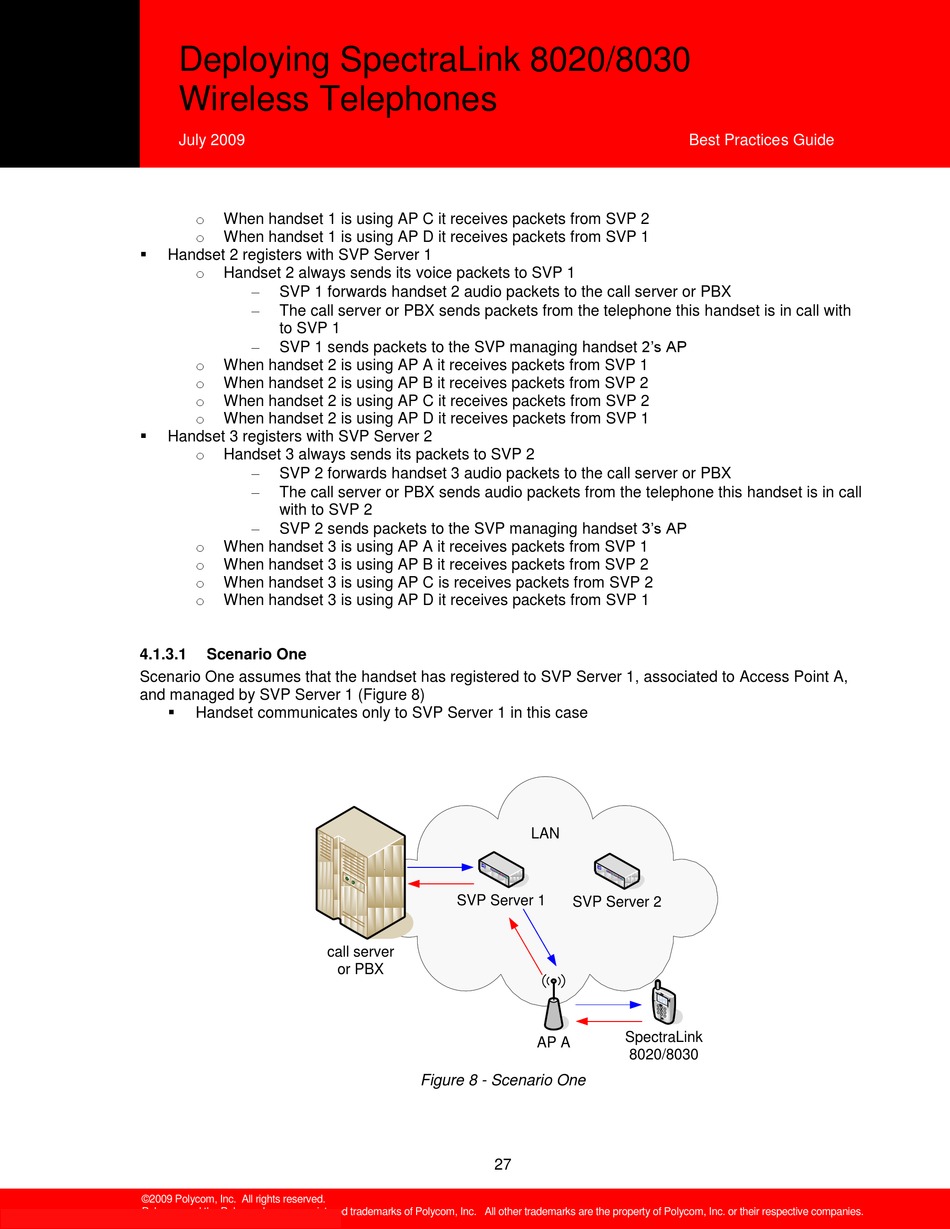

Figure 8 - Scenario One
