Network Communication Setup

Network setup is essential prior to configuration. Use the flowchart as a guide to setting up
the control processor for network use.

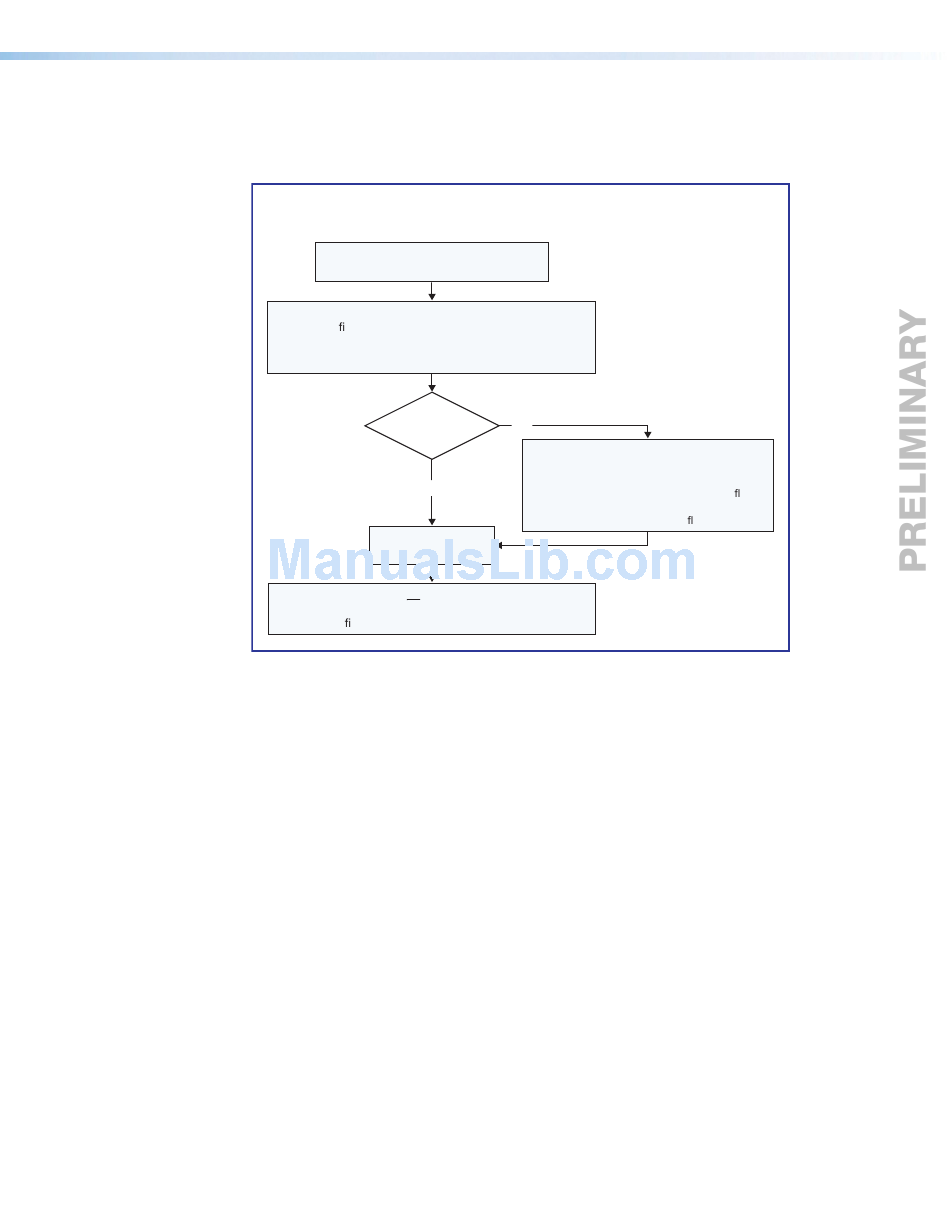

Figure 4.
Network Communication Setup,
Connected/Online Method
Connect the control processor and PC
to the same LAN and apply power.
Open the Toolbelt utility in
Global Con gurator (GC Professional or GC Plus mode).
ToolBelt displays a list of all IP Link Pro devices
connected to the network.
Do you
know the MAC
address?
Yes
Select the desired
device from the list.
Enable DHCP or you must type in the
IP address, subnet address, and gateway,
then con gure other network settings as needed.
Network Setup, Online Method
No
Activate the Identify Hardware feature.
To determine the correct device, click on a
device in the list and observe the device. The
front panel LEDs of the selected device ash.
Click on devices in the list until the LEDs
of the correct device ash.
