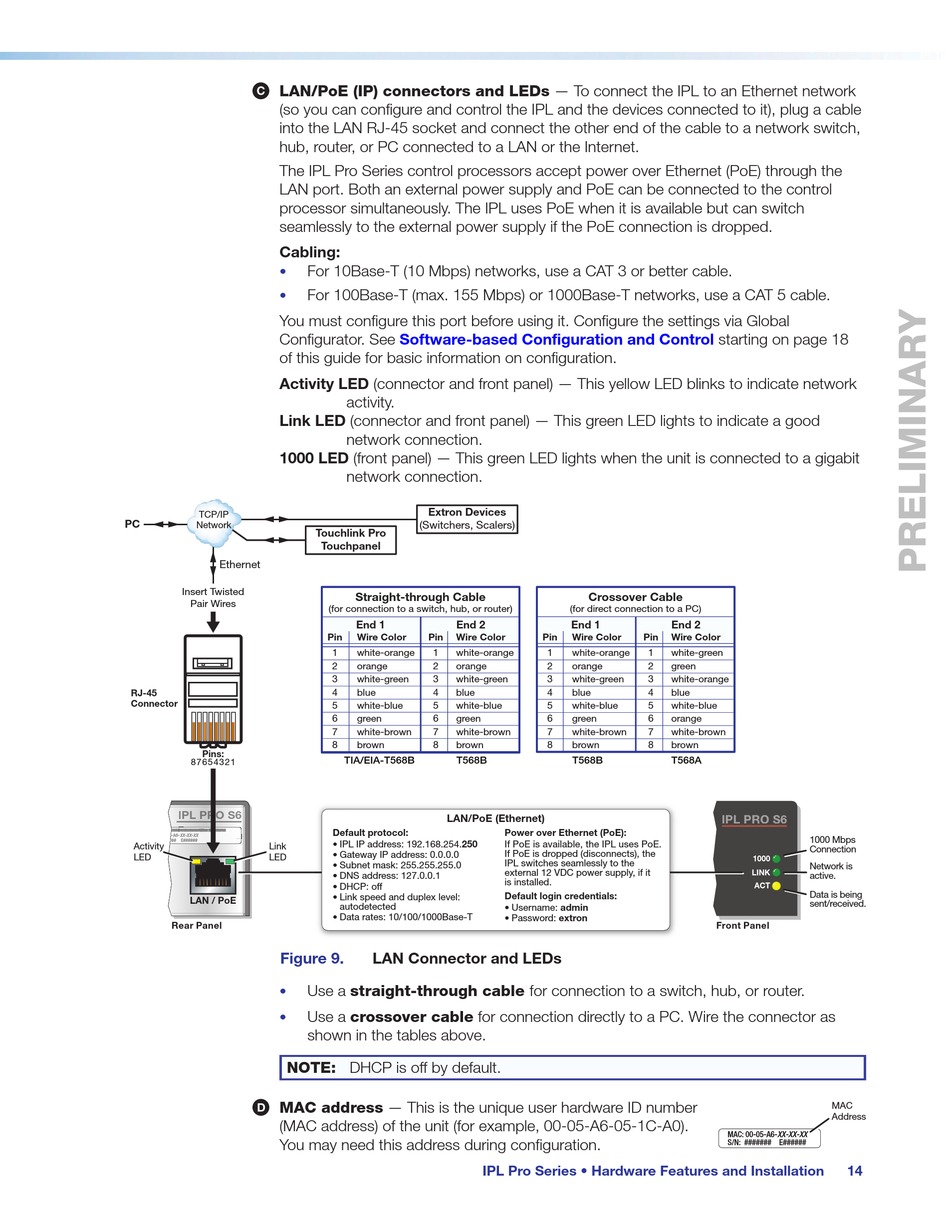

LAN/PoE (IP) connectors and LEDs — To connect the IPL to an Ethernet network
C
(so you can configure and control the IPL and the devices connected to it), plug a cable
into the LAN RJ-45 socket and connect the other end of the cable to a network switch,
hub, router, or PC connected to a LAN or the Internet.
The IPL Pro Series control processors accept power over Ethernet (PoE) through the
LAN port. Both an external power supply and PoE can be connected to the control
processor simultaneously. The IPL uses PoE when it is available but can switch
seamlessly to the external power supply if the PoE connection is dropped.
Cabling:
•
•
You must configure this port before using it. Configure the settings via Global
Configurator. See
of this guide for basic information on configuration.
Activity LED (connector and front panel) — This yellow LED blinks to indicate network
Link LED (connector and front panel) — This green LED lights to indicate a good
1000 LED (front panel) — This green LED lights when the unit is connected to a gigabit
TCP/IP
PC
Network
Ethernet
Insert Twisted
Pair Wires
RJ-45
Connector
Pins:
8 7 6 5 4 3 2 1
I PL I PR PRO S6
5 5 -A6-XX- A - XX X -XX
5-A6-XX-XX-XX 5-
### ## E######
Activity Link
LED LED
LAN / PoE
Rear Panel
Figure 9.
•
•
NOTE: DHCP is off by default.
MAC address — This is the unique user hardware ID number
D
(MAC address) of the unit (for example, 00-05-A6-05-1C-A0).
You may need this address during configuration.
For 10Base-T (10 Mbps) networks, use a CAT 3 or better cable.
For 100Base-T (max. 155 Mbps) or 1000Base-T networks, use a CAT 5 cable.
Software-based Configuration and Control
activity.
network connection.
network connection.
Extron Devices
(Switchers, Scalers)
Touchlink Pro
Touchpanel
Straight-through Cable
(for connection to a switch, hub, or router)
End 1 End 2
Pin Wire Color Pin Wire Color
1 white-orange 1 white-orange
2 orange 2 orange
3 white-green 3 white-green
4 blue 4 blue
5 white-blue 5 white-blue
6 green 6 green
7 white-brown 7 white-brown
8 brown 8 brown
TIA/EIA-T568B T568B
LAN/PoE (Ethernet)
Default protocol:
• IPL IP address: 192.168.254.250
• Gateway IP address: 0.0.0.0
• Subnet mask: 255.255.255.0
• DNS address: 127.0.0.1
• DHCP: off
• Link speed and duplex level:
autodetected
• Data rates: 10/100/1000Base-T
LAN Connector and LEDs
Use a straight-through cable for connection to a switch, hub, or router.
Use a crossover cable for connection directly to a PC. Wire the connector as
shown in the tables above.
IPL Pro Series • Hardware Features and Installation
Crossover Cable
(for direct connection to a PC)
End 1 End 2
Pin Wire Color Pin Wire Color
1 white-orange 1 white-green
2 orange 2 green
3 white-green 3 white-orange
4 blue 4 blue
5 white-blue 5 white-blue
6 green 6 orange
7 white-brown 7 white-brown
8 brown 8 brown
T568B T568A
Power over Ethernet (PoE):
If PoE is available, the IPL uses PoE.
If PoE is dropped (disconnects), the
IPL switches seamlessly to the
external 12 VDC power supply, if it
is installed.
Default login credentials:
• Username: admin
• Password: extron
starting on page 18
1000 Mbps
Connection
1000
Network is
LINK
active.
ACT
Data is being
sent/received.
Front Panel
MAC
Address
MAC: 00-05-A6-XX-XX-XX
S/N: ####### E######
