Preparing the 2110 SSB Transceiver for use

Connecting a battery to the transceiver

The battery is connected to the bottom of the transceiver. It is held in place by clips with
locking key latches (see
NOTE

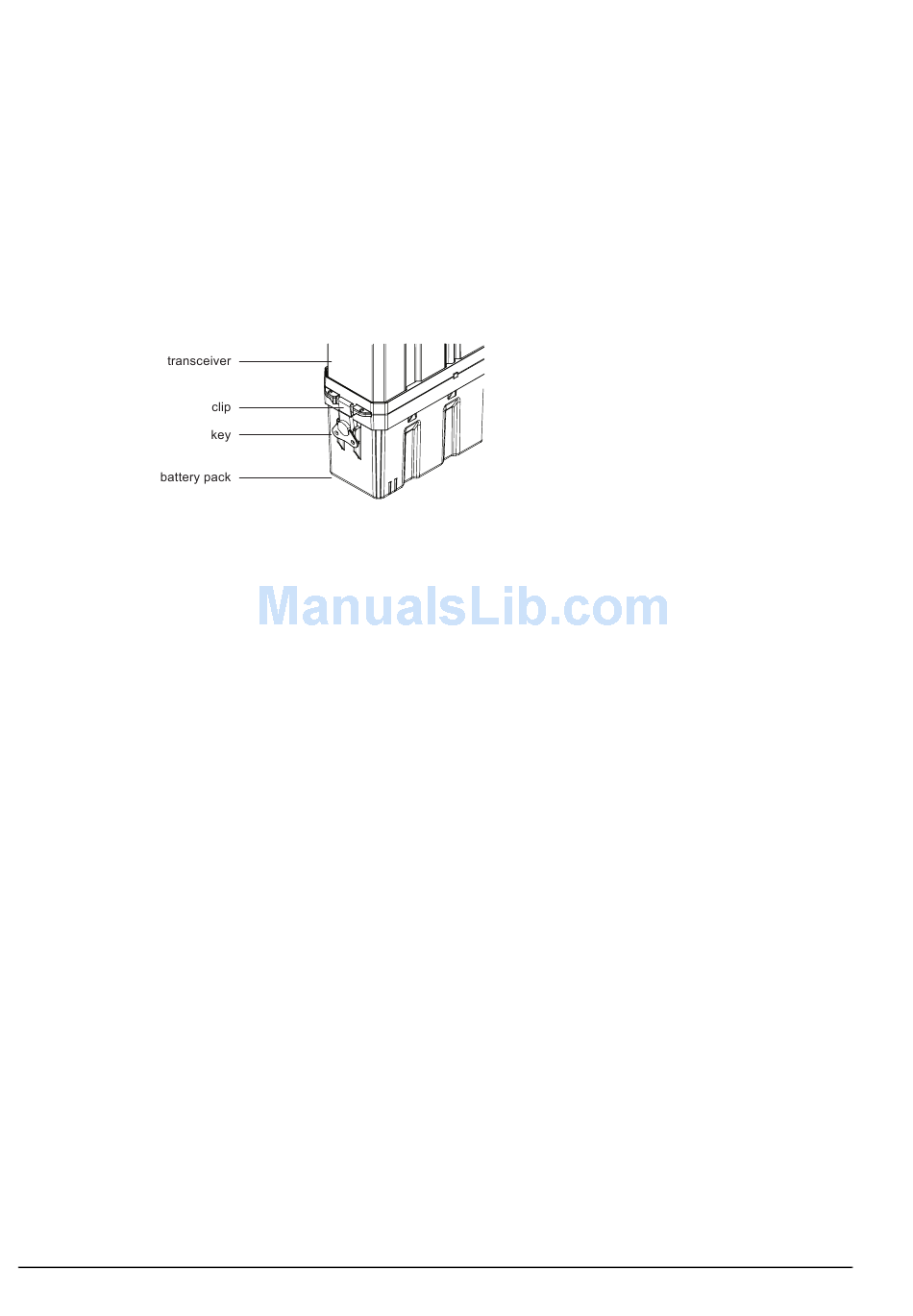

Figure 6: Transceiver with battery pack connected

Inserting the transceiver into a backpack

All backpacks come with adjustable straps that hold the transceiver firmly in position.
Some backpacks have an internal mounting frame.
To insert the transceiver into a backpack with an internal mounting frame:
1
1
1
1
To insert the transceiver into the soft backpack:
1
1
36
Figure
The battery connector on the base of the transceiver is on the same side of
the transceiver as the antenna connectors on the front panel.
Open the rear of the backpack to expose the mounting frame.
Push the transceiver between the foam mounts on the frame.
Secure the transceiver with the two adjustable straps.
Close the rear of the backpack.
Slide the transceiver into the backpack.
Secure the transceiver with the adjustable strap on the outside of the backpack.
6).
