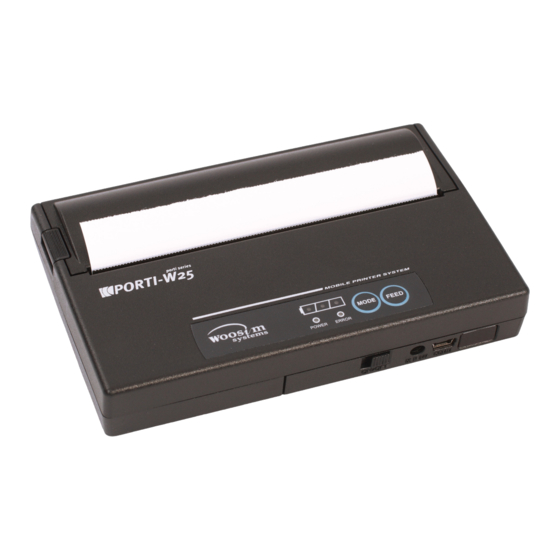

WOOSIM PORTI-W25 Operator's Manual
  1. Manuals
  2. Brands
  3. WOOSIM Manuals
  4. Printer
  5. PORTI-W25
  6. Operator's manual

WOOSIM PORTI-W25 Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL
All specifications are subjected to change without notice
PORTI-W25

(Mobile Printer)

Rev. 2.0
WOOSIM SYSTEMS Inc.
#501, Daerung Technotown 3th, 448,
Gasan-Dong, GeumChun-Ku, Seoul,
Korea
Tel : +82-2-2107-3700
Fax : +82-2-2107-3707
URL
http://www.woosim.com
http://www.woosim.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PORTI-W25 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WOOSIM PORTI-W25

Summary of Contents for WOOSIM PORTI-W25

  • Page 1: Mobile Printer

    PORTI-W25 MODEL (Mobile Printer) Rev. 2.0 WOOSIM SYSTEMS Inc. #501, Daerung Technotown 3th, 448, Gasan-Dong, GeumChun-Ku, Seoul, Korea Tel : +82-2-2107-3700 Fax : +82-2-2107-3707 http://www.woosim.com All specifications are subjected to change without notice http://www.woosim.com...
  • Page 2 Copyright ⓒ2007 by Woosim Systems Inc. All rights reserved. The information contained in this manual is the property of Woosim System Inc. and may not be reproduced in whole or in part without the prior written permission of Woosim System Inc.
  • Page 3 ¦ Introduction The PORTI-W25s suitable designed for use with a growing variety of mobile devices. IrDA/Serial or Bluetooth/Serial interfaces make the PORTI-W25 the perfect comrade for applications such as point of transaction warehousing, distribution, point of sales, hospitality, gaming and healthcare.

  • Page 4: Operating Precautions

    Porti-W25 Rev. 2.0 ¦ Operating Precautions Please follow the precautions below to enjoy and maintain the full performance of the printer. Using the Printer ● Be careful not to drop or bump the printer on a hard surface. ● Do not install the printer in direct sunlight or such areas.
  • Page 5 Porti-W25 Rev. 2.0 ¦ Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 6: Table Of Contents

    Porti-W25 Rev. 2.0 CONTENTS 1. Outline ............................7 1.1. Model classifications ......................7 1.2. Product Part Number System ....................7 1.3. Specifications ........................8 2. Setting up the printer ........................9 2.1. Printer & Accessories ......................9 2.2. Printer Features ........................10 2.2.1. Part name ......................... 10 2.2.2.

  • Page 7: Outline

    Porti-W25 Rev. 2.0 PORTI-W25 ( Model Name Interface None : IrDA/UART : USB/UART BT : Bluetooth/UART Power None : DC 8.4V Model name Interface Spec. Wired Wireless RS-232C Bluetooth SC30 IrDA None RS-485 Parallel None Serial/Bluetooth Part No. ⇒ S40/A1 Example) 1.

  • Page 8: Specifications

    Porti-W25 Rev. 2.0 Item Specification Printing method Direct thermal line printing Characters per line 92cpl (MAX) Character size Eng. : 9*24dots, 12*24dots Kor. : 16*24dots, [24*24dots] Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Tukish, Optional Characters Greek, Japanese, Persian, Latin9 and Others upon request.

  • Page 9: Setting Up The Printer

    Porti-W25 Rev. 2.0 & & When unpacking your printer box make sure it contains the printer and all accessories. If any accessories are missing or damage, please contact your dealer for assistance. Battery pack Thermal roll paper PORTI-W25 Battery charger adapter ▼...

  • Page 10: Printer Features

    Porti-W25 Rev. 2.0 http://www.woosim.com...

  • Page 11: Replacing The Paper Roll

    Porti-W25 Rev. 2.0 Note : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer can not detect the paper end correctly. 1. Make sure that the printer is not receiving data; otherwise, data may be lost.

  • Page 12: Power Supply

    Porti-W25 Rev. 2.0 The following specification is requested for Power supply. Battery Charger : DC 8.4V/0.8A Avoid using power supply which its power capacity of power current is extremely high. ● NOTE : Before installing or removing the battery pack, ensure the printer is OFF.

  • Page 13: Recharging The Battery Pack

    Porti-W25 Rev. 2.0 For recharging the battery pack, install the battery pack in the printer or the battery holder. Insert the battery charger adaptor to the charge connector of the printer or the battery holder. ● NOTE : While charging the printer, turn off the printer power.

  • Page 14: Set Operation Mode

    Porti-W25 Rev. 2.0 < M37702 (OLD) Version > Change the mode and option using the MODE Code. l MODE button : use for changing OPTION status. (Error Lamp) l FEED button : use for changing MODE status. (Power Lamp) [Example] The defaults of the printer are :...
  • Page 15 Porti-W25 Rev. 2.0 When you press FEED Button twice, Power Lamp flickers 7 times Error Lamp flickers twice. ® Press MODE Button once, Error Lamp flickers twice. And then the mark has set to Marm no use. When you press FEED Button once again,...
  • Page 16 Porti-W25 Rev. 2.0 * M37702 ( OLD ) IrDA Version POWER Lamp ERROR Lamp MODE Option (Green) (Red) RS-232C Communication Protocol IrDA Port Standard IrDA 1200 bps 2400 bps 4800 bps 9600 bps Baud Rate 19200 bps 38400 bps 57600 bps...
  • Page 17 Porti-W25 Rev. 2.0 * M37702 ( OLD ) Bluetooth Version POWER Lamp ERROR Lamp MODE Option (Green) (Red) RS-232C Communication Protocol Bluetooth Port Bluetooth 1200 bps 2400 bps 4800 bps 9600 bps Baud Rate 19200 bps 38400 bps 57600 bps...
  • Page 18 Porti-W25 Rev. 2.0 < M16C, ARM ( NEW ) Version > Change the mode and option using the MODE Code. l MODE button : use for changing OPTION status. (Error Lamp) l FEED button : use for changing MODE status.
  • Page 19 Porti-W25 Rev. 2.0 When you press FEED Button once again, Power Lamp flickers 6 times Error Lamp flickers once. ® Press MODE Button twice, Error Lamp flickers 3 times. And then the density has set to Density high. When you press FEED Button once again,...
  • Page 20 Porti-W25 Rev. 2.0 * M16C , ARM (NEW) IrDA Version POWER Lamp ERROR Lamp MODE Option (Green) (Red) UART Protocol UART Communication Raw IrDA Port Protocol IrDA Standard IrDA 9600 bps 19200 bps 38400 bps Baud Rate 57600 bps 115200 bps...
  • Page 21 Porti-W25 Rev. 2.0 POWER Lamp ERROR Lamp Option (Green) (Red) No use 1 minute 2 minute Power Down 3 minute 4 minute 5 minute < Table 4 > http://www.woosim.com...
  • Page 22 Porti-W25 Rev. 2.0 * M16C , ARM (NEW) Bluetooth Version POWER Lamp ERROR Lamp MODE Option (Green) (Red) UART Protocol UART Communication Port Bluetooth Protocol Bluetooth 9600 bps 19200 bps Baud Rate 38400 bps 57600 bps 115200 bps 7 Data bit...
  • Page 23 Porti-W25 Rev. 2.0 POWER Lamp ERROR Lamp Option (Green) (Red) No use 1 minute 2 minute Power Down 3 minute 4 minute 5 minute < Table 5 > http://www.woosim.com...

  • Page 24: Interface

    Porti-W25 Rev. 2.0 The PORTI-W25 printer has a UART(RS-232C or TTL) or USB interface is connected by means of a 6 pin mini din jack. In the following table, the signals present on the connector are listed: ① UART(RS-232C or TTL) ②...

  • Page 25: Infrared Data Communication

    Porti-W25 Rev. 2.0 The PORTI-W25 has a serial interface for bi-directional data exchange. The infrared port is the right side of the front part. 1) To use the PORTI-W25’s infrared port, a computer or Personal Digital Assistant (PDA) with IR port is required.

  • Page 26: Bluetooth

    Porti-W25 Rev. 2.0 Category Specification Bluetooth Ver2.1 + EDR / Class2 (10m) Bluetooth Spec. Frequency Range 2.4GHz ISM BAND Data Transmission Rate 57600bps Fixed. Data bit 8 Data bit Fixed. Parity bit No parity Fixed. Stop bit 1 Stop bit Fixed.

  • Page 27: Using The Printer

    Porti-W25 Rev. 2.0 (Fig.2.1) u Button - FEED : When the printer is on, paper can be feed manually by pressing and holding the FEED button for more than one second. - MODE : MODE Button is for use to change communication mode.

  • Page 28: Self Test

    Porti-W25 Rev. 2.0 The Self-Test checks whether the printer has any problems. If the printer does not function properly, contact your dealer. For Self-Test, turn on the power while holding down the FEED Button. The Self-Test checks the following : 1) Make sure paper roll has been installed properly.

  • Page 29: Consumable Parts

    Porti-W25 Rev. 2.0 Type : Thermal Paper Paper width : 117mm : 60±5 ㎛ Paper thickness Outer diameter : Ø25mm or less Recording side : Outside of roll Cautions Do not paste the paper to the core, and the roll paper which has near end mark printing on its near end is recommended.
