- Page 1 Instruction Manual G-Series Backup Camera System with Frameless Mirror Monitor RVS-776718-FL Reverse With Confidence ™...
-
Page 2: Table Of Contents
Warranty....... 22 Disclaimer....... 23 Rear View Safety... - Page 3 NOTE! Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. Congratulations on purchasing a Rear View Backup Camera System! With this manual you will be able to properly install and operate the unit. The Backup Camera System is intended to be installed as a supplement aid to your standard rear view mirror that already exists in your vehicle.
- Page 4 Rear View Camera System. If you back up while looking only at the monitor, you may cause Rear View Safety...
- Page 5 INSTALLATION: • Electric shock or product or disconnected wire may cause a malfunction may occur if this fire. product is installed incorrectly. • While installing the Rear View System be careful with the wire • Use this product within positioning in order to avoid wire the voltage range specified.
- Page 6 If you have questions about this product, contact: Rear View Safety 1797 Atlantic Avenue Brooklyn, NY 11233 Tel: 1.800.764.1028 IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
- Page 7 Before drilling please check that no cable or wiring is on the other side of the wall. Please clamp all wires securely to reduce the possibility of them being damaged while vehicle is in use. Keep all cables away from hot/moving parts and electrical noisy components. We recommend doing a benchmark test before installation to insure that all components are working properly.
- Page 8 Do not run the cable over sharp edges, do not kink the cable and keep away from HOT and rotating parts. Fasten all cables and secure all excess cable. Connect camera to the camera extension cable which runs inside the vehicle. Figure 1.2 Rear View Safety...
- Page 9 Wiring After connecting the camera to the “camera cable” the camera should be plugged into AV2 input. Connect the RED 12V power wire to a an ignition power source and the BLACK 12V ground wire to a chassis ground. The GREEN wire is the REVERSE trigger wire. Connect this wire to the vehicle’s backup light circuit to activate the rear-view image whenever the vehicle shifts into reverse.
-
Page 10: Monitor Introduction
Monitor Introduction 1) Toggle selection up 2) Menu 3) Toggle selection down 4) Video switch/turn off display Rear View Safety... -
Page 11: In The Box

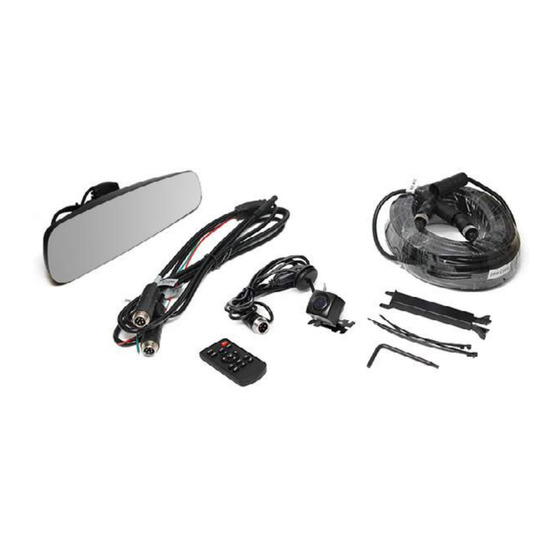

In The Box 1 x Color Waterproof Backup Camera 1 x Replacement Frameless Mirror Monitor with 4.3" Display 1 x Power Harness with Two Camera Inputs 1 x 66' Camera Cable 1 x Remote Control 1 x Screw Kit for Installation Reverse With Confidence ™... - Page 12 6.6 feet 9.9 feet 3.3 feet Accuracy The accuracy of the grid-lines can vary based on how you angle your cam- era. Therefore to compensate for inaccurancies, you can adjust the grid lines to your camera angle. Rear View Safety...
- Page 13 FIGURE 1.1 FIGURE 1.2 Reverse With Confidence ™...
- Page 14 FIGURE 2.1 Backup Camera Video In Red To Ignition +12V Green To Reverse Signal Black To GND 1. RED- Power (+) 2. YELLOW- Video 3. GREEN- Mirror / Normal Imaging 4. WHITE- Audio 5. BLACK- Ground (-) Rear View Safety...
- Page 15 FIGURE 2.2 Reverse With Confidence ™...
-
Page 16: Remote Introduction
Remote Introduction Remote Introduction Press the button to toggle L/R gridlines Clockwise Left Right Down Counterclockwise Remote control Adjust grid line Rotate gride line Rear View Safety... - Page 17 • Replacement Frameless Mirror Monitor with 4.3" Display • Distance Grid Lines for Backing Up Reference • Compact Camera Ideal for Smaller Vehicles • 170° Ultra Wide Viewing Angle and Excellent Night Vision • Completely Waterproof Camera - IP68 Reverse With Confidence ™...
- Page 18 Dot Resolution 480 x 3 (RGB) x 272 Display Format TFT-LCD Working Voltage Video System PAL/Auto/NTSC Video Input 2 Channel Working Temperature -20°C ~ +65°C Brightness 660 cd/m2 Overall Dimensions 3.15" (H) x 10.55" (L) x 1" (D) Rear View Safety...
- Page 19 Camera Information Camera MT9V139 Sensor Format 728 (H) X 560 (V) NTSC Output 720 (H) X 480 (V) PAL Output 720 (H) X 576 (V) Optical Format 1/4" Lens 2.1mm TV Lines Viewing Angle 170° Weatherproof Rating IP68 Night Vision Usable Illumination 0.5 Lux Power Source...
-
Page 20: Warranty
OTHERS OR THE UNAUTHORIZED USE OF NONCONFORMING PARTS; THE DAMAGE IS DUE TO NORMAL WEAR AND TEAR, THIS DAMAGE IS DUE TO ABUSE, IMPROPER MAINTENANCE, NEGLECT OR ACCIDENT; OR THE DAMAGE IS DUE TO USE OF THE REAR VIEW SAFETY, INC. SYSTEM AFTER PARTIAL FAILURE OR USE WITH IMPROPER ACCESSORIES. -
Page 21: Disclaimer
FOR ANY INJURY, LOSS OR DAMAGE, INCIDENTAL OR CONSEQUENTIAL, ARISING OUT OF THE USE OR INTENDED USE OF THE PRODUCT. IN NO EVENT SHALL REAR VIEW SAFETY AND/OR ITS AFFILIATES HAVE ANY LIABILITY FOR ANY LOSSES (WHETHER DIRECT OR INDIRECT, IN... - Page 22 If you have any questions about this product, contact: Rear View Safety, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 Better Cameras. Better Service. IT’S OUR GUARANTEE. Rear View Safety...
