Savant CPT-1212 Quick Reference Manual

Component Profile Tool
Quick Reference Guide
The Component Profile Tool (CPT-1212) is a general purpose tool for
creating, testing, and modifying the .xml Profiles used in the
RacePoint Blueprint® software. The CPT-1212 kit includes all the tools
described in the Box Contents section below set in a durable carry
case.
When connected, the CPT-1212 works with the Profiler and IR
Translator applications to both create new or modify existing .xml
Profiles. This Quick Reference Guide describes each of the tools in
the kit along with general information on connecting the system.
For information on using the Profiler and IR Translator software to
test, modify, or create .xml Profiles, refer to the Profiler and
Component Profile Tool Reference Guide 009-1037-xx on the
Portal.
Box Contents
(1) SmartControl 12 (SSC-0012-xx)
(1) Installation Kit SmartControl 12 (075-0180-xx)
(1) SmartControl Mounting Plate (074-0577-xx)
(1) 12V DC 1.5A Power Supply (025-0143-xx)
(4) 6-pin Screw Down Plug-in Connector (028-9352-xx)
(1) Cable Tie (014-0071-xx)
(1) Installation Kit Serial/Cat 5 Adapters (075-0041-xx)
(4) RJ45 to DB-9F Adapters
(1) DB9 Gender Changer
(1) IR Learner (064-0224-xx)
(1) Keyspan High-Speed USB to Serial Adapter (064-0225-xx)
(2) Ethernet Cable - 2 feet (064-0059-xx)
(1) IR Repeater Cable (064-0020-xx)
(1) IR Learner (064-0224-xx)
(1) Smart Connect Lightning (SCA-CONFL-xx) ***
(1) Technicians Screwdriver (015-0075-xx)
(1) Carry Case
(1) Quick Reference Guide (this Document)
*** The Smart Connect Lightning tool (SCA-CONFL) is a general
purpose tool used to upgrade firmware on Savant® products. It is
not used with the Profiler or IR Translator software. Refer to the
SmartConnect Reference Guide (009-1046-xx) on the
for information on this tool.
Specifications
Environmental Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 80% RH (non-condensing)
Dimensions and Weight (Carry Case with all Components) Dimensions and Weight (Carry Case with all Components)
Height 12.25 in (31.12 cm)
Width 16.0 in (40.64 cm)
Depth 5.5 in (13.97 cm)
Net: 4.25 lb (1.93 kg)
Weight
Shipping: 5.00 lb (2.27 kg)
Power (SSC-0012 Controller) Power (SSC-0012 Controller)
Input Power 12V DC 1.5A
Max Power 18 watts
Compliance Compliance
Safety and Emissions FCC Part 15 | CE Mark | C-Tick
RoHS Compliant
Minimum Supported Release Minimum Supported Release
Savant OS da Vinci 7.0
CPT-1212-00 | 009-1276-00 | 141013
Copyright © 2014 Savant Systems, LLC

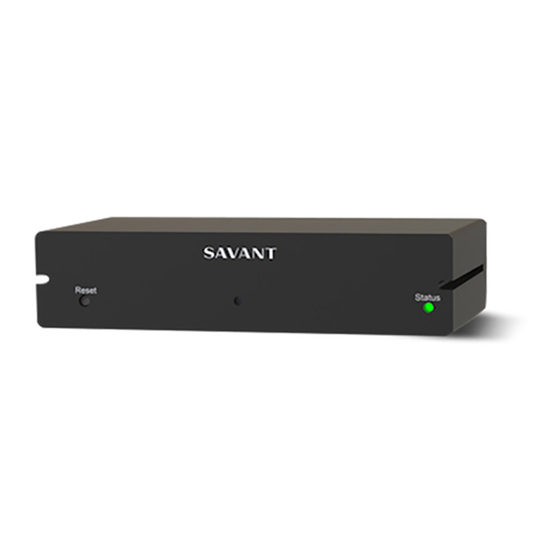

SSC-0012 Controller
The main component in the CPT-1212 kit is the SSC-0012 controller.
The Profiler software sends the command data to the controller. The
controller then sends the commands to the Unit Under Test (UUT)
using either IR, RS-232, or IP.

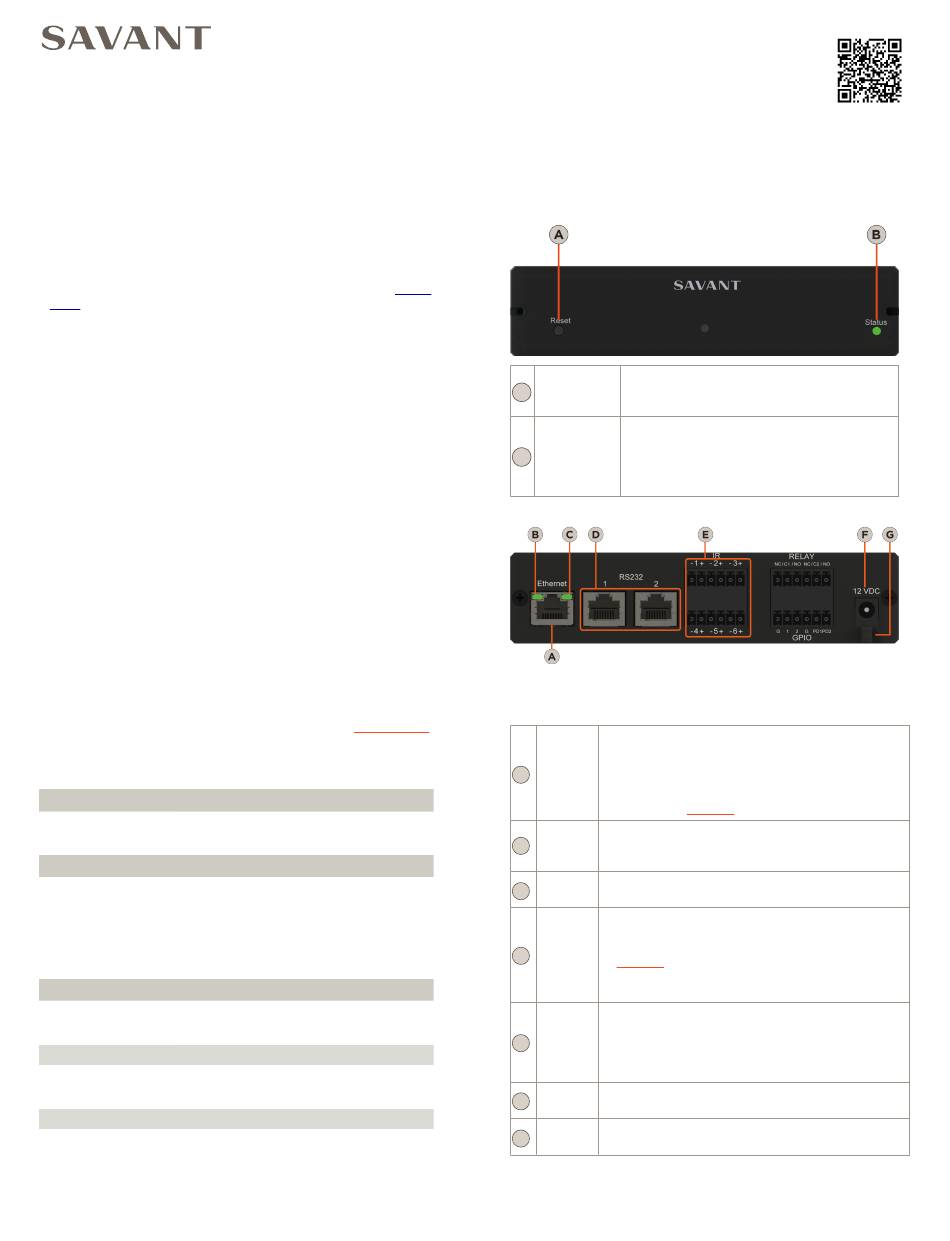

Front Panel
Savant
A
B
Rear Panel
Note: Connections not identified in the diagram above are not used
when utilizing the Component Profile Tool to create, test and
modify .xml Profiles.
Savant Portal
A
B
C
D
E
F
G
1 of 2
Press and hold for 5 seconds while powered On
Reset Button to clear network settings. The Status LED will
blink rapidly when reset is complete.
Off: No power
Blinks Once: Access Point Provisioning Mode
Status LED Blinks Twice: Waiting for a Host Connection
Blinks Three Times: Connecting To Host
Solid: Connected to Host
• 10/100 Base-T auto-negotiating port with Link and
Activity LEDs.
• 8-Pin RJ-45 female.
Ethernet
• Connects to either a local unmanaged switch/hub
or directly into the Ethernet port on the MacBook.
Refer to the Diagram
• Off: Ethernet link is not established.
Link LED • Green Solid: Ethernet link is established.
• Green Blinking: Ethernet activity is occurring
Data • Off: 10 Mbps data rate
Rate LED • Green: 100 Mbps data rate
• When selected in software, the RS-232 port
transmits and receives command codes between
the SSC-0012 and Unit Under Test. Refer to
RS-232
Diagram section.
• 8-pin RJ-45 female.
• Ports 1 or 2 are selectable in the Profiler software.
• When selected in software, the IR port transmits
command codes to the Unit Under Test (UUT).
IR • IR Repeater/Flasher connects to the required port
on the 6-pin Screw Down Plug-in Connector.
• IR Ports 1 - 6 are selectable in the Profiler software.
Input
• 12V DC 1.5A - Connect to included power supply.
Power
Cable • Used with included cable tie to secure power
Lance supply connection.
45 Perseverance Way, Hyannis, MA 02601
For Product Info
section.
savant.com | 508.683.2500
