Savant SmartLighting 2 Quick Reference Manual

SmartLighting 2 Controller with PoE
Quick Reference Guide
The Savant® SmartLighting 2 with PoE (SSL-P002) Quick Reference
Guide provides all the steps necessary to operate the SSL-P002.
The SSL-P002 supports up to 40 keypads through the SKL-4000
and 12 keypads through the SKL-1000. The SSL-P002 supports
Power over Ethernet (PoE) using the PoE IEEE 802.3af standard.
Box Contents
(1) SmartLighting 2 Controller with PoE (SSL-P002-00)
(1) Installation Kit (075-0134-xx)
(8) Flat Phillips Screws - #6 x 1/4 (039-0143-xx)
(2) Side Mount Brackets - pair (071-0625-xx)
Quick Reference Guide (this document)
Specifications
Environmental Environmental
Temperature 32° to 104° F (0° to 40° C)
10% to 80% Relative Humidity (non-
Humidity
condensing)
2 cubic feet per minute (CFM)
Cooling
recommended.
Maximum BTU 10 BTU/hr
Dimensions and Weight Dimensions and Weight
Height 1.59 in (4.04 cm)
Width 4.32 in (10.96 cm)
Depth 6.50 in (16.51 cm)
Weight 3 lb (1.36 kg)
Rack Space 1U
Power Power
Power over Ethernet
IEEE 802.3af
(PoE)
Power Supply 5V DC 1.25A
(Optional) 120-240V AC 50/60 Hz
Maximum Power 5 watts
Regulatory Regulatory
Safety and Emissions FCC Part 15 | CE Mark | C-Tick
RoHS Compliant
Minimum Supported Release Minimum Supported Release
Savant OS da Vinci 5.0.2
SSL-P002-00 | 009-0668-02 | 150714 SSL-P002-00 | 009-0668-02 | 150714
Copyright © 2015 Savant Systems, LLC

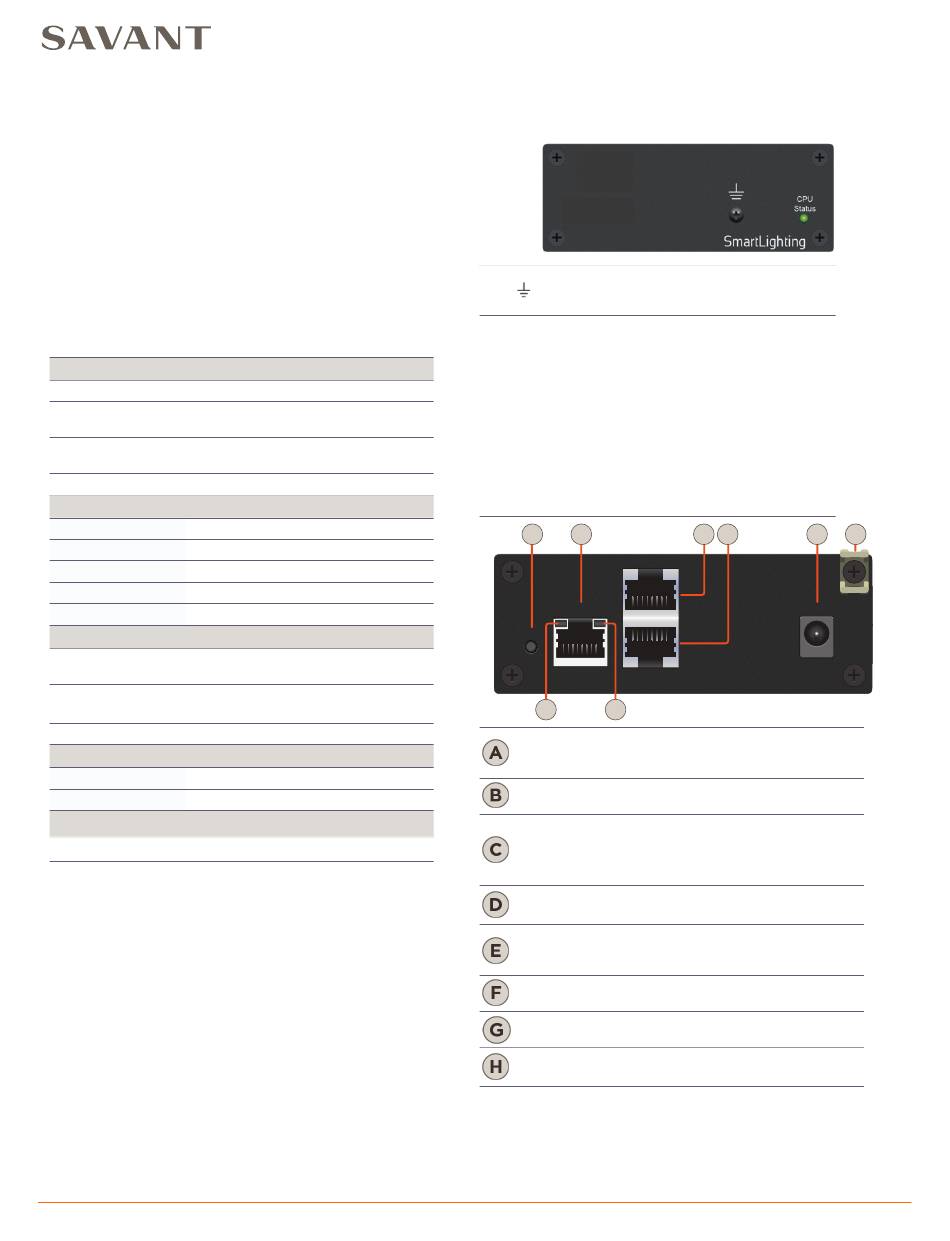

Front Panel
Ground Connector - used to connect to a
suitable ground reference when using Power
over Ethernet.
Green: SSL-P002 is operating normally.
Green Flashing: Controller is starting.
Off: Unit is rebooting
Red: Firmware update has failed and unit will
be rebooted.
CPU Status
Red Flashing: No IP Address/Connecting to
LED
Network.
Amber: Firmware update in process.
Amber Flashing: Controller has a link-local IP
Address. This applies to controllers that are
not connected to an active router and may be
connected directly to a computer.
A B
Ethernet
Reset
C D
Press and hold for 5 seconds while powered
Reset Button On to clear network settings. Status LED will
blink rapidly when reset is complete.
10/100 Base-T auto-negotiating port with
PoE/Ethernet
Link/Activity LEDs: 8-pin RJ-45 female.
Off: Ethernet link is not established.
Green Solid: Ethernet link is established.
Link LED
Green Blinking: Ethernet activity is
occurring.
Off: 10 Mbps data rate
Date Rate
LED
Green: 100 Mbps data rate
Used to communicate with SKL-1000 and
Station SKL-4000 via RS-422. See
Pinouts.
Used to communicate with SmartLighting
Module
module via RS-422.
5V DC 1.25A - Connect to optional power
Power Input
supply when not using PoE.
Holds the power cable with the cable tie.
Cable Tie
Mount
Note: The SSL-P002 Station port defaults to RS-422 but is configurable to
RS-232 by a Savant dealer. For more details, see Changing the Serial Port.
1 of 3
E F G
Station
5VDC
Module
Station and MOD
45 Perseverance Way, Hyannis, MA 02601
savant.com
H
| 508.683.2500
