Savant S2 Quick Reference Manual

Savant® S2 Host Rack Mountable
Quick Reference Guide

Box Contents

(1) Savant® S2 Host Rack Mountable - (SHR-S2-00)
(1) Install Kit (075-0221-xx)
(1) Mounting Plate (074-0577-xx)
(1) 5V DC 3A Power Supply
with Quick Change AC Adapters ( 025-0216-xx)
(2) 6-pin Screw Down Plug-in Connector Black (028-9352-xx)
(2) 3-pin Screw Down Plug-in Connector Black (028-9351-xx)
(1) 4 inch Cable Tie (014-0071-xx)
(1) Product and Regulatory Insert (009-1782-xx)

Specifications

Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Cooling 10 CFM
Maximum BTU 51.5 BTU/hr
Dimensions and Weights
Height 1.4 in (3.5 cm)
Width 6.00 in (15.2 cm)
Depth 3.20 in (8.1 cm)
Net: 0.5 lb (0.22 kg)
Weight
Shipping 1.5 lb (0.68 kg)
Rack Space 1U
Power
Input Power 5V DC 3A
Maximum Power 15 watts
Standards
Wi-Fi (802.11 a/b/g/n 2.4/5.0 GHz)
Wireless
IMPORTANT! 802.11r (fast roaming) is not
supported
Security WPA™, WPA2™, WPA/WPA2™
Regulatory
FCC Part 15
Safety and
Emissions
FCC ID Z64-WL18DBMOD
IC 451I-WL18DBMOD
RoHS Compliant
Minimum Supported Release
da Vinci 9.1.3
Savant Software
Studio 3.0.2

Further Product Information

To view available documentation, detailed product specs, and more:
– Visit the Savant Knowledge tab via the
Community to search all Savant documentation.
SHR-S2-00 | 009-1907-01 | 200127
Copyright 2020 Savant Systems, LLC
CE C-Tick ICES-003
Savant Customer

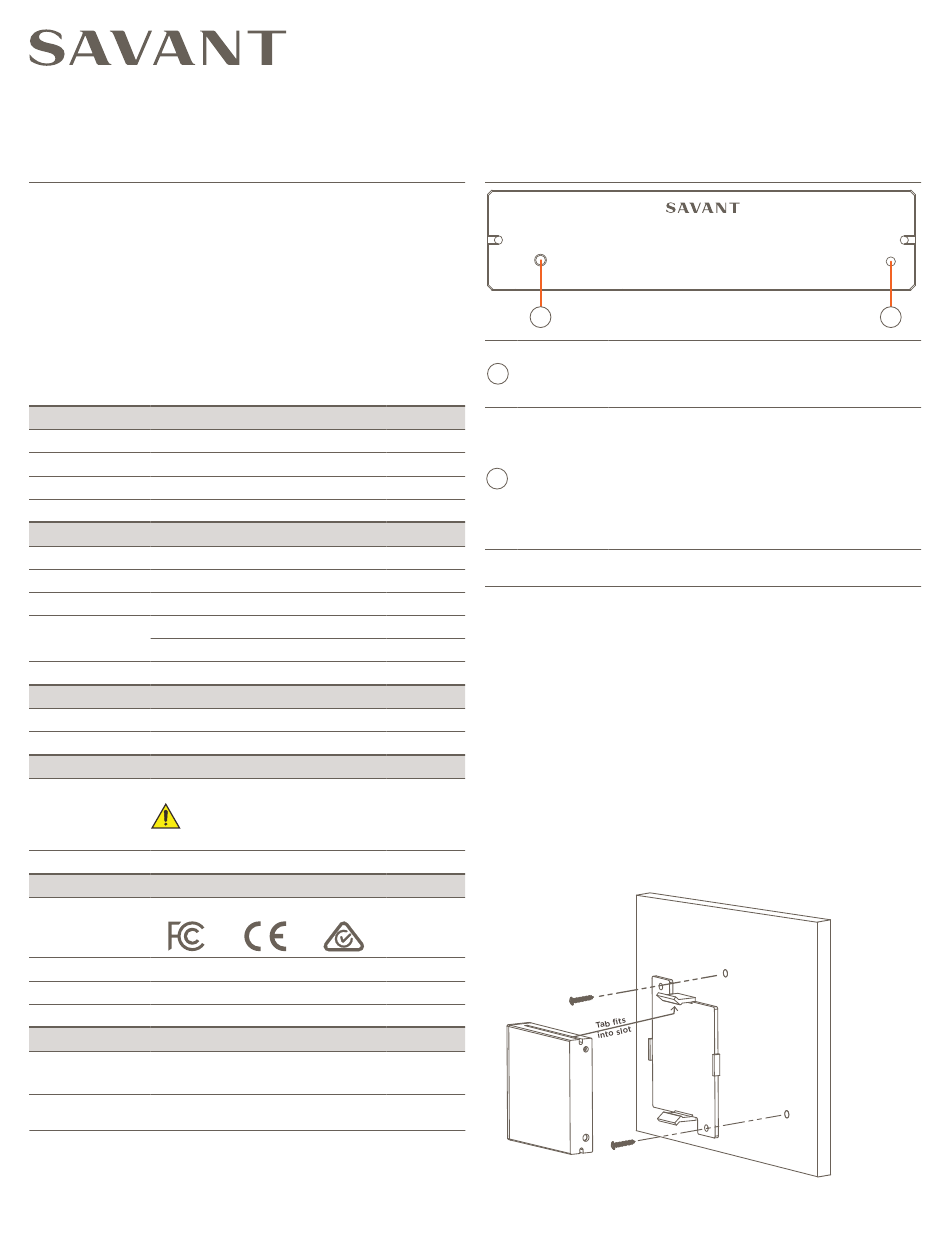

Front Panel

Reset
A
To clear all Ethernet settings and revert them
back to their factory defaults, press and hold the
A
Reset Button
reset button for five seconds until the LED blinks
red rapidly; then release.
Off: Disconnected from power supply.
Amber: Host is booting/rebooting and is
disconnected from the network.
Amber Blinking: Host is in provisioning mode
B
Status LED
and ready to be added to a network. Host is not
assigned an IP Address.
Green: Connected to the local network and is
assigned an IP Address.

Chassis Installation

The S2 Host can be installed on a solid, flat, level surface such as a
table, cabinet, or shelf. The location should be dry, well ventilated, and
out of direct sunlight.

Rack

The optional RCK-3000-xx provides a ventilated shelf for mounting
S2 Hosts. This rack is compatible with all standard 19-inch National
Electrical Manufacturers Association (NEMA) rack mounts.

Mounting Plate

A mounting plate (074-0577-xx) is supplied with the SHR-S2. This
mounting plate is used to mount the Host to a wall or existing
structure. To mount the Host, follow the instructions below.
1. Position the mounting plate onto the wall where the Host will be
located. Position the bracket so the tabs that hold the Host are
positioned horizontally.
2. Mark the two mounting holes on the wall.
3. Install wall anchors and screw mounting plate to the wall.
4. Snap the SHR-S2 Host into the bracket so the tabs on the mounting
bracket seat into the slots on the side of the Host.
Host
1 of 2
Mounting
Bracket
45 Perseverance Way, Hyannis, MA 02601
Savant.com | 508.683.2500
Status
B
