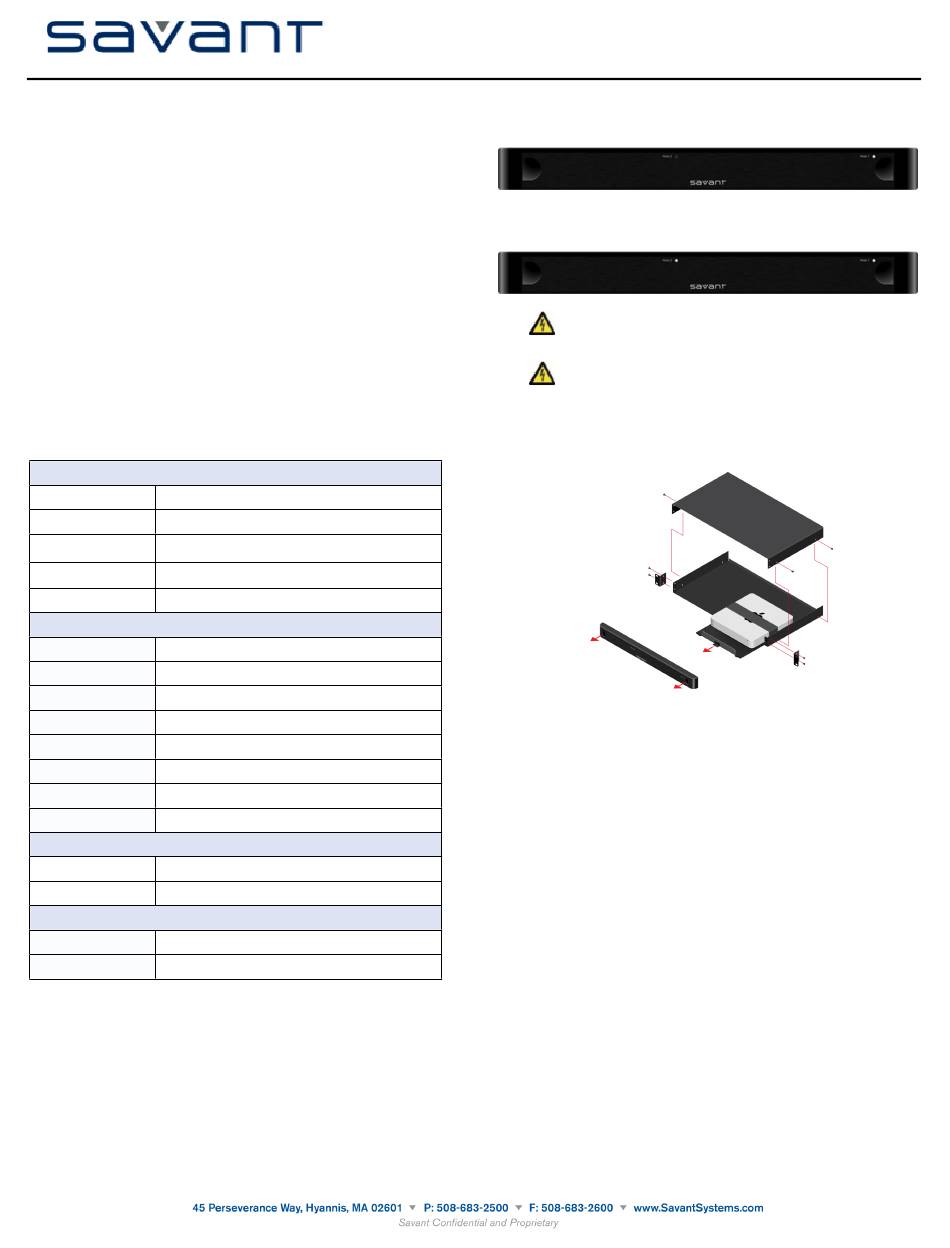

Savant HST-4001 Quick Reference Manual

The Savant Host Controller (HST-4001-10/HST-4002-10/HST-4001S-10/HST-4002S-10) Quick
Reference Guide provides information necessary to install the HST-4001/HST-4002/
HST-4001S/HST-4002S. The HST-4001 consists of SVR-4100, rack shelf and mounting
brackets. The HST-4002 consists of two SVR-4100s, rack shelf and mounting brackets. The
HST-4001S/HST-4002S consists of the SVR-4100S version (Solid State) and is used just like
the HST-4001 or HST-4002. Both host controllers have Apple® Mac mini® Installation Kits with
the following contents:
HDMI to DVI Adapter
•
Power cord
•
Box Contents
For Savant HST-4001/HST-4001S
(1) Savant Host Controller (SVR-4100/SVR-4100S)
(1) Rack Shelf 1U (RCK-3000)
(2) Rack Mounting Brackets (1U) (071-0638-xx)
(4) 8 mm Flat Phillips Screw (039-0017-xx)
(4) 4 mm Flat Phillips Screw (039-0004-xx)
(1) Quick Reference Guide (this document)
For Savant HST-4002/HST-4002S
(2) Savant Host Controller (SVR-4100/SVR-4100S)
(1) Rack Shelf 1U (RCK-3000)
(2) Rack Mounting Brackets (1U) (071-0638-xx)
(4) 8 mm Flat Phillips Screw (039-0017-xx)
(4) 4 mm Flat Phillips Screw (039-0004-xx)
(1) Quick Reference Guide (this document)
Optional Accessories
(1) Top Cover (RCV-3000)
(4) Feet and screws for Bottom Rack Shelf (093-0351-xx)
(1) Redundant Host (SVR-4100/SVR-4100S) for HST-4001/HST-4001S only.
Specifications
Environmental Environmental
Temperature 50º to 95º F (10º to 35º C)
Humidity 5% to 95% RH (non-condensing)
HST-4001/S - 15 Cubic feet per minute (CFM) recommended
Cooling
HST-4002/S - 30 Cubic feet per minute (CFM) recommended
HST-4001/S - 290 BTUs per hour
Maximum BTUs
HST-4002/S - 580 BTUs per hour
Noise 16 dB at idle
Dimensions and Weight Dimensions and Weight
Height 1.71 in/4.34 cm
with Brackets 1.71 in/4.34 cm
Width 17.30 in/43.94 cm
with Brackets 18.98 in/48.20 cm
Depth 8.82 in/22.40 cm
with Brackets 8.82 in/22.40 cm
HST-4001/S - 9.5 lb/14.3 kg
Weight
HST-4002/S - 12.5 lb/5.68 kg
Rack Space 1U
Power Power
HST-4001/S - 85 watts (OS X)
Maximum Power
HST-4002/S - 170 watts (OS X)
Power Supply 100-240V AC 50/60 Hz
Compliance Compliance
Safety and Emissions FCC Part 15 | C-Tick | CE Mark
RoHS Compliant
Savant Host Controller
(HST-4001/HST-4002/HST-4001S/HST-4002S)
Quick Reference Guide
Front Panel LEDs
The front panel of the HST-4001/HST-4001S has an LED labeled HOST 1, which shows the
computer power for Host 1. The computer is an Apple® Mac mini®.
The front panel of the HST-4002/HST-4002S has two LEDs labeled HOST 1 and HOST 2, which
show the computer power for both Host 1 and Host 2. The computer is an Apple® Mac mini®.
120V AC, 50/60 Hz source power.
Optional Accessories
The view (below) shows the HST-4001/HST-4001S/HST-4002/HST-4002S is mounted with an
RCV-3000 (top cover). The open shelf design allows for proper ventilation and easy wiring.
SURGE PROTECTION: Use a surge-protected circuit for all components requiring
ELECTRICAL DISCONNECT: The 120V AC, 50/60 Hz source power outlet and
input power sockets should be easily accessible in the event of an electrical hazard or
malfunction condition.
009-0503-01
HST-4001-10
HST-4002-10
HST-4001S-10
HST-4002S-10
113012
