Avonic CM-CON100 User Manual
Mini keyboard controller
Hide thumbs
Also See for CM-CON100:
- User manual (33 pages) ,
- User manual (16 pages) ,
- User manual (10 pages)
Subscribe to Our Youtube Channel
Related Manuals for Avonic CM-CON100
Summary of Contents for Avonic CM-CON100

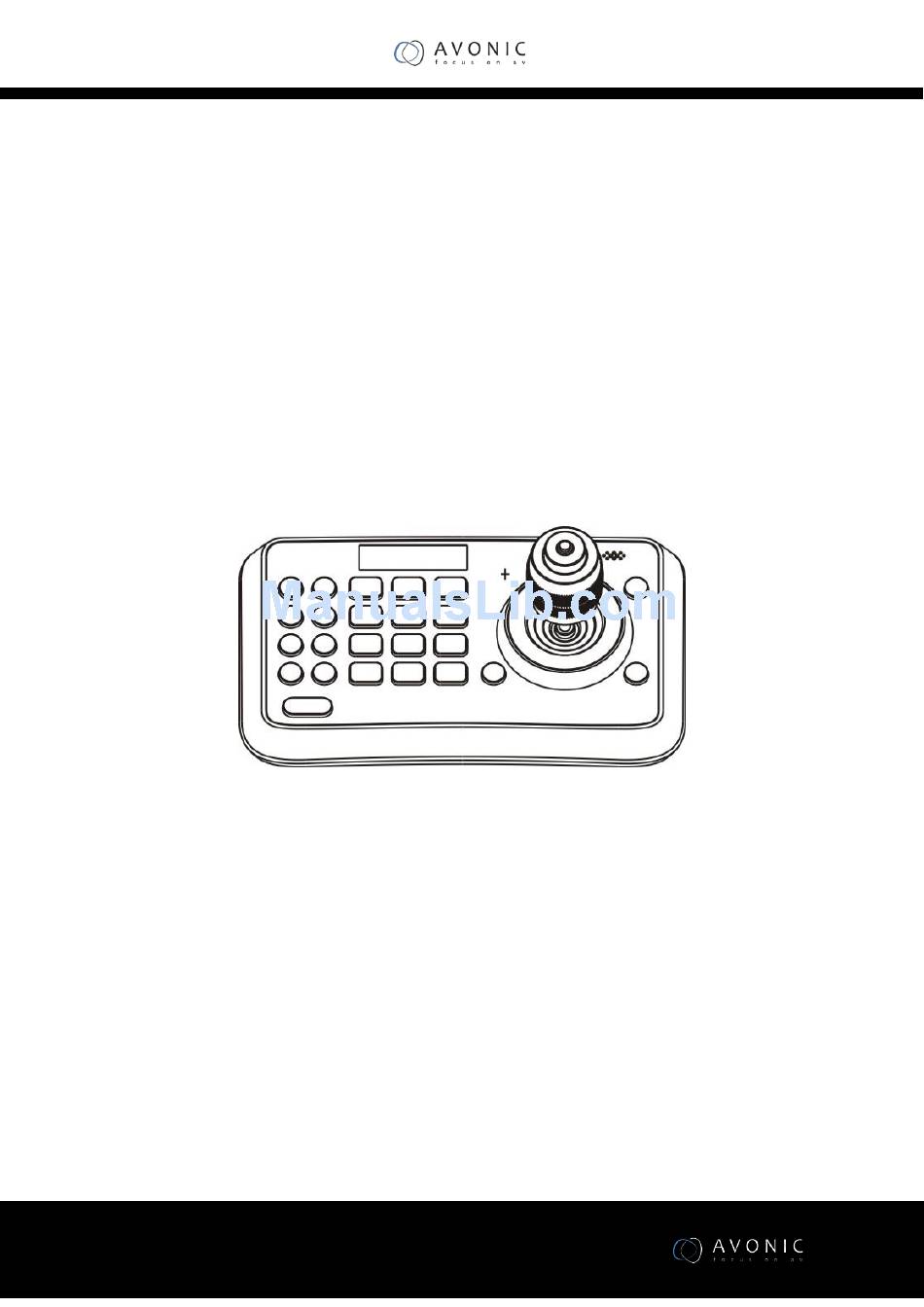

- Page 1 AVONIC CM-CON100 Mini Keyboard Controller User Manual v1.1 © 2017 www.avonic.eu...
-
Page 2: Congratulations
Use DC12V power supply. Wrong power supply may damage the controller; To prevent electric shock, do not remove screws or covers of the controller. There are no self- serviceable parts inside. Refer to qualified service personnel for servicing. Do not operate the controller beyond the specified temperature and humidity. www.avonic.eu... -
Page 3: Table Of Contents
TABLE OF CONTENTS INHOUD CONGRATULATIONS ............................2 SAFETY NOTICE - IMPORTANT .......................... 2 TABLE OF CONTENTS ............................3 INTRODUCTION ..............................4 FEATURES ................................. 4 TECHNICAL DATA ............................. 4 PARTS AND VIEW ............................. 5 CONNECTIONS..............................7 MENU OPERATION ............................9 www.avonic.eu... -
Page 4: Introduction
Baud Rate 2400bps, 4800bps, 9600bps, 19200bps, 38400bps Address 0~255 Joystick 4-axis (Left/Right, Up/Down, Zoom In/Out, Focus Near/Far) Display OLED Power DC12V Power Consumption <2W Working Temperature 0℃~40℃ Storage Temperature -20℃~+50℃ Relative Humidity ≤90% (non-condensation) Dimensions 200mm(L)*120mm(W)*103mm(H) Net Weight 0.5kg www.avonic.eu... -
Page 5: Parts And View
Toggle between Auto Focus and Manual Focus 9. SHIFT (Extension key) It is an extension key to be used with other keys for special functions. 10. ESC (Exit / Delete) It is a key to EXIT in a menu or DELETE in other operations. www.avonic.eu... - Page 6 Operation: Press this key, the crisscross of indicator lighter near the joystick will go out, twist the joystick to zoom in / out; press this key again, the crisscross of indicator lighter will be lightened, twist the joystick will adjust focus value. www.avonic.eu...
-
Page 7: Connections
CONNECTIONS There are two options of cables. Please see the instruction label at bottom of the device. Option1: Power + Aux output + RS-485 www.avonic.eu... - Page 8 Option2: Power + RS-232 + RS-485 www.avonic.eu...
-
Page 9: Menu Operation
ADMIN PIN: is “111111“ See “PIN SETTING” to Press SETUP key set pin. Menu List 1. Camera Setting Move up / down the CAMERA SETTING joystick, choose “CAMERA SETTING” Camera ID 0-255, use num keys, ： press ENT to confirm www.avonic.eu... - Page 10 OFF (switch off sound) VOLUME SETTING 1~6 (6 levels from low to high) 4. Backlight Setting AUTO/ON/OFF BACKLIGHT MODE 5. Sleep Setting OFF/ 30S/ 1M/ SLEEP SETTING 5M/10M / 30M/60M 6. PIN setting USER/ADMIN PIN SETTING www.avonic.eu...
- Page 11 Need not any FREE STATE operation, press ENT Save Move the joystick left/ <SAVE> CANCEL right to choose, and press ENT to confirm. 8. Key Custom It is used to custom KEY CUSTOM keys to realize special functions requested. www.avonic.eu...
- Page 12 9. Speed setting Set control speed of SPEED SETTING the joystick HIGH MIDDLE 10. Default Setting Restore the keyboard DEFAULT setting to factory SETTING default 11. Information It displays firmware INFORMATION Display version number www.avonic.eu...
