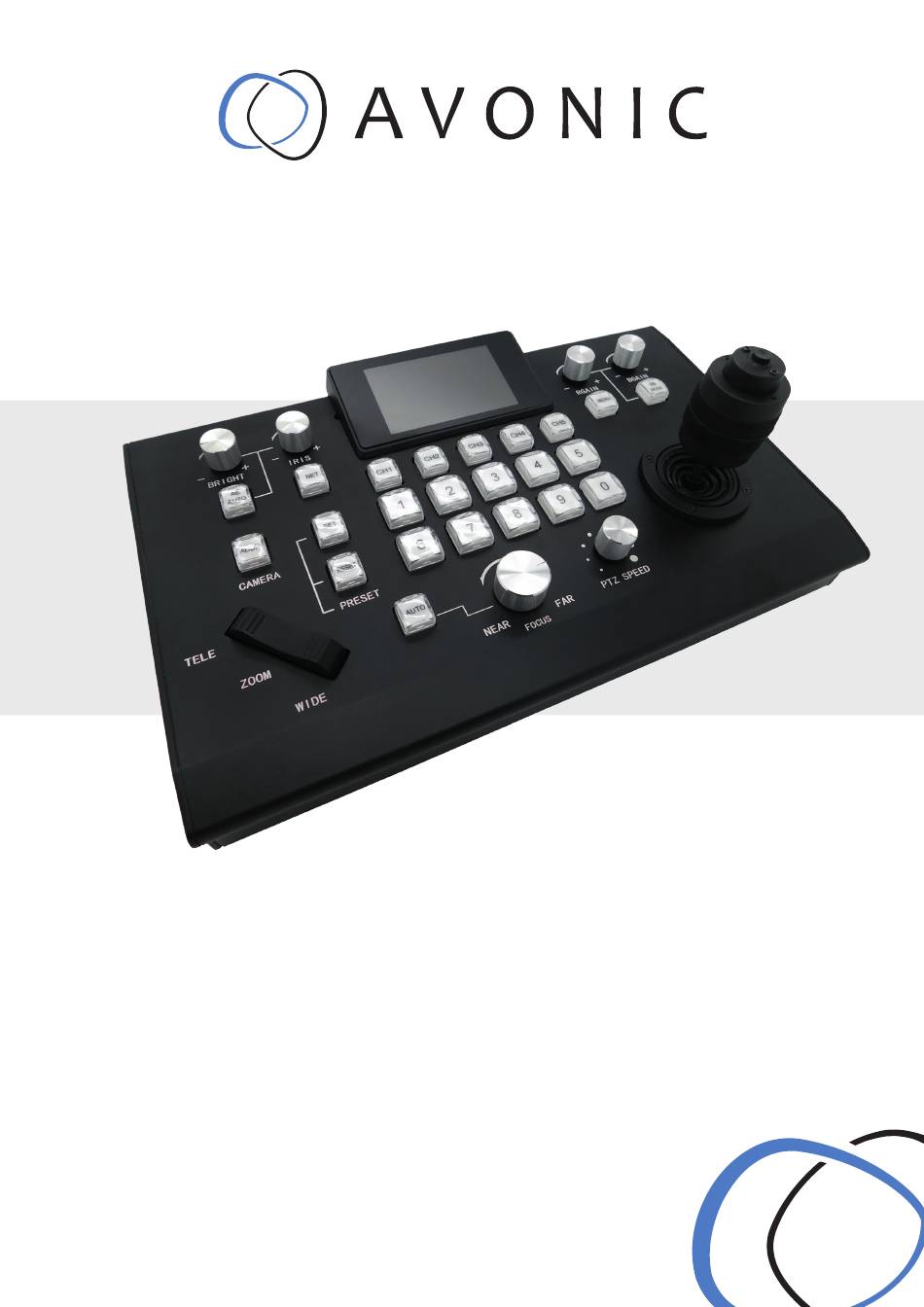

- Page 1 PTZ camera controller over IP and serial AV-CON300-IP User Manual www.avonic.eu Version 1.0...
-
Page 2: Table Of Contents
Serial functionality issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Specifications ..............................21 www.avonic.eu... -
Page 3: Introduction
Introduction Congratulations Thank you for your Avonic purchase. Before beginning to operate this device, please read the manual in order to make sure the best performance is obtained. Save this manual for future reference. Contact For any questions or suggestions, contact your reseller or the local distributor of Avonic. -
Page 4: Package Contents
AV-CON300-DIN Product Overview The Avonic AV-CON300-IP is an advanced PTZ camera controller with serial and ip controlling capabilities . With this controller it is possible to control up to 255 cameras and using up to 255 presets per camera . -
Page 5: Installation
Power switch RJ45 channels (CH1-CH5) Serial Control The Avonic AV-CON300 comes with a single RS232 connecting cable with RJ45 plug to Mini DIN-8 plug . With this cable only 1 channel can be connected to the controller . This channel can control up to 7 (VISCA) or up to 10 (PELCO) cameras . - Page 6 RJ-45 Mini DIN-8 www.avonic.eu...
-
Page 7: Serial Communication Control
Serial Communication Control COM port settings In default working mode, an Avonic camera is able to connect to the Con300ip controller with RS-232 or RS-485 serial interface . The camera can be controlled via RS-232, the parameters of RS-232C are as follows: •... -
Page 8: Visca Network Connection Diagram
5m . IP network connection diagram Connect an Avonic ip controller to a LAN using a standard lan switch . Addressing is done via IP, the Visca address in a visca over ip environment is always 1 . -
Page 9: Osd Menu
Tally Connect Tally Mode Real Time Refresh Ethernet DHCP IP Address Subnet Mask Gateway Serial Port Baud Rate CH1 ~ CH5 Instruction Repeater Rocker PAN reverse TILT reverse Rocker Switch Correct Buzzer ON/OFF Sleep Time Language About Device Reset Device www.avonic.eu... -
Page 10: Overview Of Buttons
16 . Control of PTZ speed Toggle button between Net and Serial mode 17 . Position Key [0~9] Red gain 18 . PTZ control joystick Blue gain 19 . Joystick button 10 . Toggle menu on/off 20 . Information Display www.avonic.eu... -
Page 11: Menu Structure
Transport Protocol: UDP/TCP 2 . 2 . 3 UDP/TCP Port: enter portnumber (1259 is standard) 2 . 2 . 4 IP Address: edit IP address of the to be controlled camera Select Item Change Value [Menu] Back www.avonic.eu... - Page 12 IP address using numerical buttons, click joystick for OK 3 . Subnet Mask specify Subnet Mask using numerical buttons, click joystick for OK 4 . Gateway specify Gateway using numerical buttons, click joystick for OK Select Item Change Value [Menu] Back www.avonic.eu...
- Page 13 1 minute, click joystick for OK 5 minutes, click joystick for OK 30 minutes, click joystick for OK No Sleep, click joystick for OK Select Item [Menu] Back 9 . LANGUAGE Language No settings to be made Select Item [Menu] Back www.avonic.eu...
- Page 14 Select Item [Menu] Back 11 . RESET DEVICE Reset Device 1 . NO click joystick for OK 2 . Yes click joystick for OK, controller will reset all settings and present the rocker switch calibration . Select Item [Menu] Back www.avonic.eu...
-
Page 15: Switch Between Serial And Ip Mode
IP Mode Display In IP mode the display looks like the picture below . status of the current protocol and address in use . actual send/receive status and status of the lan connection . status of current command www.avonic.eu... -
Page 16: Control Settings
Press the Position Key [0~9] of the desired preset, in total 10 presets (including preset 0) are available per camera through the AV-CON-300-IP . 6 . Delete Preset Press [RESET] (key light on) and the Position Key [0~9] . Press [RESET] (key light off) again to return to normal operation . www.avonic.eu... - Page 17 The [JOYSTICK] navigates up and down through the menu . To choose an menu item, twist the [JOYSTICK] to TELE (clockwise) . To change a value of a menu setting, move the [JOYSTICK] to the left or the right . The [MENU] button moves the menu up one level . www.avonic.eu...
-
Page 18: Create A Custom Ip Address And Assign It To A Channel Button
After an IP address has been deleted or changed in the Manage Custom Address menu it will remain in the cache memory of the previously assigned [CH] button, therefor it is important ot reassign this [CH] Button to another IP address, or the same if changes were made . www.avonic.eu... -
Page 19: Maintenance
Turn the controller off and on again and check if the problem persists . • Restore to Factory Default (menu option 11) Power Issues • No display and no buttons lit - Check the net power - Check the power supply www.avonic.eu... -
Page 20: Ip Functionality Issues
- Check if the controller is in the same subnet as camera - Reset the factory default by choosing menu option 11 . Serial functionality issues • Cannot control camera - Check serial cable(s) and the RJ45 termination - Reset the factory default by choosing menu option 11 . www.avonic.eu... -
Page 21: Specifications
Specifications www.avonic.eu...
