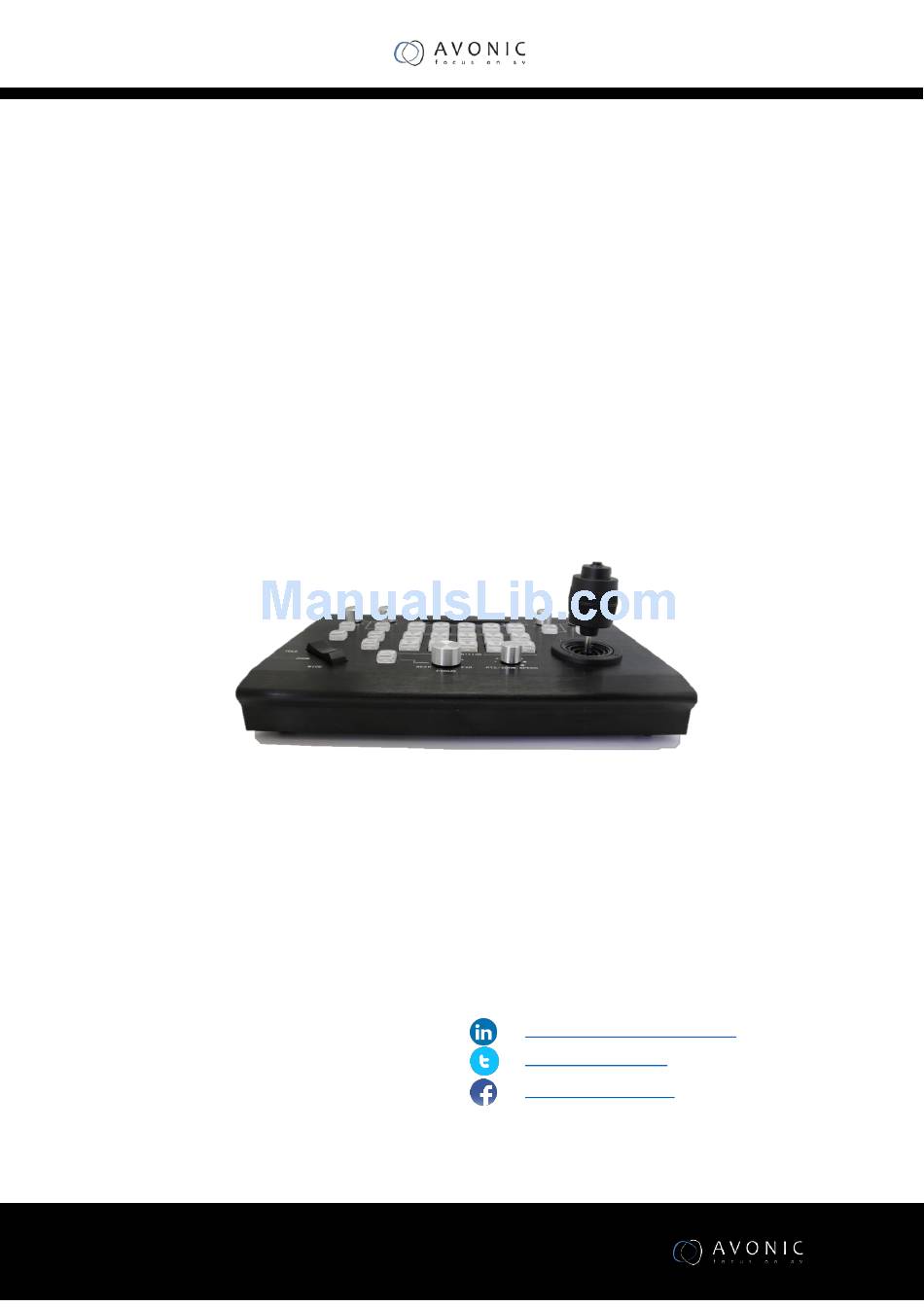

- Page 1 Avonic AV-CON300 PTZ Camera Controller User Manual Version 1.0 Update notes: Join Avonic linkedin.com/company/avonic twitter.com/avonic1 facebook.com/avonic www.avonic.eu...
-
Page 2: Table Of Contents
9. The camera menu call ....................... 10 10. Camera tilt, zoom lens adjustment ..................10 11. "ZOOM" button to use ......................10 12. Manual, automatic focusing ....................11 13. Translation and pitch ....................... 11 14. Focal Length ..........................11 www.avonic.eu... -
Page 3: Introduction
Before cleaning, unplug the power cable. Use a soft, damp cloth to clean the device, do not use strong or abrasive detergent to clean that will damage the device. • If you wish to dispose this product, please contact Avonic to obtain info about the take-back procedure. www.avonic.eu... -
Page 4: Package Contents And Accessories
AV-CON300-RS485 Product Overview The Avonic CM-COM300 is an advanced PTZ camera controller. With this controller it is possible to control up to 5 cameras and using up to 255 pre-sets. The controller supports the Visca, Pelco-D and Pelco-P protocol and can be connected with RS232/485. -
Page 5: Product Description
Manual focusing, left NEAR focusing proximal, right FAR focusing distal. 13. “PTZ/ZOOM SPEED” change the control speed of camera 14. “POSITION”1-10 digital keys, preset settings, call, delete keys 15. Control joystick. Joystick used to tilt the camera pan tilt and lens focus of the operation, select the www.avonic.eu... - Page 6 Back View 1. Tally signal output/Upgrade 2. Camera control channel(CH1-CH5) 3. RS422/485 interface 4. Dial switch area 5. 12V DC power supply 6. Power switch www.avonic.eu...
-
Page 7: Installation
The cable is inserted into the RG45 interface of the keyboard, and the other end is inserted into the RS232IN of the camera. RJ45 port function diagram and wire line sequence diagram is as follows: Picture Function www.avonic.eu... -
Page 8: Operation Instructions
1. camera protocol settings, the protocol for the 5 cameras, each address protocol is not the same. Method: use the keyboard CAMERA to select the area key to select the camera address code, CAM1 to CAM5. Three dimensional control rod up and down - selection protocol www.avonic.eu... -
Page 9: Operation
Select the "POSITION" area number key (1-10) to enter the preset number 1, that is, the completion of the preset number 1 settings, display: Again operate the joystick to second points, followed by the operation of the input of a different number, pay attention to the operator should remember the location and number of speakers. www.avonic.eu... -
Page 10: Call Preset
Press the "ZOOM" button "WIDE" to control the short focal length of the lens. Use the "PTZ/ZOOM SPEED" knob to control zoom speed. This function is the same as the rocker knob function, but it can adjust the zoom speed www.avonic.eu... -
Page 11: Manual, Automatic Focusing
14. Focal Length When you turn the knob clockwise, the field of view will become larger (zoom), or vice versa (zoom). When you press the button at the top of the rocker Use the joystick to control the reverse direction www.avonic.eu... -
Page 12: Www.avonic.eu
Troubleshooting Contact For any questions or suggestions, contact the reseller or the local distributor of Avonic. Find the local distributor on the website of Avonic. For the recent manual or datasheet, look at the Avonic website. - Page 13 Baud Rate 2400bps, 4800bps, 9600bps, 19200bps, 38400bps Address 0~255 Joystick 4-axis (Left/Right, Up/Down, Zoom In/Out, Focus Near/Far) Display OLED Power DC12V Power Consumption <2W Working Temperature 0℃~40℃ Storage Temperature -20℃~+50℃ Relative Humidity ≤90% (non-condensation) Dimensions 200mm(L)*120mm(W)*103mm(H) Net Weight 0.5kg www.avonic.eu...
