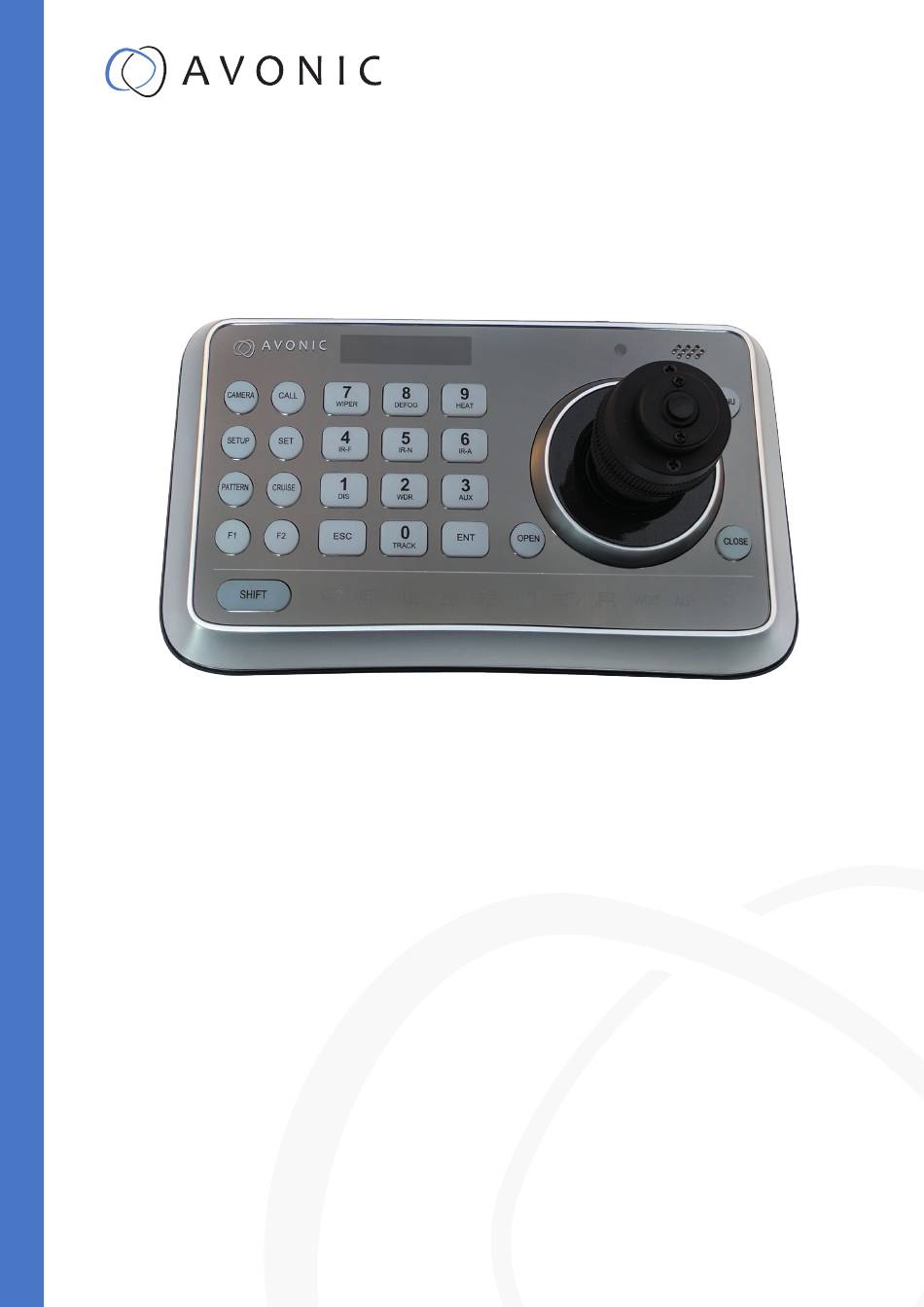

- Page 1 PTZ Camera Controller CM-CON100 www.avonic.eu User Manual | Version 1.0...
-
Page 2: Table Of Contents
Join Avonic................ -
Page 3: Introduction
Contact For any questions or suggestions, contact your reseller or the local distributor of Avonic. Find the local distributor on the website of Avonic. For the most recent version of the manual or datasheet, look at the Avonic website: www.avonic.eu Join Avonic facebook.com/avonicPTZ... -
Page 4: Package Contents And Accessories

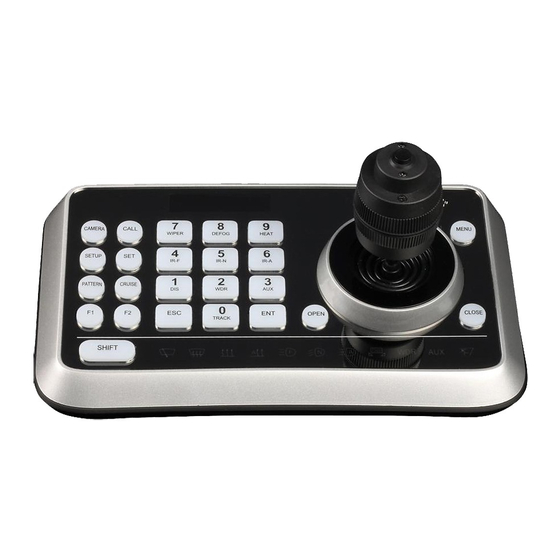

CM-CON100-PSU PRODUCT OVERVIEW The Avonic CM-CON100 is a compact PTZ camera controller. With this controller it is possible to control up to 255 camera’s and using up to 255 presets. The controller supports the Visca, Pelco-D and Pelco-P protocol and can be connected with RS232/485. -
Page 5: Installation
Operation: Press this key, the red cross indicatorlight near the joystick will go out, twist the joystick to zoom in / out; press this key again, the red cross indicatorlight will be lightened, twist the joystick adjust focus value. www.avonic.eu... -
Page 6: Connection Diagram
Controller RS232 Cable PTZ Camera Display Power (DC12V) Power Supply VISCA network connection diagram When connecting multiple cameras through RS-232, use daisy chaining network architecture. Max cable length for RS-232 is 10-15m. RS-232 RS-232 RS-232 Controller Camera Camera Camera www.avonic.eu... -
Page 7: Rs485 Network Connection Diagram
In case more cameras are connected to the controller, each camera needs to be addressed the right way to a camera number of the controller. The following settings need to match in both camera and controller: Protocol (VISCA, PELCO-p or PELCO-d) Camera address number (1, 2 or n) Communication settings as baud rate (9600), parity, etc. www.avonic.eu... -
Page 8: Operation Instructions
OPERATION INSTRUCTIONS Menu After powered on, “USER PIN” will show on the controller’s screen. The initial pin is “111111”. www.avonic.eu... - Page 9 www.avonic.eu...
-
Page 10: What To Do If The Admin Pin Is Lost
By default the admin pin is set to 1 1 1 1 1 1. If this pin has been changed and is lost, use the following mastercode to regain access to the CON-100: 7 7 8 8 9 6 www.avonic.eu... -
Page 11: Maintenance
Power Issues • No display and no buttons lit - Check the net power - Check the power supply Serial functionality issues • Cannot control camera - Check serial cable(s) and the RJ45 termination - Reset to factory default www.avonic.eu...
