Avonic AV-CON300 Quick Start Manual

AV-CON300
PTZ Camera Controller

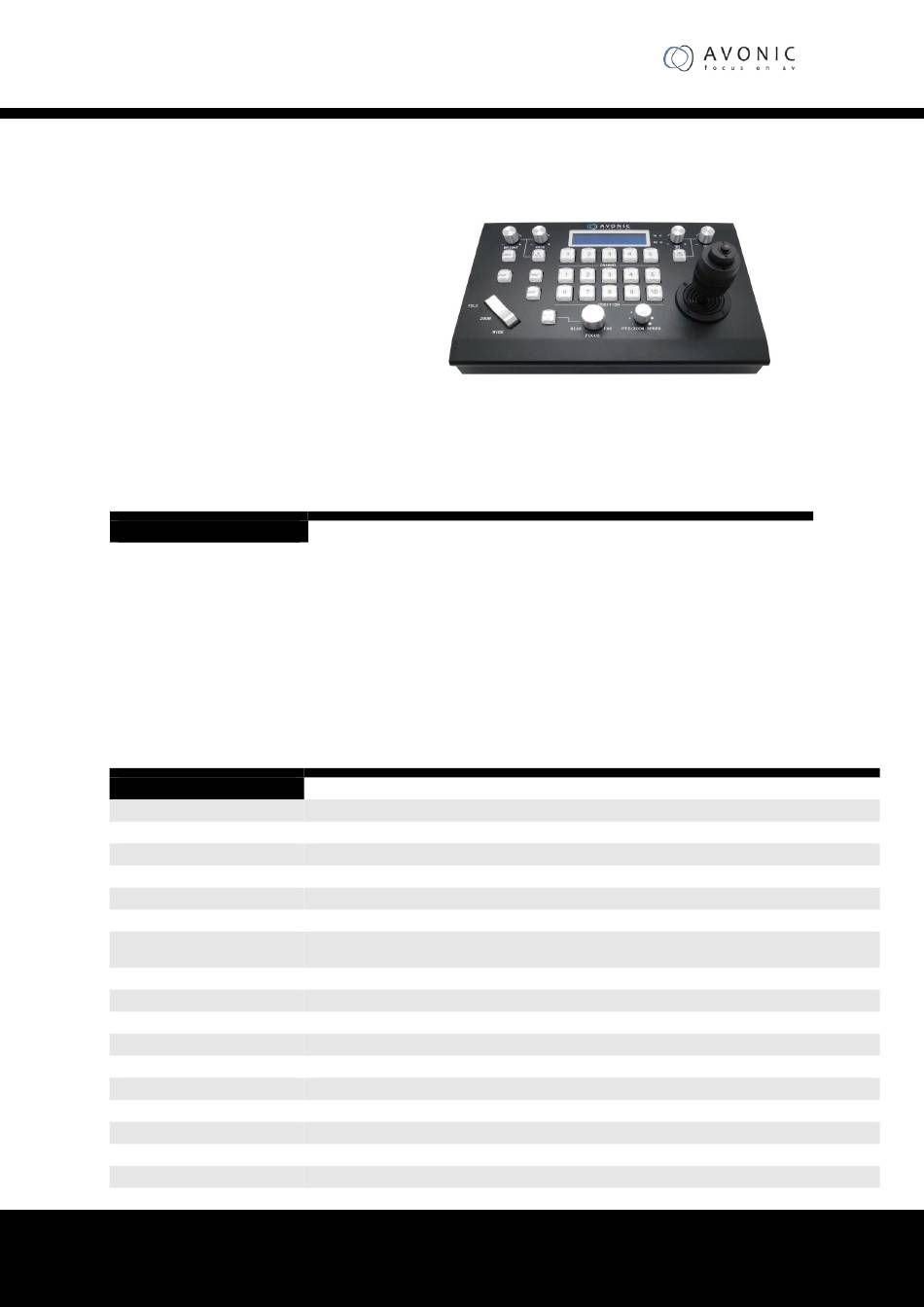

The Avonic CM-COM300 is an advanced
PTZ camera controller.
controller, it is possible to control up to 50
cameras and using up to 10 presets per
camera.
The controller supports the Visca, Pelco-
D and Pelco-P protocol and can be
connected with RS232/485. The Avonic
CM-COM300 is therefore compatible
with the Avonic cameras as well with
other brands that
protocols.
Switch easily between auto and manual
focus, save and load presets, and
connect multiple controllers to multiple
cameras.

Features

Optical 3D joystick gives you a comfortable pan/tilt/zoom operation.
•
2 line backlit LCD display
•
Camera OSD menu operation
•
Quickly adjust the camera for a variety of automatic functions like focus, exposure,
•
white balance and brightness
VISCA protocol can be used to control up to 35 cameras
•
• Pelco protocol can be used to control up to 50 cameras
• PTZ and lens control speed can be adjusted through the control knob

Specifications

Comm. Interface
Protocol
Baud Rate
Number of cameras
Joystick
Display
Adjustment functions
Number of presets
Tally Light
Power
Power Consumption
Working Temperature
Storage Temperature
Relative Humidity
Dimensions (LxWxH)
Net Weight
www.avonic.eu
With this
support these
5x RS-485/RS-232 on RJ45 connector
Pelco-D, Pelco-P, VISCA
2400bps, 4800bps, 9600bps, 19200bps, 38400bps
Up to 50
3D-axis (Left/Right, Up/Down, Zoom In/Out)
2 line LCD with backlight
Pan/Tilt, Zoom, Focus, Brightness, Iris, Gain, White Balance (Auto, One-Push,
Red/Blue Gain)
10 per camera
9-pin DSUB male output
DC12V
<2W
0~40℃
-20~+50℃
≤90% (non-condensation)
290mm x 180mm x 115mm
1.6 kg
