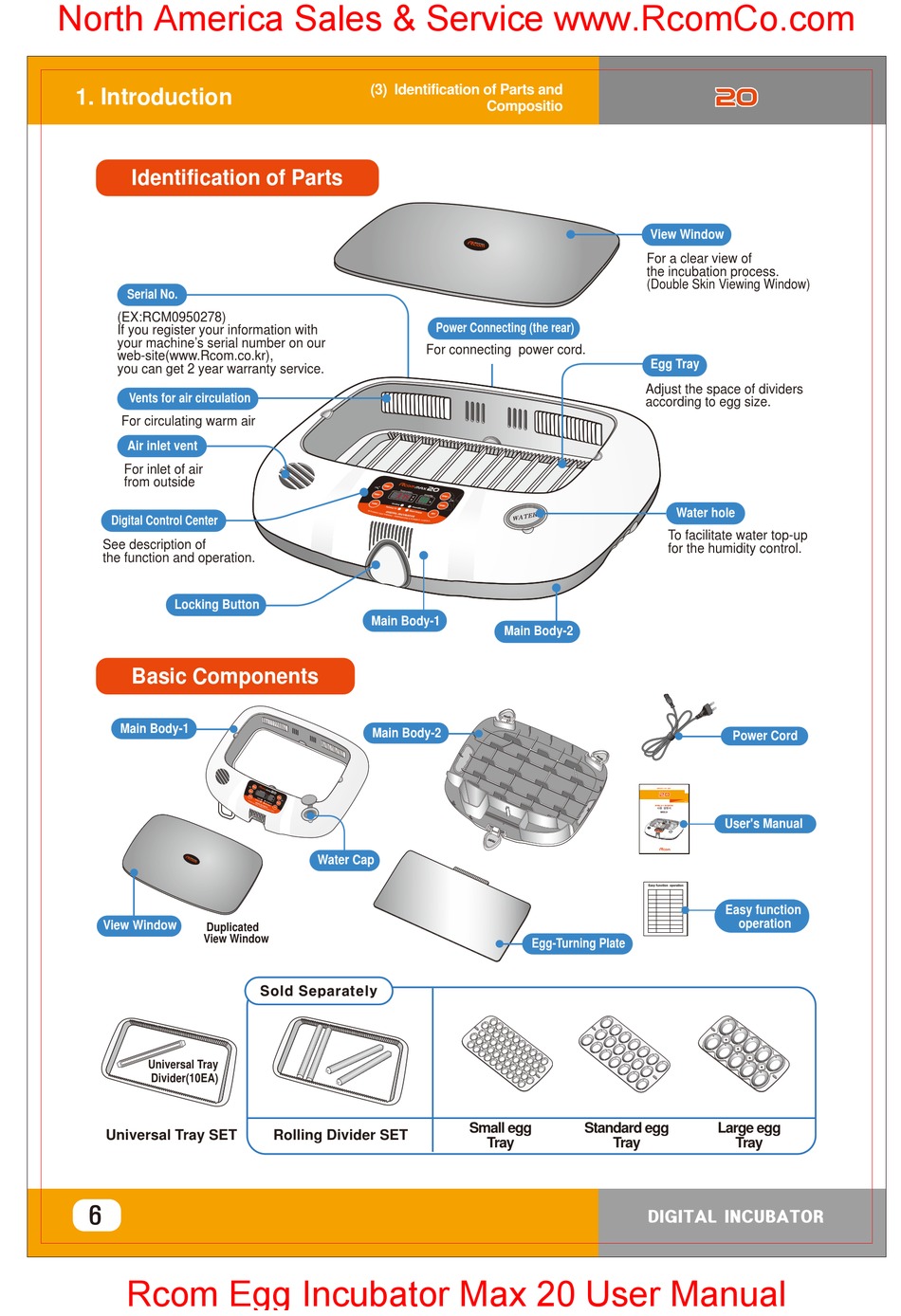

Rcom MAX 20 User Manual page 6

North America Sales & Service www.RcomCo.com
1. Introduction
Identification of Parts
Serial No.
(EX:RCM0950278)
If you register your information with
your machine's serial number on our
web-site(www.Rcom.co.kr),
you can get 2 year warranty service.
Vents for air circulation
For circulating warm air
Air inlet vent
For inlet of air
from outside
Digital Control Center
See description of
the function and operation.
Locking Button
Basic Components
Main Body-1
View Window
Duplicated
View Window
Universal Tray
Divider(10EA)
Universal Tray SET
Rcom Egg Incubator Max 20 User Manual
(3) Identification of Parts and
Power Connecting (the rear)
For connecting power cord.
Main Body-1
Main Body-2
Water Cap
Rolling Divider SET
Compositio
Main Body-2
Egg-Turning Plate
Small egg Standard egg
Tray Tray
View Window
For a clear view of
the incubation process.
(Double Skin Viewing Window)
Egg Tray
Adjust the space of dividers
according to egg size.
Water hole
To facilitate water top-up
for the humidity control.
Power Cord
User's Manual
Easy function
operation
Large egg
Tray
