PLANET ADSL VPN / Firewall Router

3.6.3.7 Advanced

There are four items under the Advanced section: Routing Table, Dynamic DNS,
Checking Email and Device Management.

3.6.3.7.1 Routing Table

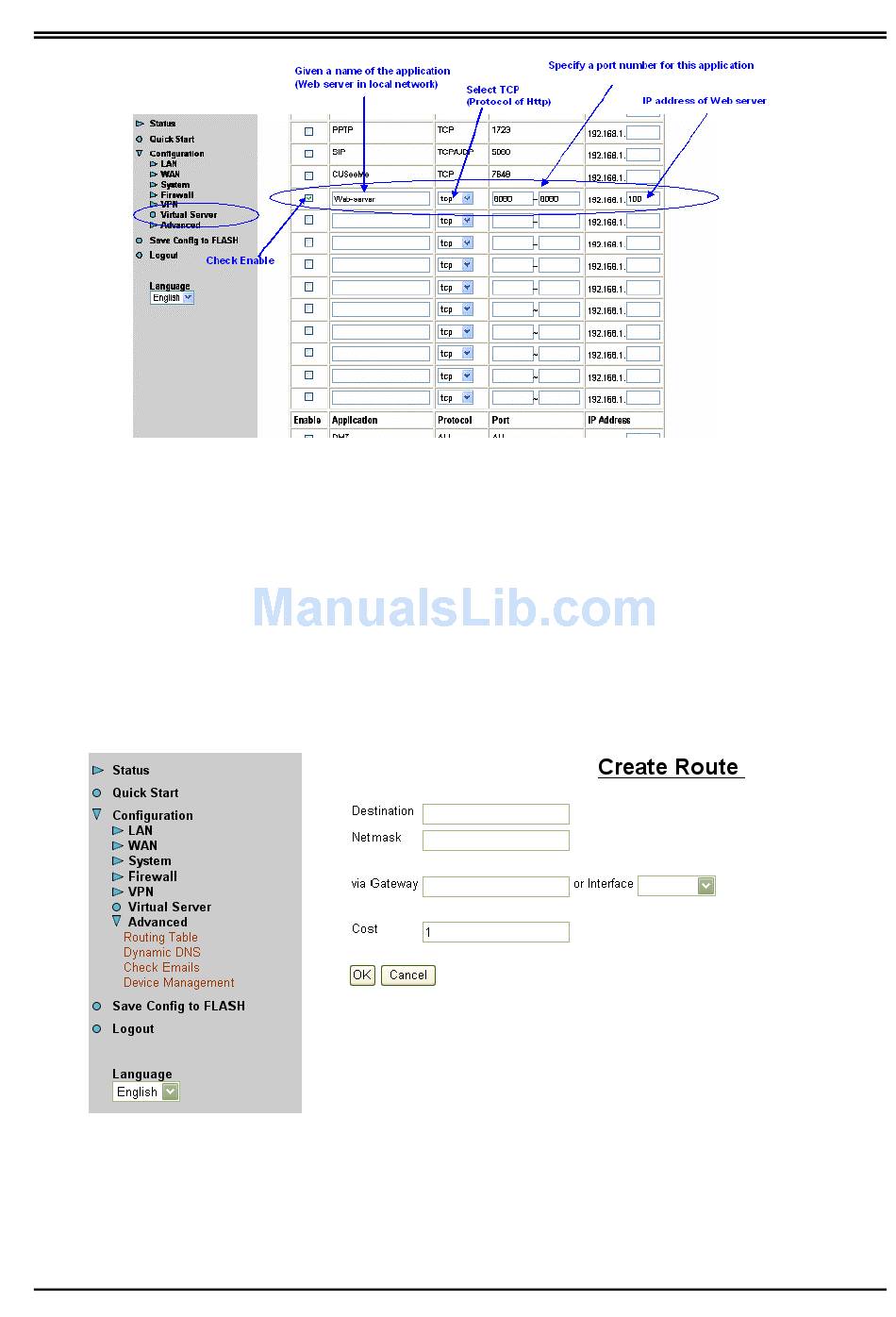

Click on the Routing Table and then choose Create Router to get the below figure to
add a routing table.
Destination: Enter the destination subnet IP.
Netmask: Subnet mask of destination IP addresses based on above destination subnet
IP.
Gateway: Enter the gateway IP address which the packet is forwarded to.
68
