3.6.3.5.1.5 An Example of Configuring a LAN-to-LAN PPTP VPN Connection

Background of the Example
The branch office establishes a PPTP VPN tunnel with the head office to connect two
private networks by leveraging the Internet infrastructure. The routers are installed in
the head office and branch office accordingly.

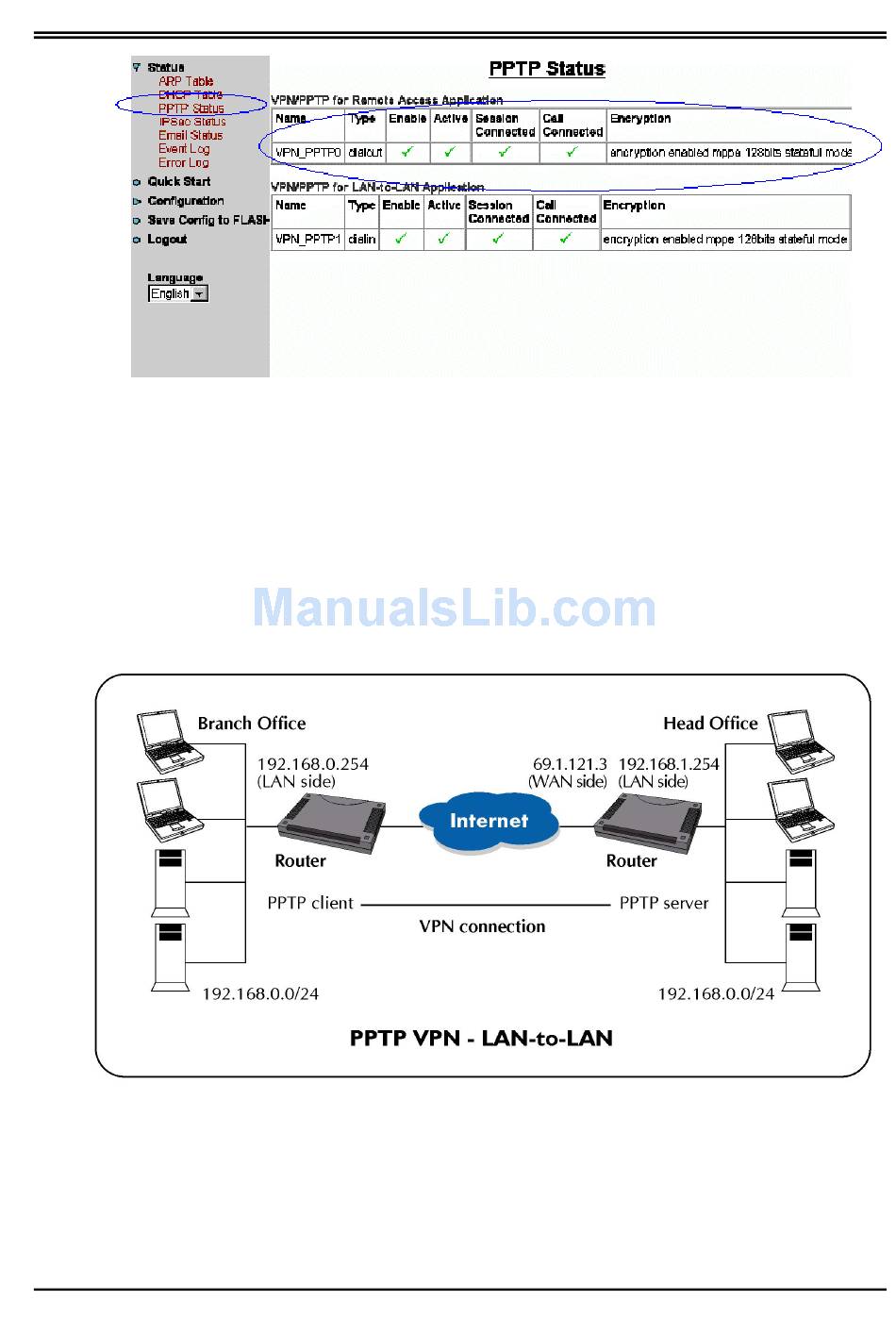

Application Diagram
Configuring PPTP VPN in the Head Office
The input IP address 192.168.1.201 will be assigned to the router located in the branch
office. Please make sure this IP is not used in the head office LAN.
