PLANET ADSL VPN / Firewall Router

3.6.3.5.2 IPSec

The router supports IPSec VPN to establish secure, end-to-end private network
connections over a public networking infrastructure. The specification is as below:
w . Encapsulation: tunnel mode
w . Support IKE authentication method: pre-shared key
w . Security protocol: ESP and AH
w . Authentication: MD5, SHA-1
w . Encryption: DES, 3DES, AES
w . Support PFS

3.6.3.5.2.1 IPSec configuration

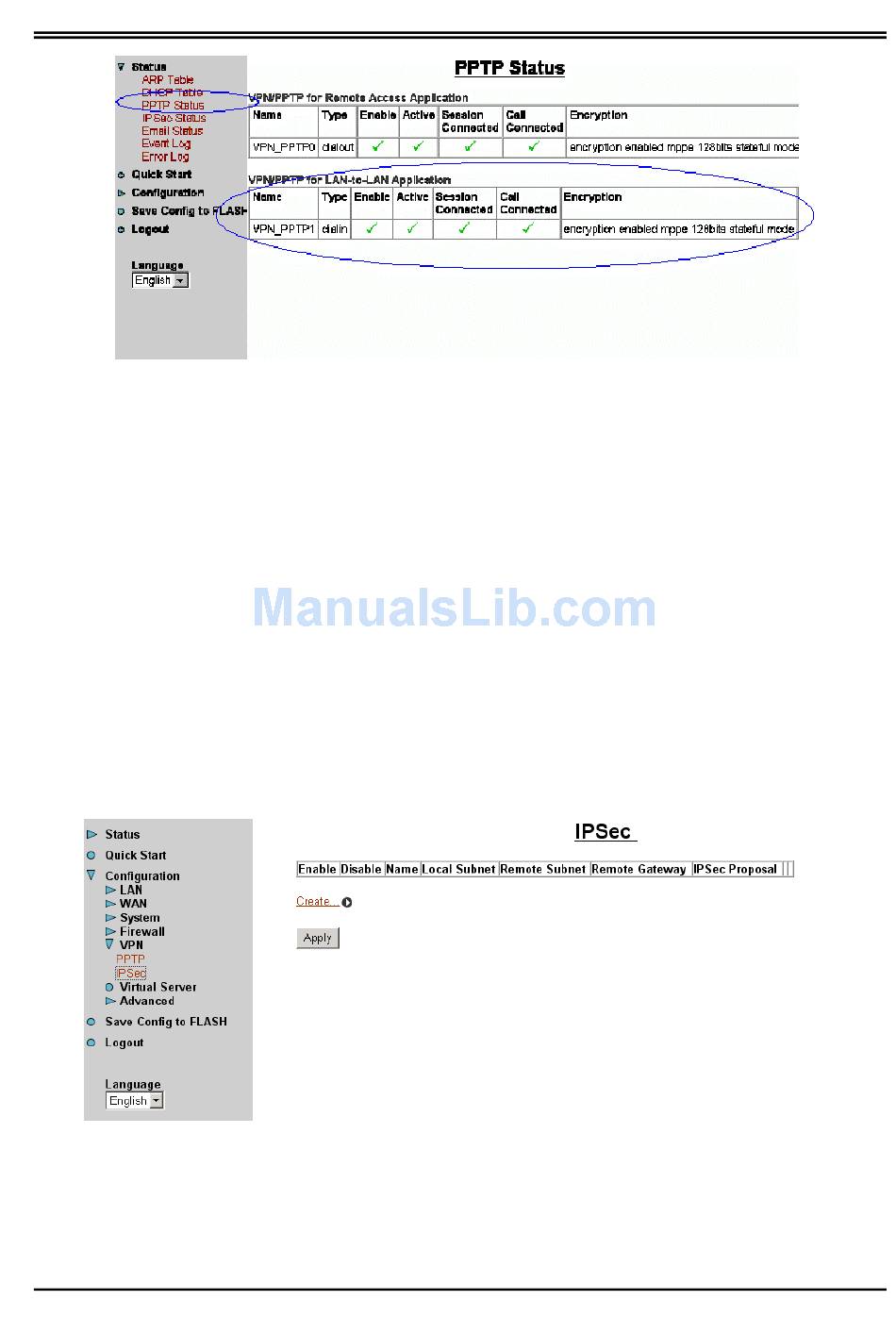

When you click the IPSec, you get the following figure.
Click Create...
58
