PLANET ADSL VPN / Firewall Router

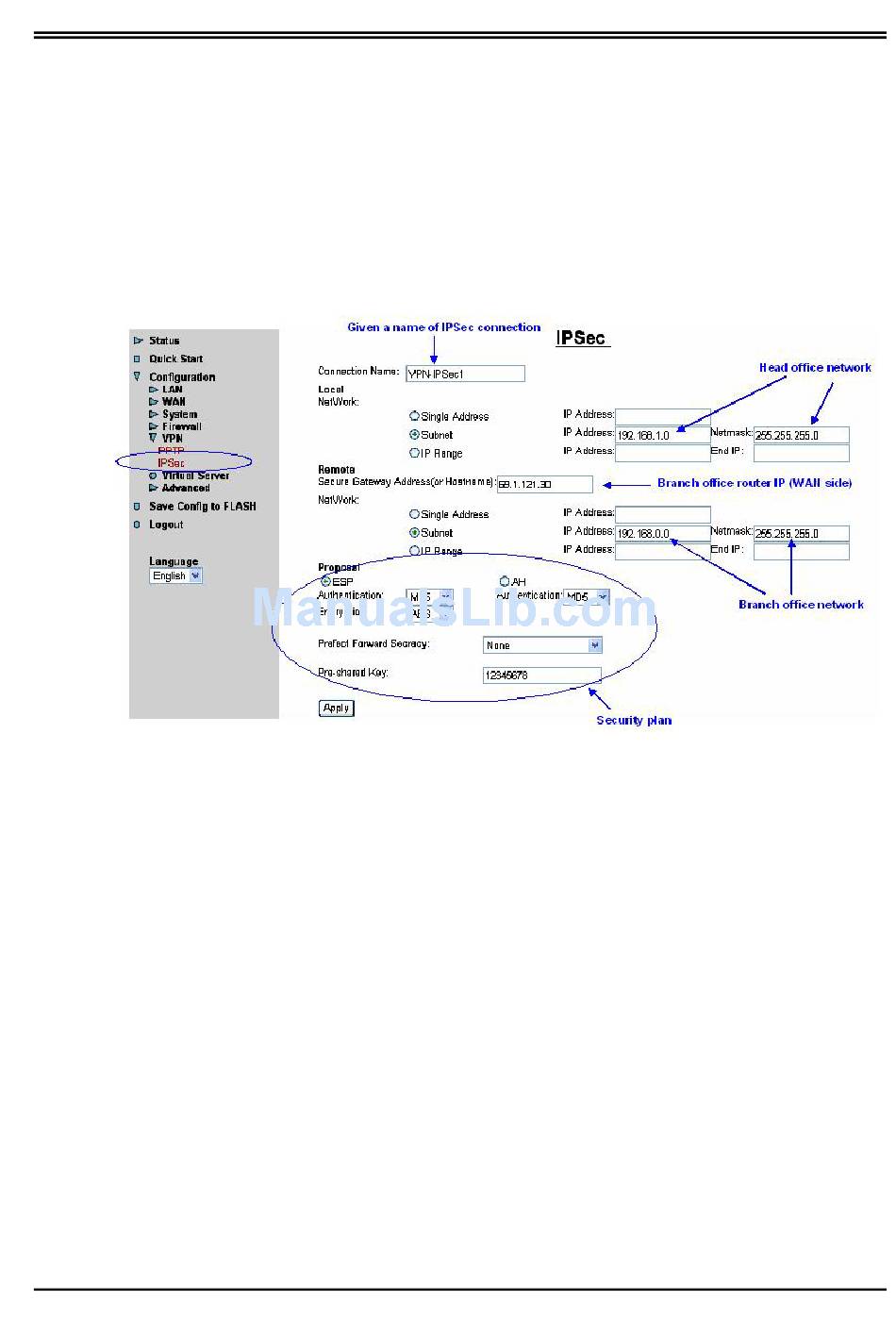

Configuring IPSec VPN in the Head Office
The local subnet (head office) is set as 192.168.1.0/24 (with netmask 255.255.255.0),
while the remote subnet (branch office) is set as 192.168.0.0 (with netmask
255.255.255.0). The IP address 69.1.121.30 in "Secure Gateway Address" field is the
Public IP address of the router located in the branch office. If you have a domain name
assigned to this IP address - either you registered the DDNS (please refer to the DDNS
section), or you have a static IP with a domain name, you can also use the Hostname
instead of the IP address to reach the router. Set "Proposal" as ESP: MD5/AES, PFS as
None and pre-shared key as as12345678 according the pre-defined security plan.
Configuring IPSec VPN in the Branch Office
The local subnet (branch office) is set as 192.168.0.0/24 (with netmask 255.255.255.0),
while the remote subnet (head office) is set as 192.168.1.0 (with netmask
255.255.255.0). The IP address 69.1.121.3 in "Secure Gateway Address" field is the
Public IP address of the router located in the head office. If you have a domain name
assigned to this IP address - either you registered the DDNS (please refer to the DDNS
section), or you have a static IP with a domain name, you can also use the Hostname
instead of the IP address to reach the router. Set "Proposal" as ESP: MD5/AES, PFS as
None and pre-shared key as as12345678 according the pre-defined security plan.
