Chapter 3 Configuration
Description: Give a name for this connection.
VPI and VCI: Enter the information provided by your ISP.
Encapsulation method: Select the protocol format, the default is LlcBridged. Select the
one provided by your ISP.

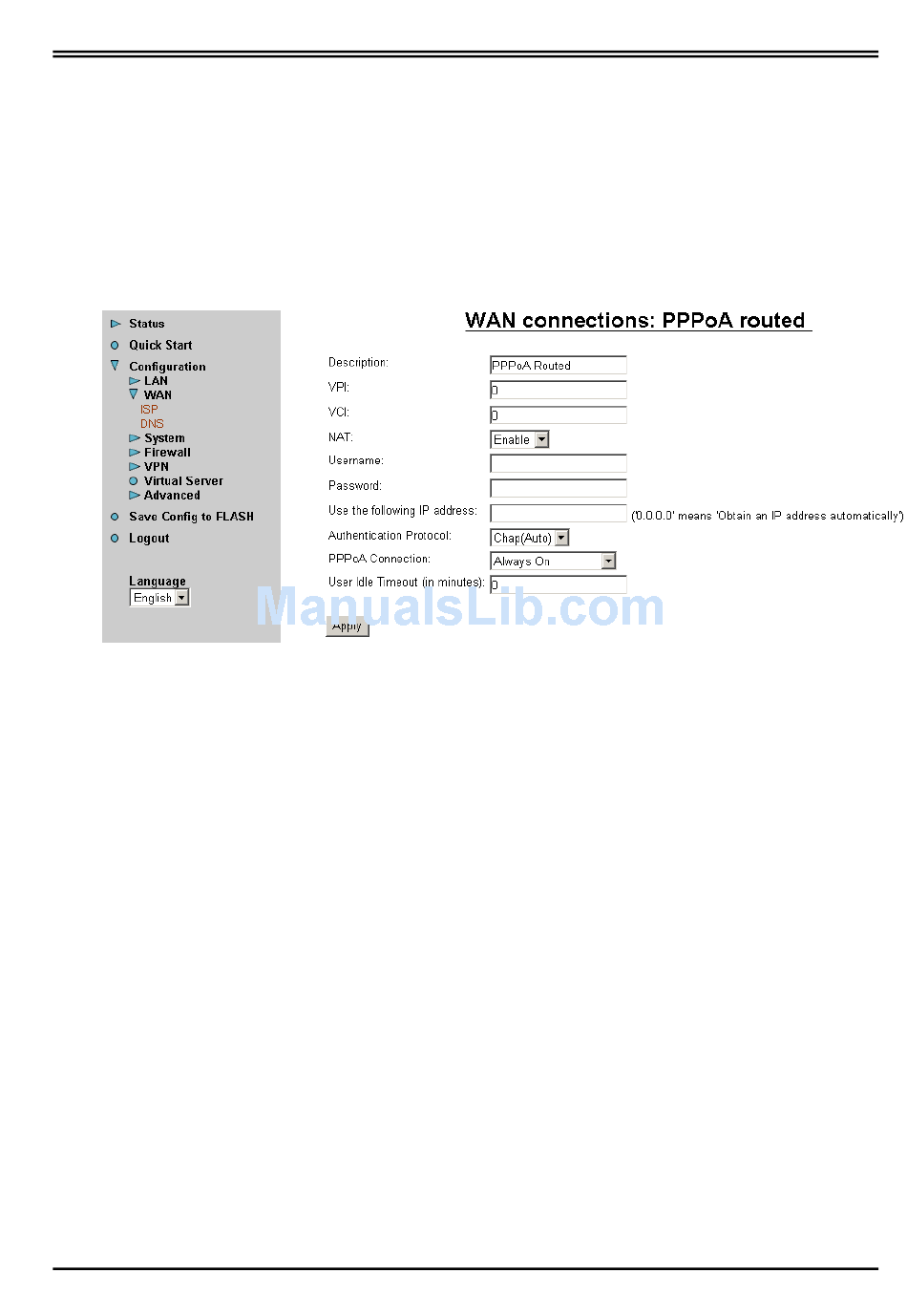

3.6.3.2.1.4 PPPoA routed

Description: Give a name for this connection.
VPI/VCI: Enter the information provided by your ISP.
NAT: The NAT feature allows multiple users to access the Internet through a single IP
account, sharing the single IP address. If users in the LAN site have public IP
addresses and can access the Internet directly, the NAT function can be disabled.
Username: Enter the username provided by your ISP. You can input up to 128
alphanumeric characters (case sensitive).
Password: Enter the password provided by your ISP. You can input up to 128
alphanumeric characters (case sensitive).
Service Name: This item is for identification purpose. If it is required, your ISP will
provide you the information. Maximum input is 20 alphanumeric characters.
Use the following IP address: If your ISP gives you a fixed IP address through PPPoA,
input the IP address on this field.
Authentication Protocol Type: Default is Auto.
PPPoA connection: This item provides 2 options.
¤ Always on: if you want to establish a PPPoA session when starting up. It will
