n Save Config to FLASH
Logout
n
Language (provides user interface in English language)
n
Click on the desired item to expand the page in the main navigation pane.

3.6.1 STATUS

The Status section provides and contains many items including device H/W and S/W
information, LAN, WAN, Port status and all defined interfaces. It also provides useful
information for users to review the status of the device.

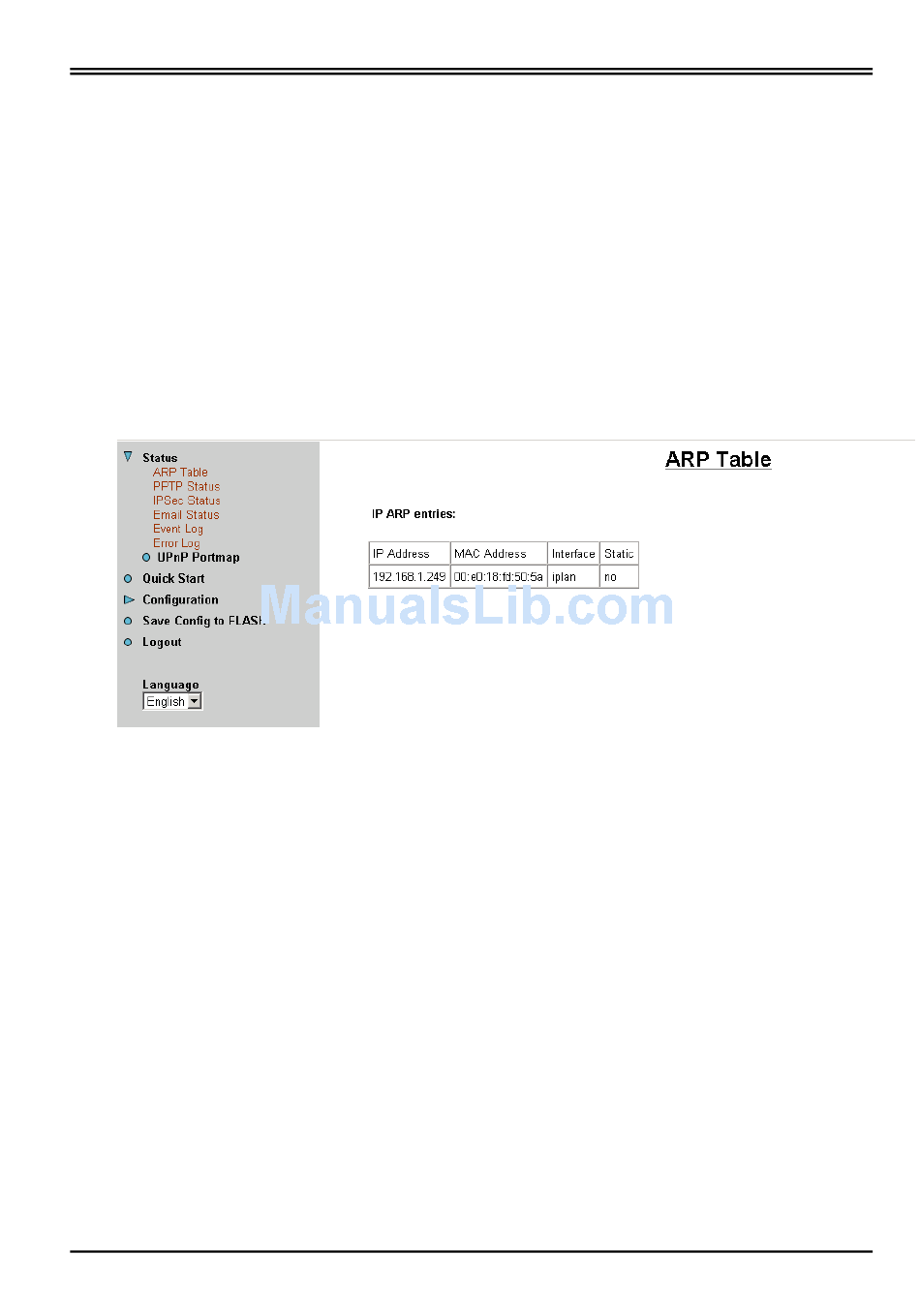

ARP Table - you will see the data of the IP address of each PC in your LAN as well as
its associated MAC address.
PPTP Status - it gives you a quick overview of the PPTP connection status.
IPSec Status - it gives you a quick overview of the IPSec connection status.
Email Status - it gives you a quick view to know if there is email in your pre-defined
email account. You will see the unread emails in the email server once you have
successfully configured the "Check Emails" in Configuration à Advance.
Event Log - it displays valuable system event logging information and status after the
power is turned on, such as ADSL line, WAN port, SNTP, Firewall, and etc.
Error Log - it shows the error message log. When you face a problem, please send this
error log to support for quick feedback.
UPnP Portmap - it displays the Virtual Servers (or Port Mappings) that created by
UPnP protocol implemented in Windows.
