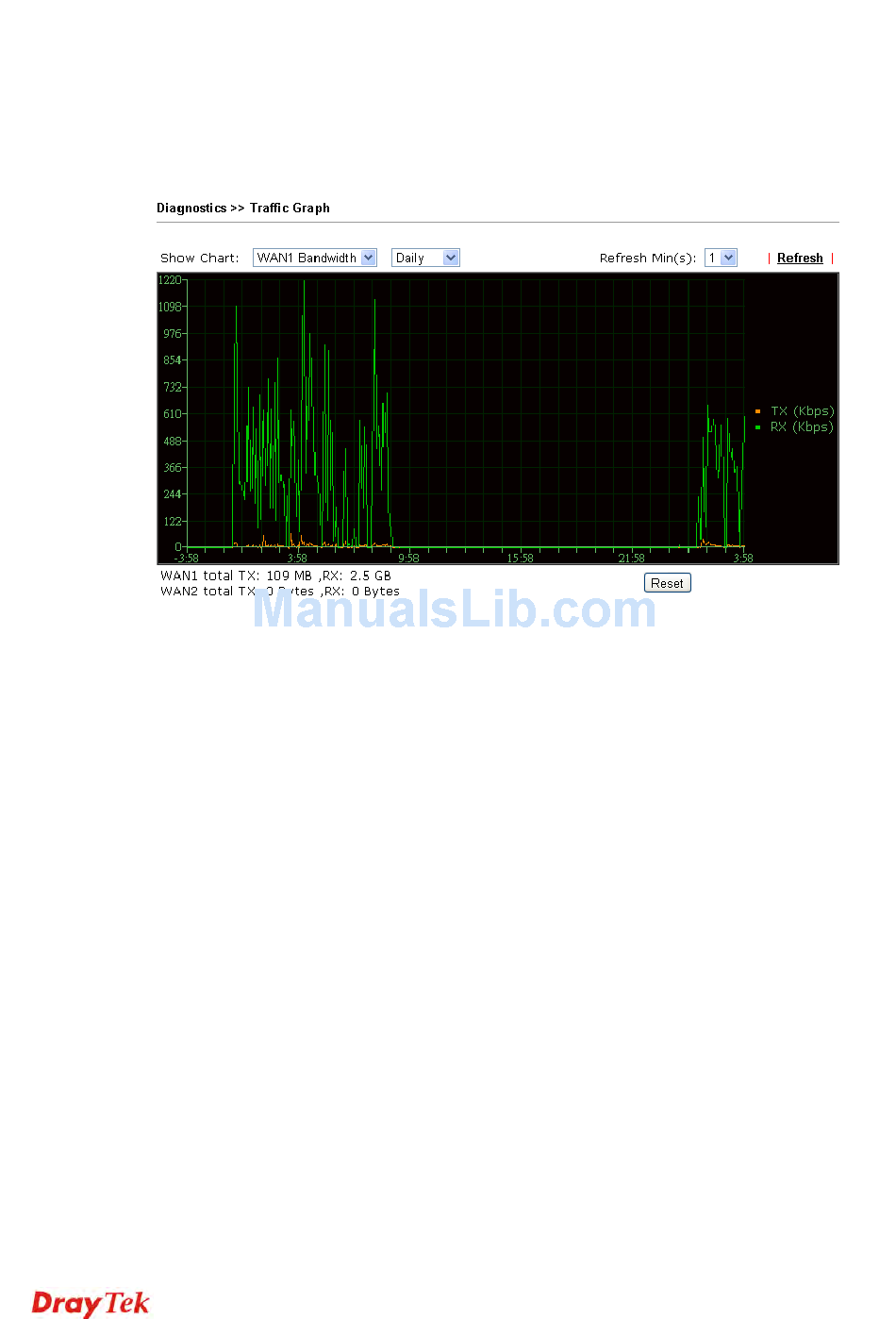

Click Diagnostics and click Traffic Graph to open the web page. Choose WAN1 Bandwidth,
Backup WAN Bandwidth, Sessions, daily or weekly for viewing different traffic graph. Click
Reset to zero the accumulated RX/TX (received and transmitted) data of WAN. Click Refresh
to renew the graph at any time.
The horizontal axis represents time. Yet the vertical axis has different meanings. For WAN1
Bandwidth chart, the numbers displayed on vertical axis represent the numbers of the
transmitted and received packets in the past.
For Sessions chart, the numbers displayed on vertical axis represent the numbers of the NAT
sessions during the past.
Vigor2120 Series User's Guide
