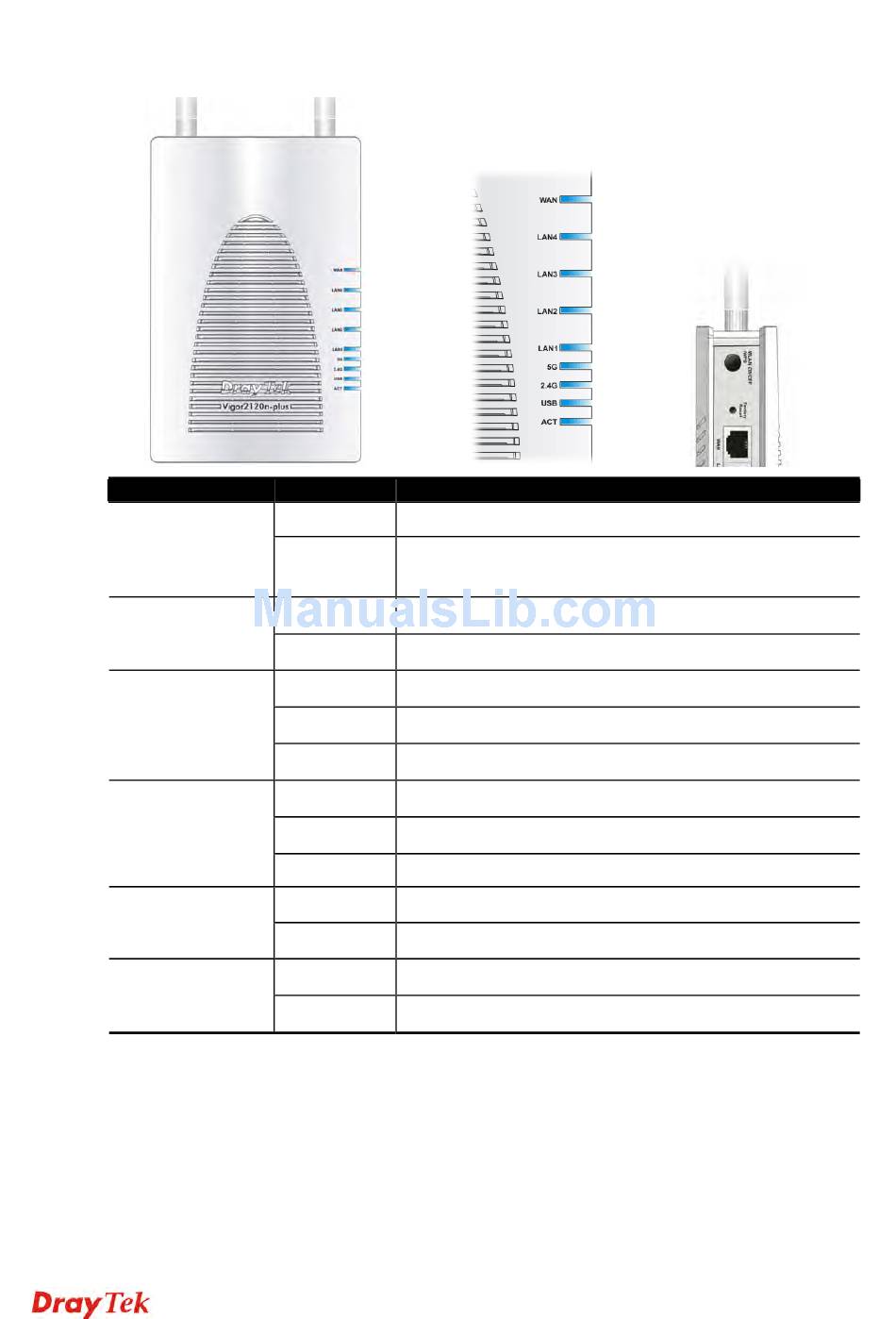

LED
ACT
USB
2.4G
5G
LAN 1 - 4
WAN
2 0 n - p l u s
2 0 n - p l u s
Status Explanation
Off The system is not ready or is failed.
Blinking The system is ready and can work normally.
On A USB device is connected and active.
Blinking The data is transmitting.
On Wireless function is ready.
Off Wireless function is not ready.
Blinking Data is transmitting (sending/receiving).
On Wireless function is ready.
Off Wireless function is not ready.
Blinking Data is transmitting (sending/receiving).
On A normal connection is through its corresponding port.
Off LAN is disconnected.
On The WAN port is connected.
Blinking It will blink while transmitting data.
