753/754

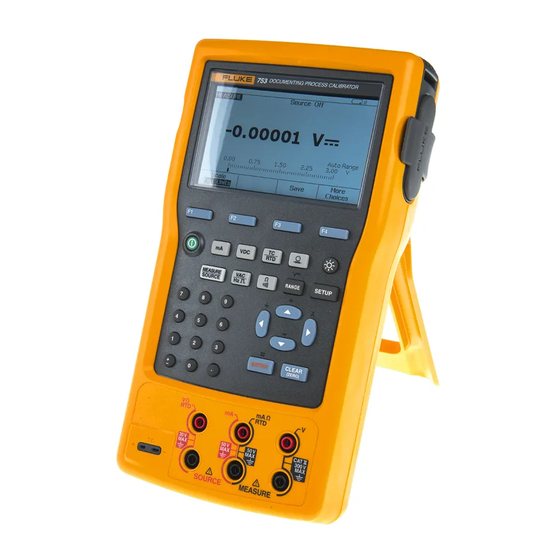

Documenting Process Calibrator
Users Manual
July 2011 Rev. 1, 8/12
© 2011-2012 Fluke Corporation. All rights reserved. Specifications are subject to change without notice.
All product names are trademarks of their respective companies.
MyFlukeStore
1.888.610.7664
www.
.com
Shop for Fluke products online at:

Advertisement

Table of Contents
loading

Related Manuals for Fluke 753

Summary of Contents for Fluke 753

  • Page 1 753/754 Documenting Process Calibrator Users Manual July 2011 Rev. 1, 8/12 © 2011-2012 Fluke Corporation. All rights reserved. Specifications are subject to change without notice. All product names are trademarks of their respective companies. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 2 LIMITED WARRANTY AND LIMITATION OF LIABILITY This Fluke product will be free from defects in material and workmanship for three years from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.

  • Page 3: Table Of Contents

    Table of Contents Title Page Introduction ........................1 How to Contact Fluke ..................... 1 Safety Information ......................2 Standard Equipment....................... 6 Functions ........................9 Get Started ........................11 Operation Features ......................13 Input and Output Jacks ....................13 Buttons ........................15 Display ........................
  • Page 4 4 to 20 mA Transmitter Simulation ................48 Supply Loop Power ....................50 Source Pressure ....................... 52 Thermocouple Simulation ..................55 RTD Simulation ......................56 Source Temperature with a Hart Scientific Drywell ........... 59 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 5 Save to and Recall from the Registers ..............88 Use the Calculator to Set the Source Value .............. 88 Quick Guide to Applications ................... 88 Communication with a PC ....................101 Maintenance ........................101 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 6 +DC Current Simulate (External Loop Power) ............111 Resistance Sourcing ....................111 Frequency Sourcing ....................112 Temperature, Thermocouples ................... 113 Temperature, Resistance Temperature Detectors ............ 116 Loop Power ....................... 117 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 7 RTD Types Accepted ......................39 Simultaneous MEASURE/SOURCE Functions with Loop Power Disabled ......67 Simultaneous MEASURE/SOURCE Functions with Loop Power Enabled ......68 Duration Limits ........................84 Replacement Parts ........................ 103 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 8 753/754 Users Manual MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 9: List Of Figures

    Edit the Date Format ......................27 Personalize the Product ......................28 Electrical Measurement Connections ..................31 Gage and Differential Pressure Modules ................33 Pressure Measurement Connections ..................35 Temperature Measurement with a Thermocouple ..............38 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 10 Memory Review Screen ......................83 Data Log Parameters Screen ....................83 Start Logging Screen ......................85 Min Max Screen ........................86 Chart Recorder Calibration ....................89 Voltage Drop Measurement ....................89 viii MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 11 Current Transmitter Calibration ................... 96 Vortex Sheding Flowmeter Check ..................97 HART and Analog RTD Transmitter Connections ..............98 Analog and HART Thermocouple Transmitter Connections ..........99 Transmitter HART- Comm Only .................... 100 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 12 753/754 Users Manual MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 13: Introduction

    Introduction The 753 and 754 Documenting Process Calibrators (the Product) are battery-powered, hand-held instruments that measure and source electrical and physical parameters. In  addition, the 754 supplies basic HART communicator functions when used with HART-capable transmitters. See the 754 HART Mode Users Guide for instructions on how to use the HART communication feature.

  • Page 14: Safety Information

    Do not apply more than the rated voltage, accessories that have the same between the terminals or between each measurement category, voltage, and terminal and earth ground. amperage ratings as the Product. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 15 • Use only cables with correct voltage • Always put the stackable end of the test ratings. lead into a terminal of the Product. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 16: Symbols

    Directive Annex I, this product is classed as category 9 "Monitoring and Control Instrumentation” product. Do not dispose of this product as unsorted municipal waste. Go to Fluke’s website for recycling information. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 17 German certifying body. CAT II equipment is designed to protect against transients from energy-consuming equipment supplied from CAT II the fixed installation, such as TVs, PCs, portable tools, and other household appliances. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 18: Standard Equipment

    Battery with integrated charger/power supply and HART communications cable (754) international adapters • Calibration Manual (available from Fluke’s website) • Printed multilingual 753/754 Getting Started Manual • Sample DPCTrack2 application software • 753/754 Manual CD containing multilingual Users • NIST-traceable Certificate of Calibration Manuals •...
  • Page 19 Test Lead Set (3 Red and 3 Black) 754-8016, Alligator Clip Set (3 Red and 3 Black) Strap TP220-1 Test Probe (3 Red and 3 Black) gks01f.eps Figure 1. Standard Equipment MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 20 753/754 Users Manual Battery Charger/Universal Power Supply USB Cable Lithium Ion Battery Pack 753/754 Getting Started DPCTrack2 HART Communication Cable 753/754 Manuals gks02f.eps Figure 1. Standard Equipment (cont) MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 21: Functions

    Automatic calibration procedures for transmitters and from one ramp increment to the next. limit switches when you use split screen For performance testing and calibration instructions, MEASURE/SOURCE mode. download the 753/754 Calibration Manual from Fluke’s website. MyFlukeStore 1.888.610.7664 www. .com...

  • Page 22: Summary Of Source And Measure Functions

    (250 Pa) to 0 to 10,000 psi (69,000 kPa) Loop Power 26 V [1] Use an external hand pump or other pressure source as a pressure stimulus for the source pressure function. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 23: Get Started

    (if the battery is outside of the Product, charge for display as shown in Figure 3. 5 hours). For more information, see “The Battery”. The Battery will only charge if the Product is off. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 24 753/754 Users Manual gks03f.eps Figure 2. Jumper Connections gks04s.bmp Figure 3. Measure/Source Example MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 25: Operation Features

    Use the battery charger for bench-top  applications where ac line power is available. USB port (Type 2) Connects the Product to a USB port on a PC.  MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 26 753/754 Users Manual gks05f.eps Figure 4. Input/Output Jacks and Connectors MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 27: Buttons

    Softkey DOCUMENTING PROCESS CALIBRATOR labels and other display text are shown in this manual in bold type, for example, Choices. gks06f.eps Figure 5. Buttons MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 28: Buttons

    (754) (754) Toggles between HART communication mode and analog operation. In calculator mode, this key supplies the square root function.  (753)  (753) Adjusts the Range of the Product. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 29 Toggles between ac voltage and frequency functions in MEASURE mode, or selects  frequency output in SOURCE mode. Numeric  Used when a numeric entry is necessary. keypad  Cycles the Product through MEASURE, SOURCE, and MEASURE/SOURCE modes.  MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 30: Display

    • Mode Indicator: Shows if the Product is in MEASURE or SOURCE mode. In split screen MEASURE/SOURCE mode, there is a Mode Indicator for each window. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 31 Documenting Process Calibrator Operation Features gks07c.eps Figure 6. Elements of a Typical Display MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 32: Elements Of A Typical Display

     Backlight Indicator  Source Status   Undamped (Unsettled) Indicator Custom Units Indicator  Secondary Value  Softkey Labels   Measured Value Mode Indicator  Status bar  MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 33: Strap And Stand

    Product on any sturdy support. Figure 7 also shows how to open the Stand to put the Product at an optimal sight angle for bench top use. gks8f.eps Figure 7. Stand Use and Strap Attachment MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 34: The Battery

    Connect the battery charger to the mains battery. power outlet before the Product. • To charge the battery while it is inside the Product: Use only Fluke approved power adapters to charge the battery. Turn the Product OFF. • Keep cells and battery packs clean and Connect the battery charger to the Product and keep it dry.

  • Page 35: Battery Charge Level

    Battery Charge Indicator. LEDs flash to show the charge level but also show that the battery is being recharged. As the battery charges, the LED flashes and moves to the top of the charge indicator. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 36: Users Manual

    753/754 Users Manual gks9f.eps Figure 8. Battery Removal and Charger Use MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 37: Preserve Battery Life

    Auto Battery Save operates the same when the To avoid damage to the Product, use only the battery charger is used. Battery that comes with the Product, Fluke model BP7240, part number 4022220. To turn on the Auto Battery Save feature: Where ac power is available, the battery charger can be used to conserve battery power and energize the Product.

  • Page 38: Display Languages

    Push  or  to highlight the language choice. Push  to confirm the language choice. This language is the power-up default. Push s to exit Setup mode. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 39 Setup mode. choose a setting for that parameter. For example, the display in Figure 10 is shown after you select Date Format. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 40: The Backlight

    Record the choice of timeout period in minutes (accepted range: 1 to 120 minutes). gks40s.bmp Push the Done softkey. Figure 11. Personalize the Product 10. Push the Done softkey or s to exit Setup mode. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 41: Measure Mode

    If the range is locked, overrange inputs show on the display as - - - - - -. In Auto Range, out of range is shown as ! ! ! ! ! !. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 42: Electrical Parameter Measurement

    20 Hz, push  to select the lower frequency range, and then push . Connect the test leads for your measurement function as shown in Figure 12. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 43 Documenting Process Calibrator Measure Mode – gks10f.eps Figure 12. Electrical Measurement Connections MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 44: Continuity Test

    When you do a continuity test, the beeper sounds and Many ranges and types of pressure modules are available from Fluke. See “Accessories”. Before you use a pressure Short is shown on the display when the resistance between module, read its instruction sheet. The modules are different the Ω...
  • Page 45 Use the pressure module only with gks11f.eps specified materials. See the printing on the Figure 13. Gage and Differential Pressure Modules pressure module or the pressure module instruction sheet for the acceptable material compatibility. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 46 Set the pressure units with  or . Push . Note Zeroing MUST be done before doing a task that Push the Done softkey. sources or measures pressure. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 47 Documenting Process Calibrator Measure Mode Isolation Valve Gage Module Differential Module Tank gks12c.eps Figure 14. Pressure Measurement Connections MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 48: Temperature Measurement

    If necessary, push  for MEASURE mode. Push t. Select TC. The display tells you to select the thermocouple type. Select the necessary thermocouple type using the  or  followed by . MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 49: Thermocouple Types Accepted

    [1] American National Standards Institute (ANSI) device negative lead (L) is always red. [2] International Electrotechnical Commission (IEC) device negative lead (L) is always white. [3] Not an ANSI designation but a Hoskins Engineering Company designation. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 50 753/754 Users Manual Process Temperature Warning 30 V maximum to TC Miniplug gks12f.eps Figure 15. Temperature Measurement with a Thermocouple MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 51: Resistance-Temperature Detectors (Rtds)

    Cu10 (427) 9.035 Ω Copper 0.00427 Ω/Ω/°C -100 to 260 100 Ω 0.003916 Ω/Ω/°C Pt100 (3916) Platinum -200 to 630 [1] Per IEC 751-Standard [2] 10 Ω @ 25 °C MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 52 Attach the RTD to input jacks as the display or Figure 14 shows. Use the supplied jumper between the mA Ω RTD MEASURE low jack and the V MEASURE low jack as shown if using a 3-wire connection. Push . MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 53 Push the Done softkey or s to exit Setup mode. If necessary, change between ITS-90 or IPTS-68 Temperature Scale in Setup mode. The procedure is the same as steps 1-7 above. gks14f.eps Figure 16. Correct Jumper Use MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 54 753/754 Users Manual Wire Wire Wire gks15f.eps Figure 17. Temperature Measurement with an RTD MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 55: Measurement Scale

    Percent of scale stays in effect until you change to a different measurement function or until you push the Scale softkey and select a different scale mode. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 56: Measure Or Source With Custom Units

    The measurement or source display can be setup to show The Fluke 700-IV Current Shunt is designed specifically for custom units. To do this, select a function, for example mV use with the 700 Series Documenting Process Products.

  • Page 57: Damping Measurements

     until SOURCE is shown. The Product damping method is a running average of the last eight must be in SOURCE mode to change any of the SOURCE measurements. Fluke recommends leaving damping on. parameters. Turning damping off may be useful when measurement...
  • Page 58 Product is powering a process Note instrument. To source loop power, use the Loop Power function accessible from Setup mode. If sourcing current, wait for the symbol to disappear before you use the output. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 59 Documenting Process Calibrator Source Mode Common Common gks16f.eps Figure 18. Electrical Source Connections MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 60: To 20 Ma Transmitter Simulation

    (top) mA jack as shown in Figure Note Also see “Transmitter Mode” in which the Product can be temporarily configured to replace a two-wire process transmitter. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 61 Documenting Process Calibrator Source Mode DOCUMENTING PROCESS CALIBRATOR Loop Power Supply – gks17c.eps Figure 19. Connections to Simulate a 4 to 20 mA Transmitter MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 62: Supply Loop Power

    RTD, and measure Ω functions are not Push . available (see Table 10.) Push the Done softkey. “LOOP” is shown on the display when Loop Power is in operation. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 63 Documenting Process Calibrator Source Mode DOCUMENTING PROCESS CALIBRATOR TEST DC PWR – + – – gks18c.eps Figure 20. Connections to Supply Loop Power MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 64: Source Pressure

    Many ranges and types of pressure modules are available module. from Fluke, see “Accessories”. Before you use a pressure • Always apply correct torque between the module, read its instruction sheet. The modules are different...
  • Page 65 Push  with the cursor on Pressure Units. zeroed before doing a task that sources or measures pressure. Select the pressure units with  or . Push . Push the Done softkey. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 66 753/754 Users Manual Pressure Module Hand Pump gks19c.eps Figure 21. Connections to Source Pressure MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 67: Thermocouple Simulation

    TC input/output. See Figure Temp.. After you record the external reference temperature, the Product corrects all voltages to adjust for this new reference junction temperature. If necessary, push  for SOURCE mode. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 68: Rtd Simulation

    Push  or  followed by  to select the necessary RTD type. The product tells you to use the keypad to enter the temperature to simulate. Input the temperature, and then push . MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 69 Documenting Process Calibrator Source Mode DOCUMENTING PROCESS CALIBRATOR TEST DC PWR Color depends – on type of TC TC Miniplug – gks20c.eps Figure 22. Connections to Simulate a Thermocouple MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 70 753/754 Users Manual gks21f.eps Figure 23. Connections to Simulate an RTD MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 71: Source Temperature With A Hart Scientific Drywell

    The Product will begin to search for a drywell. If the drywell to temperatures within the drywell spec, refer to the Product shows Attempting connection for more than drywell manual to check the "High Limit" setting. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 72 753/754 Users Manual Null Modem Drywell Fluke Interface Cable Drywell (DB9) Fluke 3.5 mm Interface Cable Fluke Drywell (3.5 mm) gks99f.eps Figure 24. Source Temperature with Drywell MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 73: Source Scale

    Use the numeric keypad to record the 0% of scale value (100% Value). value (0% Value). Push . Push . Push the Done softkey. Use the numeric keypad to record the 100% of scale value (100% Value). MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 74: Step And Ramp The Output Value

    Push the Step softkey. and connect the Product to the test circuit. Push the Auto Step softkey. If necessary, push  for SOURCE mode. Set the Product for the necessary source value. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 75: Ramp The Output

    To Push the Stop Step softkey to stop the automatic in continuity status (Open or Short) from one ¼ second step function. interval to the subsequent interval. Push the Done softkey to continue normal operation. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 76 See Figure 26. To automatically stop the Ramp function if a trip condition is sensed, set the Trip Detect to Enabled, and select Voltage or Continuity as the trip function. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 77 Documenting Process Calibrator Source Mode DOCUMENTING PROCESS CALIBRATOR Trip Relay Voltage Trip Detect Output – Input 4 – 20 mA – Source mA gks22c.eps Figure 26. Check a Relay Output Trip Alarm MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 78: Simultaneous Measure/Source

    • Auto Step, which can be used to set up the Product for auto-stepping, as given before. gks42s.bmp Figure 27. Measure and Source Screen MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 79: Simultaneous Measure/Source Functions With Loop Power Disabled

    • • • • • • • 3W RTD • • • • • • • • • • • • 4W RTD • • • • • • Pressure MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 80: Simultaneous Measure/Source Functions With Loop Power Enabled

    • • • • • • • • ac V • • • • • • Frequency (≥20 Hz) • • • • • Pressure • • • • • MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 81: Process Instrument Calibration

    Push  and  to select the thermocouple type. Push  to select then  to select Linear T source mode. Record a source value, for example 100 degrees, and then push . MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 82 11. Record values for 0% and 100% of 4.0 mA and 20.0 mA, in that sequence. Set Tolerance to 0.5% of 10. Push the As Found softkey, followed by the span. Instrument selection (). MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 83 Documenting Process Calibrator Process Instrument Calibration DOCUMENTING PROCESS CALIBRATOR TEST DC PWR – – Original Circuit Wiring Power – Supply gks23c.eps Figure 30. Calibrate a Thermocouple Temperature Transmitter MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 84 When you use custom units,  is shown next to the value on the display and in results. Push the Done softkey after the custom unit has been programmed. gks45s.bmp Figure 31. Calibration Parameters Screen MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 85 If necessary, push Abort to exit from the calibration procedure. The tests start at the first test point, sources the correct temperature and measures the corresponding current from the transmitter. gks47s.bmp Figure 33. Error Summary Screen MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 86: Transmitter Adjustment

    Examine the transmitter at 50 %. If it is in specification, Push the Done softkey after you review the results the adjustment is done. If not, adjust the linearity and summary. start this procedure again at step 3. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 87: As Left" Test Run

    Measure/Source displays are in engineering units. • The measurement percentage is automatically corrected for the transmitter’s square-root response, and is used to calculate instrument errors. gks48s.bmp Figure 34. As Left Data Screen MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 88: Switch Calibration

    Switch A • High limit or low limit Setpoint Switch A • Minimum deadband Open • Maximum deadband Switch A: Low Limit Switch B: High Limit gj24f.eps Figure 35. Switch Terminology MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 89 Push p for the pressure source function. 15. The next parameters, Deadband Min and Deadband Max, are optional. Do not set them in this example. These parameters would describe the minimum allowable size of the deadband. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 90 24. Exercise the switch by varying the applied pressure. Adjust the switch until the set point is correct. 25. Use the softkeys to control the Product, and adjust the switch as necessary. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 91: Transmitter Mode

    Push the applicable function key for the process input. only. Use a completely charged battery. Do not use the Product in place of a transmitter for Push  for SOURCE mode. extended periods. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 92: Memory Operations

    14. Push the Done softkey. The Product is now in Transmitter mode. It measures the process input and sources the control signal output proportional to the input. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 93 (Tag), instrument serial number (S/N), and Figure 36. operator name (ID), as shown in Figure 37. gks49s.bmp gks50s.bmp Figure 36. Saved Data Screen Figure 37. Additional Data Input Screen MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 94 , , , and  followed by . Push the Space softkey, followed by  to record a space character. When the entry is complete, push the Done softkey. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 95: Review The Memory

    Figure 39. Memory Review Screen gks53s.bmp Figure 40. Data Log Parameters Screen Push  or  and  or the Go to Result softkey to view a result that was kept. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 96: Duration Limits

    . The maximum duration will 8000 6 hours depend on the reading rate and how much memory is available to log data. 7980 4 hours 7980 2 hours MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 97 Push the Done softkey. The display changes to the logging duration can exceed the life of a screen shown in Figure 41. battery charge. gks54s.bmp Figure 41. Start Logging Screen MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 98: Record Min And Max Measurements

    Figure 42 shows the display with Min uploaded to a host computer that uses DPCTrack2 Max on. application software. See “Communication with a PC”. gks55s.bmp Figure 42. Min Max Screen MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 99: Run A Preloaded Task

    Push the Done softkey to start normal Product operation. • Results that have been kept • Min Max data • Log data sets A confirmation message is shown so that the memory is not accidently erased. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 100: Save To And Recall From The Registers

    Product functions to use for many different a calculation. applications. Push Store to copy the number from the calculator display (lower half) into REGISTER to temporarily save the number for later use, or into SOURCE. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 101 Documenting Process Calibrator Quick Guide to Applications Measure V DOCUMENTING PROCESS CALIBRATOR DOCUMENTING PROCESS CALIBRATOR Circuit Ω 0 to 1V dc Input gks25c.eps gks26c.eps Figure 44.Voltage Drop Measurement Figure 43.Chart Recorder Calibration MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 102 753/754 Users Manual Measure DOCUMENTING PROCESS CALIBRATOR gks27c.eps Figure 45. Monitor AC Line Voltage and Frequency MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 103 Documenting Process Calibrator Quick Guide to Applications Measure Pressure Source mA DOCUMENTING PROCESS CALIBRATOR Loop Power Disabled Pressure Module gks28c.eps Figure 46. Current-to-Pressure (I/P) Transmitter Calibration MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 104 Users Manual DOCUMENTING PROCESS CALIBRATOR Measure mA Loop Power Disabled TEST DC PWR – – Original Circuit Wiring Power – Supply gks29c.eps Figure 47. Output Current of a Transmitter Measurement MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 105 Documenting Process Calibrator Quick Guide to Applications Measure Resistance DOCUMENTING PROCESS CALIBRATOR Source DOCUMENTING PROCESS CALIBRATOR Resistance Circuit gks30c.eps gks31c.eps Figure 48. Precision Resistor Measurement Figure 49. Resistance Source MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 106 753/754 Users Manual Measure Measure Continuity Frequency DOCUMENTING PROCESS CALIBRATOR DOCUMENTING PROCESS CALIBRATOR gks32c.eps gks33c.eps Figure 50. Checking a Switch Figure 51. Tachometer Examination MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 107 Documenting Process Calibrator Quick Guide to Applications Measure mA Source Pressure Loop Power Enabled Pressure Module Hand Pump gks34c.eps Figure 52. Analog and HART Pressure Transmitter Connection MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 108 0 – 100mV, 1 – 5V, 0 – 1V, 0 – 10V Output 4 – 20 mA Input – Source mV or V gks35c.eps Figure 53. mV to Current Transmitter Calibration MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 109 Documenting Process Calibrator Quick Guide to Applications Measure Frequency DOCUMENTING PROCESS CALIBRATOR gks36c.eps Figure 54. Vortex Shedding Flowmeter Check MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 110 753/754 Users Manual – 2-Wire RTD= 3-Wire RTD= 4-Wire RTD= gks60.eps Figure 55. HART and Analog RTD Transmitter Connections MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 111 Documenting Process Calibrator Quick Guide to Applications – gks61.eps Figure 56. Analog and HART Thermocouple Transmitter Connections MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 112 753/754 Users Manual gks43.eps Figure 57. Transmitter HART- Comm Only MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 113: Communication With A Pc

    PC. A PC, Microsoft parts is available in the 75X Series Calibration  Windows, USB cable (supplied), and Fluke DPCTrack2 Manual available from the Fluke website. application software, or a qualified Fluke partner’s software are required. See the DPCTrack2 Users Manual Battery Replacement for further instructions.

  • Page 114: Calibration Data

    Be sure to pack the Warning Product securely, using the original shipping container if it is available. See “How to Contact Fluke” and the Warranty To avoid possible electric shock or personal Statement. injury, do not use the Product if it operates abnormally.

  • Page 115: Replacement Parts

    754HCC HART Communication Cable Assembly 3829410 AC280 Suregrip Hook Clip Set 1610115 TC Cap 4073631 Note: See “Standard Equipment” and “Accessories” for model or part numbers for most replaceable equipment. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 116: Accessories

    753/754 Users Manual • C700 Hard Carrying Case Accessories The Fluke accessories listed below are compatible with • BP7240 Li-Ion Battery the Product. For more information about these • TL series test leads accessories and their prices, contact a Fluke representative.
  • Page 117 FLUKE-700PD3 ±5 psi/0.0001 • FLUKE-700PD4 ±15 psi/0.001 • FLUKE-700PD5 -15/30 psi/0.001 • FLUKE-700PD6 -15/100 psi/0.01 • FLUKE-700PD7 -15/200 psi/0.01 • FLUKE-700P29 3000 psi/0.1 • FLUKE-700P30 5000 psi/0.1 • FLUKE-700P31 10000 psi/1 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 118: Specifications

    Relative Humidity (Maximum, non-condensing) ....90 % to 35 °C 75 % to 40 °C 45 % to 50 °C Standards and Agency Approval Specifications Protection Class ..............Pollution Degree II IP 52 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 119: Detailed Specifications

    Maximum Input Voltage: 300 V, IEC 61010 300 V CAT II Temperature coefficient: (0.001 % of reading + 0.001% of range) / °C (<18 °C or >28 °C) Normal mode rejection: >100 dB at 50 or 60 Hz nominal MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 120: Dc Voltage Measurement

    Maximum Input Voltage: 300 V, IEC 61010 300V CAT II Temperature coefficient: 5 % of specified accuracy / °C (<18 °C or >28 °C) Specifications apply for 9 % to 100 % of voltage range. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 121: Dc Current Measurement

    Temperature coefficient: 3 % of specified accuracy / °C (<18 °C or >28 °C) Continuity Testing Tone Resistance Continuous tone <25 Ω May or may not get tone 25 to 400 Ω No tone >400 Ω MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 122: Frequency Measurement

    For sourcing dc voltages <110.000 mV, accuracy is not specified in RF fields >1 V/m, 80 MHz to 700 MHz. Temperature Coefficient: 0.001 % of output + 0.001 % of range / °C (<18 °C or >28 °C) MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 123: Dc Current Source

    When connected to mains, accuracy is not specified with conducted RF >1V, 8 to 15 MHz. Add 0.01 Ω when the excitation current is <1 mA. Add 0.0015 kΩ when the excitation current is <0.1 mA. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 124: Frequency Sourcing

    Sine Wave Amplitude Accuracy, 0.1 to 1 kHz: 3 % p-p output + 75 mV, 1 kHz to 50 kHz: 10 % p-p output + 75 mV typical. Frequency specifications are valid when averaged ≥100 ms MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 125: Temperature, Thermocouples

    -200 to -100 -100 to 400 400 to 1200 1200 to 1372 -250 to -200 -200 to 0 0 to 400 600 to 800 800 to 1000 1000 to 1820 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 126 1200 to 1800 1800 to 2316 -200 to -100 -100 to 800 800 to 900 -200 to 0 0 to 600 0 to 1000 1000 to 2000 2000 to 2500 MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...
  • Page 127 Normal Mode Rejection: 65 dB at 50 Hz or 60 Hz nominal For sourcing thermocouple voltages, accuracy is not specified in RF fields >1 V/m, 80 MHz to 700 MHz. MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 128: Temperature, Resistance Temperature Detectors

    1 mA 0.1 to 10 mA Pt(3926) 100 to 630 0.02 % + 0.06 °C 0.04 % + 0.12 °C 0.0125 % + 0.04 °C 0.025 % + 0.08 °C MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

  • Page 129: Loop Power

    Pt(3926), Cu(427), Ni(672): Minco Application Aid #18 Loop Power Open Circuit Loaded Circuit 26 V ±10 % 18 V minimum at 22 mA Short circuit protected to 25 mA Output Resistance: 250 Ω nominal MyFlukeStore 1.888.610.7664 www. .com Shop for Fluke products online at:...

This manual is also suitable for:

754

Table of Contents
